arxiv: 2311.01277 · v2 · submitted 2023-11-02 · ✦ hep-th · cond-mat.soft

Self-dual solutions of a field theory model of two linked rings

Neda Abbasi Taklimi , Franco Ferrari , Marcin R. Piatek This is my paper

Pith reviewed 2026-05-24 05:22 UTC · model grok-4.3

classification ✦ hep-th cond-mat.soft
keywords self-dual solutionslinked polymer rings4-platGaussian linking numberanyon particlestopological constraintsfield theory modelenergy minima
0
0 comments X

The pith

Self-dual contributions to the field equations of two linked rings generate long-range interactions that preserve global topological properties during fluctuations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper connects a model of two linked polymer rings with fixed Gaussian linking number, arranged as a 4-plat, to the statistical mechanics of non-relativistic anyon particles, after turning off excluded-volume effects. It interprets the energy-minimizing field equations in the limit where one spatial dimension of the 4-plat becomes very large, showing that self-dual terms supply the long-range forces required to maintain overall topology while non-self-dual terms enforce local constraints that stop the polymer strands from breaking. The energy landscape is shown to be complex; under the approximation of constant monomer density on half the 4-plat, at least two energy minima appear. Classes of non-trivial self-dual solutions to the self-dual equations are constructed explicitly.

Core claim

In the field theory model of two linked rings forming a 4-plat with fixed Gaussian linking number, the self-dual contributions are responsible for the long-range interactions that preserve the global topological properties of the system, the non-self-dual part accounts for local interactions that prevent polymer-line breakage, and explicit classes of non-trivial self-dual solutions of the self-dual field equations are derived.

What carries the argument

The self-dual field equations obtained by minimizing the energy of the anyon-polymer model in the long-thin 4-plat limit.

If this is right

  • Self-dual solutions ensure that topological linking survives thermal fluctuations without explicit enforcement at every monomer.
  • The non-self-dual terms supply the short-range repulsion that keeps the polymer strands intact locally.
  • At least two distinct energy minima exist under the constant-density approximation, indicating multiple stable configurations of the linked rings.
  • The energy landscape is complex even after the excluded-volume interactions are removed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The explicit self-dual solutions could be used to compute partition functions for topologically constrained polymers without sampling the full configuration space.
  • Similar self-dual structures might appear in field-theoretic descriptions of other fixed-link polymer systems, such as knots or higher plat closures.
  • If the self-dual sector dominates the long-distance physics, then topological invariants could be protected by an underlying duality symmetry of the effective theory.

Load-bearing premise

Monomer densities on half of the 4-plat can be treated as constant in order to locate the energy minima.

What would settle it

A numerical minimization of the full polymer energy functional that finds no correspondence between the derived self-dual solutions and the actual minima would falsify the central claim.

Figures

Figures reproduced from arXiv: 2311.01277 by Franco Ferrari, Marcin R. Piatek, Neda Abbasi Taklimi.

Figure 1
Figure 1. Figure 1: The 4-plat in our parametrization. 2 Solvable example of topological entanglement We consider in this paper links formed in space by two concatenated polymer rings with the additional property that the paths of the rings have a fixed number of maxima and minima with respect to a particular direction, let’s say the direction of the z-axis; z will measure the “height”. In the case in which the link has a tot… view at source ↗
Figure 2
Figure 2. Figure 2: The cubic potential V℘(y) for ∆ > 0 and ∆ < 0 (cf. [9]). In cases 1. and 2. the Weierstrass function ℘ obeys the following half-period relations ℘(ω1) = e1, ℘(ω2) = e3, ℘(ω3) = e2, where ω3 ≡ ω1 + ω2. It is known how to derive real solutions of Eq. (3.91). As spotted in [9], Eq. (3.91) can be understood as the conservation of energy for the one-dimensional classical mechanical system, namely, for a point p… view at source ↗
Figure 3
Figure 3. Figure 3: The roots (3.102) for t = +1 as function of E [PITH_FULL_IMAGE:figures/full_fig_p020_3.png] view at source ↗
Figure 4

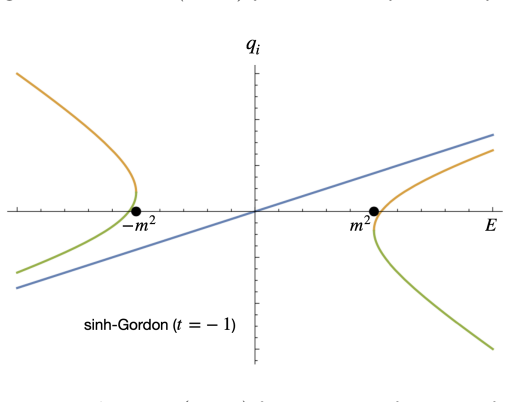

Figure 4. Figure 4: The roots (3.102) for t = −1 as function of E. unbounded solutions bounded solution y ∈ [e1, +∞) for ∆ > 0 y ∈ [e3, e2] for ∆ > 0 y ∈ [e2, +∞) for ∆ < 0 [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗

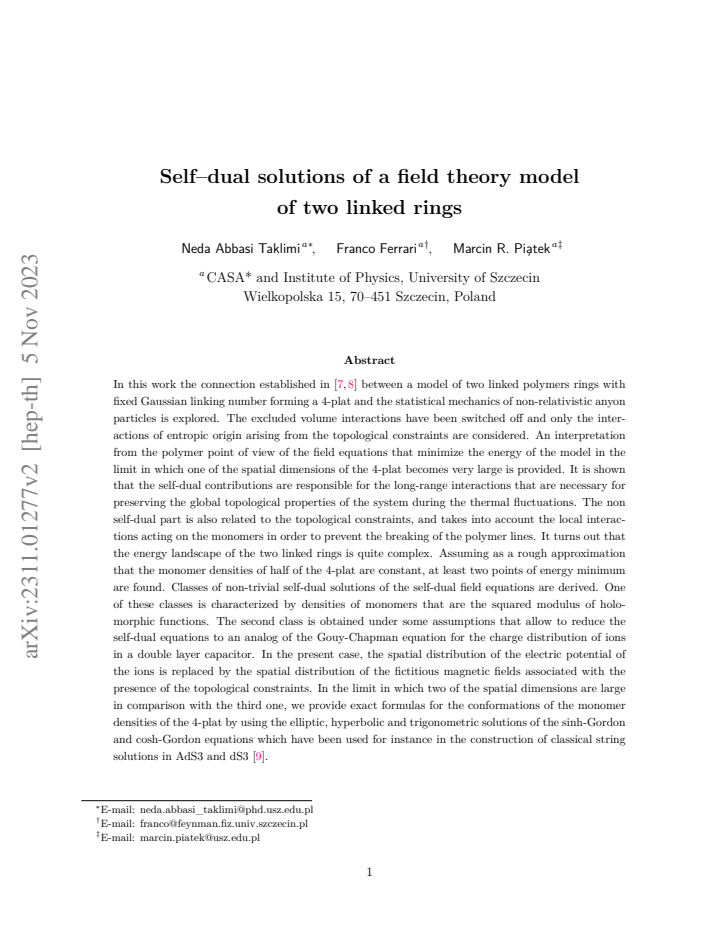

read the original abstract

In this work the connection established in [7, 8] between a model of two linked polymers rings with fixed Gaussian linking number forming a 4-plat and the statistical mechanics of non-relativistic anyon particles is explored. The excluded volume interactions have been switched off and only the interactions of entropic origin arising from the topological constraints are considered. An interpretation from the polymer point of view of the field equations that minimize the energy of the model in the limit in which one of the spatial dimensions of the 4-plat becomes very large is provided. It is shown that the self-dual contributions are responsible for the long-range interactions that are necessary for preserving the global topological properties of the system during the thermal fluctuations. The non self-dual part is also related to the topological constraints, and takes into account the local interactions acting on the monomers in order to prevent the breaking of the polymer lines. It turns out that the energy landscape of the two linked rings is quite complex. Assuming as a rough approximation that the monomer densities of half of the 4-plat are constant, at least two points of energy minimum are found. Classes of non-trivial self-dual solutions of the self-dual field equations are derived. ... .

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper explores the connection between a model of two linked polymer rings with fixed Gaussian linking number forming a 4-plat and the statistical mechanics of non-relativistic anyon particles, with excluded-volume interactions switched off. It interprets the field equations minimizing the energy in the limit where one spatial dimension of the 4-plat becomes large, attributing long-range interactions that preserve global topological properties to the self-dual contributions while relating the non-self-dual part to local interactions preventing polymer-line breaking. The energy landscape is characterized as complex; under the rough approximation of constant monomer densities on half the 4-plat, at least two energy minima are identified. Classes of non-trivial self-dual solutions of the self-dual field equations are derived.

Significance. If the results hold, the work would offer a field-theoretic bridge between topological polymer constraints and anyon statistics, with the explicit derivation of classes of self-dual solutions providing a concrete technical advance in solving the model's equations and clarifying the separation of long-range topological and local interaction effects.

major comments (1)
  1. [Abstract] Abstract: the claim that 'at least two points of energy minimum are found' rests on the unquantified 'rough approximation' that monomer densities of half the 4-plat are constant. No error estimates, sensitivity analysis, or comparison to non-constant profiles consistent with the topological constraints are provided, rendering this approximation load-bearing for the assertion that the energy landscape is complex and possesses identifiable minima.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful comments on our manuscript. We address the major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that 'at least two points of energy minimum are found' rests on the unquantified 'rough approximation' that monomer densities of half the 4-plat are constant. No error estimates, sensitivity analysis, or comparison to non-constant profiles consistent with the topological constraints are provided, rendering this approximation load-bearing for the assertion that the energy landscape is complex and possesses identifiable minima.

    Authors: The referee correctly notes that the identification of at least two energy minima rests on the constant-density approximation without quantitative error estimates, sensitivity analysis, or comparisons to non-constant profiles. We agree this approximation is load-bearing for the claim as stated. In the revised manuscript we will modify the abstract to qualify the result explicitly as holding under the stated rough approximation, and we will add a short paragraph in the main text discussing the limitations of the constant-density assumption together with its consistency with the topological constraints. These changes address the concern directly. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain.

full rationale

The paper takes the connection between the linked polymer rings model and anyon statistical mechanics as given from prior references [7,8] and then supplies an interpretation of the minimizing field equations in the large-dimension limit, demonstrates the role of self-dual terms in long-range topological preservation, locates approximate energy minima under the stated constant-density assumption, and derives classes of non-trivial self-dual solutions directly from the self-dual field equations. These steps are presented as explicit derivations and interpretations performed on the equations rather than tautological redefinitions, fitted inputs renamed as predictions, or results forced by self-citation chains. The self-citation supports the starting model but does not reduce the new claims to the inputs by construction, leaving the derivation chain self-contained.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the prior mapping to anyons established in [7,8], the self-dual structure of the field equations, and the constant-density approximation. No explicit free parameters are named, but the constant-density choice functions as an ad-hoc modeling assumption.

free parameters (1)
  • constant monomer density on half the 4-plat
    Used as rough approximation to locate at least two energy minima; value not specified.
axioms (2)
  • domain assumption The field equations minimize the energy of the model in the long-dimension limit of the 4-plat.
    Invoked to interpret the equations from the polymer viewpoint.
  • domain assumption Self-dual contributions produce the long-range interactions required to preserve global topology.
    Stated as shown in the work; central to separating long-range vs local effects.

pith-pipeline@v0.9.0 · 5756 in / 1575 out tokens · 45676 ms · 2026-05-24T05:22:23.853070+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking echoes
    ?
    echoes

    ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

    self-dual contributions are responsible for the long-range interactions that are necessary for preserving the global topological properties... reduce to the sinh-Gordon and cosh-Gordon equations... elliptic, hyperbolic and trigonometric solutions

  • IndisputableMonolith/Foundation/AlphaCoordinateFixation.lean costAlphaLog_fourth_deriv_at_zero echoes
    ?
    echoes

    ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

    energy... splitted... into a self-dual term and a term describing short-range interactions... minimized by the self-duality conditions (Du,d a,1 + i Du,d a,2) Ψu,d a = 0... cosh-Gordon equation

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

22 extracted references · 22 canonical work pages · 3 internal anchors

  1. [1]

    De Gennes,Exponents for the excluded volume problem as derived by the Wilson method, Phys

    P.G. De Gennes,Exponents for the excluded volume problem as derived by the Wilson method, Phys. Lett. A38 (1972) 339-340

    work page 1972

  2. [2]

    Des Cloizeaux,The Lagrangian theory of polymer solutions at intermediate concentrations, Journal de Physique, 1975, 36 (4), 281-291

    J. Des Cloizeaux,The Lagrangian theory of polymer solutions at intermediate concentrations, Journal de Physique, 1975, 36 (4), 281-291

    work page 1975

  3. [3]

    Emery,Critical properties of many-component systems, Phys

    V.J. Emery,Critical properties of many-component systems, Phys. Rev. B11 (1975), 239

    work page 1975

  4. [4]

    Schäfer, T.A

    L. Schäfer, T.A. Witten Jr,Renormalized field theory of polymer solutions. I. Scaling laws. Jour. Chem. Phys. 66 (5) (1977), 2121

    work page 1977

  5. [5]

    Y. Oono, T. Ohta, K.F. Freed,Application of dimensional regularization to single chain polymer static properties: Conformational space renormalization of polymers. III, J. Chem. Phys. 74 (1981), 6458

    work page 1981

  6. [6]

    Edwards,Statistical mechanics with topological constraints: II, Jour

    S.F. Edwards,Statistical mechanics with topological constraints: II, Jour. Phys. A: General Physics 1 (1) (1968), 15

    work page 1968

  7. [7]

    Ferrari,Topologically Linked Polymers are Anyon Systems, Phys

    F. Ferrari,Topologically Linked Polymers are Anyon Systems, Phys. Lett. A323 (2004) 351-359

    work page 2004

  8. [8]

    Ferrari, J

    F. Ferrari, J. Paturej, M. Pi¸ atek, Y. Zhao,Knots, links, anyons and statistical mechanics of entangled polymer rings, Nucl. Phys. B945 (2019) 114673

    work page 2019

  9. [9]

    On Elliptic String Solutions in AdS(3) and dS(3)

    I. Bakas, G. Pastras,On Elliptic String Solutions in AdS(3) and dS(3), JHEP07(2016)070, arXiv:1605.03920

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  10. [10]

    Summers,DNA Knots: Theory and Experiments, Prog

    D.W. Summers,DNA Knots: Theory and Experiments, Prog. Theor. Phys. Suppl. 191 (2011), 1

    work page 2011

  11. [11]

    Berger,Topological Quantities: Calculating Winding, Writhing, Linking, and Higher Order Invariants, In: Ricca, R

    M.A. Berger,Topological Quantities: Calculating Winding, Writhing, Linking, and Higher Order Invariants, In: Ricca, R. (eds) Lectures on Topological Fluid Mechanics. Lecture Notes in Mathematics, vol

    work page

  12. [12]

    Springer, Berlin, Heidelberg (2009)

    work page 2009

  13. [13]

    Aspects of Chern-Simons Theory

    G.V. Dunne,Aspects of Chern-Simons Theory, Les Houches Lectures 1998, hep-th/9902115

    work page internal anchor Pith review Pith/arXiv arXiv 1998

  14. [14]

    Self-Dual Chern-Simons Theories

    G.V. Dunne,Self-Dual Chern-Simons Theories, Lectures presented at the XIII-th International Symposium “Field Theory and Mathematical Physics”, Mt. Sorak, Korea (June-July 1994), hep-th/9410065

    work page internal anchor Pith review Pith/arXiv arXiv 1994

  15. [15]

    Jackiw, So-Young Pi,Classical and quantal nonrelativistic Chern-Simons theory, Phys

    R. Jackiw, So-Young Pi,Classical and quantal nonrelativistic Chern-Simons theory, Phys. Rev. D42, 3500 (1990)

    work page 1990

  16. [16]

    Quake, H

    S.R. Quake, H. Babcock, S. Chu,The dynamics of partially extended single molecules of DNA, Nature 388 (1997) 151

    work page 1997

  17. [17]

    Ferrari,The statistical mechanics of topological polymers: a field theorist point of view, Ann

    F. Ferrari,The statistical mechanics of topological polymers: a field theorist point of view, Ann. Phys., 514: 255-290 (2002), https://doi.org/10.1002/andp.20025140401. 26

    work page doi:10.1002/andp.20025140401 2002

  18. [18]

    Lima, C.A.S

    F.E.E. Lima, C.A.S. Almeida,Aspects of Kink-Like Structures in 2D Dilaton Gravity, Fortschritte der Physik, DOI:10.1002/prop.202300051

    work page doi:10.1002/prop.202300051

  19. [19]

    Stoetzel,Two-dimensional gravitation and Sine-Gordon-Solitons, Phys

    B. Stoetzel,Two-dimensional gravitation and Sine-Gordon-Solitons, Phys. Rev. D52 (1995) 2192-2201

    work page 1995

  20. [20]

    Anandarajah, J

    A. Anandarajah, J. Chen,Double-Layer Repulsive Force between Two Inclined Platy Particles According to the Gouy-Chapman Theory, Journal of Colloid and Interface Science 168 (1994), 111

    work page 1994

  21. [21]

    Gouy,Sur la constitution de la charge electrique a la surface d’un electrolyte, J

    M. Gouy,Sur la constitution de la charge electrique a la surface d’un electrolyte, J. Phys. Theor. Appl., 1910, 9 (1), 457-468

    work page 1910

  22. [22]

    Chapman,A contribution to the theory of electrocapillarity, Philos

    D.L. Chapman,A contribution to the theory of electrocapillarity, Philos. Mag. 25 (1913), 475. 27

    work page 1913
