arxiv: 2403.02780 · v9 · submitted 2024-03-05 · 💻 cs.LG · math.OC

Data Collaboration Analysis with Orthonormal Basis Selection and Alignment

Keiyu Nosaka , Yamato Suetake , Yuichi Takano , Akiko Yoshise This is my paper

Pith reviewed 2026-05-24 03:34 UTC · model grok-4.3

classification 💻 cs.LG math.OC
keywords data collaborationorthogonal Procrustesbasis alignmentprivacy-preserving learningmulti-party machine learninglinear projectionsorthonormal baseschange of basis
0
0 comments X

The pith

Enforcing orthonormal bases turns data collaboration alignment into a closed-form Orthogonal Procrustes solution that makes performance invariant to the target basis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to align linear projections from multiple private datasets without sharing the secret bases by requiring both secret and target bases to be orthonormal. This change converts the alignment step into the Orthogonal Procrustes problem, which has an exact solution, and produces change-of-basis matrices that achieve orthogonal concordance. Under this concordance every party's representation matches the others up to one shared orthogonal transformation, so the accuracy of any downstream model becomes independent of which target basis was selected. The method keeps the original one-round communication pattern and privacy guarantees while cutting alignment cost from quadratic to linear in the relevant dimensions.

Core claim

By selecting orthonormal secret and target bases, the resulting change-of-basis matrices achieve orthogonal concordance: all parties' representations are aligned up to a shared orthogonal transform. This renders downstream performance invariant to the target basis. Alignment reduces to the Orthogonal Procrustes problem and admits a closed-form solution that lowers complexity from O(min{a(cl)^2,a^2cl}) to O(acl^2).

What carries the argument

Orthonormal Data Collaboration (ODC) that forces orthonormal secret and target bases so that alignment becomes the Orthogonal Procrustes problem and yields orthogonal concordance.

If this is right

  • Alignment cost drops from quadratic to linear in the product of party count, common dimension, and local dimension.
  • Empirical wall-clock speedups reach 100 times on standard benchmarks while accuracy stays equal or improves.
  • One-round communication and the original privacy assumptions of data collaboration remain intact.
  • Downstream model performance no longer depends on the particular choice of target basis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The invariance property could let practitioners pick the numerically most stable orthonormal target basis without accuracy trade-offs.
  • The same orthonormal reduction might apply to other multi-party linear-projection schemes that currently solve alignment iteratively.
  • Because the method is a drop-in replacement, existing data-collaboration codebases can adopt it with minimal refactoring.

Load-bearing premise

Forcing orthonormality on the bases still spans the common subspace and leaves the original linear-projection semantics, information content, and privacy properties unchanged.

What would settle it

An experiment in which the same downstream model is trained on ODC-aligned data using two different orthonormal target bases and accuracy differs by more than numerical precision, or a dataset where the closed-form Procrustes solution fails to produce exact orthogonal concordance.

Figures

Figures reproduced from arXiv: 2403.02780 by Akiko Yoshise, Keiyu Nosaka, Yamato Suetake, Yuichi Takano.

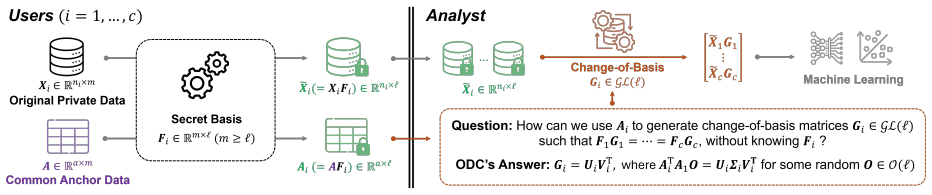

Figure 1
Figure 1. Figure 1: Conceptual illustration of the Orthonormal Data Collaboration (ODC) framework. Each participating user independently projects their [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visual privacy verification using CelebA [24]. Original images (panel (a)) compared to images after orthonormal projections (panel (b)) [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

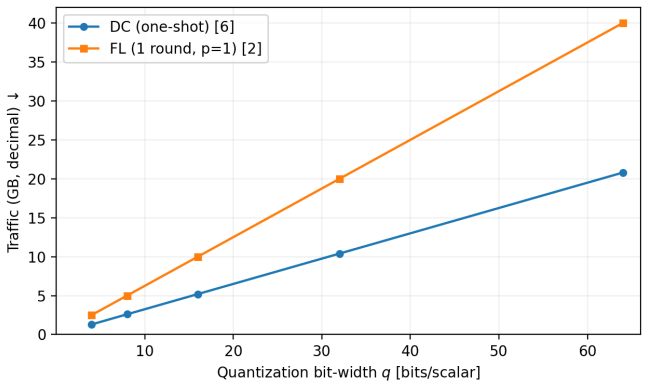

Figure 3
Figure 3. Figure 3: Absolute communication volume versus quantization bit-width [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Heatmaps of the threshold number of FL rounds [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Sensitivity curves for the break-even FL rounds [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

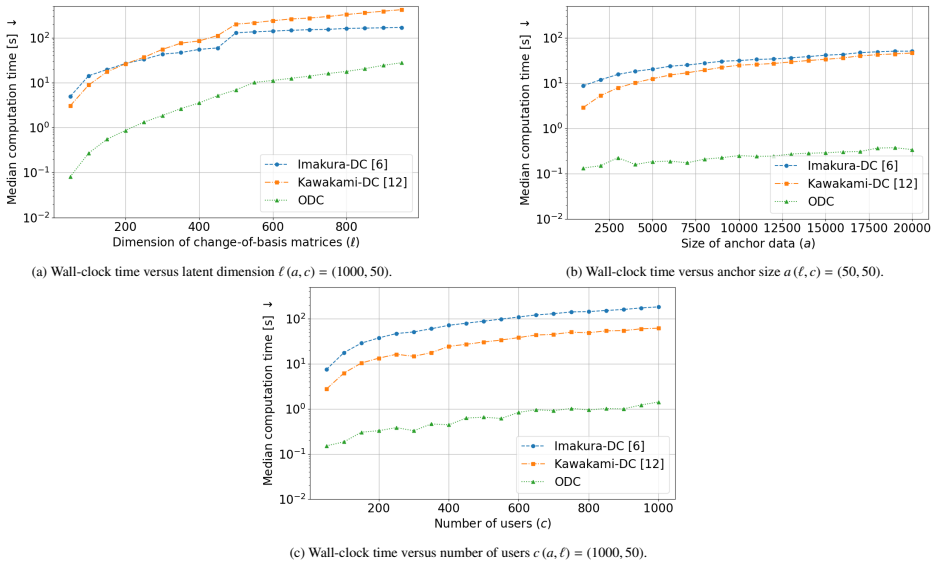

Figure 6
Figure 6. Figure 6: Wall-clock time with varying parameters ( [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Illustration of extremely heterogeneous splitting applied to TDC datasets. Binary-labeled data are partitioned across four users, each of [PITH_FULL_IMAGE:figures/full_fig_p028_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visual privacy analysis using CelebA. 29 [PITH_FULL_IMAGE:figures/full_fig_p029_8.png] view at source ↗
read the original abstract

Data Collaboration (DC) enables multiple parties to jointly train a model by sharing only linear projections of their private datasets. The core challenge in DC is to align the bases of these projections without revealing each party's secret basis. While existing theory suggests that any target basis spanning the common subspace should suffice, in practice, the choice of basis can substantially affect both accuracy and numerical stability. We introduce Orthonormal Data Collaboration (ODC), which enforces orthonormal secret and target bases, thereby reducing alignment to the classical Orthogonal Procrustes problem, which admits a closed-form solution. We prove that the resulting change-of-basis matrices achieve orthogonal concordance, aligning all parties' representations up to a shared orthogonal transform and rendering downstream performance invariant to the target basis. Computationally, ODC reduces the alignment complexity from O(min{a(cl)^2,a^2cl}) to O(acl^2), and empirical evaluations show up to 100 times speedups with equal or better accuracy across benchmarks. ODC preserves DC's one-round communication pattern and privacy assumptions, providing a simple and efficient drop-in improvement to existing DC pipelines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The manuscript introduces Orthonormal Data Collaboration (ODC) as an enhancement to standard Data Collaboration (DC). In DC, parties share only linear projections of private data and must align bases without revealing secret bases. ODC enforces orthonormal secret and target bases, reducing the alignment step to the classical Orthogonal Procrustes problem (closed-form SVD solution). The central claim is a proof that the resulting change-of-basis matrices achieve orthogonal concordance: all parties' representations become aligned up to a shared orthogonal transform, rendering downstream performance invariant to target-basis choice. The method preserves the original one-round communication pattern and privacy model, reduces alignment complexity from O(min{a(cl)^2,a^2 cl}) to O(acl^2), and reports empirical speedups up to 100x with equal or better accuracy on benchmarks.

Significance. If the proof of orthogonal concordance holds, the result supplies a theoretically grounded, drop-in improvement that directly resolves the practical sensitivity of DC to basis selection while adding no communication or privacy overhead. The reduction to a standard, parameter-free problem (Orthogonal Procrustes) and the explicit complexity improvement are clear strengths; the empirical speedups and accuracy parity across benchmarks further support utility. The work credits the classical Procrustes literature and maintains the one-round privacy assumptions of prior DC papers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive review and recommendation to accept. The referee's summary accurately reflects the contributions of Orthonormal Data Collaboration (ODC), including the reduction of alignment to the Orthogonal Procrustes problem, the orthogonal concordance property, complexity reduction, and preservation of the original privacy model.

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper proves that orthonormal secret and target bases reduce alignment to the classical Orthogonal Procrustes problem (an external, standard result in linear algebra) and yield change-of-basis matrices achieving orthogonal concordance. No equations or claims in the provided material reduce the result by construction to a fitted parameter, self-citation chain, or renamed input. The appeal to Procrustes is not load-bearing self-citation, and the one-round privacy model plus spanning-property preservation are stated without internal reduction to the target claim. The derivation is therefore independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, domain axioms, or invented entities are identifiable. The method relies on standard linear-algebra facts about orthonormal bases and the Orthogonal Procrustes problem.
