Towards Classical Software Verification using Quantum Computers

Sebastian Issel , Kilian Tscharke , Pascal Debus This is my paper

Pith reviewed 2026-05-24 02:22 UTC · model grok-4.3

classification 🪐 quant-ph cs.CRcs.ET
keywords quantum computingsoftware verificationSAT solvingQAOAformal verificationoptimizationGrover algorithm
0
0 comments X

The pith

Software verification for common errors can be mapped to optimization problems solvable by quantum algorithms with potential polynomial speedup.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper explores using quantum computers to verify classical programs against common errors by generating SAT instances that are satisfiable if the error exists. These instances are turned into optimization problems solved by quantum algorithms like QAOA, Grover, and QSVT. This method is demonstrated on small examples of errors such as out-of-bounds access and overflows, as well as synthetic cases. A reader would care because it suggests a way to make formal verification more efficient, potentially improving software security at scale.

Core claim

The authors establish that for a code snippet and an undesired behavior, a SAT instance can be generated that is satisfiable exactly when the behavior is present in the code; converting this to an optimization problem allows quantum computers to find a satisfying assignment using the Quantum Approximate Optimization Algorithm, an application of the Grover algorithm, and the Quantum Singular Value Transformation, with the potential of an asymptotically polynomial speedup.

What carries the argument

The pipeline that reduces program verification conditions to optimization problems solved on quantum hardware via QAOA and related quantum algorithms.

Load-bearing premise

That the optimization problems generated from realistic code verification instances can be solved efficiently by near-term quantum algorithms rather than requiring fully fault-tolerant quantum computers.

What would settle it

Demonstrating a realistic verification instance where the quantum optimization approach requires exponential resources or shows no advantage over classical SAT solvers would falsify the speedup claim.

Figures

Figures reproduced from arXiv: 2404.18502 by Kilian Tscharke, Pascal Debus, Sebastian Issel.

Figure 1
Figure 1. Figure 1: Convergence of QAOA and VQE for different solver and ansatz. [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Convergence of RAO for different solver and ansatz. [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The used filters Fd,δ with different degree at δ = 1 10 . We see that a high degree is needed to amplify solutions, while also suppressing non-solutions. Smaller gaps would need even higher degree to be useful. To visualize how usable the approximation is, we introduce the following measure for a function f and gap δ. µf (δ) := |f(0)| 2 max ⌊δ−1⌋ j=1 |f(jδ)| 2 It measures how much a solution is amplified, … view at source ↗
Figure 4

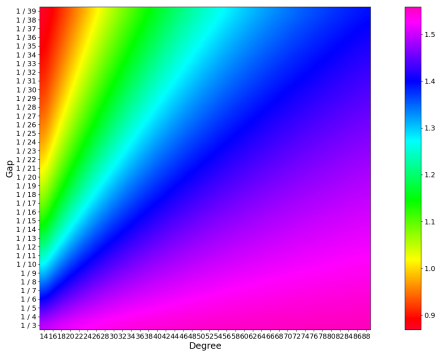

Figure 4. Figure 4: Heatmap of the quality of the approximation for the gap [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
read the original abstract

We explore the possibility of accelerating the formal verification of classical programs with a quantum computer. A common source of security flaws stems from the existence of common programming errors like use after free, null-pointer dereference, or division by zero. To aid in the discovery of such errors, we try to verify that no such flaws exist. In our approach, for some code snippet and undesired behaviour, a SAT instance is generated, which is satisfiable precisely if the behavior is present in the code. It is in turn converted to an optimization problem, that is solved on a quantum computer. This approach holds the potential of an asymptotically polynomial speedup. Minimal examples of common errors, like out-of-bounds and overflows, but also synthetic instances with special properties, specific number of solutions, or structure, are tested with different solvers and tried on a quantum device. We use the near-standard Quantum Approximation Optimisation Algorithm, an application of the Grover algorithm, and the Quantum Singular Value Transformation to find the optimal solution, and with it a satisfying assignment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript explores accelerating formal verification of classical programs by reducing checks for errors (e.g., use-after-free, null dereference) to SAT instances, mapping those to optimization problems (Ising form), and solving via QAOA, Grover, and QSVT on quantum hardware or simulators. It reports tests on minimal synthetic examples of out-of-bounds/overflow errors and instances with controlled solution counts or structure, while asserting potential for an asymptotically polynomial speedup.

Significance. If the mapping preserves quantum advantage and the speedup claim is substantiated with scaling analysis, the work would establish a concrete application domain for near-term quantum optimization in software security and formal methods. The reliance on standard, externally grounded reductions from program analysis to SAT to Ising is a methodological strength; however, the current lack of runtime data or scaling results prevents assessing whether this potential is realized beyond toy cases.

major comments (2)
  1. [Abstract] Abstract: the assertion that the approach 'holds the potential of an asymptotically polynomial speedup' is unsupported; no query-complexity derivation, gate-count analysis, or comparison (e.g., Grover O(sqrt(N)) versus CDCL scaling on verification-derived n-variable SAT instances) is provided anywhere in the manuscript.
  2. [Experimental evaluation] Experimental evaluation section: only 'minimal examples' and 'synthetic instances' are stated to have been tested with 'different solvers' and 'tried on a quantum device,' yet no quantitative metrics, success probabilities, iteration counts, or problem-size scaling data are reported, leaving the tractability assumption for realistic verification instances unexamined.
minor comments (2)
  1. [Approach] The description of the SAT-to-Ising conversion step would benefit from an explicit equation or pseudocode block showing how clauses are encoded into the objective function.
  2. [Figures/Tables] Figure captions and table headers (if present) should explicitly state the number of variables/clauses and the quantum backend used for each reported run.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion that the approach 'holds the potential of an asymptotically polynomial speedup' is unsupported; no query-complexity derivation, gate-count analysis, or comparison (e.g., Grover O(sqrt(N)) versus CDCL scaling on verification-derived n-variable SAT instances) is provided anywhere in the manuscript.

    Authors: We agree that the manuscript provides no explicit query-complexity derivation, gate-count analysis, or direct comparison against CDCL on verification-derived SAT instances. The phrase was intended to allude to the quadratic improvement possible with Grover search over unstructured enumeration, but we accept that this does not constitute a substantiated claim of asymptotic polynomial speedup. We will revise the abstract to remove the sentence and replace it with a more cautious statement that the approach maps verification to quantum optimization problems whose solution may benefit from known quantum speedups in search and optimization. revision: yes

  2. Referee: [Experimental evaluation] Experimental evaluation section: only 'minimal examples' and 'synthetic instances' are stated to have been tested with 'different solvers' and 'tried on a quantum device,' yet no quantitative metrics, success probabilities, iteration counts, or problem-size scaling data are reported, leaving the tractability assumption for realistic verification instances unexamined.

    Authors: The experimental section was deliberately limited to minimal synthetic cases to demonstrate that the SAT-to-Ising mapping is well-defined and that standard quantum algorithms can be applied. No claim is made about tractability on realistic verification instances, and the text does not assert that such instances are currently solvable. We will add the available quantitative data (success probabilities and iteration counts from the simulator runs) to the revised manuscript while explicitly stating that these results are illustrative only and that scaling behavior remains open. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation relies on standard external reductions

full rationale

The manuscript describes a standard pipeline (program errors → SAT instance → Ising optimization) solved via QAOA/Grover/QSVT on minimal synthetic examples. No derivation step reduces a claimed result (such as the asserted potential for polynomial speedup) to its own inputs by construction, fitted parameters renamed as predictions, or load-bearing self-citations. The speedup statement is an unsupported assertion rather than a self-referential derivation, and the approach is externally grounded in known SAT-to-Ising mappings and quantum algorithms without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard quantum computing primitives and classical reductions without introducing new fitted parameters or postulated entities.

axioms (1)
  • domain assumption Quantum algorithms (QAOA, Grover, QSVT) can be executed on available hardware or simulators to solve the generated optimization instances.
    Invoked when stating that the optimization problem is solved on a quantum computer.

pith-pipeline@v0.9.0 · 5712 in / 1039 out tokens · 20610 ms · 2026-05-24T02:22:27.061258+00:00 · methodology
