Entanglement and fidelity across quantum phase transitions in locally perturbed topological codes with open boundaries

Harikrishnan K J , Amit Kumar Pal This is my paper

Pith reviewed 2026-05-24 01:55 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.stat-mechcond-mat.str-el
keywords quantum phase transitionfidelity susceptibilityentanglement witnessKitaev codetopological codeIsing modelopen boundariescolor code
0
0 comments X

The pith

Perturbed Kitaev codes on open cylinders undergo quantum phase transitions marked by power-law diverging fidelity susceptibility and logarithmically diverging entanglement witnesses.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines topological-to-non-topological quantum phase transitions in the Kitaev code embedded on a wide cylinder with open boundaries under local magnetic fields and Ising-type spin interactions. Fidelity susceptibility is shown to diverge as a power law at these transitions, with quantum critical points located through finite-size scaling analysis. The results are verified by mapping the perturbed code exactly to the two-dimensional Ising model with nearest- and next-nearest-neighbor interactions and computing single-site magnetization as an order parameter via quantum Monte Carlo, while also revealing an odd-even dichotomy in the occurrence of transitions for odd versus even circumferences under pure Ising perturbation. A local entanglement witness operator is constructed to bound localizable entanglement on the vertical non-trivial loop, and its first derivative is shown to diverge logarithmically at the transition, with finite-size scaling performed; the same pattern appears in the locally perturbed color code.

Core claim

In locally perturbed topological codes with open boundaries, the fidelity susceptibility displays a power-law divergence across the quantum phase transition, enabling location of the quantum critical points via finite-size scaling. This is verified by an exact mapping to the two-dimensional Ising model with nearest- and next-nearest-neighbor interactions, where single-site magnetization computed by quantum Monte Carlo serves as an independent order parameter locating the same points. The first derivative of the expectation value of a local entanglement witness operator designed to capture a lower bound to localizable entanglement on the vertical non-trivial loop exhibits a logarithmic diver

What carries the argument

The exact mapping of the perturbed Kitaev code on the cylinder to the 2D Ising model with nearest- and next-nearest-neighbor interactions, which supplies an independent order parameter (single-site magnetization) computed by quantum Monte Carlo to confirm the critical points found from fidelity susceptibility.

If this is right

  • Quantum critical points are located by finite-size scaling of the power-law divergence in fidelity susceptibility.
  • An odd-even dichotomy appears in the Kitaev ladder: the quantum phase transition occurs only for odd or even values of the circumference under pure Ising perturbation.
  • The topological phase exhibits higher robustness against local perturbations when one boundary direction is left open.
  • The first derivative of the local entanglement witness expectation value diverges logarithmically at the transition, and the same divergence pattern holds for the perturbed color code.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The local witness construction may be adapted to bound entanglement across transitions in other stabilizer codes or lattice gauge theories.
  • The reported increase in robustness with open boundaries suggests that boundary engineering could raise effective noise thresholds in topological quantum memories.
  • Finite-size scaling of both fidelity susceptibility and witness derivatives could be applied to locate transitions in higher-dimensional or non-stabilizer topological models where exact mappings are unavailable.

Load-bearing premise

The locally perturbed Kitaev code on the cylinder can be exactly mapped to the 2D Ising model with nearest- and next-nearest-neighbor interactions so that magnetization locates the same critical points.

What would settle it

A direct computation in which the quantum critical points obtained from finite-size scaling of fidelity susceptibility fail to coincide with those obtained from single-site magnetization in the mapped Ising model.

Figures

Figures reproduced from arXiv: 2405.00416 by Amit Kumar Pal, Harikrishnan K J.

Figure 1
Figure 1. Figure 1: FIG. 1. Kitaev code defined on the (a) square and the (b) triangular lattices with open (periodic) boundary condition along the vertical [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

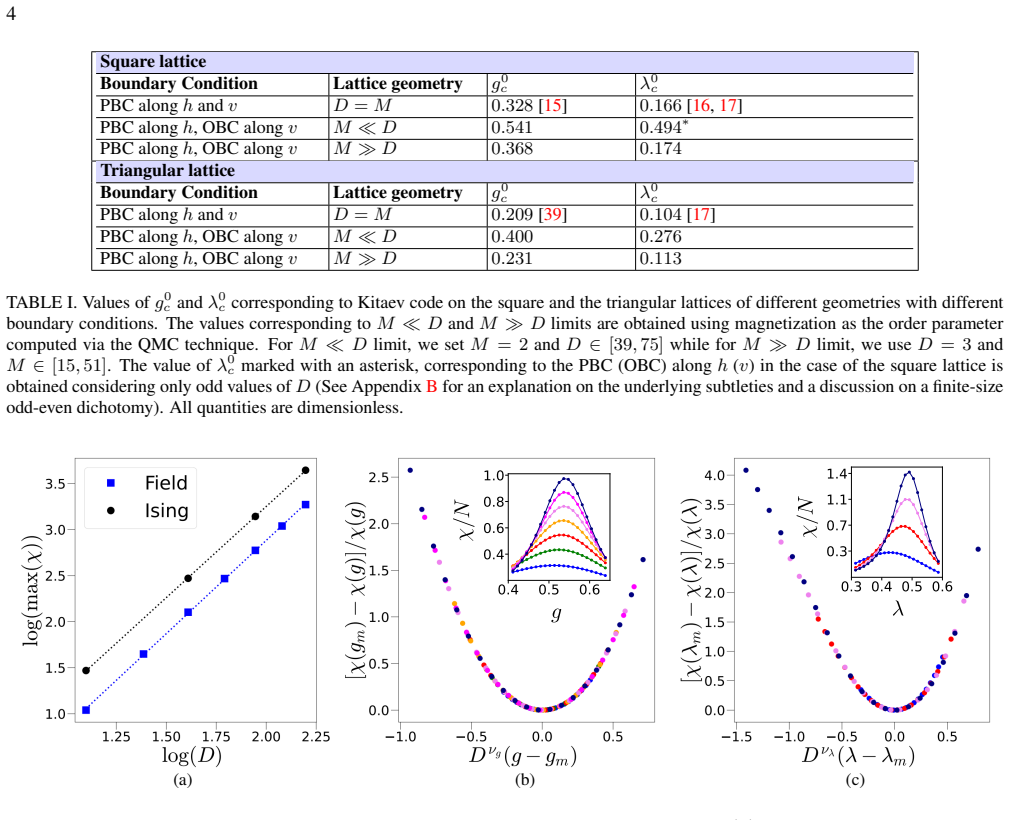

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

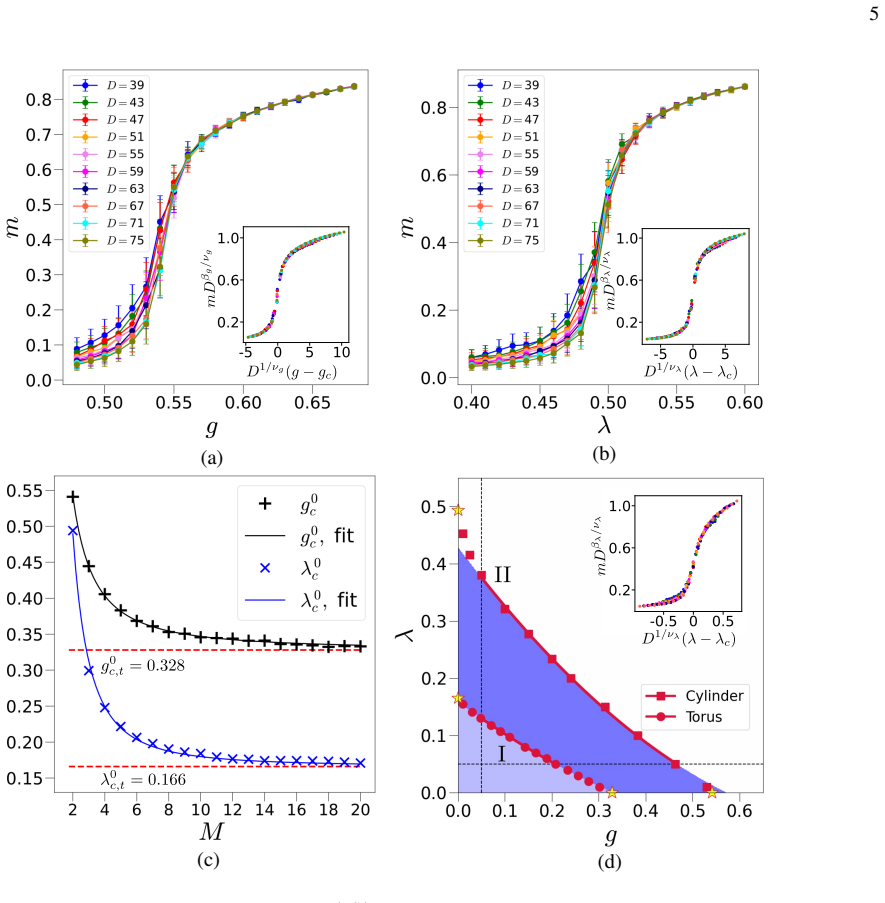

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

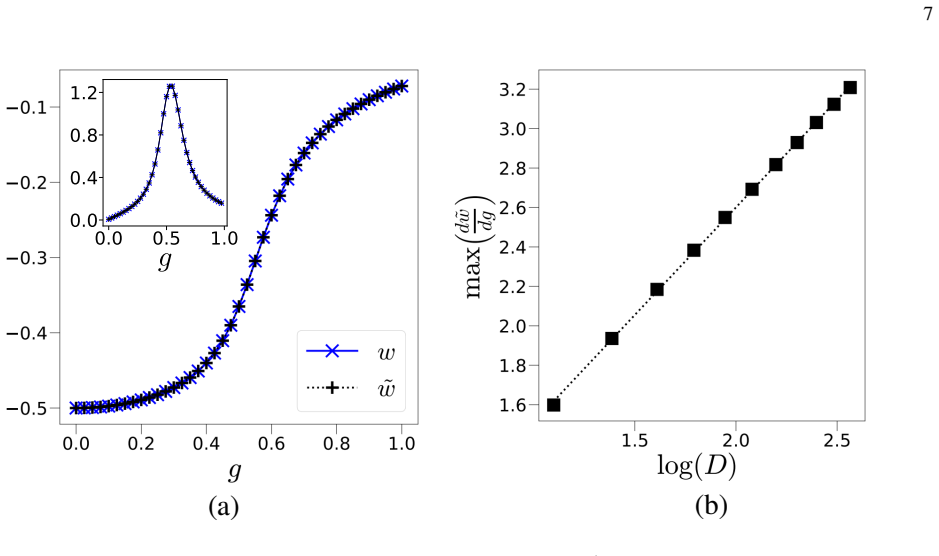

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

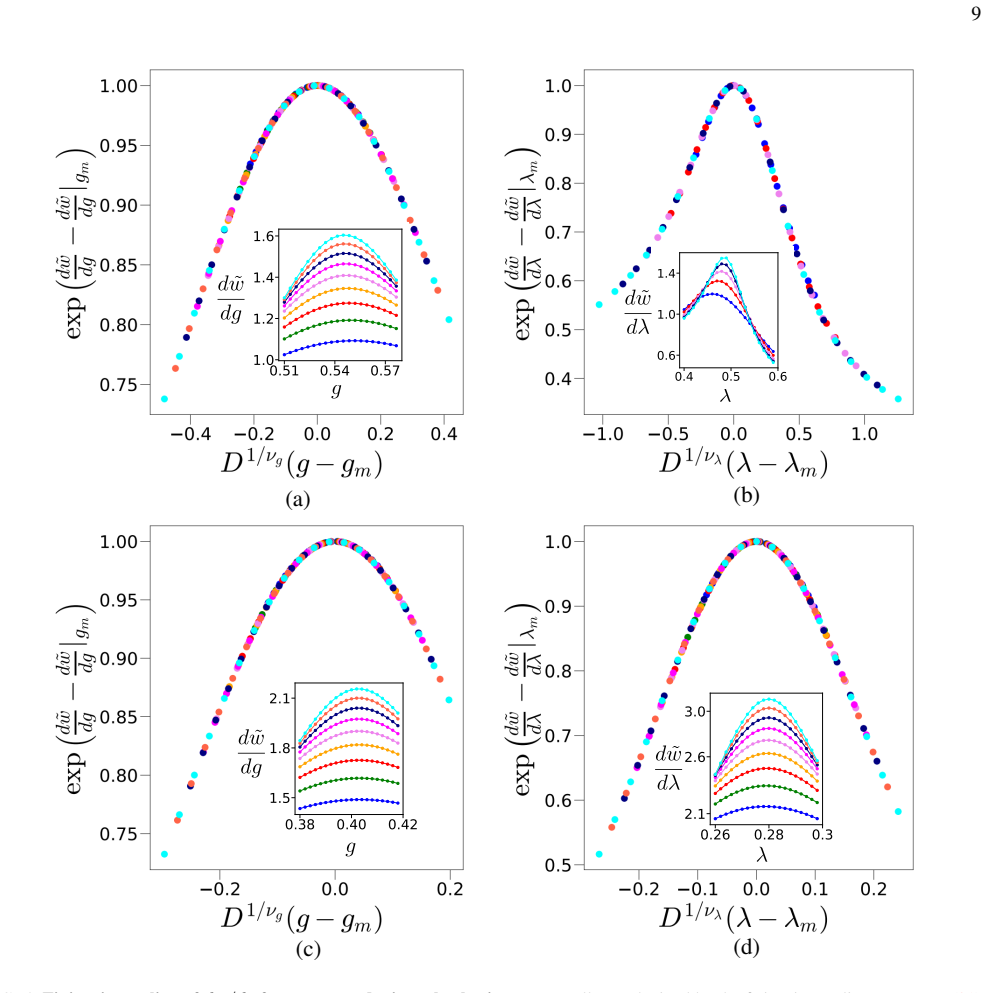

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Color code defined on the (a) honeycomb and the (b) square-octagonal lattices with open (periodic) boundary condition along the [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

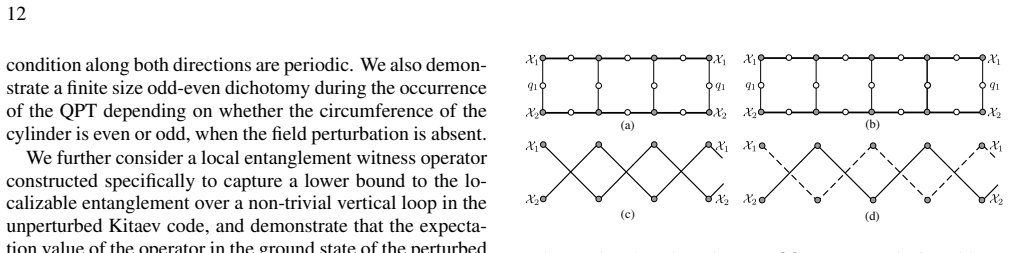

Figure 7
Figure 7. Figure 7: FIG. 7. Kitaev’s toric code on an [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

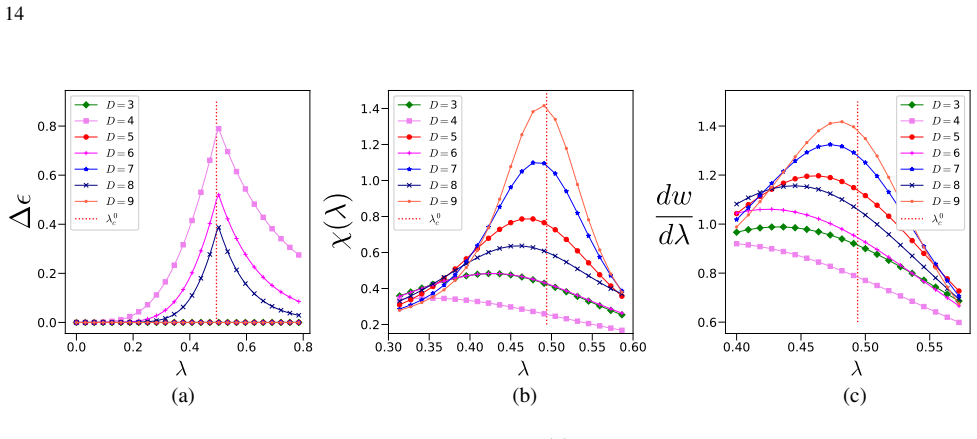

Figure 8
Figure 8. Figure 8: FIG. 8. Variations of the (a) energy gap, [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

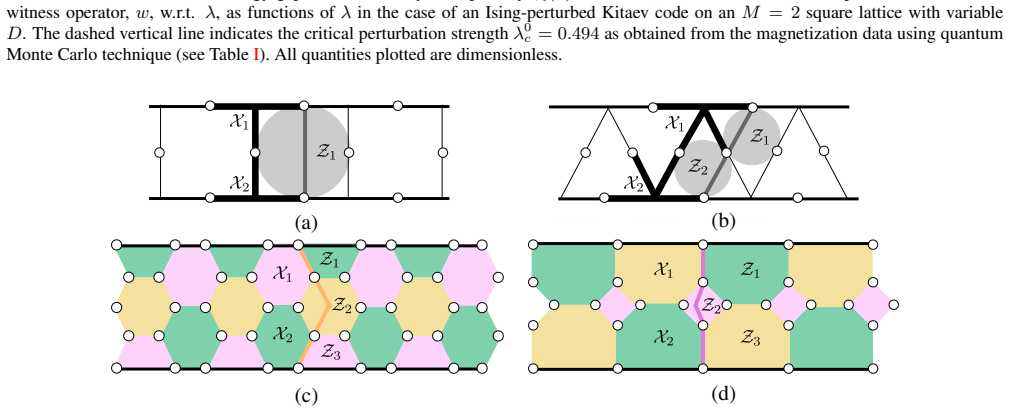

Figure 9
Figure 9. Figure 9: FIG. 9. Construction of witness operators corresponding to (a) Kitaev code on square lattice with [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
read the original abstract

We investigate the topological-to-non-topological quantum phase transitions (QPTs) occurring in the Kitaev code under local perturbations in the form of local magnetic field and spin-spin interactions of the Ising-type using fidelity susceptibility (FS) and entanglement as the probes. We assume the code to be embedded on the surface of a wide cylinder of height $M$ and circumference $D$ with $M\ll D$. We demonstrate a power-law divergence of FS across the QPT, and determine the quantum critical points (QCPs) via a finite-size scaling analysis. We verify these results by mapping the perturbed Kitaev code to the 2D Ising model with nearest- and next-nearest-neighbor interactions, and computing the single-site magnetization as order parameter using quantum Monte-Carlo technique. We also demonstrate a finite size odd-even dichotomy in the occurrence of the QPT in the Kitaev ladder with respect to the odd and even values of $D$, when the system is perturbed with only Ising interaction. Our results also indicate a higher robustness of the topological phase of the Kitaev code against local perturbations if the boundary is made open along one direction. We further consider a local entanglement witness operator designed specifically to capture a lower bound to the localizable entanglement on the vertical non-trivial loop of the code. We show that the first derivative of the expectation value of the witness operator exhibits a logarithmic divergence across the QPT, and perform the finite-size scaling analysis. We demonstrate similar behaviour of the expectation value of the appropriately constructed witness operator also in the case of locally perturbed color code with open boundaries.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper examines topological-to-non-topological quantum phase transitions in the Kitaev code (and color code) on wide cylinders (M ≪ D) with open boundaries under local magnetic-field and Ising perturbations. It reports power-law divergence of fidelity susceptibility, locates QCPs via finite-size scaling, verifies the QCPs by mapping to the 2D Ising model with NNN interactions and computing single-site magnetization via QMC, notes an odd-even dichotomy for Ising perturbations on ladders, and shows logarithmic divergence in the first derivative of a local entanglement-witness operator (with analogous FSS).

Significance. If the mapping and numerical procedures hold, the results would strengthen understanding of the stability of topological codes to local perturbations, especially the enhanced robustness under open boundaries, and would support fidelity susceptibility and local entanglement witnesses as practical probes. The cross-check with an independent order parameter (QMC magnetization) and explicit finite-size scaling constitute a methodological strength.

major comments (1)
  1. [Verification via mapping to 2D Ising model] Verification via mapping (abstract and the section describing the mapping to the 2D Ising model): the claim that the locally perturbed Kitaev code on the open-boundary cylinder maps exactly onto the bulk 2D Ising model with nearest- and next-nearest-neighbor interactions requires explicit demonstration that no residual boundary operators are generated by the perturbations. Any such terms would shift the location or finite-size scaling of the magnetization jump relative to the FS-derived QCPs, undermining the asserted independent confirmation.
minor comments (1)
  1. [Entanglement witness section] The definition and construction of the local entanglement witness operator (and its relation to localizable entanglement on the vertical loop) would benefit from an explicit operator expression or diagram in the main text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and for identifying a point that requires clarification to strengthen the verification of our mapping. We address the major comment below.

read point-by-point responses

  1. Referee: Verification via mapping (abstract and the section describing the mapping to the 2D Ising model): the claim that the locally perturbed Kitaev code on the open-boundary cylinder maps exactly onto the bulk 2D Ising model with nearest- and next-nearest-neighbor interactions requires explicit demonstration that no residual boundary operators are generated by the perturbations. Any such terms would shift the location or finite-size scaling of the magnetization jump relative to the FS-derived QCPs, undermining the asserted independent confirmation.

    Authors: We agree that an explicit demonstration is required to rigorously establish that the mapping to the bulk 2D Ising model (with NNN interactions) is free of residual boundary operators that could affect the QCP location or scaling. The current manuscript presents the mapping but does not include this explicit check. In the revised manuscript we will add an appendix containing the perturbative expansion of the local perturbations on the open cylinder, showing that no relevant boundary operators are generated beyond those already accounted for in the bulk mapping. This will confirm consistency between the fidelity-susceptibility QCPs and the QMC magnetization results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; verification relies on external mapping and QMC

full rationale

The derivation uses FS divergence and finite-size scaling to locate QCPs, then verifies via an explicit mapping of the perturbed Kitaev code on the cylinder to the 2D Ising model (with NNN interactions) whose magnetization is obtained from independent QMC simulations. No step reduces a claimed prediction to a fitted parameter or self-citation by construction; the mapping and QMC are presented as external, established techniques. The entanglement-witness derivative is likewise computed directly from the model without internal redefinition. This is the normal case of a self-contained calculation against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the validity of the Kitaev-to-Ising mapping and on standard finite-size scaling assumptions; no free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption The locally perturbed Kitaev code on the cylinder geometry maps exactly onto the 2D Ising model with nearest- and next-nearest-neighbor interactions.
    Invoked to justify using single-site magnetization from QMC as an independent order parameter that locates the same QCPs.
  • standard math Finite-size scaling of fidelity susceptibility and witness derivatives can be used to extract quantum critical points in the thermodynamic limit.
    Standard assumption in quantum phase transition studies; invoked for the scaling analysis.
