Performance and scaling analysis of variational quantum simulation

Mario Ponce , Thomas Cope , In\'es de Vega , Martin Leib This is my paper

Pith reviewed 2026-05-24 00:19 UTC · model grok-4.3

classification 🪐 quant-ph
keywords variational quantum simulationcircuit depth scalingTrotterizationquantum time evolutionnumerical benchmarkingquantum resource estimation
0
0 comments X

The pith

Variational quantum simulation reaches a fixed accuracy for time evolution with circuits whose depth grows more slowly than Trotterized evolution as both system size and simulated time increase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs numerical experiments that measure the smallest circuit depth a variational quantum simulation method needs to keep the error in a quantum time-evolution problem below a chosen tolerance. These experiments are repeated across different numbers of qubits and different evolution times, and the same quantities are measured for a standard Trotterized product-formula method. The comparison shows that the variational approach requires less depth growth with both system size and time; the authors also estimate the classical cost of the variational optimization and locate the parameter region where the variational method would use fewer total resources.

Core claim

In direct numerical tests the authors show that the minimal depth of a variational circuit sufficient to keep the simulation error below a fixed threshold increases more slowly with system size and with evolution time than the depth required by a Trotter product formula of comparable accuracy.

What carries the argument

A parameterized quantum circuit whose variational parameters are optimized so that its action on an initial state reproduces the time-evolved state to within a preset error tolerance.

If this is right

  • For any fixed error tolerance the VQS depth requirement grows more slowly than the Trotter depth as the number of qubits increases.
  • The same slower growth holds when the simulated evolution time is lengthened.
  • The classical cost of optimizing the variational parameters must be added to the quantum depth when judging overall resource use.
  • A bounded region of system size and evolution time exists in which the total cost of VQS is lower than that of Trotterization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the observed depth scaling persists, VQS could reduce the number of gates needed to simulate longer-time dynamics in spin chains or lattice models on near-term hardware.
  • The advantage region identified supplies a concrete target for hardware experiments once devices reach the qubit counts already simulated.
  • Repeating the comparison with different variational ansatzes or different error measures would show whether the reported scaling advantage is tied to the particular circuit family used.

Load-bearing premise

The scaling trends measured on the small systems and short times in the numerical tests continue to hold when the number of qubits or the evolution time is increased.

What would settle it

A set of runs on systems with 20 or more qubits, or for evolution times several times longer than those already tested, in which the required VQS depth grows at least as fast as the Trotter depth.

Figures

Figures reproduced from arXiv: 2406.14411 by In\'es de Vega, Mario Ponce, Martin Leib, Thomas Cope.

Figure 1
Figure 1. Figure 1: First layer of the circuit corresponding to the problem-specific (9) ansatz that we use for our analysis for 5 qubits. More layers can be added for better results, increasing the total depth and the total number of parameters. by the Hamiltonian at hand. We chose it in order to make it easier for VQS to find good solutions for the problem at hand, but also because it has the same structure as a product for… view at source ↗
Figure 2
Figure 2. Figure 2: Comparison of the minimum depth for the final solution to reach a fidelity above 0.95 for VQS and Trotter for a linearly-increasing simulated time tf = nq. We see that VQS outperforms Trotter, and the trend suggests that it would do so for longer simulated times and larger systems. well within the VQS advantage region. 4.2. Scaling in the simulated time Secondly, we fix the number of qubits and vary the si… view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of the minimum depth for the final solution to reach a fidelity above 0.95 for VQS and Trotter for long simulated times. Both algorithms show a growing depth requirement with simulated time, but VQS’ growth rate is slower. We present here the results only for even-numbered qubits in the range (3-10) for better visibility, but the qualitative behavior is the same for the odd-numbered cases. This … view at source ↗
Figure 4

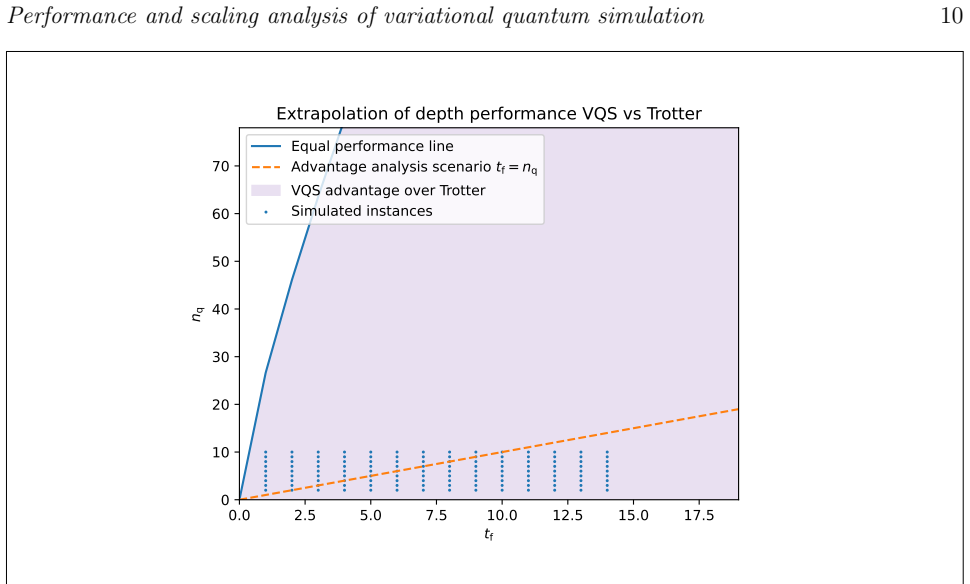

Figure 4. Figure 4: Representation of the relative performance of VQS and Trotter in the tf-nq plane. We use a power-law-like function of the form a nb q t c f as in (12) to fit our simulation data and use the resulting function to extrapolate to larger values in the tf-nq plane. The blue line denotes the boundary of equal performance of VQS and Trotter in accordance with the fitted function, the shaded area below is a region… view at source ↗
Figure 5
Figure 5. Figure 5: Threshold in the number of qubits for which the computational cost of the classical part of VQS times a relative prefactor p is smaller than the computational cost of a purely classical approach based on matrix-vector multiplication (see (13)), for the case when the simulated time equals the number of qubits. enough as to get better performance than Trotter. Looking at both figure 4 and figure 5, the trend… view at source ↗
read the original abstract

We present an empirical analysis of the scaling of the minimal quantum circuit depth required for a variational quantum simulation (VQS) method to obtain a solution to the time evolution of a quantum system within a predefined error tolerance. In a comparison against a non-variational method based on Trotterized time evolution, we observe a better scaling of the depth requirements using the VQS approach with respect to both the size of the system and the simulated time. Results are also put into perspective by discussing the corresponding classical complexity required for VQS. Our results allow us to identify a possible advantage region for VQS over Trotterization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents an empirical analysis of the minimal quantum circuit depth required by a variational quantum simulation (VQS) method to simulate time evolution within a fixed error tolerance. Through numerical experiments, it reports that VQS exhibits better depth scaling than a Trotterized non-variational approach with respect to both system size and simulated time, discusses the associated classical optimization costs, and identifies a possible advantage region for VQS.

Significance. If the reported depth-scaling advantage were shown to persist beyond the small-system regime, the work would provide useful benchmark data for assessing variational methods on near-term hardware. As presented, however, the significance is limited to documenting performance on small instances; the absence of scaling theory or extrapolation arguments reduces its impact on claims of practical advantage.

major comments (3)
  1. [Results (scaling analysis)] Results section on depth scaling: the central claim of superior VQS depth scaling versus Trotterization rests on experiments performed at small qubit numbers and modest evolution times; no subsection supplies a bound on variational ansatz expressivity, optimizer cost, or extrapolation argument demonstrating that the observed advantage survives when Trotter depth becomes prohibitive.
  2. [Comparison with Trotterization] Comparison subsection: the depth requirements are reported at fixed error tolerances, yet the manuscript provides no analysis of how the choice of tolerance or post-hoc parameter selection influences the scaling curves, leaving open whether the reported advantage region is robust or an artifact of the tested regime.
  3. [Classical complexity discussion] Discussion of classical complexity: while classical overhead is mentioned, there is no quantitative scaling of the optimization cost with system size N or time t, which is load-bearing for any claim that VQS offers a practical advantage region.
minor comments (2)
  1. [Abstract] The abstract should explicitly state the maximum system sizes and evolution times at which the scaling comparisons were performed.
  2. [Results figures] Figure captions in the results section lack sufficient detail on the specific variational ansatz and optimizer hyperparameters used for each data point.

Simulated Author's Rebuttal

3 responses · 2 unresolved

We thank the referee for the constructive feedback on our empirical study. We address each major comment below, clarifying the scope of the work as numerical experiments on small systems without theoretical bounds or extrapolation.

read point-by-point responses

  1. Referee: [Results (scaling analysis)] Results section on depth scaling: the central claim of superior VQS depth scaling versus Trotterization rests on experiments performed at small qubit numbers and modest evolution times; no subsection supplies a bound on variational ansatz expressivity, optimizer cost, or extrapolation argument demonstrating that the observed advantage survives when Trotter depth becomes prohibitive.

    Authors: The manuscript is framed as an empirical analysis (see abstract and Section 1), reporting observed depth requirements in the tested regime of small qubit numbers and modest times. No theoretical bounds on expressivity or extrapolation arguments are supplied, as these lie outside the scope of the numerical study performed. We will revise the discussion to explicitly state this limitation and the empirical nature of the reported advantage region. revision: yes

  2. Referee: [Comparison with Trotterization] Comparison subsection: the depth requirements are reported at fixed error tolerances, yet the manuscript provides no analysis of how the choice of tolerance or post-hoc parameter selection influences the scaling curves, leaving open whether the reported advantage region is robust or an artifact of the tested regime.

    Authors: Depth requirements are compared at a fixed error tolerance as specified in the methods. We acknowledge that varying the tolerance or analyzing parameter selection could test robustness further. Within the present study we retain the fixed tolerance used for all experiments. We will add a clarifying sentence on the tolerance choice and note that the advantage region applies to the reported setting. revision: partial

  3. Referee: [Classical complexity discussion] Discussion of classical complexity: while classical overhead is mentioned, there is no quantitative scaling of the optimization cost with system size N or time t, which is load-bearing for any claim that VQS offers a practical advantage region.

    Authors: Classical overhead is discussed qualitatively to contextualize the quantum-depth results. No quantitative scaling of optimization cost versus N or t is provided, because deriving such scaling would require additional extensive simulations or analysis beyond the current empirical focus. We will revise the discussion to emphasize this limitation explicitly. revision: yes

standing simulated objections not resolved
  • Theoretical bounds on variational ansatz expressivity or extrapolation arguments showing the depth advantage persists beyond the small-system regime.
  • Quantitative scaling of classical optimization cost with system size N and simulated time t.

Circularity Check

0 steps flagged

No circularity; central claim is empirical observation from small-system numerics.

full rationale

The paper's strongest claim is an empirical observation of better depth scaling for VQS versus Trotterization, obtained by direct numerical comparison on small qubit numbers and modest evolution times. No derivation chain, first-principles result, or fitted-parameter prediction is presented that could reduce to its own inputs by construction. The analysis does not invoke self-citations for uniqueness theorems, ansatzes, or load-bearing premises. The reported advantage is therefore an interpolation within the tested regime rather than a self-referential construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only; no explicit free parameters, axioms, or invented entities are stated beyond the standard framework of variational quantum algorithms and Trotterization.

axioms (1)
  • domain assumption Standard assumptions of quantum mechanics and variational optimization apply to the tested systems.
    Implicit in any VQS or Trotter comparison.
