Designing Short-Stage CDC-XPUFs: Balancing Reliability, Cost, and Security in IoT Devices

Gaoxiang Li , Yu Zhuang This is my paper

Pith reviewed 2026-05-23 21:01 UTC · model grok-4.3

classification 💻 cs.CR cs.LG
keywords CDC-XPUFPhysically Unclonable FunctionIoT securitymachine learning attacksreliability attackspre-selection strategyhardware overhead
0
0 comments X

The pith

Optimized short-stage CDC-XPUFs with pre-selection lower hardware overhead while resisting ML and reliability attacks on IoT devices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines Component-Differentially Challenged XOR-PUFs as an alternative to traditional arbiter PUFs that fall to machine learning and reliability attacks. It introduces a design that adds a pre-selection step to improve response reliability and uses a short-stage lightweight architecture to cut hardware costs. Rigorous testing of this combination shows reduced resource consumption, retained resistance to modeling attacks, and higher reliability that blocks reliability-based attacks. These properties position the design as a practical option for generating unique keys inside power- and area-limited IoT hardware.

Core claim

An optimized CDC-XPUF that incorporates pre-selection and a novel short-stage architecture significantly lowers resource consumption, maintains strong resistance to machine learning attacks, and improves reliability, thereby mitigating reliability-based attacks.

What carries the argument

The pre-selection strategy applied to short-stage Component-Differentially Challenged XOR-PUFs, which filters for reliable challenge-response pairs while keeping the overall circuit compact.

If this is right

  • The design supports key generation in resource-constrained IoT nodes without the overhead of longer-stage XOR-PUFs.
  • Resistance to both modeling and reliability attacks is retained after the optimizations.
  • Reliability improvements directly reduce the success rate of attacks that exploit unstable responses.
  • The approach balances the three goals of security, reliability, and cost in a single PUF instance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pre-selection idea could be tested on other PUF families to see whether similar overhead reductions appear.
  • If the short-stage structure scales to larger challenge spaces, it might support higher-entropy keys without proportional area growth.
  • Deployment would still require side-channel analysis to confirm that the added selection logic does not create timing or power leaks.

Load-bearing premise

The pre-selection strategy and short-stage architecture can be implemented without introducing new attack surfaces or unacceptable area trade-offs.

What would settle it

An independent hardware implementation that either exceeds the claimed resource savings or allows an ML model to predict responses with accuracy above the paper's reported thresholds.

Figures

Figures reproduced from arXiv: 2409.17902 by Gaoxiang Li, Yu Zhuang.

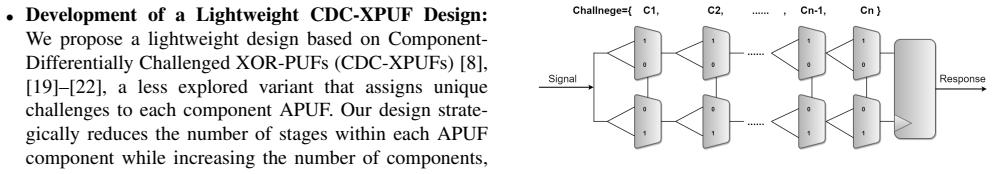

Figure 1
Figure 1. Figure 1: showcases a simple representation of an Arbiter PUF. An n-bit Arbiter PUF consists of n stages, each contain￾ing two multiplexers (MUXs). Upon receiving a rising signal, the signal enters the Arbiter PUF at stage one and splits into two paths. These signals traverse through gates at each stage, with their propagation paths being determined by the challenge [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

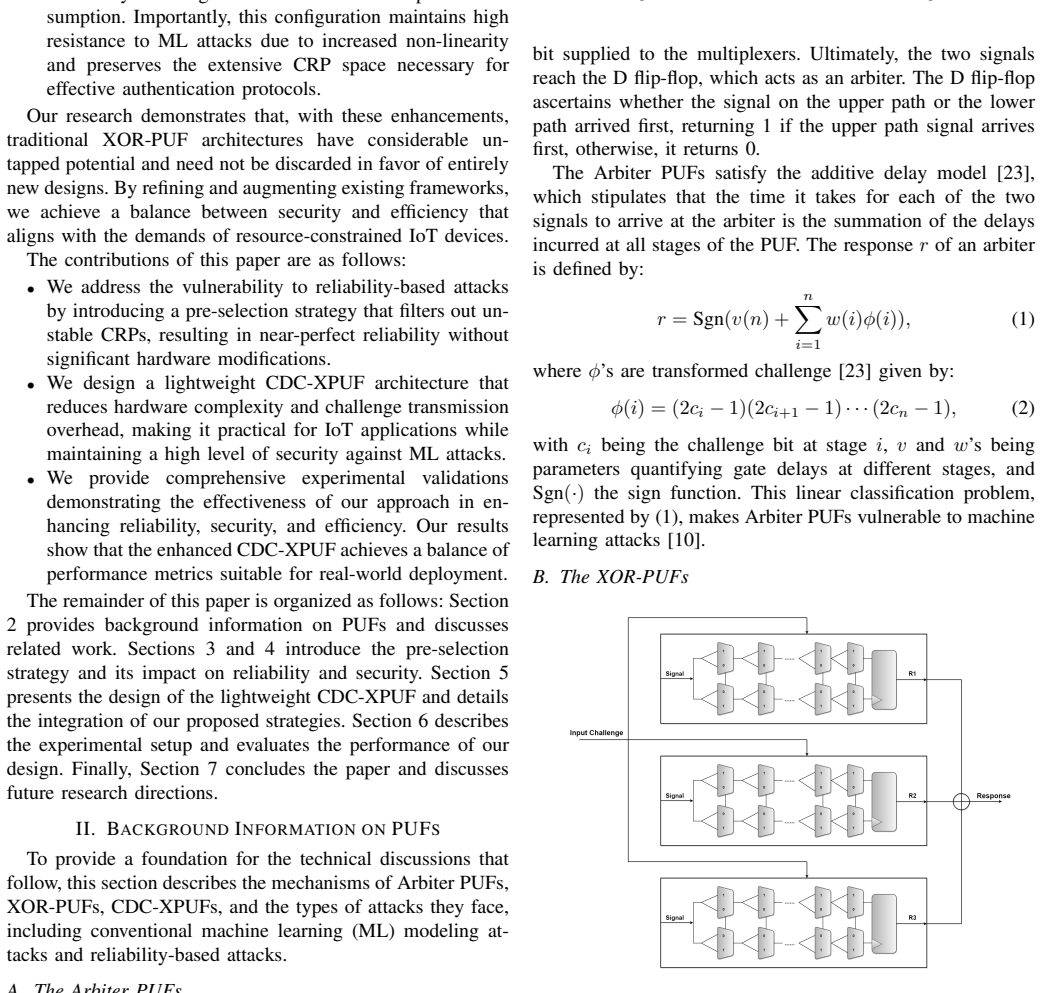

Figure 2
Figure 2. Figure 2: An XOR-PUF with 3 sub-stream and n bits of each stream [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

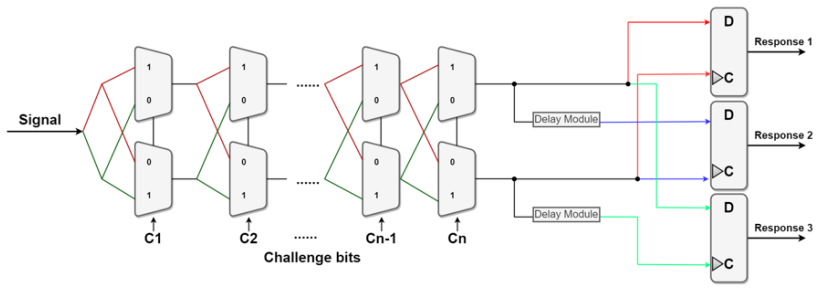

Figure 3
Figure 3. Figure 3: Implementation of the pre-selection strategy in an Arbiter PUF, illustrating the conditional path adjustments for enhancing response reliability. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
read the original abstract

The rapid expansion of Internet of Things (IoT) devices demands robust and resource-efficient security solutions. Physically Unclonable Functions (PUFs), which generate unique cryptographic keys from inherent hardware variations, offer a promising approach. However, traditional PUFs like Arbiter PUFs (APUFs) and XOR Arbiter PUFs (XOR-PUFs) are susceptible to machine learning (ML) and reliability-based attacks. In this study, we investigate Component-Differentially Challenged XOR-PUFs (CDC-XPUFs), a less explored variant, to address these vulnerabilities. We propose an optimized CDC-XPUF design that incorporates a pre-selection strategy to enhance reliability and introduces a novel lightweight architecture to reduce hardware overhead. Rigorous testing demonstrates that our design significantly lowers resource consumption, maintains strong resistance to ML attacks, and improves reliability, effectively mitigating reliability-based attacks. These results highlight the potential of CDC-XPUFs as a secure and efficient candidate for widespread deployment in resource-constrained IoT systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes an optimized short-stage Component-Differentially Challenged XOR-PUF (CDC-XPUF) design incorporating a pre-selection strategy for improved reliability and a novel lightweight architecture to reduce hardware overhead. It claims that rigorous empirical testing shows the design lowers resource consumption while maintaining strong resistance to machine learning attacks and mitigating reliability-based attacks, positioning CDC-XPUFs as suitable for resource-constrained IoT devices.

Significance. If the empirical claims hold with supporting data, the work would be significant for PUF-based security in IoT by addressing vulnerabilities in traditional APUFs and XOR-PUFs through a less-explored variant, potentially offering a practical balance of reliability, cost, and security.

major comments (1)
  1. [Abstract] Abstract: The central empirical claim that 'rigorous testing demonstrates that our design significantly lowers resource consumption, maintains strong resistance to ML attacks, and improves reliability' is load-bearing but unsupported, as the manuscript supplies no quantitative metrics, tables, figures, attack models, experimental setup details, or results to allow verification of the asserted gains.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the concern regarding unsupported empirical claims below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central empirical claim that 'rigorous testing demonstrates that our design significantly lowers resource consumption, maintains strong resistance to ML attacks, and improves reliability' is load-bearing but unsupported, as the manuscript supplies no quantitative metrics, tables, figures, attack models, experimental setup details, or results to allow verification of the asserted gains.

    Authors: We agree with the referee that the current manuscript version does not supply the quantitative metrics, tables, figures, attack models, experimental setup details, or results needed to support the abstract's claims. This is a substantive gap. In the revised manuscript we will add a complete experimental section that details the attack models, experimental setups, and quantitative results (with tables and figures) on resource consumption, ML-attack resistance, and reliability improvements, thereby allowing verification of the asserted gains. We will also revise the abstract to align precisely with the new data presented. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on empirical testing

full rationale

The paper presents a hardware design proposal for short-stage CDC-XPUFs using pre-selection and lightweight architecture. Central claims (lower resource use, ML resistance, improved reliability) are supported by statements of 'rigorous testing' rather than any mathematical derivation, fitted parameters renamed as predictions, or self-citation chains. No equations, uniqueness theorems, or ansatzes appear in the provided abstract or described structure. The design choices are presented as engineering optimizations validated externally by experiments, with no reduction of outputs to inputs by construction. This matches the default expectation for non-circular empirical design papers.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities are identifiable.
