arxiv: 2410.01473 · v3 · submitted 2024-10-02 · 💻 cs.CV

SinkSAM-Net: Knowledge-Driven Self-Supervised Sinkhole Segmentation Using Topographic Priors and Segment Anything Model

Osher Rafaeli , Tal Svoray , Ariel Nahlieli This is my paper

Pith reviewed 2026-05-23 20:16 UTC · model grok-4.3

classification 💻 cs.CV
keywords sinkhole segmentationself-supervised learningSegment Anything Modeltopographic priorspseudo-label generationaerial imagerydrone imagerymonocular depth
0
0 comments X

The pith

SinkSAM-Net generates pseudo-labels from topographic closed depressions and SAM to train a sinkhole segmenter that reaches 95 percent of fully supervised performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a self-supervised pipeline that starts with traditional topographic detection of closed depressions, then refines those regions into pixel-level sinkhole masks using monocular depth estimates and coordinate-wise bounding box jittering. These masks serve as training targets for an iterative loop that improves both the prompts sent to the Segment Anything Model and a lightweight EfficientNetV2-UNet. The final prompt-free model is evaluated on a large collection of aerial and drone images covering many sinkhole types and dates. A sympathetic reader would care because manual pixel annotation of irregular, vegetation-obscured sinkholes is slow and expensive, yet accurate maps matter for infrastructure risk and soil conservation. The central result is that domain knowledge plus foundation models can substitute for most human labels.

Core claim

The authors claim that combining topographic computations of closed depressions with an iterative, geometry-aware prompt-based Segment Anything Model, refined at the pixel level by monocular depth information and coordinate-wise bounding box jittering, produces pseudo-labels sufficient to train a lightweight target model that achieves approximately 95 percent of the performance obtained from human-annotated supervision on diverse sinkhole datasets imaged from both aircraft and drones.

What carries the argument

The iterative pseudo-label generation loop that prompts the Segment Anything Model with topographic closed-depression detections and refines the outputs using monocular depth plus coordinate-wise bounding box jittering before feeding them to the EfficientNetV2-UNet target.

If this is right

  • The same unlabeled RGB sinkhole collections can be used to train models without any manual pixel labels.
  • Knowledge is transferred to a low-parameter, prompt-free model that runs quickly at inference time.
  • The framework maintains performance across multiple sinkhole formation dates and both aerial and high-resolution drone imagery sources.
  • Foundational models such as SAM and Depth Anything V2 become effective for this task once topographic and geometric priors are added to the prompt and refinement steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same prior-plus-foundation-model recipe could be tested on other irregular geomorphic features such as landslides or gully networks where topographic closed-depression logic does not directly apply.
  • Once the lightweight model exists, regular low-cost drone surveys could support near-real-time sinkhole inventory updates without repeated expert labeling.
  • The method's reliance on monocular depth suggests it may degrade in very flat terrain or under heavy canopy where depth estimates become unreliable; that boundary could be quantified on new test regions.

Load-bearing premise

The pseudo-labels created by depth-based boundary refinement and bounding-box jittering remain accurate enough across iterations that the target model keeps improving rather than reinforcing its own errors.

What would settle it

A controlled experiment that measures the intersection-over-union of the generated pseudo-labels against a held-out set of human annotations and shows that the downstream EfficientNetV2-UNet reaches well below 95 percent of supervised performance when those pseudo-labels are used for training.

Figures

Figures reproduced from arXiv: 2410.01473 by Ariel Nahlieli, Osher Rafaeli, Tal Svoray.

Figure 1
Figure 1. Figure 1: Venn diagram illustrating the SinkSAM approach of merging Compu [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

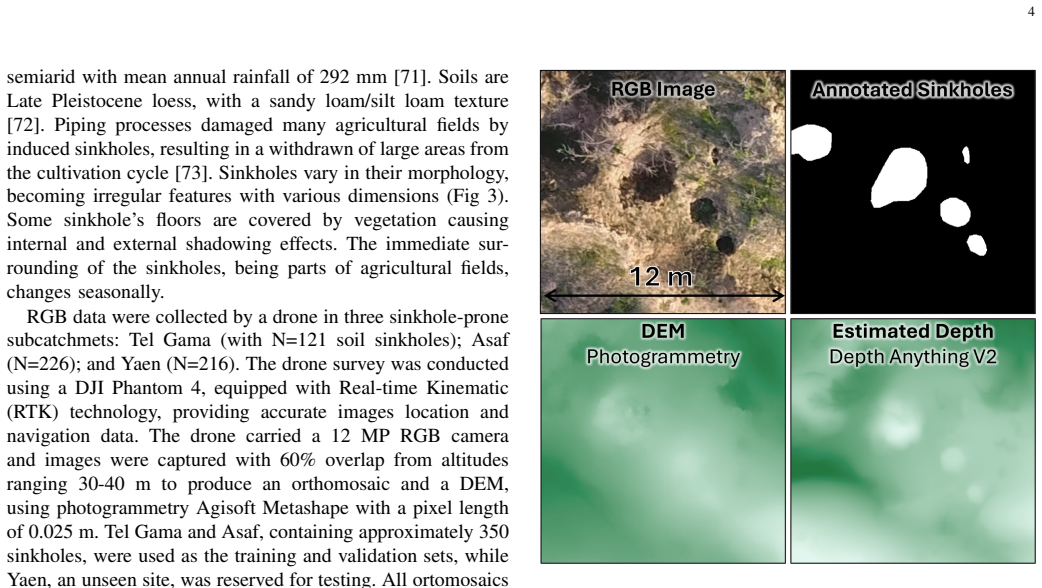

Figure 3. Figure 3: Input data: Patches of RGB, ground truth annotated sinkholes, [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

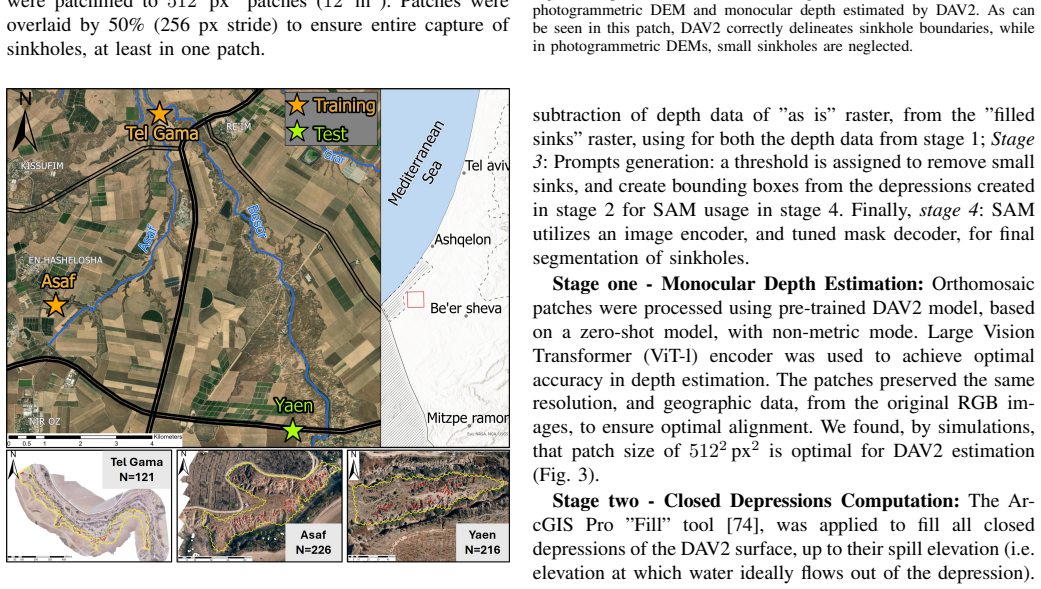

Figure 2
Figure 2. Figure 2: The study area is located in the northwestern part of the Negev region, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

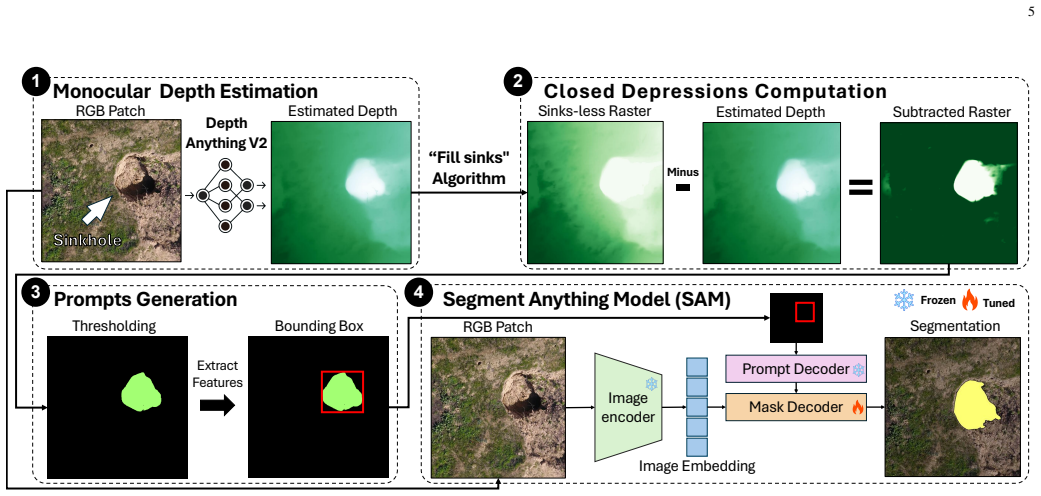

Figure 4. Figure 4: SinkSAM framework: Stage 1: Depth estimation from an RGB image using DAV2. Stage 2: ”Fill sinks” techniques and a substraction of estimated depth from a sink-free raster resulting in delineation of closed depression. Stage 3: Prompts generation: a threshold value is used to remove small sinks and create bounding boxes for SAM. Finally, at Stage 4, the SAM tuned model utilizes an image encoder and mask deco… view at source ↗
Figure 5

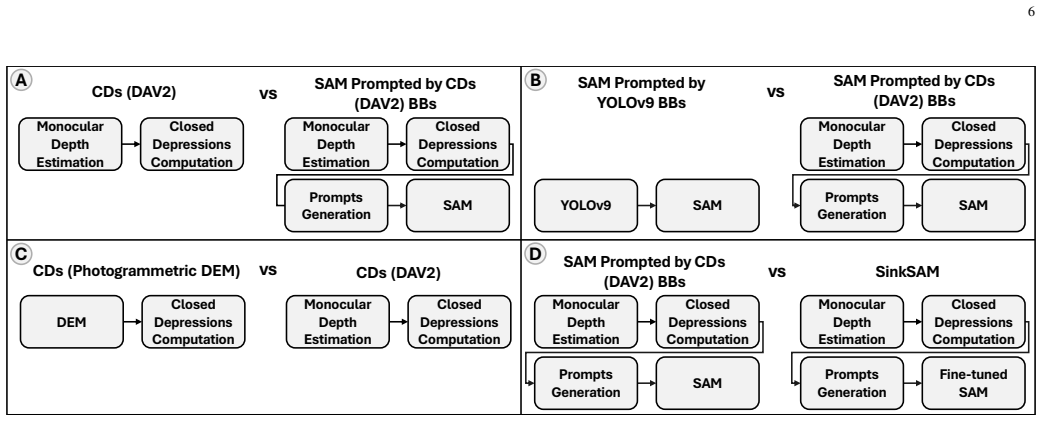

Figure 5. Figure 5: Experimental setup: Each comparison was designed to test the performance of SinkSAM Framework: (A) closed depressions, identified through the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

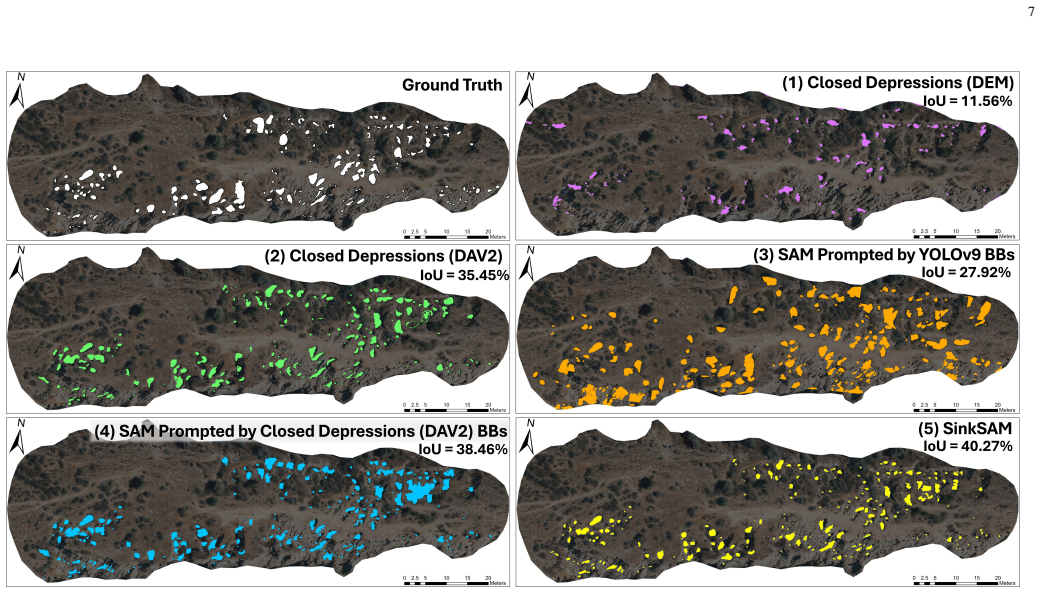

Figure 6. Figure 6: Evaluated maps of sinkhole segmentation on the unseen Yaen site: It is visually evident that the photogrammetric closed depressions miss parts of the [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

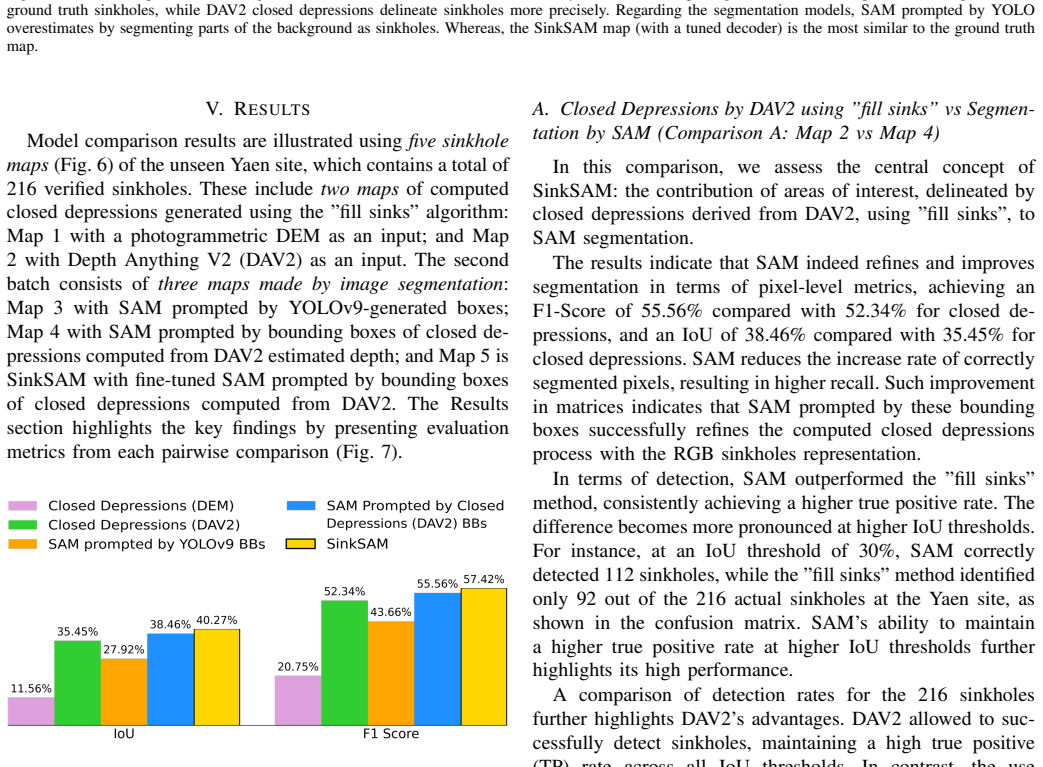

Figure 7
Figure 7. Figure 7: Performance at different IoU thresholds: SinkSAM outperforms all [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Performance of sinkhole detection models: A bar plot of the confusion [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

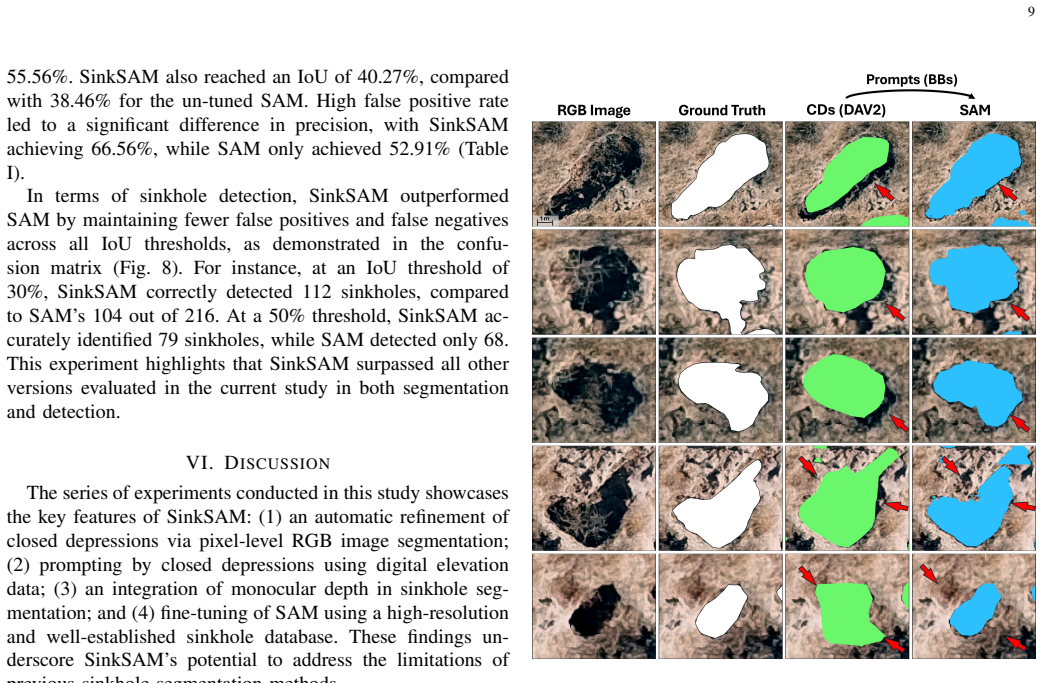

Figure 9. Figure 9: SAM prompted by closed depressions: SAM improved sinkhole [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Closed depressions prompting: YOLO overestimates by incorrectly [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 10

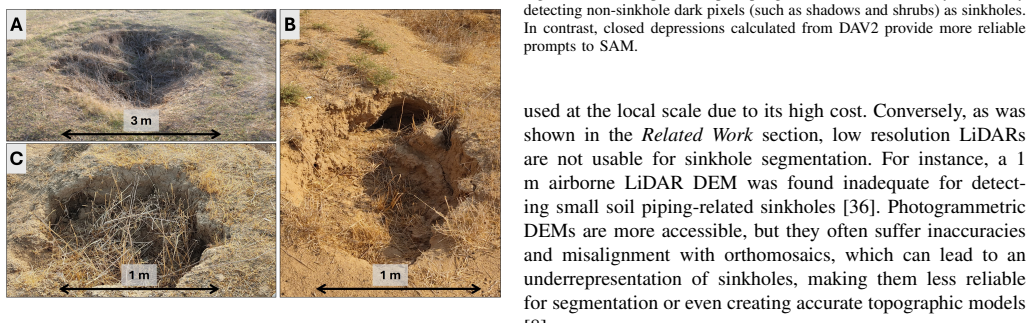

Figure 10. Figure 10: Ground level sinkholes images from study area: Sinkholes can vary [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 12

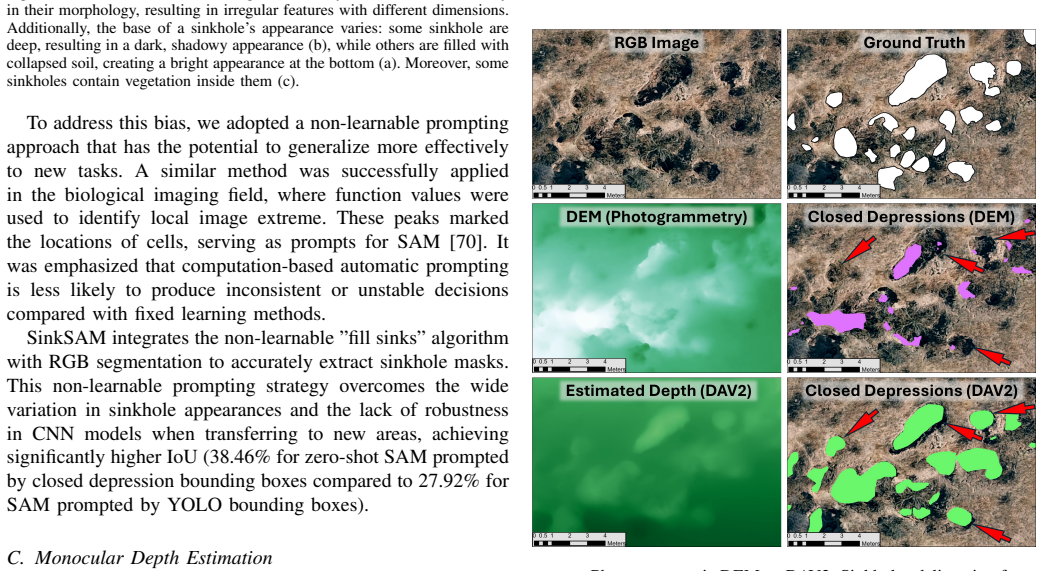

Figure 12. Figure 12: Photogrammetric DEM vs DAV2: Sinkholes delineation from evaluated maps, compared to the ground truth sinkhole masks, DAV2 closed depressions delineate the boundaries more precisely and ”fill” the entire area of the sinkholes, while DEM closed depressions only ”fill” parts of the sinkholes and do not fill small sinkholes at all [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Monocular depth estimation: Elevation profile plots on small [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
read the original abstract

Soil sinkholes significantly influence soil degradation, infrastructure vulnerability, and landscape evolution. However, their irregular shapes, combined with interference from shadows and vegetation, make it challenging to accurately quantify their properties using remotely sensed data. In addition, manual annotation can be laborious and costly. In this study, we introduce a novel self-supervised framework for sinkhole segmentation, termed SinkSAM-Net, which integrates traditional topographic computations of closed depressions with an iterative, geometry-aware, prompt-based Segment Anything Model (SAM). We generate high-quality pseudo-labels through pixel-level refinement of sinkhole boundaries by integrating monocular depth information with random prompts augmentation technique named coordinate-wise bounding box jittering (CWBJ). These pseudo-labels iteratively enhance a lightweight EfficientNetV2-UNet target model, ultimately transferring knowledge to a prompt-free, low-parameter, and fast inference model. Our proposed approach achieves approximately 95\% of the performance obtained through manual supervision by human annotators. The framework's performance was evaluated on a large sinkhole database, covering diverse sinkhole dateset-induced sinkholes using both aerial and high-resolution drone imagery. This paper presents the first self-supervised framework for sinkhole segmentation, demonstrating the robustness of foundational models (such as SAM and Depth Anything V2) when combined with prior topographic and geometry knowledge and an iterative self-learning pipeline. SinkSAM-Net has the potential to be trained effectively on extensive unlabeled RGB sinkholes datasets, achieving comparable performance to a supervised model. The code and interactive demo for SinkSAM-Net are available at https://osherr1996.github.io/SinkSAMNet

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces SinkSAM-Net, a self-supervised framework for sinkhole segmentation in aerial and high-resolution drone imagery. It generates pseudo-labels by combining topographic closed-depression detection with iterative, geometry-aware prompting of the Segment Anything Model (SAM), refined via monocular depth from Depth Anything V2 and coordinate-wise bounding-box jittering (CWBJ). These pseudo-labels train a lightweight EfficientNetV2-UNet target model, which is claimed to reach approximately 95% of the performance of a fully supervised baseline trained on human annotations. The work positions itself as the first self-supervised method for this task and releases code and a demo.

Significance. If the performance claims are substantiated with quantitative evidence, the result would show that topographic priors plus off-the-shelf foundation models can produce usable pseudo-labels for remote-sensing segmentation, enabling training on large unlabeled RGB datasets with limited annotation cost. This would be a concrete demonstration of knowledge-driven self-supervision in a domain where manual labeling is expensive.

major comments (2)
  1. [Abstract] Abstract and method description: the headline claim of reaching ~95% of supervised performance is asserted without any quantitative tables, error bars, dataset splits, ablation results, or direct metrics (e.g., IoU or boundary F-score) comparing the generated pseudo-labels against a held-out set of human annotations prior to the self-training loop. This leaves the central performance gap unverifiable.
  2. [Method (pseudo-label generation)] Pseudo-label generation step: the assumption that monocular-depth refinement plus CWBJ produces masks sufficiently close to human quality to support the reported performance is stated but not independently verified with any pre-training quantitative check against ground-truth annotations.
minor comments (1)
  1. [Abstract] Abstract: 'dateset-induced' appears to be a typo for 'dataset-induced'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The two major comments both concern the need for explicit, pre-training quantitative verification of pseudo-label quality against held-out human annotations. We address each point below and will revise the manuscript to include the requested metrics and checks.

read point-by-point responses

  1. Referee: [Abstract] Abstract and method description: the headline claim of reaching ~95% of supervised performance is asserted without any quantitative tables, error bars, dataset splits, ablation results, or direct metrics (e.g., IoU or boundary F-score) comparing the generated pseudo-labels against a held-out set of human annotations prior to the self-training loop. This leaves the central performance gap unverifiable.

    Authors: We agree that the abstract states the ~95% figure without the supporting quantitative details the referee requests. While the experiments section of the manuscript reports final model performance, it does not isolate a direct, pre-loop comparison of the generated pseudo-labels to held-out ground truth. In the revision we will add a dedicated table (and accompanying text) that reports IoU, boundary F-score, and related metrics for the pseudo-labels versus held-out human annotations, together with error bars obtained from repeated runs and explicit dataset-split information. This addition will make the headline claim directly verifiable before the self-training loop is described. revision: yes

  2. Referee: [Method (pseudo-label generation)] Pseudo-label generation step: the assumption that monocular-depth refinement plus CWBJ produces masks sufficiently close to human quality to support the reported performance is stated but not independently verified with any pre-training quantitative check against ground-truth annotations.

    Authors: The referee is correct that the manuscript currently asserts the quality of the monocular-depth refinement and CWBJ step without an independent quantitative check against ground truth prior to training. We will add a new evaluation subsection that performs exactly this check: pseudo-masks produced by the full pseudo-label pipeline are compared to held-out human annotations using the same metrics (IoU, boundary F-score, etc.) and the results are reported with error bars. This verification will be placed in both the method and results sections of the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: pseudo-labels generated from external topographic and foundation-model priors

full rationale

The derivation chain begins with independent topographic closed-depression detection, followed by monocular depth refinement via Depth Anything V2 and SAM prompted by coordinate-wise bounding-box jittering. These steps produce pseudo-labels that are then used to train the EfficientNetV2-UNet; the pseudo-label generation does not invoke the target model or any fitted parameters derived from it. No equations reduce a claimed prediction to its own inputs by construction, no self-citations are load-bearing, and no uniqueness theorems or ansatzes are smuggled in. The 95% performance claim is an empirical comparison against a supervised baseline on the sinkhole dataset and does not constitute a self-referential derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the domain assumption that topographic closed depressions plus SAM refinement yield usable pseudo-labels; no free parameters or invented entities are introduced in the abstract description.

axioms (1)
  • domain assumption Topographic computations of closed depressions provide reliable initial locations for sinkholes that can be refined by SAM and depth cues
    Invoked in the description of pseudo-label generation from traditional topographic computations integrated with SAM.
