Magic states are rarely the best resource to optimize: An analytical tool for qubit resource estimation in concatenated codes

Marco Fellous-Asiani , Hui Khoon Ng , Robert S. Whitney This is my paper

Pith reviewed 2026-05-23 17:53 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hall
keywords concatenated codesmagic statesresource estimationqubit overheadfault-tolerant quantum computingSteane codeerror correction gadgets
0
0 comments X

The pith

Magic operations are rarely the dominant qubit cost in concatenated error-correction schemes, making magic-specific optimizations yield only marginal gains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a closed-form analytical tool that calculates the total qubit resources required by concatenated error-correction schemes at any number of levels. When applied to the 7-qubit Steane code using either standard or flag-qubit error-correction gadgets, the tool shows that the extra cost of magic-state injections for non-Clifford gates seldom accounts for the largest share of resources. Optimizations that lower the cost of every operation reduce overall qubit counts by several orders of magnitude, while optimizations aimed only at magic operations produce far smaller improvements. The authors conclude that this pattern is representative of most concatenated schemes.

Core claim

Using newly derived closed-form equations that remain simple for arbitrary concatenation depth, the authors calculate the qubit overhead for both error-correction gadgets and magic-state injections and find that magic operations do not dominate the resource budget in the 7-qubit Steane scheme; general optimizations therefore deliver substantially larger reductions than magic-only optimizations.

What carries the argument

The closed-form resource estimation equations that separately track the cost of standard error-correction gadgets and the additional cost of magic-state injections across any number of concatenation levels.

If this is right

  • Magic-specific optimizations produce only marginal reductions in total qubit resources.
  • Optimizations that affect all operations can lower qubit counts by a few orders of magnitude.
  • The same pattern of magic operations not being dominant appears in both Steane and flag-qubit gadget schemes.
  • The finding mirrors earlier observations for surface codes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Circuit designers may obtain larger efficiency gains by improving the cost of every gate rather than focusing on magic-state distillation.
  • The closed-form tool could be used to rank different concatenated schemes before numerical simulation.
  • Resource estimates that treat all logical operations equally may redirect attention away from magic-state research toward broader gadget improvements.

Load-bearing premise

The specific resource models and gadget costs measured for the 7-qubit Steane and flag-qubit schemes are representative of concatenated schemes in general.

What would settle it

A calculation for another concatenated code in which magic operations still consume the majority of qubit resources even after all general optimizations have been applied.

Figures

Figures reproduced from arXiv: 2411.01880 by Hui Khoon Ng, Marco Fellous-Asiani, Robert S. Whitney.

Figure 1
Figure 1. Figure 1: Plot of physical qubit costs for different error [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

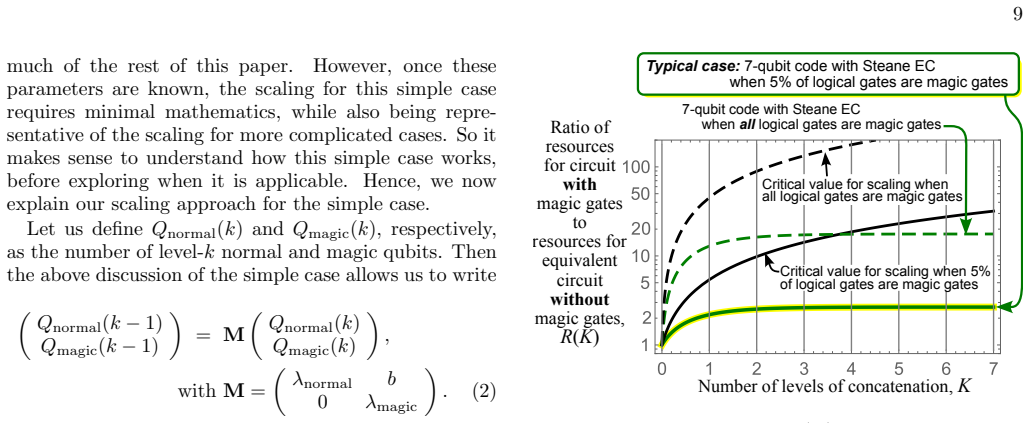

Figure 2. Figure 2: Ratio of resources R(K) for a circuit of inter￾est, Calgo, divided by the resources for the equivalent circuit Cnormal in which all level-K magic operations are replaced by normal ones; see Eq. (1). The solid lines are for a Calgo where 5% of the gates are magic operations (comparable to some real algorithms in Appendix A. The dashed lines are for a Calgo with only magic operations (an unrealistic worst-ca… view at source ↗
Figure 3
Figure 3. Figure 3: Analogy with a phase transition for the resource [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A transversal logical-qubit gate GL, with G1, G2, . . . ∈ Gphys as physical single-qubit gates. Each hori￾zontal line on the right-hand side represents a single physical qubit; the horizontal lines on the left-hand side represents a single logical qubit. are below the threshold. Our goal here is to estimate, for a given value of K, an upper bound — hopefully, a close-to-tight one — on the number of physica… view at source ↗
Figure 5

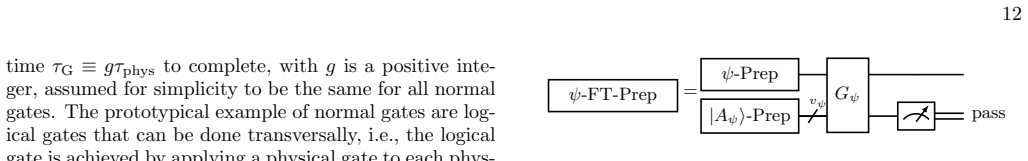

Figure 5. Figure 5: The method to prepare an arbitrary state [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The circuit for a generic EC gadget acting on a [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Magic-state implementation of a magic operation [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 10
Figure 10. Figure 10: Implementation of a T-gate on the single-qubit input |ψ⟩ via the use of the magic state [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 8
Figure 8. Figure 8: Fault-tolerant preparation of the logical (level [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The Steane error-correction (EC) gadget for the [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Magic-state preparation circuits for the 7-qubit code with Steane EC gadgets. (a) The 1-prep-Rec of the state [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Simplified sketch of the error-correction circuitry for 7-qubit code with the Steane approach, showing the aspects [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Simplified sketch of the error-correction circuitry for 7-qubit code with the flag-qubit approach, showing the aspects [PITH_FULL_IMAGE:figures/full_fig_p029_13.png] view at source ↗
Figure 14

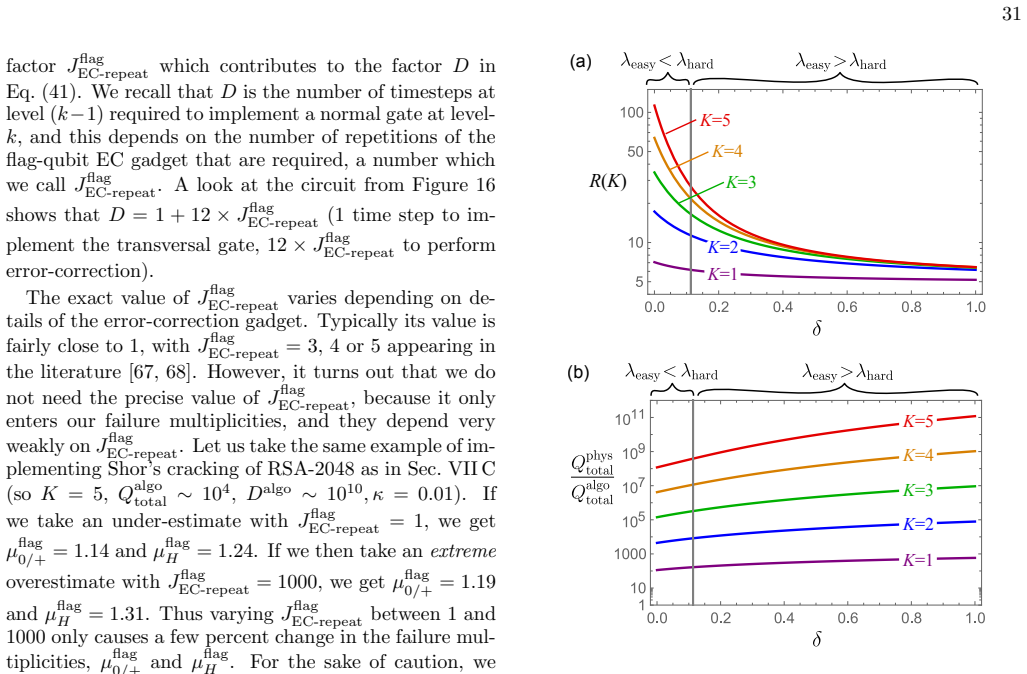

Figure 14. Figure 14: Plots of the toy-model in sec. VIII, where we vary [PITH_FULL_IMAGE:figures/full_fig_p031_14.png] view at source ↗
Figure 1
Figure 1. Figure 1: However, the switch from Steane to flag-qubit [PITH_FULL_IMAGE:figures/full_fig_p031_1.png] view at source ↗
Figure 15
Figure 15. Figure 15: Fault-tolerant preparation of the logical [PITH_FULL_IMAGE:figures/full_fig_p038_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Error correction gadget based on flag qubits. The top 7 lines represent the Steane encoded qubit. It requires 3 [PITH_FULL_IMAGE:figures/full_fig_p038_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Fault-tolerant preparation of the magic state [PITH_FULL_IMAGE:figures/full_fig_p039_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Non-fault-tolerant preparation of the state [PITH_FULL_IMAGE:figures/full_fig_p039_18.png] view at source ↗
read the original abstract

Concatenated error-correction schemes are well-understood routes to fault-tolerant quantum computing, and research on such schemes continues, including recent claims that they may be competitive with surface codes, and show potential when combined with high-rate Quantum Low Density Parity Check codes. However, there are few tools to evaluate the qubit resources required by concatenated schemes. We propose such a tool here. Its equations are closed-form and remain simple for an arbitrary number of levels of concatenation, making it ideal for comparing and minimizing the resource costs of such schemes. We use this tool to evaluate the resources for gate operations that require the injection of so-called ``magic states'', needed to complete the set of logical operations. It was expected that the complexity of such ``magic operations" would make them dominate the resource costs of a calculation, with numerous works proposing optimizations of these cost. Our work reveals that this expectation is often inaccurate: Magic operations are rarely the dominant cost of concatenated schemes, mirroring similar conclusions from past work for surface codes. Optimizations affecting all operations naturally have more impact than those on magic operations alone, yet we unexpected find that the former can reduce qubit resources by a few orders of magnitude while the latter give only marginal reductions. We show this in detail for a 7-qubit concatenated scheme with Steane error-correction gadgets or flag-qubits gadgets, and argue that our findings are representative of most concatenated schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a closed-form analytical tool for estimating qubit resources in concatenated quantum error-correcting codes with arbitrary concatenation levels. It applies the tool to the [[7,1,3]] Steane code under Steane error-correction gadgets and flag-qubit gadgets, showing that magic-state operations are rarely the dominant cost and that optimizations affecting all operations can reduce resources by orders of magnitude while magic-specific optimizations yield only marginal gains. The authors argue that these results are representative of most concatenated schemes.

Significance. If the tool and its conclusions hold, the work supplies a practical, closed-form method for resource counting that remains simple at high concatenation depth, a clear strength for comparing schemes. It also provides evidence that broad optimizations outperform magic-state-specific ones, mirroring surface-code findings and potentially redirecting research effort. The explicit closed-form equations for arbitrary L are a notable asset for reproducibility and parameter exploration.

major comments (2)
  1. [Abstract and Conclusion] Abstract and final section: the headline claim that magic operations are 'rarely the dominant cost' of concatenated schemes, and that the two examined cases are representative, rests on explicit calculations only for the [[7,1,3]] code with Steane and flag gadgets. The generalization is supported by qualitative argument alone; no additional explicit resource counts or structural proof are supplied showing that the magic-to-non-magic cost ratio remains sub-dominant for other base codes, gadget families, or concatenation depths.
  2. [Resource Model and Equations] Resource-model derivation (the closed-form equations): the abstract states that the tool uses closed-form equations, yet the manuscript does not include the explicit step-by-step derivations of the gadget overheads or the error-propagation assumptions used to obtain the qubit-count formulas. Without these or numerical validation benchmarks, it is unclear whether the central resource ratios are fully justified.
minor comments (2)
  1. [Introduction] Notation for concatenation level L and physical error rate p should be introduced once with a clear table of symbols.
  2. [Figures] Figure captions could explicitly state the concatenation depth and gadget type shown in each panel to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed report. We address each major comment below, clarifying our approach and indicating revisions where appropriate to improve transparency and rigor.

read point-by-point responses

  1. Referee: [Abstract and Conclusion] Abstract and final section: the headline claim that magic operations are 'rarely the dominant cost' of concatenated schemes, and that the two examined cases are representative, rests on explicit calculations only for the [[7,1,3]] code with Steane and flag gadgets. The generalization is supported by qualitative argument alone; no additional explicit resource counts or structural proof are supplied showing that the magic-to-non-magic cost ratio remains sub-dominant for other base codes, gadget families, or concatenation depths.

    Authors: Our explicit calculations are limited to the [[7,1,3]] Steane code under two gadget families, as stated. The claim of representativeness rests on the structural property that, in any concatenated scheme, the overwhelming majority of logical operations are Clifford gates realized through error-correction gadgets that incur no magic-state overhead; magic-state injection and distillation occur only for a small subset of non-Clifford gates. This imbalance in operation frequency and the localization of magic overhead are independent of the specific base code or gadget implementation, provided the concatenation follows the standard recursive structure. We will revise the abstract and conclusion to articulate this structural reasoning more explicitly, thereby strengthening the generalization without requiring additional explicit counts. revision: partial

  2. Referee: [Resource Model and Equations] Resource-model derivation (the closed-form equations): the abstract states that the tool uses closed-form equations, yet the manuscript does not include the explicit step-by-step derivations of the gadget overheads or the error-propagation assumptions used to obtain the qubit-count formulas. Without these or numerical validation benchmarks, it is unclear whether the central resource ratios are fully justified.

    Authors: We agree that the derivations of the closed-form expressions should be presented more explicitly. These expressions are obtained by solving the linear recurrence relations that accumulate qubit overhead across concatenation levels, using the per-gadget costs and the error-propagation rules for each operation type. In the revised manuscript we will add a dedicated appendix containing the full step-by-step derivation, the explicit assumptions on error propagation, and numerical validation benchmarks that compare the closed-form results against direct enumeration for small concatenation depths L. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation is self-contained from standard resource counting

full rationale

The paper introduces closed-form equations for qubit resource estimation in concatenated codes, derived directly from standard concatenation-level counting of physical qubits and operations. These are applied to explicit calculations for the [[7,1,3]] Steane code under Steane and flag-qubit gadgets, yielding the claim that magic operations are rarely dominant. No equation reduces by construction to a fitted parameter, self-defined quantity, or load-bearing self-citation; the representativeness argument is a qualitative extension from the two cases, not a definitional or fitted reduction. The central results follow from the paper's own explicit derivations without circular collapse to inputs.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions of quantum error correction (independent errors, perfect syndrome extraction in gadgets) plus the modeling choice that the 7-qubit code with Steane or flag gadgets is representative. No new particles or forces are postulated.

free parameters (2)
  • physical error rate p
    Input parameter to the resource equations; values are chosen to evaluate overheads but not fitted to produce the dominance conclusion.
  • concatenation level L
    Variable in the closed-form expressions; the tool is designed to handle arbitrary L without additional fitting.
axioms (1)
  • domain assumption Error propagation through concatenation levels follows the standard recursive overhead formulas for Steane and flag-qubit gadgets.
    Invoked to derive the closed-form resource counts for magic and non-magic operations.

pith-pipeline@v0.9.0 · 5796 in / 1343 out tokens · 32233 ms · 2026-05-23T17:53:05.334758+00:00 · methodology
