Finding One's Bearings in the Hyperparameter Landscape of a Wide-Kernel Convolutional Fault Detector

T0 review · 2 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Contrary to earlier speculation, high-frequency noise is not why a wide convolutional kernel beats a narrow one in bearing-fault detection.

desk verdict The filtering experiments are a clean negative result that should survive review; the resampling experiment is confounded and should not be used to support claims about sampling rate. read the letter →

arxiv 2411.15191 v2 pith:WWQE4NHB submitted 2024-11-19 cs.LG cs.AIeess.SP

Dan Hudson , Jurgen van den Hoogen , Martin Atzmueller This is my paper · ORCID
classification cs.LGcs.AIeess.SP
keywords bearingfaultdetectionwide-kernelCNNhyperparametertuningtimeseriesclassificationmultipledefaultsresamplinglow-passfilteringconvolutionalneuralnetwork
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper studies why the width of the first convolutional kernel matters so much for neural networks that detect damaged machine bearings from vibration signals. Using seven benchmark datasets, the authors confirm that poor hyperparameter choices can cut accuracy dramatically and that the best settings differ between datasets; the first-layer kernel size is the most data-dependent choice. Their central finding is negative: low-pass filtering that strips high frequencies from the signal does not remove the advantage of wide kernels, so high-frequency noise is not the main reason wide kernels beat narrow ones. That conclusion matters because it redirects research toward other mechanisms, such as implicit regularization or training dynamics, and toward practical tuning guidance for new data. The paper's concrete deliverable is a small ranked list of hyperparameter defaults, built by exhaustive search, that reaches high percentile performance on unseen datasets.

What carries the argument

The central object is the first-layer kernel of a 1D wide-kernel CNN: a convolutional filter whose length in samples (16, 32, 64, 128 or 256) is the hyperparameter whose optimal value shifts most across datasets. The argument is carried by manipulated copies of the CWRU vibration dataset. Resampling condenses the signal while keeping kernel sizes fixed in sample count, and low-pass filtering removes high frequencies while keeping sample rate and window length identical; grid searches over the three most important hyperparameters on each version produce the box plots and correlation matrices that distinguish sampling-rate effects from spectral-content effects. A separate exhaustive search over the completed seven-dataset grid produces a ranked 'multiple defaults' list, a small set of hyperparameter combinations to try in sequence on new data.

What would settle it

Run the same grid search on CWRU at 48, 24, 12, 6 and 3 kHz with first-layer kernel sizes scaled so that each kernel covers the same physical duration in milliseconds (for example, 256 samples at 48 kHz would be matched by 128 samples at 24 kHz and 64 samples at 12 kHz). If, under constant-duration kernels, wide kernels stop beating narrow kernels or the optimal kernel size tracks the sampling rate, the paper's conclusion that sampling rate is not responsible would be overturned.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that the standard explanation for wide-kernel convolutional networks in bearing fault detection—that a long filter averages over high-frequency noise—is not supported. In experiments on the CWRU benchmark, copies of the data were low-pass filtered at cutoffs from 12 kHz down to 46 Hz and resampled from 48 kHz to 3 kHz; in all but the most destructive filtering conditions, first-layer kernels of 128 or 256 samples continued to outperform short kernels. Because the wide-kernel advantage survives the removal of high frequencies, the authors conclude that high-frequency noise is not the main reason wide kernels are preferable. They are left speculating that the advantage may be a generic architectural property such as regularization that helps training, while noting that this does not explain why the advantage reverses on the SEU dataset. The same experiments support a practical claim: resampling to 24 kHz caused no visible drop in accuracy, so the highest recording rates may be wasteful.

Load-bearing premise

The weakest load-bearing premise is that a first-layer kernel with a fixed number of samples is the same object after resampling: the experiment keeps kernel size in samples while changing the sampling rate, so the physical time span the kernel covers changes together with sampling rate, and the claim that sampling rate is not responsible for the wide-kernel preference depends on that comparison being meaningful.

Editorial extensions

If this is right

  • Resampling a 48 kHz bearing signal to 24 kHz showed no accuracy loss, so recording at the highest rates may be unnecessary for this architecture.
  • No single hyperparameter configuration dominates all seven benchmarks; users should expect to re-tune first-layer kernel size when moving to new data.
  • The recommended tuning order for the wide-kernel CNN is first-layer kernel size, then first-layer filter count, then filter count in layers 3-5, because tuning kernel size later forces re-tuning of the others.
  • The susceptibility to bad hyperparameters is not specific to wide-kernel CNNs: both LSTM and transformer fault detectors varied from poor to near-perfect accuracy depending on configuration.
  • Multiple defaults, tried in sequence, reach the 92nd percentile of grid-search performance on held-out benchmarks, so a practitioner can find a strong configuration quickly.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Not pursued in the paper: the resampling experiment conflates sample-count kernel size with physical kernel duration; a cleaner test would scale kernel length with the sampling period to see whether duration, not sampling rate, controls the wide-kernel advantage.
  • If the wide-kernel advantage is not about frequencies, the mechanism may be a longer receptive field acting as implicit regularization; this could be tested by comparing wide and narrow kernels on synthetic signals whose fault signature and noise are generated with known spectra.
  • The multiple-defaults procedure could be applied to the LSTM and transformer results to produce per-architecture default lists, since the same exhaustive-search principle only needs a completed performance table.
  • The filtering sweep suggests a cheap diagnostic: if aggressive low-pass filtering does not hurt accuracy, the fault signature is concentrated at low frequencies and high-rate acquisition is unnecessary; this could be checked on the other six benchmarks, not just CWRU.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper studies hyperparameter sensitivity of a wide-kernel CNN for bearing fault detection across seven benchmark datasets, two additional architectures (LSTM, transformer), and manipulated copies of the CWRU dataset. It proposes a sequence of 'multiple defaults' for efficiently tuning the architecture on new data, and it uses resampling and low-pass filtering to investigate whether sampling rate or high-frequency noise explains why wide first-layer kernels are often preferable to narrow ones. The central negative claim is that, contrary to earlier speculation, high-frequency noise is not the main reason wide kernels outperform narrow kernels; a secondary claim is that sampling rate is also not responsible. The filtering experiment is a clean falsifiable test and supports the noise-related claim; however, the resampling experiment is confounded because kernel sizes are kept fixed in sample count while the physical duration they cover changes with sampling rate.

Significance. If the negative result on high-frequency noise holds, it is a useful contribution: it refutes a commonly repeated explanation for wide-kernel CNNs and redirects attention to other mechanisms such as implicit regularization or training dynamics. The filtering experiment is well designed and gives a concrete, falsifiable test, and the multiple-defaults procedure with leave-one-out evaluation is a practical and reproducible way to give tuning guidance across datasets. The main weakness is that the sampling-rate half of the central claim currently rests on an experiment that conflates sample count with kernel duration, so the scope of the paper's headline conclusion is wider than the evidence supports.

major comments (2)
  1. [Section III-C5 / Figure 5] The resampling experiment does not support the conclusion that sampling rate is irrelevant to the wide-kernel preference. The grid search keeps kernel sizes fixed in sample count (16-256) across resampling levels, so each kernel covers a different physical duration at each rate: a 256-sample kernel covers 5.33 ms at 48 kHz but 85.3 ms at 3 kHz. The persistence of the large-kernel advantage under resampling is exactly what would be expected if the relevant quantity were kernel duration or the number of signal cycles spanned, rather than sample count. To test the sampling-rate hypothesis, the authors should either scale kernel sizes inversely with the resampling factor to keep duration constant, or re-analyze the existing grid by converting kernel sizes to physical durations and checking whether optimal duration is invariant across rates. Until then, the resampling half of the central claim remains ambiguous.
  2. [Abstract / Section IV-B5 / Section V] The filtering experiment is convincing for the noise hypothesis: removing high frequencies while holding sampling rate and window length fixed does not remove the wide-kernel advantage, so pre-filtering does not make narrow kernels viable. However, the Abstract and Conclusion state the joint claim that 'neither the sampling rate nor noise is responsible' for the wide-kernel preference. The noise part is supported, but the sampling-rate part currently rests on the confounded resampling experiment described above. The wording should be scoped to what is demonstrated, or the resampling experiment should be extended with a duration-matched control.
minor comments (5)
  1. [Table 4] The filtering thresholds '750 kHz', '375 kHz', '187 kHz', '93 kHz', and '46 kHz' should be labeled in Hz, not kHz; as written they exceed the Nyquist frequency of the 48 kHz signal.
  2. [Section III-C5] The phrase 'it will take fewer data points to record the same back-and-forth vibrations' accurately describes the confound: after resampling, each sample covers a larger physical time step. Consider making this explicit and discussing its consequences for comparing kernel sizes in samples.
  3. [Section IV-B4 / Figure 4] The correlation analysis uses Pearson correlations on accuracy scores that are heavily ceiling-affected. The caveat about ceiling effects is appreciated, but a rank-based correlation would be more robust for the claim that hyperparameter rankings are preserved across resampling conditions.
  4. [Appendix A / Appendix B] Minor typographical issues include 'University of Conneticut' and 'the data are collected with a sampling frequency' in Appendix A; these should be corrected.
  5. [General] No code or data availability statement is included. Given that the paper relies on a large grid search and a reproducible multiple-defaults procedure, adding a link to the code and processed data would strengthen the practical contribution.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central negative result is tested with falsifiable data manipulations, and the multiple-defaults generalisation is evaluated by leave-one-out rather than by construction.

full rationale

The paper's central negative claim—that high-frequency noise is not the main reason wide kernels beat narrow ones—is tested by a falsifiable manipulation: low-pass filtering the CWRU signal at cutoffs from 12 kHz down to 187 Hz while keeping sampling rate and window length constant (Section III-C6, results in Figure 7). If the wide kernel's value were mainly low-pass filtering, pre-filtering should have made narrow kernels competitive; it did not. No parameter in this test is fitted to the claim, and the outcome is not entailed by the experimental construction. The resampling experiment (III-C5/IV-B4) does not scale kernel sizes to preserve physical duration when going from 48 kHz to 3 kHz, so its interpretation is confounded—as the paper's own caveat that 'each data point will represent a bigger jump forward in time' shows—but a confound is an experimental-validity limitation, not a circular reduction: the conclusion is not equal, by definition or by fitted value, to the experimental input. The multiple-defaults analysis (III-C4/IV-B3) is selected by exhaustive search on seven benchmarks, yet the reported generalization figure is obtained via leave-one-out on the benchmark not used for selection, so it is not a fitted-input-called-prediction. Self-citations to [1], [2], [35]–[37] supply the architecture and earlier grid-search data, which are prior published empirical results rather than an imported uniqueness theorem; moreover the paper explicitly argues against earlier speculation, so the self-citations do not force the conclusion. The limitations stated in Section V (small number of benchmarks, domain specificity, training-stopping rules) are honest scope restrictions and do not indicate that any derivation reduces to its inputs. Overall: no significant circularity.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claims rest on a small set of public benchmarks, a single wide-kernel architecture, and several unquantified experimental assumptions (filter side effects, kernel comparability across resampling levels, single-run accuracy). No new theoretical entities are introduced.

free parameters (3)
  • Multiple defaults (10 hyperparameter combinations) = See Table 8 (e.g., #1: KS1=256, S1=16, F1=256, KS2=3, F2=16, KS3+=3, F3+=64)
    Selected by brute-force search to maximize expected best percentile across the seven benchmark grid-search tables; the defaults themselves are fitted to the data, with leave-one-out used only to estimate generalization.
  • Lowpass filter cutoff frequencies = 12 kHz, 6 kHz, 3 kHz, 1.5 kHz, 750 Hz, 375 Hz, 187 Hz, 93 Hz, 46 Hz
    Hand-chosen experimental conditions; they define the manipulated datasets and therefore shape all filtering conclusions, though they are not fitted model parameters.
  • Resampling factors = 2x, 4x, 8x, 16x (48 kHz to 24, 12, 6, 3 kHz)
    Hand-chosen experimental conditions; combined with fixed kernel sizes they create the confound noted in the weakest assumption.
assumptions (5)
  • domain assumption The seven benchmark datasets are representative of real-world industrial vibration data.
    Generalization guidance and the leave-one-out estimate assume these benchmarks stand in for unseen machines; the authors acknowledge seven datasets are not statistically robust (Section V).
  • domain assumption The wide-kernel CNN from prior work is an appropriate representative state-of-the-art architecture.
    The deep-dive analysis is conducted on one architecture chosen for prior benchmark success; conclusions about kernel size behavior may not transfer to other wide-kernel designs.
  • domain assumption Lowpass filtering removes high-frequency content without side effects that change the classification problem.
    The filtering experiments interpret changes in accuracy as due to removal of high frequencies; no verification of filter characteristics or phase effects is reported (Section III-C6).
  • ad hoc to paper Kernel size in samples can be compared across resampling levels.
    The resampling experiment keeps kernel sizes in sample count while changing sampling rate, so the physical duration of a kernel changes; this premise is required for the conclusion that sampling rate does not matter.
  • domain assumption Single training runs are sufficient to characterize configuration performance.
    Accuracy values are reported without repeated-seed statistics; training stochasticity is acknowledged for correlations (Section IV-B4) but not for the headline sensitivity claims.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Finding One's Bearings in the Hyperparameter Landscape of a Wide-Kernel Convolutional Fault Detector." pith.science (2026). https://pith.science/paper/WWQE4NHB

@misc{pith2026241115191,
  author       = {Pith},
  title        = {Pith review of: Finding One's Bearings in the Hyperparameter Landscape of a Wide-Kernel Convolutional Fault Detector},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WWQE4NHB}},
  note         = {Machine review of arXiv:2411.15191}
}
read the original abstract

State-of-the-art algorithms are reported to be almost perfect at distinguishing the vibrations arising from healthy and damaged machine bearings, according to benchmark datasets at least. However, what about their application to new data? In this paper, we confirm that neural networks for bearing fault detection can be crippled by incorrect hyperparameterisation, and also that the correct hyperparameter settings can change when transitioning to new data. The paper combines multiple methods to explain the behaviour of the hyperparameters of a wide-kernel convolutional neural network and how to set them. Since guidance already exists for generic hyperparameters like minibatch size, we focus on how to set architecture-specific hyperparameters such as the width of the convolutional kernels, a topic which might otherwise be obscure. We reflect different data properties by fusing information from seven different benchmark datasets, and our results show that the kernel size in the first layer in particular is sensitive to changes in the data. Looking deeper, we use manipulated copies of one dataset in an attempt to spot why the kernel size sometimes needs to change. The relevance of sampling rate is studied by using different levels of resampling, and spectral content is studied by increasingly filtering out high frequencies. We find that, contrary to speculation in earlier work, high-frequency noise is not the main reason why a wide kernel is preferable to a narrow kernel. Finally, we conclude by stating clear guidance on how to set the hyperparameters of our neural network architecture to work effectively on new data.

Figures

Figures reproduced from arXiv: 2411.15191 by the authors.

Figure 1
Figure 1. FIGURE 1: Workflow of the method to test out multiple [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. FIGURE 2: The likelihood that tuning one hyperparameter [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 3
Figure 3. FIGURE 3: Expected performance relative to other hyperpa [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figures from the paper (5 more)
Figure 6

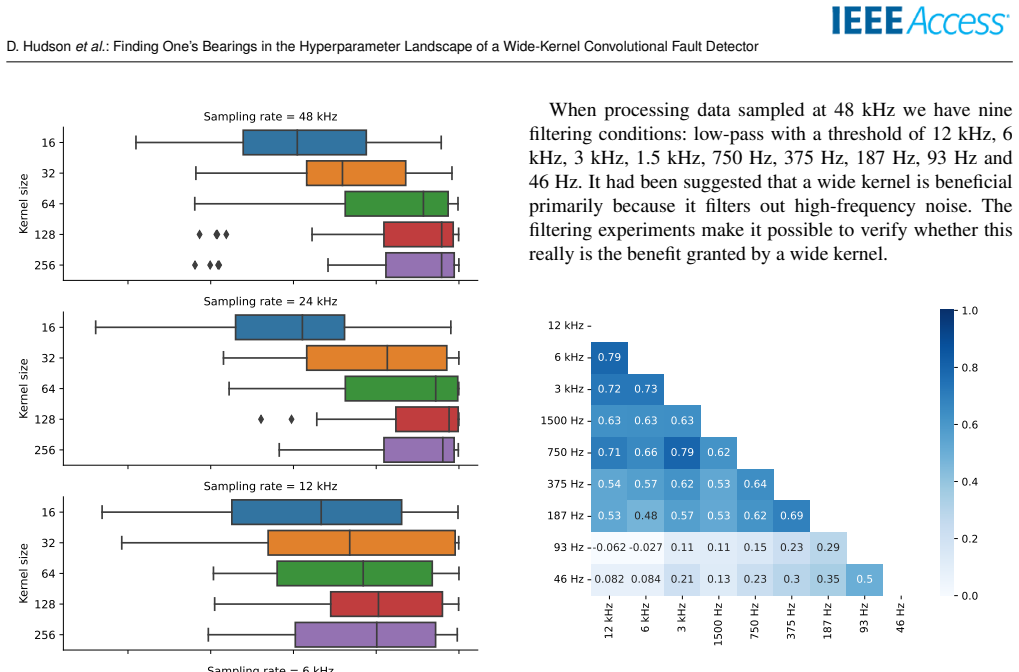

Figure 6. Figure 6: FIGURE 6: Correlation between the same CNN configura [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 5
Figure 5. Figure 5: FIGURE 5: Accuracy scores for different kernel sizes in the [PITH_FULL_IMAGE:figures/full_fig_p017_5.png]
Figure 7
Figure 7. Figure 7: FIGURE 7: Accuracy when using different kernel sizes in the [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: FIGURE 8: Architecture of the used LSTM network, inspired [PITH_FULL_IMAGE:figures/full_fig_p023_8.png]
Figure 10
Figure 10. Figure 10: FIGURE 10: Architecture of the used 1D wide-kernel CNN, [PITH_FULL_IMAGE:figures/full_fig_p024_10.png]
