The Seiberg-Witten Axion

T0 review · 1 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read In the exactly solvable Seiberg–Witten theory, magnetic monopoles and dyons add periodic corrections to the axion–photon coupling that need not be quantized in integer multiples of $e^2/16\pi^2$ and can grow large near the monopole point…

desk verdict Electric-frame axion-photon coupling is solid and new; the dual-frame axion identification is the unresolved spot. read the letter →

arxiv 2411.15312 v1 pith:5JTTPD7G submitted 2024-11-22 hep-ph hep-th

Csaba Csáki , Rotem Ovadia , Maximilian Ruhdorfer , Ofri Telem , John Terning This is my paper · ORCID
classification hep-phhep-th
keywords axion-photoncouplingmagneticmonopoleelectric-magneticdualitySeiberg-WittentheoryPeccei-QuinnaxionR-axioninstantoncorrectionsperiodic
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that axion–photon couplings need not be quantized in integer multiples of $e^2/16\pi^2$ when magnetic monopoles are present. The authors work in the exactly solvable $N=2$ supersymmetric $SU(2)$ Seiberg–Witten theory, where an anomalous, spontaneously broken $U(1)_R$ symmetry plays the role of the Peccei–Quinn symmetry. In the electric duality frame the coupling is computed exactly as $c_{a\gamma\gamma} = -8 - \sum_{k\geq 1} 4k(\tilde b_k - i\tilde c_k)(\Lambda/A_v)^{4k}$, containing the standard anomaly term plus periodic corrections from BPS monopoles and dyons that can become large near the monopole point without violating the discrete axion shift symmetry. The paper further shows that the canonically normalized $a\to\gamma\gamma$ amplitude is invariant under electric–magnetic duality, provided the axion itself is identified with the phase of the chiral superfield $A$ in the electric frame and with the phase of the dual superfield $A_D$ in the magnetic frame. A sympathetic reader would care because the result is a calculable proof of principle that experimental axion searches based on quantized couplings may miss parametrically larger couplings in theories with magnetic charges.

What carries the argument

The load-bearing object is the exact Seiberg–Witten prepotential $F(A)$ and its Legendre transform $F_D(A_D)$, whose second derivatives give the holomorphic gauge couplings $\tau(A)$ and $\tau_D(A_D)$; the paper reads the axion couplings directly from their expansions with up to 25–30 instanton coefficients. The identity that carries the duality argument is $e^3\,\partial\tau/\partial A = (-\tau_D/|\tau_D|)^3\, e_D^3\, \partial\tau_D/\partial A_D$, which combines the $S$-duality relation $\tau = -1/\tau_D$ with the Cauchy–Riemann properties of the prepotential and shows the physical amplitude is duality invariant. The final key step is the identification of the axion as the phase of $A$ and of the dual axion as the phase of $A_D$: this makes the axion itself transform non-linearly under duality, which is what reconciles the non-quantized coupling with the shift symmetry.

What would settle it

Compute the two-instanton contribution to the electric-frame axion–photon amplitude and check that it matches the dual-frame result at order $\Lambda^8$; any discrepancy between the two frames at that order would falsify the claimed duality invariance, as would any observed mixing of the phase of $A$ with the radial mode near the monopole point.

Watch

Extended reading notes

Core claim

In the electric duality frame, the axion $a$ is the phase of the scalar component of the chiral superfield $A$, and the holomorphic gauge coupling $\tau(A)$ encodes the axion–photon interaction. Expanding $\tau$ around the axion VEV gives $c_{a\gamma\gamma} = -8 - \sum_{k\geq 1} 4k(\tilde b_k - i\tilde c_k)(\Lambda/A_v)^{4k}$, where the $-8$ is the perturbative anomaly of the $W^\pm$ gauginos and the sum is a convergent instanton expansion representing the contributions of all BPS monopoles and dyons. In the magnetic frame the dual axion $a_D$ couples through the analogous coefficient with a $+1$ from the monopole anomaly. Despite the different-looking couplings and the non-linear relation between $a$ and $a_D$, the physical decay amplitudes agree exactly, $\Gamma_{\rm el} = \Gamma_{\rm mag}$, because $e^3\,\partial\tau/\partial A$ equals the dual quantity up to a phase. Near the monopole point $u\to 2\Lambda^2$ the coupling diverges, yet the same physical rate is obtained in both frames, and at weak coupling the standard quantized result is recovered.

Load-bearing premise

The entire calculation rests on the claim that the massless axion is exactly the phase of the scalar component of the chiral superfield $A$ (and the dual axion the phase of $A_D$) rather than a mixture with the radial mode.

Editorial extensions

If this is right

  • Axion–photon couplings in theories with magnetic monopoles are not quantized; the extra terms are periodic in $a/f$ and therefore respect the shift $a\to a+2\pi f$.
  • Near a light-monopole point the coupling can be parametrically larger than the standard anomaly estimate, changing the expected photon flux in axion experiments.
  • The physical $a\to\gamma\gamma$ rate is duality invariant, so calculations in electric and magnetic frames must agree; treatments of axion electrodynamics that ignore duality covariance need revision.
  • At weak coupling the model reduces to the standard QCD-axion picture with $c_{a\gamma\gamma}\to -8$, so the non-quantized result is a consistent extension rather than a contradiction.
  • The periodic terms admit an independent interpretation as a sum over instantons, and the one-instanton coefficient matches a direct semiclassical computation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Extension: if real-world axion models inherit magnetic degrees of freedom (e.g., from GUT monopoles), the axion–photon coupling could deviate from the quantized value by order-one factors whenever the monopole is light, directly affecting the interpretation of haloscope and helioscope bounds.
  • Extension: the duality-covariance identity implies a model-building constraint — self-consistency under electric–magnetic duality ties the axion coupling to the dual decay constant, a relation any UV completion with magnetic charges must satisfy.
  • Extension: in a non-supersymmetric version, supersymmetry breaking would give the axion a mass while also lifting the radial mode; the large-coupling region near the monopole point would then generically come with an axion mass of order the SUSY-breaking scale, linking the coupling size to the mass in a potentially observable way.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

1 major / 4 minor

Summary. The paper proposes N=2 SU(2) Seiberg-Witten theory as a fully calculable toy model for a Peccei-Quinn axion coupled to electric and magnetic charges. The axion is identified with the phase of the scalar component of the low-energy chiral superfield A, and the dual axion with the phase of A_D. Using the exact prepotential and its instanton expansion, the authors derive the axion-photon coupling in the electric frame as the sum of a perturbative anomaly and periodic instanton corrections, and the analogous expression in the magnetic frame. They prove via Cauchy-Riemann identities that the canonically normalized a -> gamma gamma decay amplitude is duality invariant up to a phase, and conclude that axion couplings need not be quantized and can become large near the monopole point. The paper contains explicit numerical results based on 25 and 30 instanton terms and a one-instanton cross-check.

Significance. The paper addresses a real controversy in axion effective field theory with magnetic monopoles and offers a concrete, well-motivated counterexample to naive coupling quantization. Its strengths are the use of the exact Seiberg-Witten solution, the analytic duality-invariance proof in Appendix B, and the reproducible instanton coefficients reported in Appendix A. If the axion identification is justified, the result is important for axion phenomenology and for the general formulation of electric-magnetic duality in axion electrodynamics. However, the central claim rests on the identification of the dual axion with the phase of A_D, which is currently asserted rather than proved.

major comments (1)
  1. [Sec. IV, Eq. (19); Sec. V] The identification of the dual axion as the phase of A_D is asserted, not derived. Under the U(1)_R transformation A -> e^{2i alpha} A, the prepotential F(A) in Eq. (9) is not invariant; in particular the perturbative term gives A_D = partial F / partial A proportional to A (ln(2A/Lambda) - 1), so A_D transforms into e^{2i alpha} A_D plus a term proportional to alpha times A, not by a pure phase. Hence the phase of A_D is not automatically the Goldstone mode of the same U(1)_R symmetry. The paper admits in Section V that fluctuations in a_D are a mix of a and the radial mode |A|, but dismisses the radial mode as 'phenomenologically disfavored' even though it is massless on the Coulomb branch. This is a load-bearing gap: unless one proves that U(1)_R acts as a pure phase on A_D, or that the radial-mode component decouples from the a -> gamma gamma amplitude, Eq. (25) does not establish the duality invariance of the physical axion decay rate. I recommend adding such a proof or reformulating the duality-invariance statement in terms of a single physical axion operator.
minor comments (4)
  1. [Eq. (1)] The factor 'Naa' in Eq. (1) is confusing as printed; it presumably means an integer N_a multiplying a, and should be defined explicitly.
  2. [Eq. (14)] The coefficients tilde b_k and tilde c_k are said to be related to d_k by a rescaling of (Lambda/A_v)^{4k}, but the explicit relation is not given; please state it.
  3. [Footnote 7 and Sec. V] Footnote 7 says the radial fluctuation is decoupled from the axion, while Section V says fluctuations in a_D mix a with the radial mode; these statements should be reconciled and the sense in which the radial mode is irrelevant should be made precise.
  4. [Appendix A and Figs. 1-3] Figure 5 shows a deviation at u around 10 attributed to the loss of validity of the finite asymptotic series; the paper should state how the truncation error in Figs. 1-3 is estimated, especially near the monopole point where the claimed large coupling is found.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the axion-photon couplings are computed from the exact Seiberg-Witten prepotential, and the duality invariance of the amplitude is derived from the Legendre-transform identities rather than imposed.

full rationale

The claimed predictions do not reduce to their inputs by construction. The electric-frame coefficient c_{aγγ} in Eq. (18) is obtained by expanding the exact SW gauge kinetic function τ(A) given in Eq. (14); the instanton coefficients d_k come from the external Seiberg-Witten/Nekrasov solution and are not fitted to the axion-photon coupling. The magnetic-frame coefficient c^D_{aγγ} in Eq. (21) is the analogous expansion of τ_D(A_D). The central duality statement Γ_el = Γ_mag is not assumed: Eq. (24) and Appendix B prove |e^3 ∂τ/∂A| = |e_D^3 ∂τ_D/∂A_D| using the SW identities τ_D = -1/τ and ∂A_D/∂A = -τ_D^{-1}, so Eq. (25) is a consistency check of the calculated amplitudes. Self-citations are not load-bearing: Ref. [11] is used only to interpret the computed periodic terms as BPS-state anomaly sums, and Refs. [34,39] support standard facts; the numerical results stand on the SW benchmark. One caveat is not a circularity: the paper asserts without proof in Sec. IV that the dual axion is uniquely the phase of A_D (Eq. (19)) under U(1)_R, and later notes in Sec. V that a_D fluctuations mix with the radial mode |A|. If this identification fails, the physical interpretation of Γ_mag would change, but the algebraic derivation of the equality is independent of that premise. This is a correctness/support gap, not an input-output equivalence.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

The central claim relies on the established Seiberg-Witten solution as input: the exact prepotential and dual prepotential (Eq. 9), the BPS mass formula (Eq. 6), and the SL(2,Z) duality action (Eqs. 10-12). The key paper-specific premise is the identification of the axion as the phase of the scalar superfield A (Eq. 13), which the paper argues is forced by U(1)_R but is not a theorem of SW theory. No free parameters are fitted to data and no new entities are postulated.

assumptions (5)
  • domain assumption The Seiberg-Witten prepotential F(A) and dual prepotential F_D(A_D) in Eq. (9) are exact, including all nonperturbative instanton corrections.
    Taken from [5,15-18]; all coupling calculations in Sections III-IV are derived from these expressions.
  • domain assumption The BPS mass formula (6) and the SL(2,Z) duality action on charges (12) correctly describe the spectrum and duality of the theory.
    Standard Seiberg-Witten theory, invoked in Section II to identify monopole/dyon singularities and in Section V for the duality invariance argument.
  • domain assumption The IR axion is the phase of the scalar superfield A, A(x) = A_v(u) exp(i a(x)/f(u)) (Eq. 13), and the dual axion is the phase of A_D (Eq. 19).
    This identification is the load-bearing premise of the paper; the authors argue it is uniquely determined by the anomalous U(1)_R symmetry, but it is a physical modeling assumption rather than a consequence of the SW solution.
  • domain assumption The truncated instanton expansions (25 terms in the electric frame, 30 in the magnetic frame) are accurate enough to compute the couplings in the regimes studied.
    The paper provides evidence in Appendix A and Fig. 5, showing agreement between the two frames, but the series is asymptotic (as acknowledged in the Fig. 5 caption), so the truncation is a practical assumption.
  • standard math The holomorphic function identities (B1) and (B2) hold for the prepotential, used to prove duality invariance of g_{aγγ}.
    Cauchy-Riemann relations for holomorphic functions, applied in Appendix B.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Seiberg-Witten Axion." pith.science (2026). https://pith.science/paper/5JTTPD7G

@misc{pith2026241115312,
  author       = {Pith},
  title        = {Pith review of: The Seiberg-Witten Axion},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5JTTPD7G}},
  note         = {Machine review of arXiv:2411.15312}
}
abstract

We present a fully calculable UV complete toy model of a Peccei-Quinn (PQ) axion coupled to magnetic monopoles as well as electric charges. The theory has manifest electric-magnetic duality built in. We find that the axion-photon coupling contains the usual anomaly term, plus periodic corrections which can also become large if the monopole is light, without violating the discrete axion shift symmetry. These additional periodic terms can be identified as the non-perturbative corrections due to the monopoles (and other BPS states), but can also be interpreted as a sum over instanton corrections. The key aspect helping reconcile axion coupling quantization with electric-magnetic duality is the fact that the axion itself undergoes a non-linear transformation under electric-magnetic duality. The theory analyzed here is just the original $N=2$ supersymmetric $SU(2)$ Seiberg-Witten theory, which contains a PQ axion due to an anomalous spontaneously broken global $R$-symmetry, as well as massless fermionic monopoles and dyons at special points in the moduli space. Hence the entire machinery of the Seiberg-Witten solution can be applied to reliably calculate the photon-axion coupling in different duality frames. We show explicitly that the physically observable axion-photon amplitude is duality invariant, as it had to be.

Figures

Figures reproduced from arXiv: 2411.15312 by the authors.

Figure 1
Figure 1. FIG. 1: The real and imaginary part of the axion coupling [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: The real and imaginary parts of the axion coupling [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

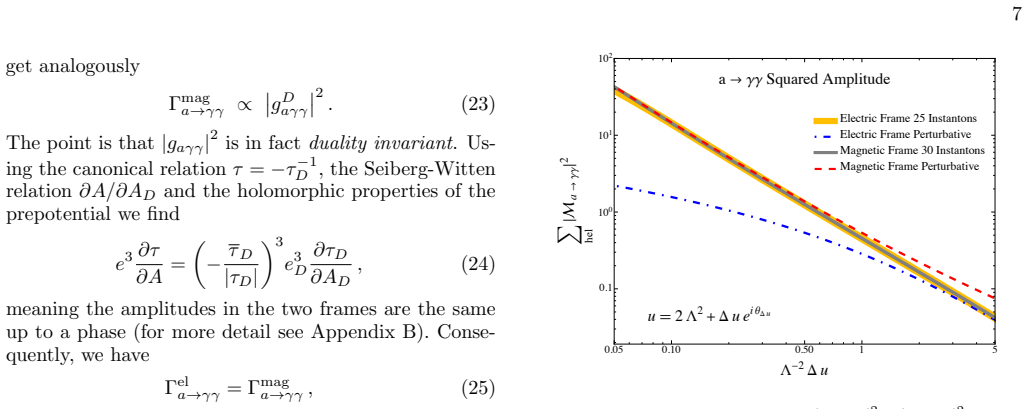

Figure 3. FIG. 3: The duality-invariant sum [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: FIG. 4: One-instanton contribution to the correlator [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
