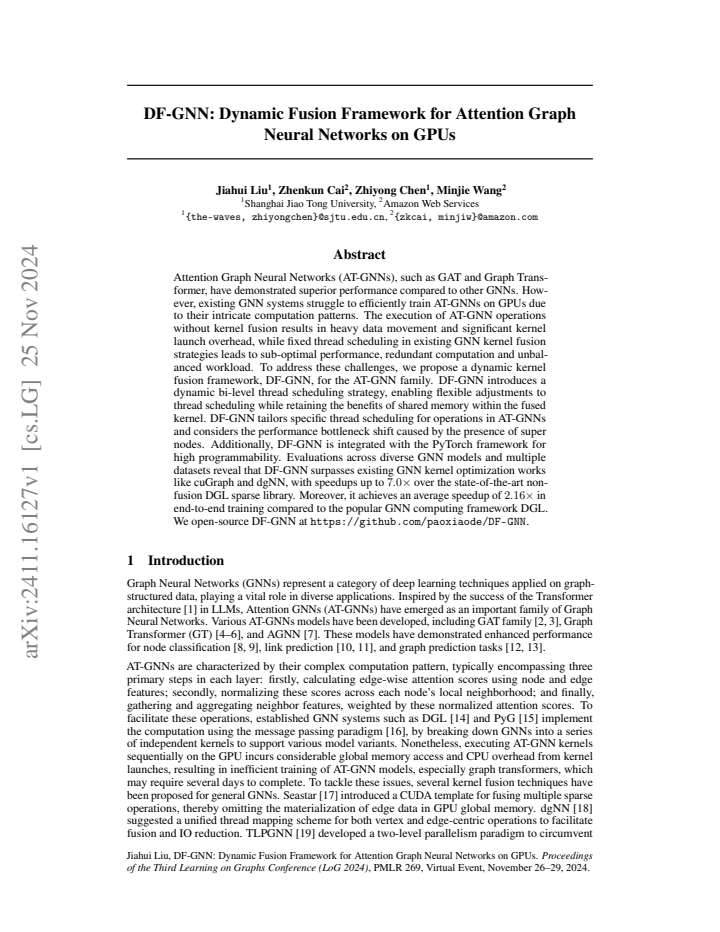

DF-GNN: Dynamic Fusion Framework for Attention Graph Neural Networks on GPUs
T0 review · 3 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash
Pith's one-line read Fused GPU kernels with adaptive thread scheduling speed attention GNNs up to 7x
desk verdict DF-GNN delivers real, consistent speedups for attention GNN training, but the runtime SMMF/PMF selection rule is underspecified enough that the central dynamic-selection claim is not reproducible as written. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
Dynamic Bi-level Thread Scheduling (BTS) is the central mechanism: a fused kernel in which inter-block scheduling (node parallel vs edge parallel) and intra-block scheduling (feature parallel, warp-balanced, or flattened edge-wise) are chosen separately for each operation, with thread reshuffling between stages. Three tailored variants carry the argument: warp-balanced SDDMM spreads a block's edges evenly across warps; redundancy-free Softmax assigns each warp a distinct row and caches normalized weights in shared memory; and vectorized SpMM combines vectorized loads with a shared-memory accumulator. The framework's runtime heuristic selects between SMMF and PMF using the rule that PMF is used only when a node's degree reaches shared-memory capacity divided by bytes per feature and the attention operator is a dot product.
What would settle it
Construct a graph whose maximum degree sits just below and just above the shared-memory threshold with dot-product attention, and time the same layer with SMMF forced and with PMF forced; if the heuristic-selected mode is the slower one on either side of the boundary, the selection rule is wrong in a case the paper does not test.
Extended reading notes
Core claim
The central claim is that no single thread-scheduling policy is optimal for the whole attention-GNN layer, because the SDDMM step is edge-independent and prefers edge-parallel work distribution, while Softmax and SpMM are row-wise and prefer node-parallel organization. DF-GNN therefore replaces the fixed feature-parallel fusion strategy with dynamic bi-level thread scheduling, rescheduling threads inside each block between operations, and it introduces a runtime choice between two fusion modes: SMMF fuses SDDMM-Softmax-SpMM into one node-parallel kernel with shared-memory intermediates, while PMF uses an edge-parallel SDDMM and fuses only Softmax with SpMM, for graphs whose super nodes would overflow shared memory. The paper reports that this consistently beats existing GNN kernel optimizations on batch and full graphs, with kernel speedups of 1.92x–7.00x against the non-fused sparse baseline and a 2.16x average end-to-end training speedup, and that the same scheduling accelerates the backward pass.
Load-bearing premise
The load-bearing premise is that one static rule — pick PMF only when a node's degree reaches shared-memory capacity divided by bytes per feature and the attention operator is a dot product — always identifies the faster fusion mode; if that heuristic misclassifies a graph, DF-GNN may run the slower mode and the reported average speedups shrink.
Editorial extensions
If this is right
- On graphs without super nodes, the paper predicts SMMF is optimal: full fusion into a single kernel with shared-memory intermediates maximizes reuse and minimizes kernel launches.
- On graphs with super nodes and dot-product attention, PMF is predicted to win by avoiding shared-memory overflow and workload imbalance in SDDMM.
- The backward pass of the attention layer follows the same SDDMM-Softmax-SpMM pattern, so backward fusion contributes to the end-to-end speedup and not just the forward pass.
- The reported speedups grow with graph degree and with small graph size: high-degree batch graphs gain from warp-level balance, while small full graphs gain most from eliminating kernel launch overhead.
- The design carries over to at least two GPU architectures and a range of feature dimensions and batch sizes in the ablations.
Reading between the lines
- The bi-level scheduling idea is likely applicable to other fused irregular kernels beyond attention GNNs, such as sparse transformer attention with variable sequence lengths; the paper does not test this transfer.
- The SMMF/PMF heuristic could be replaced by a per-graph cost observation, e.g., a short timing probe of the SDDMM step, which would remove the dependence on a static degree threshold.
- The 2.16x end-to-end average is for single-GPU training; the paper's claim that the kernels port to distributed training would need communication costs to remain hidden, which is unlikely on small graphs.
- If the open-sourced kernels are used as a drop-in backend, the practical speedup for a given model will depend on whether numerical results match existing libraries on attention variants beyond GAT, AGNN, and graph transformers.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. DF-GNN is a GPU kernel-fusion framework for attention GNNs (GAT, AGNN, and Graph Transformer). It fuses the SDDMM, softmax, and SpMM operators into a single kernel under the SMMF mode, and splits off SDDMM into an edge-parallel kernel under the PMF mode for graphs with super nodes and dot-product attention. The core design is a dynamic bi-level thread scheduler with warp-balanced SDDMM, redundancy-free softmax, and vectorized SpMM, extended to the backward pass and exposed through PyTorch-compatible APIs. The evaluation on batch and full graphs on A10G and H100 reports large kernel-level speedups (up to 7.0x) and end-to-end training speedups (average 2.16x) over DGL, PyG, dgNN, and cuGraph, with ablations attributing the gains to the three scheduling optimizations.
Significance. If the reported numbers are reproducible, this is a practically useful systems contribution: it targets a real performance gap in AT-GNN training on a single GPU, integrates cleanly with PyTorch, is open source, and extends fusion to the backward pass more systematically than many prior GNN kernel-fusion works. The paper's strengths are its concrete decomposition of the AT-GNN workload into SDDMM/softmax/SpMM, the explicit bi-level scheduling design, and the evaluation across two GPU architectures. The main reservations are that the dynamic SMMF/PMF selection rule is not specified precisely enough to reproduce the headline 'dynamic' advantage, and the empirical claims are reported without variance or a numerical-equivalence protocol. Both are addressable in revision, and the central idea is credible.
major comments (3)
- [Section 4.2] The SMMF/PMF selection rule is not specified at a reproducible level. The text states that PMF is used when 'max_v(N(v)) >= Shared memory capacity / Bytes of feature data type' and the SDDMM is a dot product, but the denominator is ambiguous. If 'Bytes of feature data type' means sizeof(float)=4 bytes, then on the A10G the threshold is about 12,288 or 25,600 edges depending on whether the default 48KB or the maximum opt-in shared memory is used; under either value, Ogbg-ppa (max degree 3,241) and Protein (max degree 7,750) would not trigger PMF, contradicting Section 5.2's statement that PMF is used on these super-node graphs. If the denominator instead means d*sizeof(float)=512 bytes for d=128, the threshold drops to about 96-200, which would make Cora and Pubmed (max degrees 168 and 171) trigger PMF under the lower shared-memory assumption, although they are presented as ordinary SMMF full-graph cases. The manuscript must state the exact formula, the numeric shared-memory capacity used, and which datasets satisfy the rule; because the reported average speedups depend on this runtime choice, the central dynamic-selection claim is not anchored as written.
- [Section 5.1 and Section 5.2] All speedup numbers are reported as single-point normalized values without trial counts, confidence intervals, or error bars (e.g., Figures 9 and 10, and Table 2). Without run-to-run variance, the phrases 'consistently outperforms' and 'average speedup of 2.16x' are not statistically supported. In addition, the only correctness statement is that DF-GNN kernels are 'configured to produce results consistent with the baselines' (Section 5.1); there is no numerical-equivalence check, such as max absolute difference in attention scores, output logits, or gradients, and no model-accuracy comparison. Since the claimed speedups are only meaningful if the fused kernels compute the same function as the DGL/PyG baselines, the paper should report repetition counts with variance and a concrete equivalence protocol.
- [Appendix C, Figure 12] The ablation that compares SMMF and PMF is performed only on MNIST, CIFAR10, Reddit, and Protein for GT and GAT. It does not include Ogbg-ppa, the dataset whose max degree lies closest to the plausible threshold, nor does it sweep the threshold to show where PMF becomes beneficial. As a result, the Section 4.2 selection rule lacks direct empirical support at the decision boundary. The authors should either add a threshold sweep or state explicitly that the rule is a hand-tuned heuristic whose validity is demonstrated only on the tested graphs, and then discuss how sensitive the reported average speedups are to the choice of threshold.
minor comments (4)
- [Section 5.2] There are small language errors: 'Pumbed' should be 'Pubmed', and 'we also analysis the bandwidth utilization' should be 'we also analyze the bandwidth utilization'.
- [Table 2] The '-' entries for Preprocess on full graphs should be explained: clarify whether preprocessing is not measured, not needed, or already included in the forward/backward times.
- [Figure 12] The caption and axis labels should clarify which bars correspond to SMMF and which to PMF, and why only these four datasets are shown; currently the figure mixes GT and GAT results without a clear legend for the two bar styles beyond the header text.
- [Section 4.2] The notation 'Bytes of feature data type' should be replaced with an explicit formula, e.g., 'sizeof(feature_dtype)' or 'd * sizeof(feature_dtype)', and 'Shared memory capacity' should name the exact per-block capacity used on each GPU model.
Circularity Check
No significant circularity; DF-GNN's claims are measured speedups against external baselines, not derivations from fitted or self-referential inputs.
full rationale
DF-GNN is a systems-optimization paper whose central claims are empirical kernel-time and end-to-end speedups measured against external baselines (DGL sparse, PyG, dgNN, cuGraph) on stated datasets, models, and hardware. The SMMF/PMF selection rule in Section 4.2 is a design heuristic based on graph degree and SDDMM operator type; it is not a parameter fitted to the reported speedups and then renamed as a prediction. No equation defines a claimed result in terms of the measured data. The backward-pass formulations in Appendix B are standard matrix derivatives and are not used to establish the framework's performance. Citations to DGL and other GNN systems are used as baselines or background, not as authority for DF-GNN's correctness; the one author overlap with the DGL baseline does not make the comparison circular because DGL's runtimes are independently measured. Reproducibility concerns about the exact threshold interpretation in Section 4.2 would be correctness or engineering issues, not circularity. Therefore no load-bearing step reduces to its own inputs.
Assumptions & free parameters
assumptions (4)
- domain assumption AT-GNN layers reduce to the vectorized SDDMM, Softmax, SpMM pipeline in Eq. (1).
- domain assumption GPU kernel launch overhead and global memory traffic dominate AT-GNN kernel cost.
- ad hoc to paper The condition max_v deg(v) >= shared_memory_capacity / bytes_per_feature with dot-SDDMM identifies the bottleneck shift to SDDMM.
- domain assumption The benchmark models (GAT, AGNN, GT) and datasets are representative of the AT-GNN family.
Cite this review
Pith. "Pith review of DF-GNN: Dynamic Fusion Framework for Attention Graph Neural Networks on GPUs." pith.science (2026). https://pith.science/paper/IXSAUHZY
@misc{pith2026241116127,
author = {Pith},
title = {Pith review of: DF-GNN: Dynamic Fusion Framework for Attention Graph Neural Networks on GPUs},
year = {2026},
howpublished = {\url{https://pith.science/paper/IXSAUHZY}},
note = {Machine review of arXiv:2411.16127}
}
abstract
Attention Graph Neural Networks (AT-GNNs), such as GAT and Graph Transformer, have demonstrated superior performance compared to other GNNs. However, existing GNN systems struggle to efficiently train AT-GNNs on GPUs due to their intricate computation patterns. The execution of AT-GNN operations without kernel fusion results in heavy data movement and significant kernel launch overhead, while fixed thread scheduling in existing GNN kernel fusion strategies leads to sub-optimal performance, redundant computation and unbalanced workload. To address these challenges, we propose a dynamic kernel fusion framework, DF-GNN, for the AT-GNN family. DF-GNN introduces a dynamic bi-level thread scheduling strategy, enabling flexible adjustments to thread scheduling while retaining the benefits of shared memory within the fused kernel. DF-GNN tailors specific thread scheduling for operations in AT-GNNs and considers the performance bottleneck shift caused by the presence of super nodes. Additionally, DF-GNN is integrated with the PyTorch framework for high programmability. Evaluations across diverse GNN models and multiple datasets reveal that DF-GNN surpasses existing GNN kernel optimization works like cuGraph and dgNN, with speedups up to $7.0\times$ over the state-of-the-art non-fusion DGL sparse library. Moreover, it achieves an average speedup of $2.16\times$ in end-to-end training compared to the popular GNN computing framework DGL.
