MAD-BA: 3D LiDAR Bundle Adjustment -- from Uncertainty Modelling to Structure Optimization

Krzysztof \'Cwian , Luca Di Giammarino , Simone Ferrari , Thomas Ciarfuglia , Giorgio Grisetti , Piotr Skrzypczy\'nski This is my paper

Pith reviewed 2026-05-23 05:31 UTC · model grok-4.3

classification 💻 cs.RO
keywords LiDAR bundle adjustmentsurfel mapuncertainty modelingpose optimizationstructure optimization3D mappingrobotics state estimation
0
0 comments X

The pith

Joint LiDAR pose and surfel map optimization with a generalized uncertainty model improves accuracy over most state-of-the-art methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a framework that simultaneously optimizes LiDAR sensor poses and the 3D map structure, where the map consists of surfels. It introduces a generalized uncertainty model to reduce the influence of less reliable measurements that arise in different scenarios. A sympathetic reader would care because most existing LiDAR systems optimize poses while treating structure refinement separately or implicitly, so a joint explicit approach could produce more consistent maps and poses in one step. The paper supports this with experiments showing better results than most comparable methods on public datasets and releases the code as open source.

Core claim

The central claim is that representing the 3D map as surfels and performing bundle adjustment to jointly optimize sensor poses and map structure, guided by a generalized LiDAR uncertainty model that accounts for measurement reliability in varying scenarios, results in improved performance compared to most state-of-the-art methods on public datasets.

What carries the argument

Generalized LiDAR uncertainty model combined with surfel-based joint pose and structure optimization inside bundle adjustment.

If this is right

  • The resulting 3D maps achieve higher accuracy and consistency than those from pose-only optimization.
  • Less reliable LiDAR measurements exert less influence on the final optimized result.
  • The surfel representation enables explicit structure refinement during the same optimization pass as pose estimation.
  • The open-source release allows direct application and testing on additional LiDAR datasets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The uncertainty weighting scheme could be adapted to fuse data from additional range sensors beyond LiDAR.
  • Surfel maps may simplify integration with geometric tasks such as surface reconstruction or collision checking compared with implicit representations.
  • The method could be tested on sequences that include moving objects to check whether the static surfel assumption holds.

Load-bearing premise

The generalized uncertainty model accurately captures measurement reliability across scenarios and the surfel representation plus joint optimization produces genuinely better results without dataset-specific biases.

What would settle it

Running the open-source implementation on the same public datasets and finding that performance metrics do not improve when the uncertainty model is removed or when a different map representation is used would falsify the central claim.

Figures

Figures reproduced from arXiv: 2501.03972 by Giorgio Grisetti, Krzysztof \'Cwian, Luca Di Giammarino, Piotr Skrzypczy\'nski, Simone Ferrari, Thomas Ciarfuglia.

Figure 1
Figure 1. Figure 1: Pipeline. Given a trajectory estimated by a LiDAR SLAM system our method jointly optimizes the poses and map. It leverages on our uncertainty model to weight the optimization. The two bottom-right insets qualitatively demonstrate the map refinement achieved by employing our system. association is also employed in our proposed framework. SuMa [2], on the other hand, employs surfel-based map rep￾resentations… view at source ↗
Figure 2

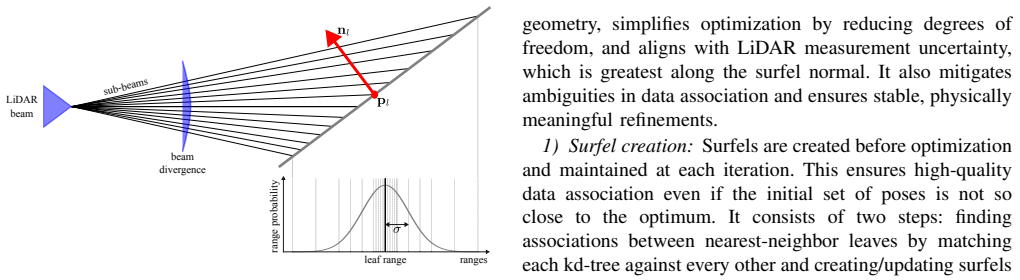

Figure 2. Figure 2: LiDAR uncertainty model. In the top image, a single LiDAR beam is simulated by casting a set of sub￾beams towards a leaf l. At the bottom, the uncertainty of this measurement is modeled as a Gaussian distribution computed from the sampled ranges. simulation prevents the training models from generalizing to real data. To synthesize realistic scans from novel viewpoints, a physically motivated model of the s… view at source ↗
Figure 3

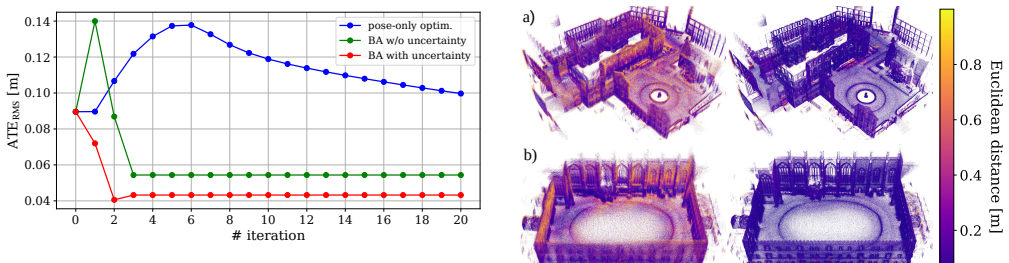

Figure 3. Figure 3: ATE for each iteration of the bundle adjustment algorithm. The plot compares three versions of our system for math-easy sequence and shows that both versions of our BA reduce the trajectory error and accelerate the converge of the algorithm related to the pose-only optimization. For BA with uncertainty, the error didn’t increase in the first iteration because measurements with higher uncertainty are weight… view at source ↗
Figure 4
Figure 4. Figure 4: Chamfer-L1 distance of the cloister sequence for different distance thresholds. The initial map is a surfel map that was created using the initial trajectory. Both variants of our BA notably enhance the quality of the map, however, integrating uncertainty information results in additional im￾provements. convergence, especially compared to pose-only optimization. The map evaluation was performed by comparin… view at source ↗
read the original abstract

The joint optimization of sensor poses and 3D structure is fundamental for state estimation in robotics and related fields. Current LiDAR systems often prioritize pose optimization, with structure refinement either omitted or treated separately using implicit representations. This paper introduces a framework for simultaneous optimization of sensor poses and 3D map, represented as surfels. A generalized LiDAR uncertainty model is proposed to address less reliable measurements in varying scenarios. Experimental results on public datasets demonstrate improved performance over most comparable state-of-the-art methods. The system is provided as open-source software to support further research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper introduces MAD-BA, a framework for simultaneous optimization of sensor poses and 3D map structure represented as surfels in LiDAR bundle adjustment. It proposes a generalized uncertainty model to handle less reliable measurements across varying scenarios. Experimental results on public datasets are reported to show improved performance over most comparable state-of-the-art methods, with the system released as open-source software.

Significance. If the results hold, this contributes to LiDAR-based state estimation by providing an integrated approach to joint pose-structure optimization with explicit uncertainty modeling, potentially improving accuracy in robotics mapping and SLAM applications. The open-source release is a clear strength that enables reproducibility and community validation.

minor comments (2)
  1. Abstract: The claim of 'improved performance over most comparable state-of-the-art methods' is stated without naming the specific metrics (e.g., ATE, RPE), datasets, or quantitative improvements; adding these details would strengthen the summary for readers.
  2. The manuscript would benefit from an explicit statement in the introduction or experiments section clarifying the exact baselines compared and any data exclusion criteria used in the evaluation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No major comments were listed in the report.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper introduces a new optimization framework for LiDAR bundle adjustment with surfel-based structure and a generalized uncertainty model, validated via experiments on public datasets. No load-bearing derivation step reduces by construction to fitted inputs, self-definitions, or self-citation chains; the central claims rest on the proposed model and empirical comparisons rather than renaming or smuggling prior results. The open-source release and external dataset evaluation further confirm the result is not internally forced.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the uncertainty model likely rests on unstated modeling assumptions about measurement reliability but these cannot be audited from the given text.
