arxiv: 2501.07360 · v1 · submitted 2025-01-13 · 💻 cs.CV · cs.LG

TimberVision: A Multi-Task Dataset and Framework for Log-Component Segmentation and Tracking in Autonomous Forestry Operations

Daniel Steininger , Julia Simon , Andreas Trondl , Markus Murschitz This is my paper

Pith reviewed 2026-05-23 05:46 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords TimberVisionlog segmentationtrunk trackingforestry automationRGB detectioninstance segmentationoriented object detectionmulti-object tracking
0
0 comments X

The pith

TimberVision dataset and fusion framework enable accurate trunk representations from RGB images alone even in challenging forest conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces the TimberVision dataset of more than 2,000 annotated RGB images containing 51,000 trunk components to fill the gap in specialized data for automating forestry tasks like harvesting and measuring logs. It runs ablation studies on oriented object detection and instance segmentation, then fuses the component outputs into unified trunk representations. The work adds automatic derivation of geometric properties and multi-object tracking to boost robustness. A sympathetic reader would care because accurate vision-based trunk detection could reduce human exposure to safety risks in remote operations by supporting automation from ordinary cameras.

Core claim

Our detection and tracking approach provides highly descriptive and accurate trunk representations solely from RGB image data, even under challenging environmental conditions. Our solution is suitable for a wide range of application scenarios and can be readily combined with other sensor modalities.

What carries the argument

The generic framework that fuses component detections from oriented object detection and instance segmentation models into unified trunk representations, then applies multi-object tracking.

If this is right

  • Oriented object detection and instance segmentation models trained on the dataset locate cut and lateral trunk surfaces from RGB input.
  • Fusing the component outputs produces unified trunk representations that support derivation of geometric properties.
  • Multi-object tracking applied to the representations increases robustness across image sequences.
  • The resulting system operates across diverse forestry scenarios without requiring non-RGB sensors.
  • The representations remain descriptive and accurate under challenging environmental conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such RGB-derived trunk representations could feed directly into robotic control loops for automated log handling without extra hardware.
  • The dataset could act as a starting benchmark for testing vision methods in other unstructured outdoor settings.
  • Extending the geometric derivations to estimate volume or weight in real time might support on-site log sorting decisions.

Load-bearing premise

The annotated dataset accurately represents the variety of real-world forestry scenes and conditions encountered in autonomous operations.

What would settle it

A controlled test measuring detection and tracking accuracy on new RGB images captured in forest conditions with tree species, weather, or occlusion levels absent from the dataset would show whether performance remains high.

Figures

Figures reproduced from arXiv: 2501.07360 by Andreas Trondl, Daniel Steininger, Julia Simon, Markus Murschitz.

Figure 1
Figure 1. Figure 1: Representative examples of semi-automatically gener [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Representative image samples for Low, Mid and High intensities of annotated scene parameters. The color bars show their distributions across the dataset. from the each other or the background, visible Section Ar￾eas as well as Section Lines denoting the visible borders of cross-sections facing the other way. Additional points un￾ambiguously denote areas covered by each trunk between its constituent lines. … view at source ↗
Figure 3
Figure 3. Figure 3: Overview of our annotation pipeline automatically de [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Overview of our task-fusion algorithm deriving unified trunk representations from OOD and ISEG outputs for individual com [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Accuracy as mean class mAP50-95 and average inference time on test set for multiple model capacities and image sizes [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Ablation results as mAP50-95 on test set for three class combinations and two input sizes. For ISEG, Bound is excluded due to its inherent overlap with Side. The dark-to-light bar colors denote model capacities Nano, Medium and X-Large, respectively. sistent trends for both tasks. While mAP scores for the Side class are slightly lower than those of opaque Trunk in￾stances, the values for Cut are significan… view at source ↗
Figure 7
Figure 7. Figure 7: Model performance for different scene-parameter intensities as [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Representative fusion results on test images. The left [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

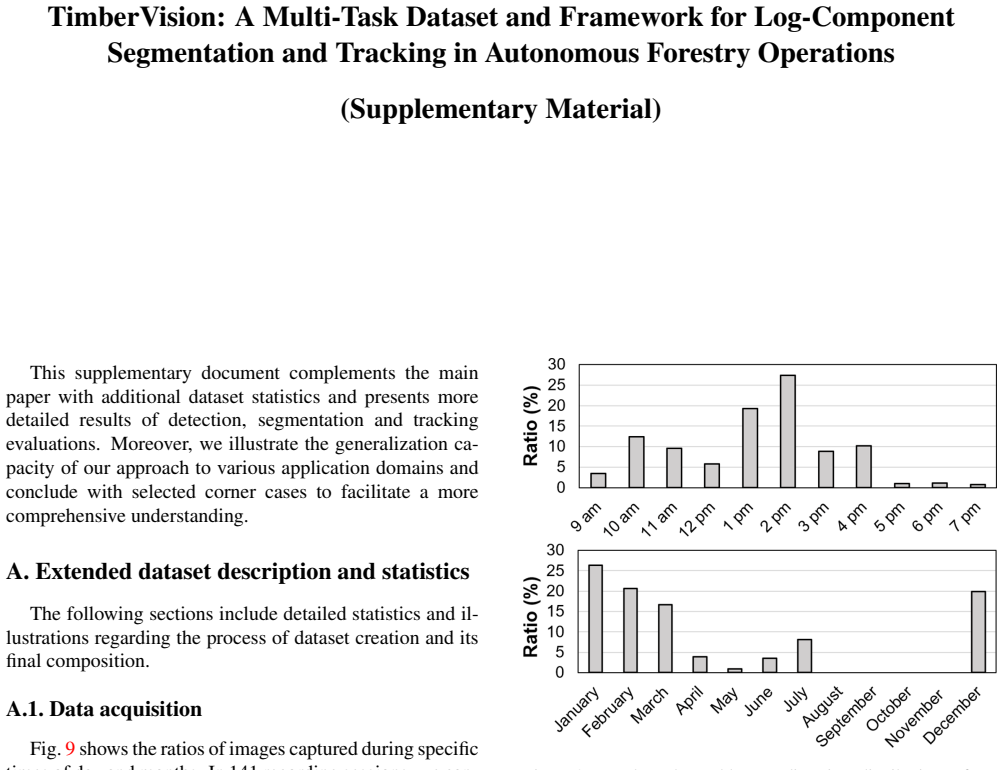

Figure 9. Figure 9: Hourly and monthly recording-time distributions of an [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10

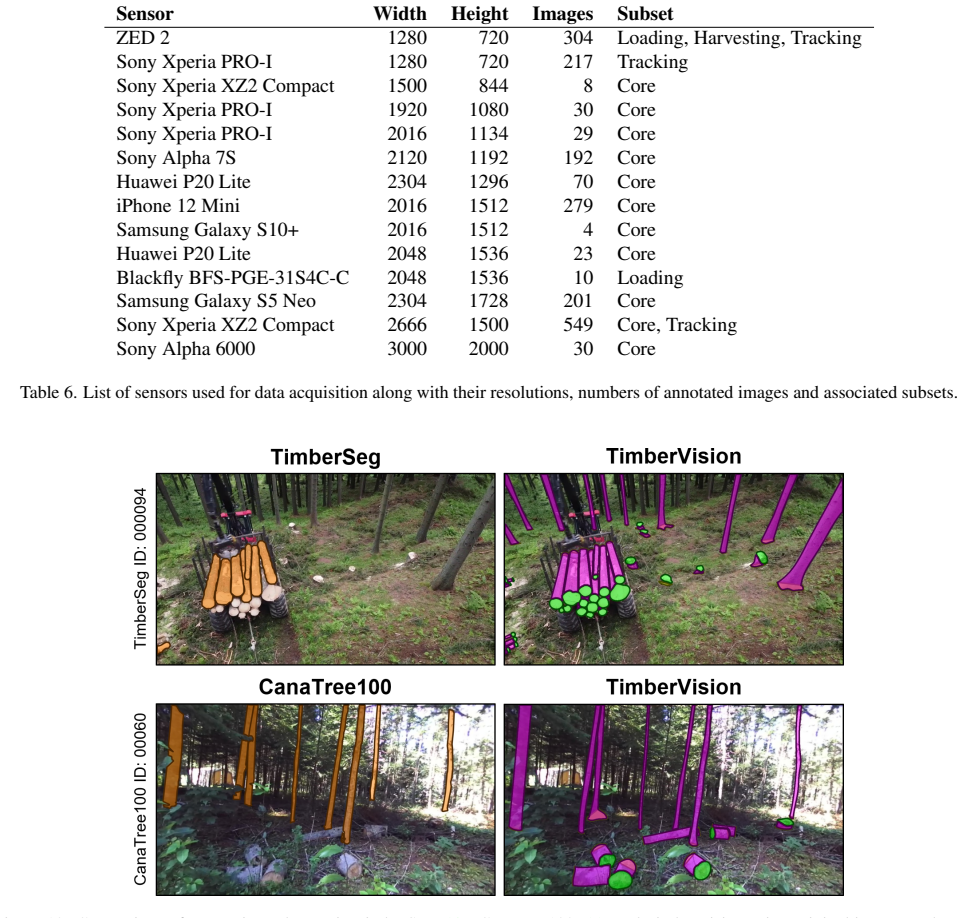

Figure 10. Figure 10: Comparison of annotation schemes in TimberSeg [ [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Distribution of scene parameters for annotated [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Distribution of instance sizes for each class based on oriented-bounding-box dimensions. Instance width refers to the box side [PITH_FULL_IMAGE:figures/full_fig_p014_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: Heat maps illustrating the distribution of instance [PITH_FULL_IMAGE:figures/full_fig_p014_15.png] view at source ↗
Figure 16

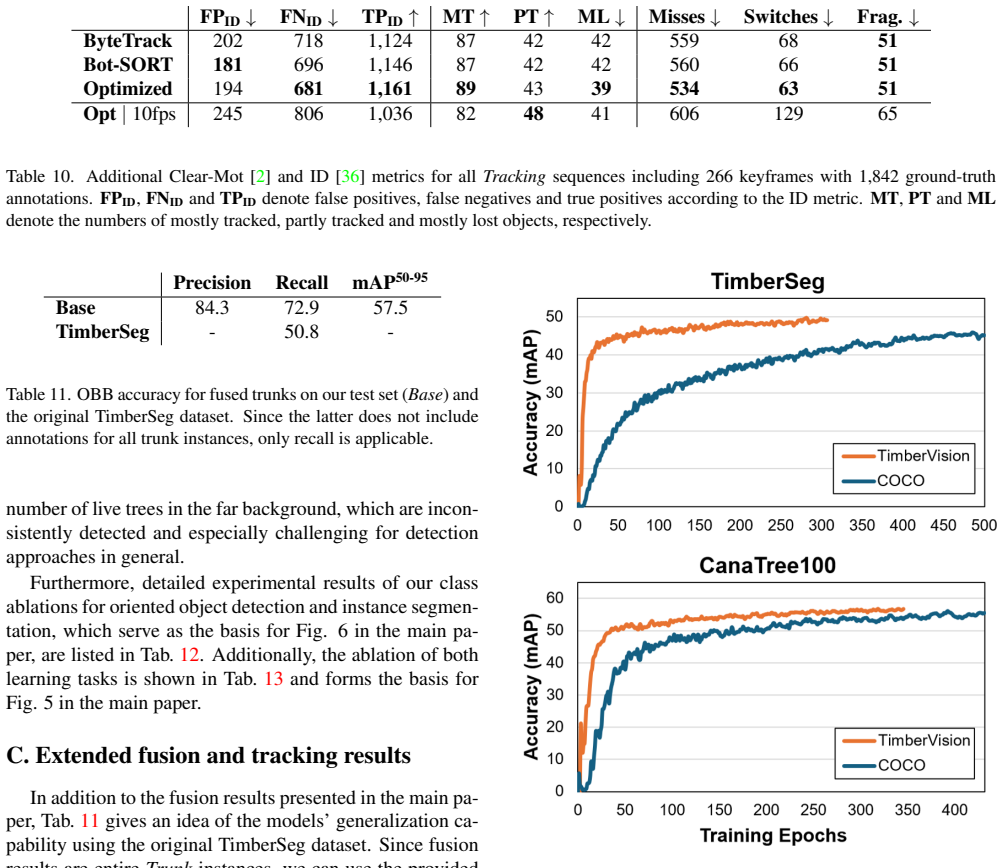

Figure 16. Figure 16: Validation accuracy after each training epoch when [PITH_FULL_IMAGE:figures/full_fig_p015_16.png] view at source ↗
Figure 19

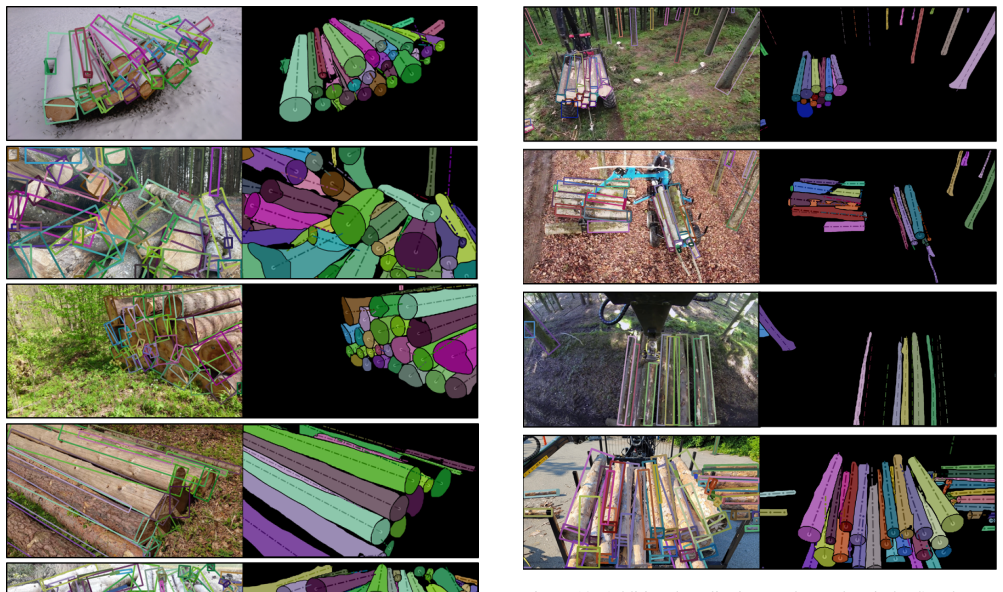

Figure 19. Figure 19: Additional qualitative results on the TimberSeg dataset [PITH_FULL_IMAGE:figures/full_fig_p017_19.png] view at source ↗
Figure 18

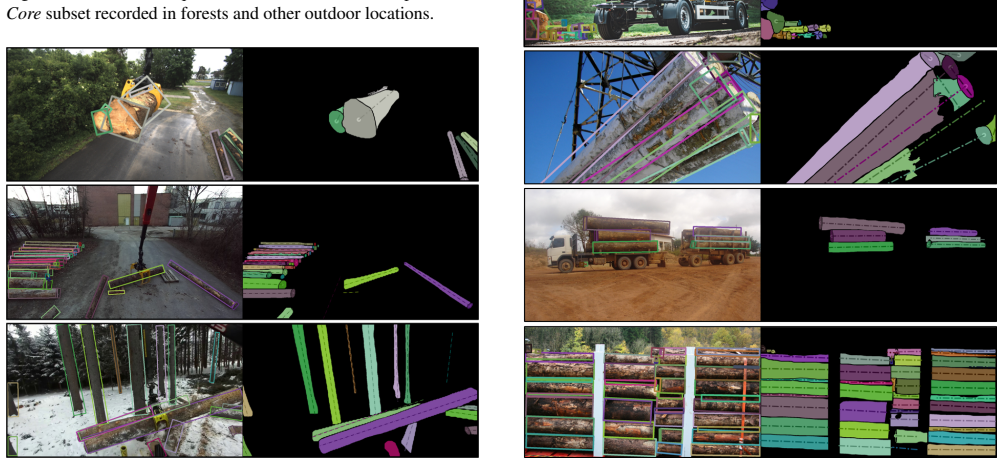

Figure 18. Figure 18: Additional qualitative results on the test splits of the [PITH_FULL_IMAGE:figures/full_fig_p017_18.png] view at source ↗
Figure 21
Figure 21. Figure 21: Additional qualitative results showing limitations on [PITH_FULL_IMAGE:figures/full_fig_p018_21.png] view at source ↗
read the original abstract

Timber represents an increasingly valuable and versatile resource. However, forestry operations such as harvesting, handling and measuring logs still require substantial human labor in remote environments posing significant safety risks. Progressively automating these tasks has the potential of increasing their efficiency as well as safety, but requires an accurate detection of individual logs as well as live trees and their context. Although initial approaches have been proposed for this challenging application domain, specialized data and algorithms are still too scarce to develop robust solutions. To mitigate this gap, we introduce the TimberVision dataset, consisting of more than 2k annotated RGB images containing a total of 51k trunk components including cut and lateral surfaces, thereby surpassing any existing dataset in this domain in terms of both quantity and detail by a large margin. Based on this data, we conduct a series of ablation experiments for oriented object detection and instance segmentation and evaluate the influence of multiple scene parameters on model performance. We introduce a generic framework to fuse the components detected by our models for both tasks into unified trunk representations. Furthermore, we automatically derive geometric properties and apply multi-object tracking to further enhance robustness. Our detection and tracking approach provides highly descriptive and accurate trunk representations solely from RGB image data, even under challenging environmental conditions. Our solution is suitable for a wide range of application scenarios and can be readily combined with other sensor modalities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces the TimberVision dataset (>2k RGB images, 51k annotated trunk components including cut and lateral surfaces), conducts ablation experiments on oriented object detection and instance segmentation to assess scene-parameter influence, presents a framework fusing component detections into unified trunk representations, derives geometric properties, and applies multi-object tracking, claiming highly descriptive and accurate trunk representations from RGB data alone even under challenging environmental conditions.

Significance. If the central claims hold, the work would be significant for supplying the largest and most detailed public dataset in autonomous forestry vision, along with a generic multi-task fusion and tracking pipeline that integrates detection outputs into usable trunk models; the scale (surpassing prior datasets by a large margin) and the explicit scene-parameter ablations constitute concrete strengths that could accelerate reproducible progress in the domain.

major comments (2)
  1. [Abstract] Abstract: the claim that results hold 'even under challenging environmental conditions' is load-bearing for the central contribution, yet the manuscript provides no quantitative evidence that the 2k-image collection spans the target distribution (e.g., no histograms or statistical comparison of lighting, occlusion, weather, or terrain parameters against operational forestry footage, and no held-out extreme-condition subset).
  2. [Dataset / Experiments] Dataset and experimental sections: without an explicit representativeness analysis or cross-validation against real autonomous-operation footage, the reported accuracy and tracking robustness cannot be taken to support generalization to the safety-critical cases the introduction identifies as motivation.
minor comments (1)
  1. [Abstract] Abstract: the description of ablation experiments does not name the concrete metrics (mAP, mask IoU, tracking MOTA, etc.) or the magnitude of the observed scene-parameter effects.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the need to substantiate claims about dataset representativeness and generalization. We address the two major comments point by point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that results hold 'even under challenging environmental conditions' is load-bearing for the central contribution, yet the manuscript provides no quantitative evidence that the 2k-image collection spans the target distribution (e.g., no histograms or statistical comparison of lighting, occlusion, weather, or terrain parameters against operational forestry footage, and no held-out extreme-condition subset).

    Authors: We agree that the manuscript lacks explicit quantitative evidence, such as histograms or statistical comparisons of scene parameters against a reference distribution of operational forestry footage. The dataset was collected across multiple sites and sessions to capture variability in lighting, occlusion, weather, and terrain, and the ablation studies already quantify performance sensitivity to several of these parameters. However, we did not include formal distributional analysis or a held-out extreme-condition subset. We will add this analysis to the dataset section of the revised manuscript (including parameter histograms and summary statistics) and will adjust the abstract wording to align with the provided evidence. revision: yes

  2. Referee: [Dataset / Experiments] Dataset and experimental sections: without an explicit representativeness analysis or cross-validation against real autonomous-operation footage, the reported accuracy and tracking robustness cannot be taken to support generalization to the safety-critical cases the introduction identifies as motivation.

    Authors: We acknowledge the validity of this observation. The reported results are obtained on the TimberVision dataset collected in real forestry settings, and the scene-parameter ablations provide indirect evidence of robustness across conditions. Nevertheless, the manuscript does not contain an explicit representativeness analysis or cross-validation against independent operational footage. We will incorporate a representativeness analysis (parameter distributions and comparison to typical forestry operation characteristics) in the revised dataset section. A full external cross-validation is not feasible with currently available public data and will be noted as a limitation for future work. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical results from new dataset and standard methods

full rationale

The paper introduces a new annotated dataset (TimberVision) and applies standard oriented object detection, instance segmentation, fusion into trunk representations, geometric property derivation, and multi-object tracking. All performance claims are derived from training and evaluation on this held-out or ablated data splits rather than any self-referential fitting, self-citation chain, or ansatz that reduces the output to the input by construction. No equations or uniqueness theorems are invoked that collapse the claimed trunk representations back to the annotations themselves. The central results remain independent empirical measurements on the contributed data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the new dataset being representative of real forestry conditions and standard CV methods (detection, segmentation, tracking) performing well on it without additional sensors.

axioms (1)
  • domain assumption RGB images contain sufficient information for accurate trunk component detection and tracking in forestry environments
    The paper relies on this to claim suitability from RGB data alone under challenging conditions.
