CIRCUIT: A Benchmark for Circuit Interpretation and Reasoning Capabilities of LLMs
T0 review · 3 major / 6 minor · reviewed 2026-08-08 · deepseek-v4-flash
Pith's one-line read Even GPT-4o gets only 48% on a circuit-reasoning benchmark
desk verdict A genuinely useful first benchmark for analog-circuit LLM reasoning, but the unreleased dataset and an unverified homogeneity assumption behind pass@k/n keep the headline 27.45% number from being fully trustworthy. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing design is the template unit test: every template fixes one question, diagram, and netlist, and comes with five numerical setups that differ only in component values such as $V$ and $R$. Correctly answering all five is treated as evidence of topology understanding, just as passing unit tests verifies a program's function. The accompanying metric is $\mathrm{pass@}k/n$, which counts a template as passed when at least $k$ of its $n$ setups are correct, so varying $k$ exposes how consistent a model is across numerical variations. Netlists, with a simplified element vocabulary, are given to models as a text alternative to the diagram.
What would settle it
Audit each template's five setups with human annotators who mark what reasoning each one requires; if a substantial share of templates contain setups that demand qualitatively different circuit behavior, then the $\mathrm{pass@}k/n$ score is not a clean measure of topology understanding. A concrete study would compare the pattern of model failures with independent labels of operating regime; if failures cluster at regime changes, the unit-test interpretation is falsified.
Extended reading notes
Core claim

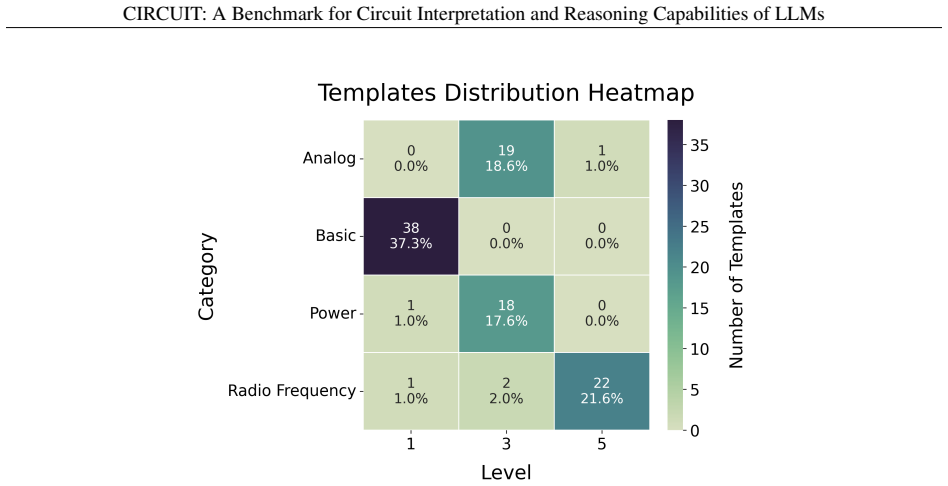

The central claim is that current LLMs cannot robustly interpret and reason about analog circuit topologies, and that the CIRCUIT benchmark can measure this. With 510 question-answer pairs grouped into 102 unit tests, the authors find that the best model, GPT-4o, answers only 48.04% of questions correctly and passes only 27.45% of templates at the strict 5/5 level. Human evaluation confirms that the main failure mode is reasoning about topology, not arithmetic or formatting; for GPT-4o on netlist questions, reasoning errors occur in roughly 59% of responses and topology errors in roughly 36%. The paper presents this as evidence that LLMs have relevant circuit knowledge and can sometimes use netlists successfully, but lack the consistent topology-level understanding needed before they can be trusted in analog design workflows.
Load-bearing premise
The whole unit-test logic rests on the assumption that the five numerical versions of a template are interchangeable problems, so that failing any of them means the model does not understand the topology rather than that the value change created a different subproblem.
Editorial extensions
If this is right
- Global accuracy overstates competence: a model can answer nearly half the questions yet be reliable on only about a quarter of the circuit topologies.
- LLM inconsistency across component values is the main obstacle: the same topology, with different resistor or source values, defeats otherwise capable models.
- Adding netlists helps somewhat but does not solve the problem; even with netlists, topology and direction errors dominate.
- The template-unit-test design and $\mathrm{pass@}k/n$ metric can be transferred to other reasoning domains where a question family shares a core structure with varied numerical inputs.
- Analog-circuit automation that builds on LLMs must first address basic topology interpretation before it can take on design-level tasks.
Reading between the lines
- Editorial inference: the five numerical setups of a template may not be truly equivalent if a value change moves the circuit into a different operating regime, so the 27.45% pass rate should be read alongside a per-setup difficulty audit rather than as a pure measure of topology understanding.
- Editorial inference: a testable extension would be to vary component values parametrically across the full operating range and check whether a model's failures cluster at regime boundaries; if they do, the benchmark is measuring regime sensitivity as much as topology reasoning.
- Editorial inference: because the problems are adapted from standard textbooks, part of the measured performance may reflect memorized textbook solutions; re-running the benchmark with re-labeled or mirrored topologies would separate recall from genuine circuit reasoning.
- Editorial inference: the same template design could be used to measure whether chain-of-thought or tool-augmented prompting, such as calling a circuit simulator, closes the gap, which would identify whether the deficit is in the model or in the interface.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces CIRCUIT, a benchmark of 510 analog-circuit question-answer pairs organized into 102 templates, each with five numerical setups that share a template question, diagram, and (where applicable) netlist. The authors evaluate GPT-4-turbo, GPT-4o, and Gemini 1.5-pro under four prompt configurations and report global accuracy alongside a newly proposed pass@k/n template-level metric, which treats the five setups as a unit test for topology understanding. The headline results are that GPT-4o reaches 48.04% global accuracy and only 27.45% 5/5 template accuracy, leading the authors to conclude that state-of-the-art LLMs still struggle with analog circuit reasoning and generalization across numerical variability. The paper also includes automatic evaluation, human re-evaluation of a subset, error analysis, and qualitative examples.
Significance. If the claims hold, CIRCUIT would be a useful first step in evaluating LLMs for analog circuit reasoning, a domain with little existing benchmarking. The template-based unit-test design and pass@k/n metric are a thoughtful contribution that could transfer to other technical domains, and the incorporation of netlists into prompts is a practical innovation. The paper also deserves credit for performing human re-evaluation: the reported ~5% false-positive rate in automatic scoring and the detailed error taxonomy (math, formatting, reasoning, topology, direction) strengthen confidence in the measurements. However, the absence of a public dataset, the lack of statistical uncertainty quantification, and the unverified homogeneity assumption underlying pass@k/n currently limit the paper's contribution to a suggestive rather than fully established benchmark.
major comments (3)
- [Secs. 3.1, 4.1, 6.1.1 and Appendix E] The pass@k/n interpretation treats the five numerical setups of a template as interchangeable trials of the same topology. Section 3.1 asserts that the setups maintain the same structure, template, diagram, and netlist while altering V and R values, but Section 4.1 also says the setups 'aim to cover the comprehensive output range pertinent to the respective circuit.' For templates containing diodes, BJTs, MOSFETs, current mirrors, and op-amps (e.g., IDs 444, 486, and 199 in Appendix E), sweeping component values to cover the output range can move devices between operating regimes (forward/reverse bias, cutoff/triode/saturation, different feedback states). When that happens, the five setups are not five trials of the same skill but different subproblems sharing a schematic, so a model that solves three regimes and fails two others scores 3/5, which the paper interprets as inconsistency rather than as failure on distinct subproblems. This assumption is load-bearing for the headline 27.45% 5/5 result and for the conclusion that models have low generalization across numerical variability. Please add a per-template verification that all five setups require the same solution method and regime, or report and exclude/flag templates where regime changes occur, and qualify the interpretation accordingly.
- [Tables 1 and 2, Sec. 6.1.1] The paper reports many accuracy differences without confidence intervals or significance tests. With 510 questions organized into correlated groups of five per template, differences such as GPT-4-turbo's 0-shot versus 1-shot global accuracy (38.4 vs. 39.2) and GPT-4o's 0-shot-with-netlists versus 1-shot-with-netlists global accuracy (48.0 vs. 43.1) may be within sampling noise. The claim that 'the best-performing prompt varies by model' and that GPT-4o is 'the most consistent and highest-performing model' therefore needs statistical support. Please add bootstrap confidence intervals or significance tests, and account for clustering by template in the analysis.
- [Ethical Considerations] The paper states that the dataset 'will not be shared publicly until informed consent from the authors of sources listed in Appendix A is obtained.' Because CIRCUIT is presented as a benchmark, the central artifact is currently unavailable for reproduction, verification, or extension by other researchers. This is not merely a dissemination issue: benchmark claims cannot be validated or built upon without access to the data. Please provide a concrete release plan, a hosted dataset, or the full set of templates and setups in a form that does not reproduce copyrighted figures, and state the expected availability date.
minor comments (6)
- [Abstract and Sec. 6.1.1] The 27.45% figure is reported to two decimal places in the abstract and text, while Table 1 rounds to one decimal place (27.5); please harmonize the precision throughout.
- [Sec. 2] The statement that 'there are no benchmarks to assess LLMs' reasoning capability about circuits' is too strong and should be qualified as 'to our knowledge, no public benchmark for analog circuit reasoning,' with citations to any recent digital-circuit or general circuit reasoning benchmarks.
- [Table 2] The row for '0-s w/ netlists' has no entries under 'Questions Without Netlists,' which makes the table layout confusing; add explicit em-dashes or restructure the table so the reader can tell which rows apply to which subset.
- [Appendix B] There are grammatical and typographical errors in the netlist instructions: 'Some elements and nodes are have no label/name' and 'descritption' should be corrected.
- [Appendix E.5] For problem ID 265, the response ends at 1.099 and the text says the approximation 'resulted in the final answer being outside the allowed error range'; please state the ground-truth value so the reader can see why 1.099 fails the 0.001 tolerance.
- [Sec. 5.1] Please specify the exact model versions and inference dates more precisely than 'Accessed: 2024-10-01'; model behavior changes over time, and this information is needed for reproducibility.
Circularity Check
No circularity: CIRCUIT reports direct benchmark measurements; the central accuracy results are not derived from the metric or from self-citations.
full rationale
The paper makes no first-principles derivation whose conclusion is encoded in its inputs. Section 3.1 describes dataset construction from templates and numerical setups; Section 4.1 defines global accuracy and pass@k/n directly from observed answer correctness; Section 6.1.1 reports measured accuracies (e.g., GPT-4o 48.04% global, 27.45% 5/5 template). The statistic "the model passed only 27.45% of unit tests" is computed from the responses and ground truths, not fitted from a parameter later renamed as a finding. The only self-referential element is Appendix A listing "Author 1 Original problems" as one of ten dataset sources; this is a provenance disclosure and is not load-bearing for the evaluation. The reviewer concern that five numerical setups per template may not always be homogeneous (Section 3.1 says "each maintaining the same structure... altering V and R values") is a validity assumption about what pass@k/n measures, not a circular reduction: even if the assumption fails, the reported percentages would still be direct measurements, merely less interpretable as topology-level robustness. No uniqueness theorem, ansatz, or fitted-input-as-prediction pattern appears. Therefore the circularity score is 0.
Assumptions & free parameters
free parameters (3)
- absolute_answer_tolerance =
0.001
- setups_per_template =
5
- decimal_precision_requirement =
6
assumptions (4)
- domain assumption Circuit analysis laws (Ohm's law, KCL, KVL, and other standard rules) give correct answers.
- domain assumption Source materials are correct and the adaptations preserve correctness.
- ad hoc to paper The five numerical setups in a template uniformly test the same topology.
- domain assumption LLM performance on this dataset reflects analog circuit reasoning capability.
Cite this review
Pith. "Pith review of CIRCUIT: A Benchmark for Circuit Interpretation and Reasoning Capabilities of LLMs." pith.science (2026). https://pith.science/paper/CZICXR6B
@misc{pith2026250207980,
author = {Pith},
title = {Pith review of: CIRCUIT: A Benchmark for Circuit Interpretation and Reasoning Capabilities of LLMs},
year = {2026},
howpublished = {\url{https://pith.science/paper/CZICXR6B}},
note = {Machine review of arXiv:2502.07980}
}
read the original abstract
The role of Large Language Models (LLMs) has not been extensively explored in analog circuit design, which could benefit from a reasoning-based approach that transcends traditional optimization techniques. In particular, despite their growing relevance, there are no benchmarks to assess LLMs' reasoning capability about circuits. Therefore, we created the CIRCUIT dataset consisting of 510 question-answer pairs spanning various levels of analog-circuit-related subjects. The best-performing model on our dataset, GPT-4o, achieves 48.04% accuracy when evaluated on the final numerical answer. To evaluate the robustness of LLMs on our dataset, we introduced a unique feature that enables unit-test-like evaluation by grouping questions into unit tests. In this case, GPT-4o can only pass 27.45% of the unit tests, highlighting that the most advanced LLMs still struggle with understanding circuits, which requires multi-level reasoning, particularly when involving circuit topologies. This circuit-specific benchmark highlights LLMs' limitations, offering valuable insights for advancing their application in analog integrated circuit design.
