Intervalley-Coupled Twisted Bilayer Graphene from Substrate Commensuration

Bo-Ting Chen , Michael G. Scheer , Biao Lian This is my paper

Pith reviewed 2026-05-23 00:47 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-scicond-mat.str-el
keywords bandssubstrategraphenecouplingflatlatticebilayercommensurate
0
0 comments X

The pith

Substrate commensuration induces intervalley coupling in TBG, hybridizing flat bands into a p_x-p_y honeycomb model with quadratic touchings that flatten due to frustration and yield topological bands with C up to 4.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Twisted bilayer graphene at the magic angle already has flat electron bands from its moire pattern. This work proposes adding a substrate whose lattice matches graphene in a specific ratio of sqrt(3). The match folds the two valleys of graphene together at one momentum point. The resulting hybridization turns the original flat bands into four bands that behave like electrons in p_x and p_y orbitals on a honeycomb lattice. In that effective model, the second conduction and valence bands touch quadratically but can be made flat by geometric frustration. Adding spin-orbit coupling from the substrate opens gaps and gives the bands large topological invariants. The authors point to Sb2Te3 and GeSb2Te4 as materials whose lattice constants nearly match the required ratio. For realistic substrate strengths, the flattest bands still occur near the usual magic angle of 1.05 degrees, and the quantum metric remains close to ideal.

Core claim

The intervalley coupling folds the ±K valleys of TBG to the Γ-point and hybridizes the original TBG flat bands into a four-band model equivalent to the p_x-p_y orbital honeycomb lattice model, in which the second conduction and valence bands have quadratic band touchings and can become flat due to geometric frustration. The spin-orbit coupling from the substrate opens gaps between the bands, yielding topological bands with spin Chern numbers C up to ±4.

Load-bearing premise

The substrate provides a clean, commensurate triangular lattice potential of sufficient strength to induce the intervalley coupling and hybridization while preserving the TBG moire structure and without introducing significant disorder or lattice mismatch effects (abstract, paragraph on substrate alignment and candidate materials).

Figures

Figures reproduced from arXiv: 2503.03869 by Biao Lian, Bo-Ting Chen, Michael G. Scheer.

Figure 1
Figure 1. Figure 1: FIG. 1. (a)-(b): Top view of the bottom graphene lattice [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. The moiré band structure for the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

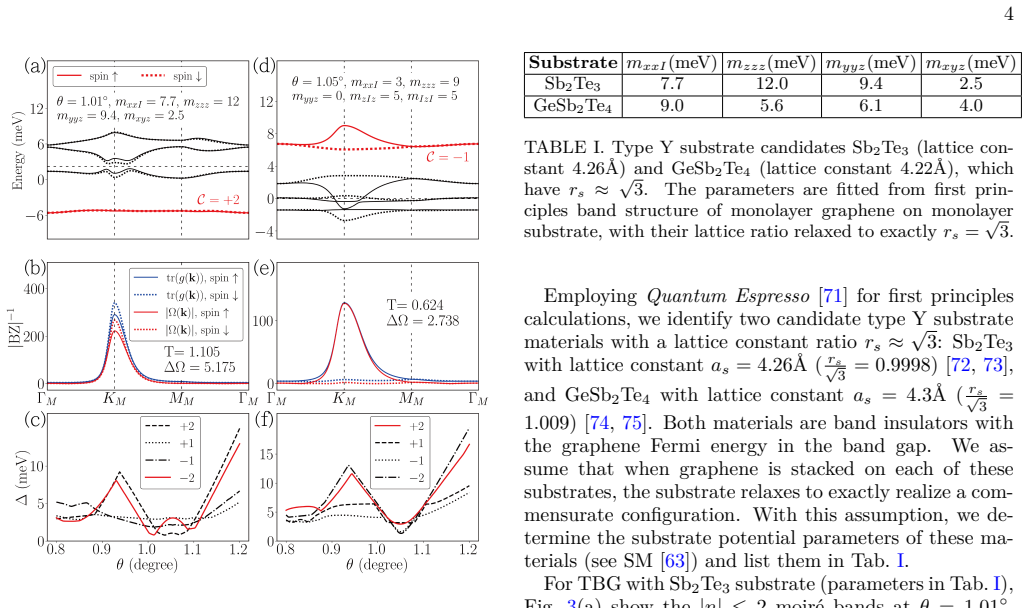

Figure 3. Figure 3: FIG. 3. (a) and (d) show examples of the moiré bands for [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

We show that intervalley coupling can be induced in twisted bilayer graphene (TBG) by aligning the bottom graphene layer with either of two types of commensurate insulating triangular Bravais lattice substrate. The intervalley coupling folds the $\pm K$ valleys of TBG to the $\Gamma$-point and hybridizes the original TBG flat bands into a four-band model equivalent to the $p_x$-$p_y$ orbital honeycomb lattice model, in which the second conduction and valence bands have quadratic band touchings and can become flat due to geometric frustration. The spin-orbit coupling from the substrate opens gaps between the bands, yielding topological bands with spin Chern numbers $\mathcal{C}$ up to $\pm 4$. For realistic substrate potential strengths, the minimal bandwidths of the hybridized flat bands are still achieved around the TBG magic angle $\theta_M=1.05^\circ$, and their quantum metrics are nearly ideal. We identify two candidate substrate materials Sb$_2$Te$_3$ and GeSb$_2$Te$_4$, which nearly perfectly realize the commensurate lattice constant ratio of $\sqrt{3}$ with graphene. These systems provide a promising platform for exploring strongly correlated topological states driven by geometric frustration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes that aligning the bottom graphene layer of twisted bilayer graphene (TBG) with a commensurate insulating triangular Bravais lattice substrate induces intervalley coupling. This folds the ±K valleys to the Γ point and hybridizes the original TBG flat bands into a four-band model equivalent to the p_x-p_y orbital honeycomb lattice, where the second conduction and valence bands exhibit quadratic touchings that flatten due to geometric frustration. Substrate spin-orbit coupling opens gaps, producing topological bands with spin Chern numbers up to ±4. The minimal bandwidths remain near the TBG magic angle θ_M=1.05°, with nearly ideal quantum metrics; Sb₂Te₃ and GeSb₂Te₄ are identified as candidate substrates realizing the √3 lattice ratio.

Significance. If the hybridization, flat-band condition, and topological invariants hold under realistic conditions, the work identifies a new substrate-engineered platform for geometrically frustrated flat bands and strongly correlated topological states in TBG, with the persistence of the magic angle and near-ideal quantum metrics as notable features. This extends moiré engineering beyond intrinsic TBG.

major comments (2)
  1. [Abstract and substrate alignment discussion] The central claim of exact valley folding to Γ and equivalence to the p_x-p_y honeycomb model (abstract) rests on the assumption of a clean, uniform triangular substrate potential with perfect √3 commensuration. No quantitative bound on tolerable mismatch, strain, or reconstruction is provided; even small deviations would replace the assumed potential with a longer-period moiré, invalidating the four-band hybridization and quadratic touchings.
  2. [Band structure and effective model section] The assertion that the second conduction/valence bands become flat due to geometric frustration in the effective model, and that minimal bandwidths occur at θ_M=1.05° for realistic substrate strengths, requires explicit diagonalization or mapping of the combined TBG+substrate Hamiltonian to confirm the equivalence and frustration mechanism; the abstract states the result but the load-bearing step is not verified against mismatch effects.
minor comments (2)
  1. [Candidate materials paragraph] The lattice constants and alignment details for Sb₂Te₃ and GeSb₂Te₄ should include explicit numerical comparison to graphene's a=2.46 Å to quantify the 'nearly perfect' √3 ratio.
  2. [Topological characterization] Notation for spin Chern numbers C should be clarified as to whether they are per spin or total, and how they are computed (e.g., via Berry curvature integration).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their insightful comments, which help clarify the assumptions underlying our proposed platform. We provide point-by-point responses below and indicate where revisions will be made to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and substrate alignment discussion] The central claim of exact valley folding to Γ and equivalence to the p_x-p_y honeycomb model (abstract) rests on the assumption of a clean, uniform triangular substrate potential with perfect √3 commensuration. No quantitative bound on tolerable mismatch, strain, or reconstruction is provided; even small deviations would replace the assumed potential with a longer-period moiré, invalidating the four-band hybridization and quadratic touchings.

    Authors: We acknowledge that our analysis assumes perfect commensuration to derive the exact folding and the effective four-band model. The manuscript identifies candidate substrates (Sb₂Te₃ and GeSb₂Te₄) that nearly achieve the √3 ratio, with lattice mismatches small enough that the primary moiré period remains dominant. However, we agree that a quantitative bound on acceptable mismatch would strengthen the claims. In the revised manuscript, we will add an estimate of the mismatch tolerance based on the relative lattice constants and discuss the perturbative effects of small deviations on the band structure. revision: partial

  2. Referee: [Band structure and effective model section] The assertion that the second conduction/valence bands become flat due to geometric frustration in the effective model, and that minimal bandwidths occur at θ_M=1.05° for realistic substrate strengths, requires explicit diagonalization or mapping of the combined TBG+substrate Hamiltonian to confirm the equivalence and frustration mechanism; the abstract states the result but the load-bearing step is not verified against mismatch effects.

    Authors: The effective model equivalence is obtained by constructing the substrate-induced intervalley coupling terms in the continuum TBG Hamiltonian and projecting onto the flat-band subspace, resulting in the p_x-p_y honeycomb model with quadratic touchings. The geometric frustration leading to flattening is demonstrated analytically in the effective model, and numerical diagonalization of the full Hamiltonian confirms the minimal bandwidth at the magic angle for the substrate strengths considered. The verification is performed for the commensurate case, which is the focus of the work. For the identified substrates with near-perfect commensuration, mismatch effects are expected to be weak perturbations that do not alter the qualitative topology or frustration mechanism. We will revise the manuscript to more explicitly reference the sections containing the Hamiltonian mapping and numerical results. revision: partial

Circularity Check

0 steps flagged

No circularity: derivation proceeds from explicit Hamiltonian modeling without reduction to inputs or self-citations.

full rationale

The paper constructs an effective four-band model by introducing intervalley coupling via a commensurate substrate potential, then shows folding of TBG valleys to Gamma and hybridization into a p_x-p_y honeycomb lattice. The quadratic touchings, geometric frustration flatness, SOC gaps, and spin Chern numbers up to ±4 follow directly from diagonalizing this model at the magic angle. No equations reduce a claimed result to a fitted parameter defined by the same data, no uniqueness theorem is imported from self-citation, and the equivalence to the known orbital model is presented as a derived outcome rather than an ansatz smuggled in. The commensuration assumption is an external physical premise, not a definitional loop. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that a clean commensurate substrate potential can be realized without disrupting TBG coherence; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The substrate forms an insulating triangular Bravais lattice that aligns commensurately with the bottom graphene layer at lattice-constant ratio sqrt(3).
    Invoked to produce the intervalley coupling and valley folding to Gamma.
