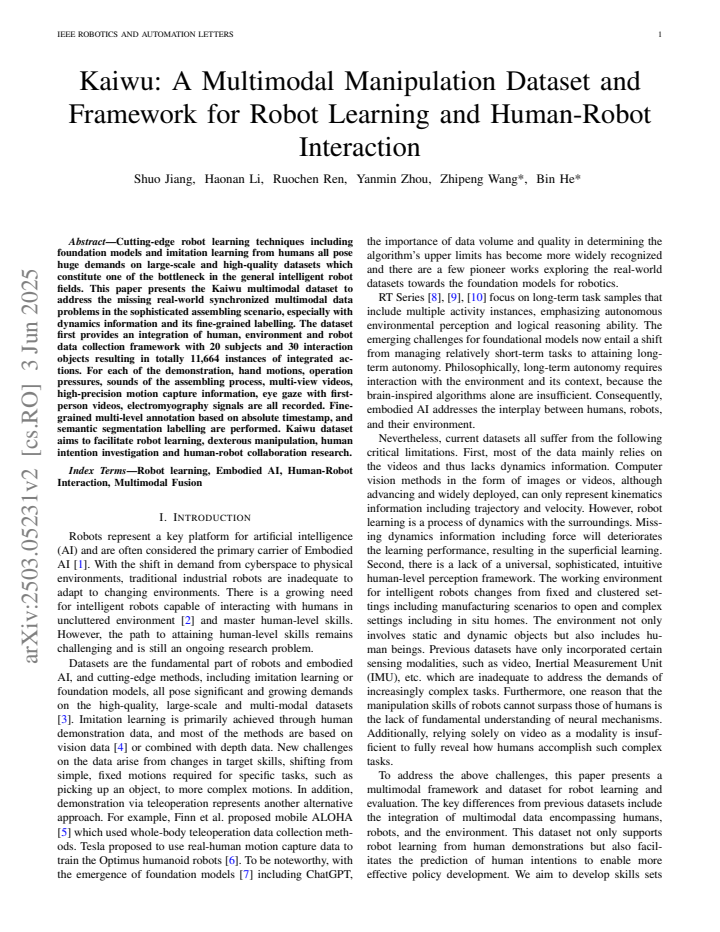

Kaiwu: A Multimodal Manipulation Dataset and Framework for Robot Learning and Human-Robot Interaction

Shuo Jiang , Haonan Li , Ruochen Ren , Yanmin Zhou , Zhipeng Wang , Bin He This is my paper

Pith reviewed 2026-05-23 01:24 UTC · model grok-4.3

classification 💻 cs.RO cs.AI
keywords multimodal datasetrobot learninghuman-robot interactiondexterous manipulationassembly tasksimitation learningmotion captureEMG signals
0
0 comments X

The pith

Kaiwu dataset records 11,664 synchronized multimodal assembly actions from 20 humans and 30 objects to support robot learning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the Kaiwu multimodal dataset to supply the synchronized, real-world data that current robot learning methods require but often lack in assembly tasks. It collects integrated recordings from 20 subjects performing actions with 30 objects, yielding 11,664 instances that capture hand motions, operation pressures, sounds, multi-view videos, high-precision motion capture, eye gaze with first-person videos, and electromyography signals. Fine-grained annotations tied to absolute timestamps and semantic segmentation labels are added to each demonstration. The framework combines human, environment, and robot signals to enable progress in imitation learning, dexterous manipulation, and human-robot collaboration.

Core claim

The paper claims that the Kaiwu dataset supplies an integrated human-environment-robot data collection framework that records synchronized multimodal signals across 11,664 integrated actions from 20 subjects and 30 interaction objects, including hand motions, operation pressures, sounds of the assembling process, multi-view videos, high-precision motion capture information, eye gaze with first-person videos, and electromyography signals, together with fine-grained multi-level annotation based on absolute timestamp and semantic segmentation labelling.

What carries the argument

The multimodal data collection framework that synchronizes hand motions, operation pressures, sounds, multi-view videos, high-precision motion capture, eye gaze with first-person videos, and electromyography signals, paired with timestamp-based multi-level annotations and semantic segmentation.

If this is right

  • Robot learning algorithms can train on synchronized real-world pressure, audio, and motion data from human demonstrations.
  • Human intention investigation gains access to combined eye gaze, first-person video, and EMG signals during assembly.
  • Dexterous manipulation research can use the pressure and hand motion recordings to model contact-rich tasks.
  • Human-robot collaboration studies can draw on the multi-view videos and motion capture for natural interaction patterns.
  • Semantic segmentation labels enable scene understanding models that segment objects and actions in assembly videos.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Widespread use of the dataset could create a shared benchmark for testing whether multimodal fusion improves robot performance on contact-rich tasks.
  • The recorded sound and pressure channels open the possibility of training models that predict assembly failures from non-visual cues alone.
  • Researchers might test whether the eye-gaze and EMG data improve prediction of human intent in collaborative settings compared with video alone.

Load-bearing premise

The recorded signals from different sensors remain accurately synchronized and the fine-grained annotations reliably capture task semantics and dynamics in a form that transfers usefully to robot learning.

What would settle it

An experiment in which imitation learning models trained on Kaiwu data show no improvement in assembly success rates or generalization over models trained on existing single-modality or unsynchronized datasets would falsify the central claim.

Figures

Figures reproduced from arXiv: 2503.05231 by Bin He, Haonan Li, Ruochen Ren, Shuo Jiang, Yanmin Zhou, Zhipeng Wang.

Figure 1
Figure 1. Figure 1: A framework of wearable and environment-mounted sensors records rich activity information in the assembly environment. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Data glove with angle sensors and force sensors. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overview of assembling process. C8 and C14 have different focuses. The former collected experimental data on columnar parts that participants tightened by hand in a situation where there is ample mounting space. The latter captures experimental data by tools in a confined space with limited hand movement. 19 sensors on the gloves. Each group of experiments can only be performed after completing the calibra… view at source ↗
Figure 4

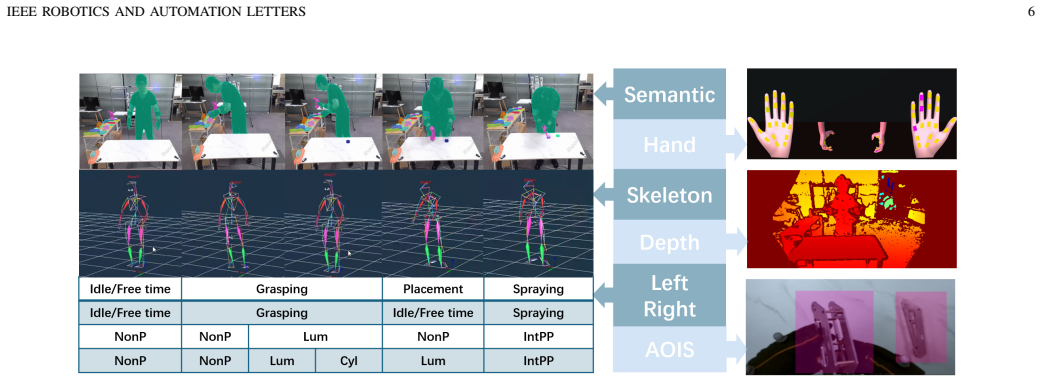

Figure 4. Figure 4: Overview of annotation. end timestamps of the multimodal data collected from each assembly task action unit. The annotation includes: • Action-level Annotation: Coarse segmentation of left and right hand actions. • Fine-grain Gesture Annotation: Within the coarsely seg￾mented time interval, a fine-grain segmentation of the left or right hand states is made For action segmentation, the left and right-handed… view at source ↗
Figure 5

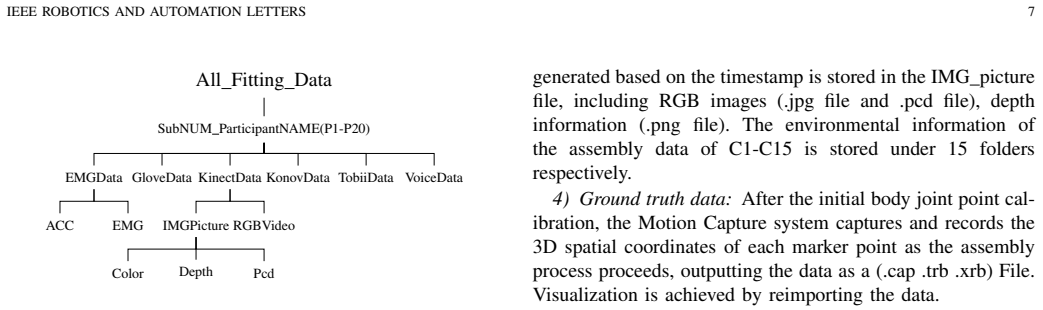

Figure 5. Figure 5: KAIWU Dataset Structure Catalog comes from wearable sensors worn by 20 participants. Each participant is asked to complete 15 typical actions specified in the assembly process. Each participant spend approximately 19 minutes, resulting in the dataset representing about 6.3 hours of the assembling process. A summary of the related data is presented in Table V. B. Detailed information This dataset contains e… view at source ↗
read the original abstract

Cutting-edge robot learning techniques including foundation models and imitation learning from humans all pose huge demands on large-scale and high-quality datasets which constitute one of the bottleneck in the general intelligent robot fields. This paper presents the Kaiwu multimodal dataset to address the missing real-world synchronized multimodal data problems in the sophisticated assembling scenario,especially with dynamics information and its fine-grained labelling. The dataset first provides an integration of human,environment and robot data collection framework with 20 subjects and 30 interaction objects resulting in totally 11,664 instances of integrated actions. For each of the demonstration,hand motions,operation pressures,sounds of the assembling process,multi-view videos, high-precision motion capture information,eye gaze with first-person videos,electromyography signals are all recorded. Fine-grained multi-level annotation based on absolute timestamp,and semantic segmentation labelling are performed. Kaiwu dataset aims to facilitate robot learning,dexterous manipulation,human intention investigation and human-robot collaboration research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the Kaiwu multimodal dataset for robot learning in assembly scenarios. It integrates data from 20 subjects and 30 objects to produce 11,664 instances, recording hand motions, operation pressures, sounds, multi-view videos, high-precision motion capture, eye gaze with first-person videos, and electromyography signals per demonstration. Fine-grained multi-level annotations based on absolute timestamps and semantic segmentation labelling are performed to support robot learning, dexterous manipulation, human intention investigation, and human-robot collaboration.

Significance. If the multimodal streams prove accurately synchronized and the annotations reliably capture task semantics and dynamics, the dataset could address a gap in synchronized real-world multimodal data for imitation learning and HRI. The scale (11,664 instances) and breadth of modalities are strengths, but the absence of any quantitative validation leaves the utility claim unverified.

major comments (2)
  1. [Data Collection Framework] The central claim that the dataset provides 'synchronized multimodal data' to address the stated problem is load-bearing but unsupported. The data collection framework description (abstract and §Data Collection) invokes accurate time-alignment across hand motion, pressure, audio, video, MoCap, gaze, and EMG without reporting alignment error bounds, clock-drift measurements, or maximum observed offsets.
  2. [Annotation Process] The annotation pipeline (abstract and §Annotation) claims fine-grained timestamp-based multi-level labels and semantic segmentation that transfer to robot learning, yet reports no inter-annotator agreement scores, label consistency metrics, or validation against task dynamics (e.g., contact events). This directly affects the weakest assumption identified in the review.
minor comments (2)
  1. The abstract lists modalities but does not specify sampling rates, resolution, or sensor models; adding a summary table would improve clarity.
  2. [Abstract] Minor typographical issues: 'electromyography signals are all recorded' should read 'electromyography signals are recorded'; 'human,environment' lacks spacing.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript accordingly to strengthen the validation of our claims.

read point-by-point responses

  1. Referee: [Data Collection Framework] The central claim that the dataset provides 'synchronized multimodal data' to address the stated problem is load-bearing but unsupported. The data collection framework description (abstract and §Data Collection) invokes accurate time-alignment across hand motion, pressure, audio, video, MoCap, gaze, and EMG without reporting alignment error bounds, clock-drift measurements, or maximum observed offsets.

    Authors: We agree that the manuscript lacks quantitative synchronization metrics. In the revised version we will add a dedicated subsection to §Data Collection that reports the synchronization protocol, measured clock-drift values, alignment error bounds obtained via cross-correlation on known events, and maximum observed offsets across all modality pairs. revision: yes

  2. Referee: [Annotation Process] The annotation pipeline (abstract and §Annotation) claims fine-grained timestamp-based multi-level labels and semantic segmentation that transfer to robot learning, yet reports no inter-annotator agreement scores, label consistency metrics, or validation against task dynamics (e.g., contact events). This directly affects the weakest assumption identified in the review.

    Authors: We concur that annotation quality metrics are necessary. The revised §Annotation will include inter-annotator agreement scores (Fleiss' kappa) for the semantic segmentation labels, label consistency statistics, and a validation analysis comparing semantic boundaries against contact events derived from pressure and motion-capture signals. revision: yes

Circularity Check

0 steps flagged

No circularity: dataset description only

full rationale

The paper introduces a multimodal dataset (11,664 instances, multiple sensor streams, timestamped annotations) without any derivations, equations, predictions, or fitted parameters. The contribution is the data collection framework itself; no step reduces a claimed result to its own inputs by construction, self-citation, or renaming. The work is self-contained as a descriptive resource for downstream robot learning research.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Dataset contribution with no mathematical derivations; no free parameters, axioms, or invented entities are introduced beyond standard data-collection practices.
