arxiv: 2503.21896 · v2 · submitted 2025-03-27 · 🌌 astro-ph.GA

A Mysteriously Tight Hα-[O III] Correlation and Non-Case B Balmer Decrements Revealed by the Spectra from the James Webb Space Telescope NIRSpec Instrument

Bangzheng Sun , Haojing Yan This is my paper

Pith reviewed 2026-05-22 22:02 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords JWST NIRSpecHα emission[O III] emissionBalmer decrementCase B recombinationstar-forming galaxiesdust reddeningemission-line correlations
0
0 comments X

The pith

JWST NIRSpec spectra of 563 galaxies show a log-linear Hα-[O III] flux relation with only 0.1 dex scatter plus 30 percent sub-Case B Balmer decrements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports that Hα and [O III] line fluxes follow an unexpectedly tight linear relation in log space across a large sample of extragalactic spectra. Standard dust reddening should broaden or skew this relation, yet the observed scatter remains only about 0.1 dex. At the same time, roughly 30 percent of the objects display Hα/Hβ ratios below the canonical Case B value of 2.86. The authors note that this combination of findings appears in other JWST and ground-based data as well. They conclude that both the correlation and the non-Case B decrements require further study to place spectral analysis on firmer ground.

Core claim

An extremely tight linear relation exists between Hα and [O III] line fluxes in logarithmic space, with a dispersion of ~0.1 dex, in 563 JWST NIRSpec spectra; simultaneously, ~30 percent of the objects exhibit Hα/Hβ ratios smaller than the Case B value of 2.86, indicating that the standard Case B assumption does not hold for a substantial fraction of these galaxies.

What carries the argument

The observed log-linear Hα-[O III] flux correlation and the measured Balmer decrements that fall below the Case B recombination ratio.

If this is right

  • Dust-reddening corrections based on the Balmer decrement become unreliable for a large subset of galaxies.
  • Standard photoionization or recombination models must be revised to accommodate the observed Hα-[O III] tightness.
  • Spectral fitting routines that assume Case B ratios will systematically misestimate physical parameters in ~30 percent of similar objects.
  • Emission-line diagnostics that combine Hα and [O III] will carry smaller uncertainties than previously expected.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The tight correlation may point to a common excitation mechanism or geometry that links the two lines more directly than current models allow.
  • If the non-Case B ratios prove widespread, many existing catalogs of star-formation rates derived from Hα will need recalibration.
  • Future surveys could test whether the same correlation appears at higher redshifts or in different galaxy types.

Load-bearing premise

The reported line fluxes are free of significant systematic measurement errors, selection biases, or instrumental effects that could artificially tighten the correlation or produce sub-Case B ratios.

What would settle it

Independent re-reduction or re-observation of the same 563 spectra with different pipelines or instruments that removes the 0.1 dex scatter or eliminates the excess of ratios below 2.86.

Figures

Figures reproduced from arXiv: 2503.21896 by Bangzheng Sun, Haojing Yan.

Figure 1
Figure 1. Figure 1: Redshift distribution of the 480 unique galaxies in our sample, combining both the PRISM and the Grating sets. ing the fit generic continuum function in the as￾tropy/specutils package (N. Earl et al. 2024). The fit was done after excluding the regions 0.1 µm centering all strong emission lines. In a few cases where a seventh￾order polynomial did not fit well, we used higher-order polynomials up to the tent… view at source ↗
Figure 2
Figure 2. Figure 2: Example PRISM and medium-resolution grating spectra. Upper panel: an object at z ≈ 3.6 whose [O III] doublet is unresolved in PRISM spectrum; Middle panel: another PRISM spectrum but the [O III] doublet is clearly resolved into two peaks; Lower panel: an example showing individual emission line fits using the grating spectrum, specifically, G395M in this case. Despite these disagreements, the tight agreeme… view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of line fluxes for Hα (left), [O III] (center), and Hβ (right) measured from PRISM and Grating spectra for the common objects. The X-axis represents the flux measurements from the Grating set (fgrating) and the Y-axis represents those from PRISM set (fprism), both in the unit of 10−18 erg/s/cm2 . A straight line is plotted to indicate 1:1 agreement between the two measurements. a simple linear f… view at source ↗
Figure 4
Figure 4. Figure 4: Top panels: Tight linear relation between Hα and [O III] line fluxes in logarithm as revealed by our sample (left) and also seen in the NIRSpec catalogs released by the JADES and the UNCOVER teams (right). The straight line in the left panel is the best-fit to the combined PRISM and Grating sets, while the one in the right panel is the best-fit to our sample plus the ones from the JADES and the UNCOVER cat… view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of the Hα–[O III] relation obtained with NIRSpec (combining our sample, JADES and UNCOVER; blue symbols) and that from the three ground-based surveys (magenta symbols) using Keck/MOSFIRE (the MOSDEF and zFIRE programs) and Subaru/FMOS (the FMOS-COSMOS program) in our lowest redshift bin of 1.5 ≤ z < 2.5. The solid black straight line and the gray areas indicate the same linear correlation and th… view at source ↗
Figure 6
Figure 6. Figure 6: Top-left: Relations between the Hα/[O III] flux ratios and the estimated gas-phase dust reddening E(B − V)gas under the Case B assumption and the Calzetti’s extinction law. The PRISM and the Grating data from our sample are shown as the gray and the red symbols, respectively. The dashed orange curve is the predicted behavior of Hα/[O III] as a function of E(B − V)gas. The gray-out area is where E(B − V)gas… view at source ↗
Figure 7

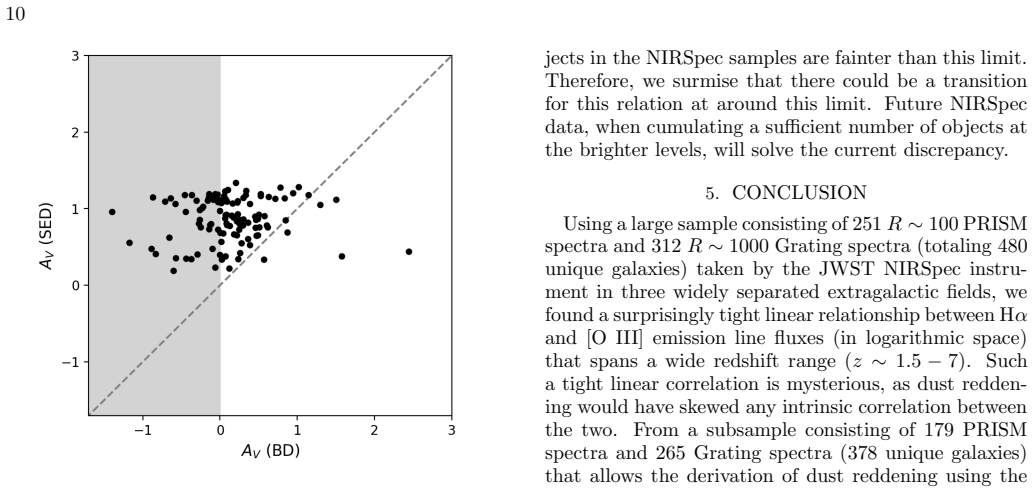

Figure 7. Figure 7: Comparison between dust extinction AV derived from the SED fitting (denoted as AV(SED)) and converted from the gas-phase extinction based on the Balmer decre￾ment (denoted as AV(BD)). The dashed black line shows the 1:1 correspondence. The grey-out area is where the ob￾jects have AV(BD) < 0 due to their Hα/Hβ line ratio being lower than the canonical Case B value of 2.86. There is hardly any trend between … view at source ↗
read the original abstract

We report an extremely tight, linear relation between ${\rm H\alpha}$ and [O~III] line fluxes in logarithm, discovered using a large sample of low and mid-resolution spectra (totaling 563) obtained by the James Webb Space Telescope (JWST) NIRSpec instrument in three widely separated extragalactic fields. While a certain correlation between ${\rm H\alpha}$ and [O~III] is expected for star forming galaxies, such a log-linear and tight (dispersion of $\sim$0.1 dex) trend is hard to explain because dust reddening would skew any intrinsic relation between the two. Furthermore, another surprising finding emerges from investigating the dust reddening properties of these galaxies. We find that the classic method of using the Balmer decrements under the standard Case B assumption does not work: a high fraction (${\sim30\%}$) of our objects have ${\rm H\alpha}$/${\rm H\beta}$ line ratios even smaller than the canonical Case B ratio of 2.86. Such a high fraction of non-Case B Balmer decrements is also present in other JWST and ground-based spectroscopic studies, but the universal applicability of the Case B assumption was not questioned until recently. The mysterious ${\rm H\alpha}$--[O~III] correlation and the high fraction of non-Case B Balmer decrements, which may or may not be related, should be further investigated to put our spectral analysis onto a more solid footing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript claims to have discovered an extremely tight, linear log-log relation between Hα and [O III] line fluxes with a dispersion of approximately 0.1 dex, using 563 low and mid-resolution JWST NIRSpec spectra from three extragalactic fields. Additionally, it reports that about 30% of the objects show Hα/Hβ ratios below the standard Case B value of 2.86, indicating non-Case B Balmer decrements, and notes that this challenges the universal applicability of the Case B assumption.

Significance. If the measurements prove robust, the results would carry substantial significance for nebular astrophysics and the interpretation of emission-line spectra in star-forming galaxies. The reported tightness of the Hα-[O III] correlation despite expected dust reddening effects, combined with the high incidence of sub-Case B decrements, would challenge standard assumptions in dust correction and recombination theory, potentially requiring updates to analysis pipelines for JWST and ground-based spectroscopic surveys.

major comments (1)
  1. [Abstract] The abstract states the results but lacks any information on data reduction, line fitting procedures, sample selection criteria, or statistical analysis methods. Without these details, it is not possible to evaluate whether the reported dispersion of ~0.1 dex or the ~30% fraction of sub-Case B ratios are free from systematic errors, selection biases, or instrumental effects in the NIRSpec spectra.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for their review and constructive feedback. We respond to the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] The abstract states the results but lacks any information on data reduction, line fitting procedures, sample selection criteria, or statistical analysis methods. Without these details, it is not possible to evaluate whether the reported dispersion of ~0.1 dex or the ~30% fraction of sub-Case B ratios are free from systematic errors, selection biases, or instrumental effects in the NIRSpec spectra.

    Authors: We agree that the abstract, as presented, is concise and does not include explicit details on data reduction, line fitting, sample selection, or statistical methods. The abstract does state the sample size (563 spectra), the instrument (JWST NIRSpec), and the three fields. Full methodological information would normally appear in the main text. Because only the abstract is available here, we cannot supply or verify those details in this response. We are willing to revise the abstract to include a brief methods summary if the full manuscript text is provided for context. revision: partial

standing simulated objections not resolved
  • Details on data reduction, line fitting procedures, sample selection criteria, and statistical analysis methods are not present in the provided manuscript (only the abstract), preventing a full demonstration that the ~0.1 dex dispersion and ~30% sub-Case B fraction are free from systematic errors, selection biases, or instrumental effects.

Circularity Check

0 steps flagged

No circularity: direct observational reporting from new spectra

full rationale

The paper reports empirical measurements of line fluxes from 563 JWST NIRSpec spectra, discovering a tight Hα-[O III] correlation and non-Case B Balmer decrements. No derivation chain, equations, predictions, or fitted parameters are presented that could reduce to inputs by construction. The abstract describes direct findings without self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations. This is a standard case of observational discovery with no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Purely observational paper reporting correlations in spectral line fluxes; no free parameters, axioms, or new entities introduced in a theoretical sense.

pith-pipeline@v0.9.0 · 5792 in / 1151 out tokens · 36173 ms · 2026-05-22T22:02:56.265238+00:00 · methodology
