arxiv: 2503.22660 · v3 · submitted 2025-03-28 · 📡 eess.SY · cs.SY

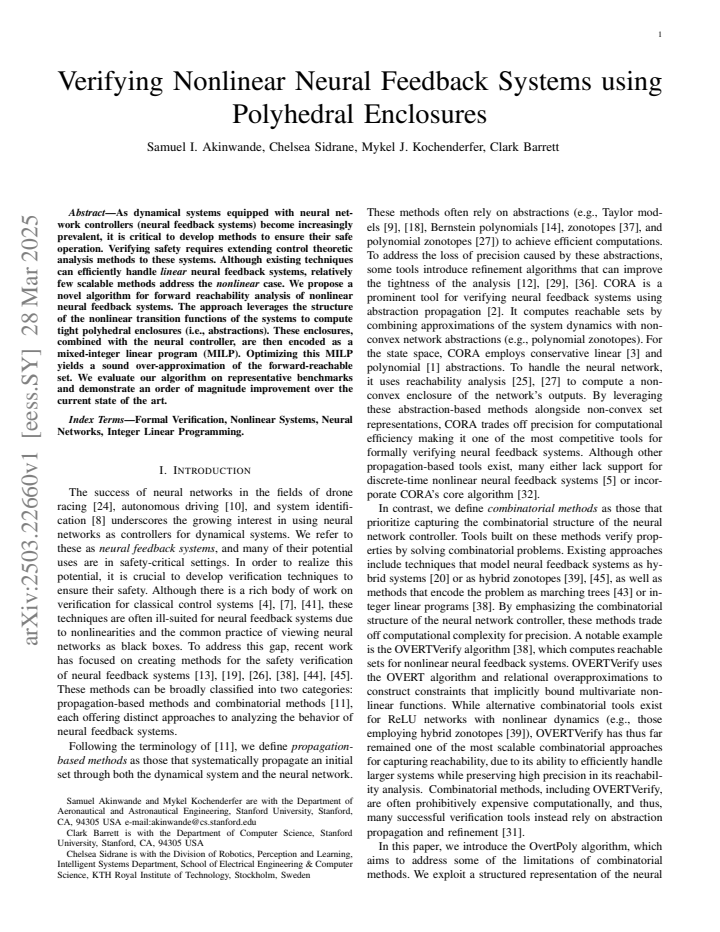

Polyhedral Enclosures: An Efficient Combinatorial Abstraction for Nonlinear Neural Feedback Systems

I. Samuel Akinwande , Chelsea Sidrane , Mykel J. Kochenderfer , Clark Barrett This is my paper

Pith reviewed 2026-05-22 22:09 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords polyhedral enclosuresneural feedback systemsforward reachability analysismixed-integer linear programmingover-approximationnonlinear dynamicssafety verificationcontrol systems
0
0 comments X

The pith

Polyhedral enclosures derived from nonlinear transition functions, when encoded with a neural controller as an MILP, produce sound over-approximations of forward-reachable sets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an algorithm for forward reachability analysis in neural feedback systems whose plant dynamics are nonlinear. It exploits the structure of those nonlinear transition functions to build tight polyhedral enclosures that serve as abstractions. These enclosures are then combined with the neural controller and encoded as a mixed-integer linear program whose solution over-approximates the reachable set. A sympathetic reader cares because the method extends scalable verification techniques from the linear case to the nonlinear case while aiming to limit conservatism. The work also reports further optimizations and benchmark comparisons showing gains over prior approaches.

Core claim

By leveraging the structure of the nonlinear transition functions to compute tight polyhedral enclosures, which are then encoded together with the neural controller as a mixed-integer linear program, optimizing this MILP yields a sound over-approximation of the forward-reachable set.

What carries the argument

Polyhedral enclosures, combinatorial abstractions that bound the nonlinear transition functions for MILP encoding.

If this is right

  • The computed enclosure contains every state reachable under the true dynamics.
  • The approach scales to nonlinear neural feedback systems where linear-only methods do not apply.
  • Further algorithm optimizations reduce computation time while preserving soundness.
  • Extensive ablations on representative benchmarks demonstrate measurable improvement over existing methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same enclosure construction might apply to hybrid systems that switch between multiple nonlinear modes.
  • Tightness of the enclosures could be measured directly against Monte-Carlo simulations on families of nonlinearities with different curvature.
  • The MILP encoding might be combined with interval or zonotope methods to tighten bounds on the neural-network portion itself.

Load-bearing premise

The nonlinear transition functions possess exploitable structure that permits construction of tight polyhedral enclosures without introducing excessive conservatism.

What would settle it

On a benchmark nonlinear neural feedback system, execute the algorithm and simulate concrete trajectories from the initial set; if any simulated state lies outside the computed enclosure, the soundness of the over-approximation is refuted.

Figures

Figures reproduced from arXiv: 2503.22660 by Chelsea Sidrane, Clark Barrett, I. Samuel Akinwande, Mykel J. Kochenderfer.

Figure 1
Figure 1. Figure 1: Overview of bounding algorithm for example problem. [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: A visualization of Equations 6a – 6b for a lower dimens [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

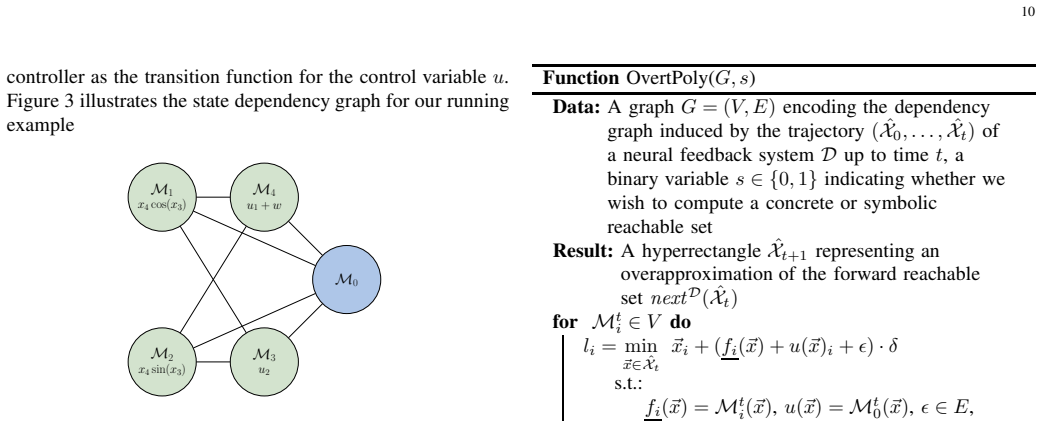

Figure 3
Figure 3. Figure 3: Dependency graph for Unicycle example. The green ver [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Symbolic dependency graph for the Unicycle car model [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

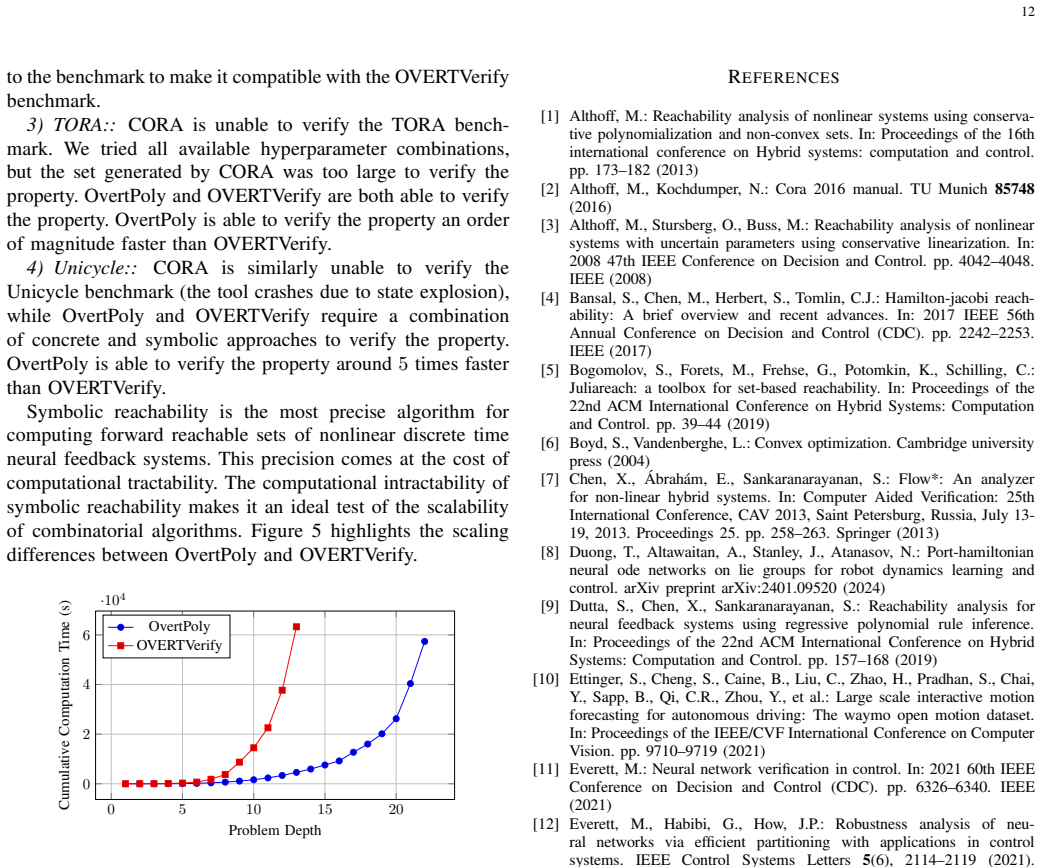

Figure 5
Figure 5. Figure 5: Pure symbolic reachability comparison between Over [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
read the original abstract

As dynamical systems equipped with neural network controllers (neural feedback systems) become increasingly prevalent, it is critical to develop methods to ensure their safe operation. Verifying safety requires extending control theoretic analysis methods to these systems. Although existing techniques can efficiently handle linear neural feedback systems, relatively few scalable methods address the nonlinear case. We propose a novel algorithm for forward reachability analysis of nonlinear neural feedback systems. The approach leverages the structure of the nonlinear transition functions of the systems to compute tight polyhedral enclosures (i.e., abstractions). These enclosures, combined with the neural controller, are then encoded as a mixed-integer linear program (MILP). Optimizing this MILP yields a sound over-approximation of the forward-reachable set. Beyond the conference version of this work, we perform more extensive ablations, and introduce further optimizations to the algorithm. We evaluate our algorithm on representative benchmarks, and demonstrate significant improvements over the current state of the art.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims to introduce a novel algorithm for forward reachability analysis of nonlinear neural feedback systems. It computes tight polyhedral enclosures of the nonlinear transition functions by leveraging their structure, encodes these enclosures together with the neural controller as a mixed-integer linear program (MILP), and optimizes the MILP to produce a sound over-approximation of the forward-reachable set. The work extends a prior conference version with additional ablations and algorithmic optimizations, and reports benchmark evaluations showing improvements over the state of the art.

Significance. If the soundness of the enclosures and MILP encoding can be established, the method would address a recognized gap by providing a scalable verification technique for nonlinear neural feedback systems, where most existing approaches are restricted to linear dynamics. The combinatorial polyhedral abstraction could yield tighter and more efficient reachable-set bounds than interval or zonotope methods when the transition structure is exploitable.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'optimizing this MILP yields a sound over-approximation of the forward-reachable set' rests on the unshown assertion that the polyhedral enclosures contain the nonlinear transition map for every state-input pair. No derivation, proof sketch, containment argument, or error-bound analysis is supplied.
  2. [Algorithm description (inferred from abstract)] The manuscript provides no description of the concrete procedure used to construct the polyhedral enclosures from the structure of the transition functions, nor any argument that the resulting linear inequalities are valid over-approximations; this step is load-bearing for the soundness guarantee of the subsequent MILP optimization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and for highlighting the need for explicit soundness arguments. We agree that the current presentation of the polyhedral enclosure construction and its containment proof requires strengthening for clarity and self-containment. We will revise the manuscript to address both major comments directly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'optimizing this MILP yields a sound over-approximation of the forward-reachable set' rests on the unshown assertion that the polyhedral enclosures contain the nonlinear transition map for every state-input pair. No derivation, proof sketch, containment argument, or error-bound analysis is supplied.

    Authors: We acknowledge that the abstract states the soundness claim at a high level. The full manuscript contains the enclosure construction in Section 3, but we agree a dedicated, self-contained argument is needed. In the revision we will insert a new subsection 'Soundness of the Polyhedral Enclosures' immediately after the algorithm description. This subsection will (i) state the precise containment claim, (ii) provide a proof sketch that each generated linear inequality is valid for every state-input pair in the considered domain by exploiting the monotonicity/convexity structure of the transition map, and (iii) include a brief error-bound discussion relating the tightness of the enclosure to the discretization parameters used in the MILP encoding. revision: yes

  2. Referee: [Algorithm description (inferred from abstract)] The manuscript provides no description of the concrete procedure used to construct the polyhedral enclosures from the structure of the transition functions, nor any argument that the resulting linear inequalities are valid over-approximations; this step is load-bearing for the soundness guarantee of the subsequent MILP optimization.

    Authors: We agree that the current exposition of the enclosure-generation procedure is insufficiently detailed for a reader to verify the validity step. Although Algorithm 1 and the surrounding paragraphs in Section 3.2 sketch how structural properties (e.g., monotonicity intervals) are used to derive facet inequalities, we will expand this material. The revision will add: (a) explicit pseudocode for the enclosure routine, (b) a formal statement (Lemma 1) that each produced inequality over-approximates the nonlinear map on the relevant domain, and (c) a short proof of the lemma. These additions will make the load-bearing soundness argument explicit before the MILP encoding is introduced. revision: yes

Circularity Check

0 steps flagged

No circularity; algorithmic construction is self-contained

full rationale

The paper presents a direct algorithmic procedure for building polyhedral enclosures from the structure of given nonlinear transition functions, then encoding those enclosures plus the neural controller into an MILP whose optimum supplies a sound over-approximation. No parameter is fitted to a data subset and later renamed a prediction, no self-citation supplies a load-bearing uniqueness theorem, and no equation is defined in terms of its own output. The soundness argument is therefore an explicit containment claim internal to the construction rather than a reduction to the inputs by definition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the central claim rests on an unstated assumption that the nonlinear transition map admits a useful polyhedral abstraction.
