GraphGDel: Constructing and Learning Graph Representations of Genome-Scale Metabolic Models for Growth-Coupled Gene Deletion Prediction

Ziwei Yang , Takeyuki Tamura This is my paper

Pith reviewed 2026-05-22 21:12 UTC · model grok-4.3

classification 🧬 q-bio.QM cs.LG
keywords genome-scale metabolic modelsgrowth-coupled gene deletiongraph representationsdeep learningconstraint-based modelsgene deletion predictionmetabolic networks
0
0 comments X

The pith

Graph representations from metabolic models combined with sequence data predict growth-coupled gene deletions more accurately than baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In genome-scale metabolic models, finding gene deletions that make cell growth and metabolite production happen together is key for bioproduction. Existing methods mostly use sequential data and miss the networked structure. This work creates a pipeline to build graphs from these models and develops a deep learning system that merges the graphs with gene and metabolite sequence information. The combined approach raises prediction accuracy by 13 to 16 percent over a basic neural network and by several percent over other graph and sequence methods on three different models. A sympathetic reader would care because it offers a way to better design microbes that produce useful compounds without sacrificing growth.

Core claim

The paper introduces a systematic pipeline for constructing graph representations from constraint-based metabolic models and a deep learning framework that integrates these graph representations with gene and metabolite sequence data to predict growth-coupled gene deletion strategies. Across three metabolic models, the approach consistently outperforms established baselines, with improvements in overall accuracy of 14.04%, 16.26%, and 13.18% over a deep feedforward neural network baseline, 6.17%, 4.96%, and 5.31% over a sequence-learning baseline, and 5.10%, 4.36%, and 4.70% over a topology-aware graph aggregation baseline on the same metabolite graph, respectively.

What carries the argument

The systematic graph construction pipeline from constraint-based metabolic models together with the deep learning framework that integrates graph representations and gene and metabolite sequence data.

If this is right

  • The graph-based method captures complex relationships in metabolic networks that sequential methods overlook.
  • Improved accuracy in predicting growth-coupled deletions can lead to more efficient strain design for metabolite production.
  • The approach applies to various genome-scale metabolic models.
  • Combining graph and sequence data provides a more comprehensive representation for prediction tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar graph construction pipelines might apply to other biological networks such as protein interaction maps.
  • Future work could test if the learned graph features reveal novel metabolic pathways or regulations.
  • Extending the framework to include more types of omics data could further enhance predictions.

Load-bearing premise

That the graph representations constructed from the metabolic models allow the deep learning framework to exploit complex relationships when combined with sequence data.

What would settle it

Applying the method to a fourth independent metabolic model and observing no accuracy improvement over the tested baselines would challenge the claim of consistent outperformance.

Figures

Figures reproduced from arXiv: 2504.06316 by Takeyuki Tamura, Ziwei Yang.

Figure 1
Figure 1. Figure 1: A toy example of the constraint-based model where circles and rectangles represent metabolites and reactions, respectively. Black and white rectangles denote external and internal reactions, respectively. r1, r2 correspond to two sub￾strate uptake reactions. r7, r8 correspond to cell growth, and target metabolite production reactions, respectively. The reac￾tion rates are constrained by the range [li ,ui ]… view at source ↗
Figure 2

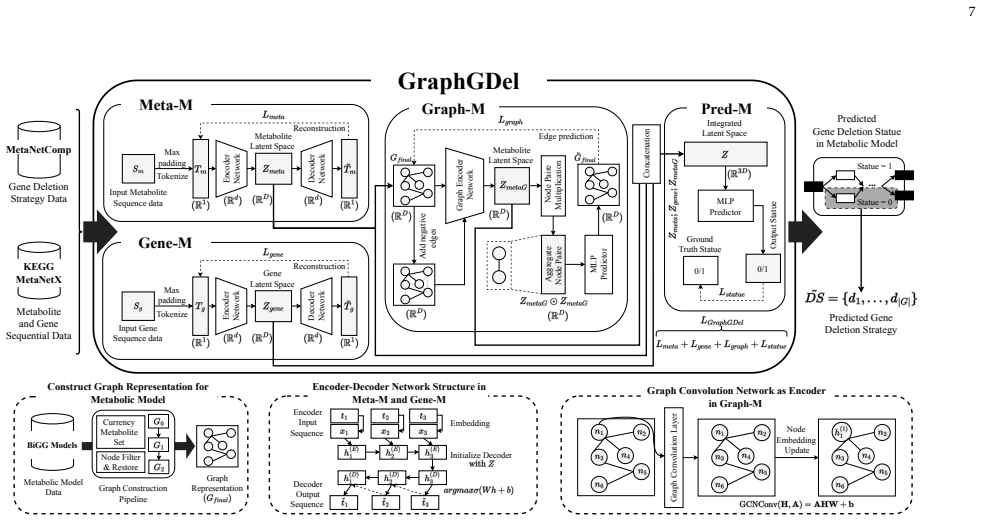

Figure 2. Figure 2: A system overview of the proposed gene deletion strategy prediction framework. The framework comprises four neural network-based modules: (1) Meta-M, which learns the metabolite latent representation Zmeta, (2) Gene-M, which learns the gene latent representation Zgene, (3) Graph-M, which learns the refined metabolite latent representation ZmetaG in a specific metabolic graph, and (4) Pred-M, which integrat… view at source ↗
read the original abstract

In genome-scale constraint-based metabolic models, gene deletion strategies are essential for achieving growth-coupled production, where cell growth and target metabolite synthesis occur simultaneously. Despite the inherently networked nature of genome-scale metabolic models, existing computational approaches rely primarily on sequential data and lack graph representations that capture their complex relationships, as both well-defined graph constructions and learning frameworks capable of exploiting them remain largely unexplored. To address this gap, we present a twofold solution. First, we introduce a systematic pipeline for constructing graph representations from constraint-based metabolic models. Second, we develop a deep learning framework that integrates these graph representations with gene and metabolite sequence data to predict growth-coupled gene deletion strategies. Across three metabolic models, our approach consistently outperforms established baselines, with improvements in overall accuracy of 14.04%, 16.26%, and 13.18% over a deep feedforward neural network baseline, 6.17%, 4.96%, and 5.31% over a sequence-learning baseline, and 5.10%, 4.36%, and 4.70% over a topology-aware graph aggregation baseline on the same metabolite graph, respectively. The source code and example datasets are available at: https://github.com/MetNetComp/GraphGDel.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes GraphGDel, which includes a systematic pipeline to construct graph representations from constraint-based genome-scale metabolic models and a deep learning framework that fuses these graph representations with gene and metabolite sequence data to predict growth-coupled gene deletion strategies. The central empirical claim is that this approach achieves accuracy improvements of 14.04%, 16.26%, and 13.18% over a deep feedforward neural network, 6.17%, 4.96%, and 5.31% over a sequence-learning baseline, and 5.10%, 4.36%, and 4.70% over a topology-aware graph aggregation baseline across three metabolic models.

Significance. If the graph representations truly enable exploitation of complex metabolic relationships beyond what sequence data or simple topology provide, the approach could advance computational methods for growth-coupled strain design in metabolic engineering. Releasing source code and example datasets is a positive contribution to reproducibility. Significance is limited by uncertainty over whether the constructed graphs encode the stoichiometric and bound information that actually defines growth-coupling phenotypes.

major comments (2)
  1. [Methods - Graph Construction] Graph construction pipeline (Methods section): The pipeline is presented as systematic yet the description provides no indication that stoichiometric coefficients from the S matrix or reaction bounds are encoded as edge weights, node features, or other attributes. Growth-coupling is a property of the feasible flux space (Sv=0 together with bounds and post-deletion biomass/target production constraints); a connectivity-only metabolite graph therefore cannot directly supply the linear constraints that determine the phenotype, undermining the claim that performance gains arise from exploiting the model's complex relationships.
  2. [Results] Results - baseline comparisons: The reported gains over the topology-aware graph aggregation baseline that uses the identical metabolite graph are modest (5.10%, 4.36%, 4.70%). This pattern suggests that any advantage may derive mainly from the fusion with sequence data rather than from novel graph exploitation, which requires explicit ablation experiments or feature-importance analysis to substantiate the central claim.
minor comments (2)
  1. [Abstract] The abstract refers to 'overall accuracy' without defining the precise metric or reporting class balance; this detail is needed to interpret the numerical improvements.
  2. [Results] No mention of statistical significance testing (e.g., paired tests across multiple runs) or cross-validation procedure appears in the reported experiments, which would strengthen the consistency claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help us improve the clarity and rigor of the manuscript. We address each major comment below and commit to revisions that directly respond to the concerns raised.

read point-by-point responses

  1. Referee: [Methods - Graph Construction] Graph construction pipeline (Methods section): The pipeline is presented as systematic yet the description provides no indication that stoichiometric coefficients from the S matrix or reaction bounds are encoded as edge weights, node features, or other attributes. Growth-coupling is a property of the feasible flux space (Sv=0 together with bounds and post-deletion biomass/target production constraints); a connectivity-only metabolite graph therefore cannot directly supply the linear constraints that determine the phenotype, undermining the claim that performance gains arise from exploiting the model's complex relationships.

    Authors: We agree that the current Methods description lacks sufficient explicit detail on how stoichiometric coefficients and reaction bounds are incorporated, which is a fair criticism. Our graph construction does weight metabolite-reaction edges by the absolute values of entries from the S matrix and includes reaction bounds as node attributes for the reaction nodes in the bipartite graph; these choices are intended to allow the model to learn representations sensitive to stoichiometric magnitudes and feasible flux ranges. We will revise the Methods section to provide a step-by-step account of these encodings, add pseudocode for the pipeline, and include a supplementary figure that visualizes the attributed graph structure so that readers can directly see how constraint information is represented. revision: yes

  2. Referee: [Results] Results - baseline comparisons: The reported gains over the topology-aware graph aggregation baseline that uses the identical metabolite graph are modest (5.10%, 4.36%, 4.70%). This pattern suggests that any advantage may derive mainly from the fusion with sequence data rather than from novel graph exploitation, which requires explicit ablation experiments or feature-importance analysis to substantiate the central claim.

    Authors: We accept that the smaller margins relative to the topology-aware baseline indicate that sequence fusion is an important driver of overall performance. At the same time, the consistent positive increments across three independent models suggest that the learned graph embeddings contribute non-redundant information. In the revised manuscript we will add (i) an ablation that removes the graph encoder while keeping the sequence branch and fusion module fixed, and (ii) a feature-importance analysis (e.g., via integrated gradients on the graph-derived embeddings) to quantify the contribution of the graph component. These additions will directly test whether the graph representations provide value beyond topology and sequence data alone. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on empirical comparisons to independent baselines

full rationale

The paper describes a graph construction pipeline from constraint-based metabolic models and a DL framework fusing graph representations with sequence data for growth-coupled gene deletion prediction. Central claims consist of measured accuracy gains (14.04%, 16.26%, 13.18% etc.) over three distinct external baselines (feedforward NN, sequence-learning, topology-aware graph aggregation) evaluated on the same three metabolic models. No equations, derivations, or self-citations are shown that reduce any reported result to a fitted parameter, self-definition, or prior author work by construction. The evaluation is against independent benchmarks on held-out data, satisfying the criterion for self-contained external validation.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the standard assumption that constraint-based metabolic models faithfully encode cellular stoichiometry and that graph neural networks can extract predictive features from the constructed metabolite-gene graphs; no new physical entities are postulated and free parameters are the usual deep-learning hyperparameters.

free parameters (1)
  • deep learning hyperparameters
    Standard training choices such as learning rate, layer depth, and embedding dimensions are fitted during model optimization and affect the reported accuracy numbers.
axioms (1)
  • domain assumption Constraint-based metabolic models accurately capture the stoichiometry and bounds of cellular reactions
    The graph construction pipeline and all downstream predictions rest on the validity of the input genome-scale models.
