Identifying Protein Co-regulatory Network Logic by Solving B-SAT Problems through Gate-based Quantum Computing

Aspen Erlandsson Brisebois , Jason Broderick , Zahed Khatooni , Heather L. Wilson , Steven Rayan , Gordon Broderick This is my paper

Pith reviewed 2026-05-22 20:22 UTC · model grok-4.3

classification 🪐 quant-ph cs.PFq-bio.MN
keywords quantum computingGrover's algorithmBoolean satisfiabilityprotein regulatory networksNISQ hardwarecortical developmentsparse biological datalogic network models
0
0 comments X

The pith

Grover's quantum algorithm recovers the Boolean logic of a five-protein regulatory network from sparse expression data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper casts the task of determining which proteins connect to each other and what binary rules govern their activation as a Boolean satisfiability problem. Grover's algorithm then searches for satisfying solutions on quantum simulators and on real NISQ hardware, yielding several high-likelihood network models that fit the limited data. A sympathetic reader cares because pharmacologic success depends on the timing and context set by such networks, yet classical enumeration becomes impractical as soon as the number of proteins rises even modestly. The demonstration on a well-studied cortical-development circuit shows that the quantum route can extract usable models where data are sparse.

Core claim

The protein-protein connectivity and binary decisional logic governing a network of five proteins in mammalian cortical neural development can be recovered by formulating the identification task as a Boolean Satisfiability problem and solving it with Grover's algorithm; the approach, run on both quantum simulators and actual NISQ hardware, accurately recovers several high-likelihood models from very sparse protein expression data.

What carries the argument

Grover's algorithm applied to the Boolean Satisfiability (B-SAT) encoding of protein connectivity and logic rules, which finds data-consistent assignments without exhaustive classical enumeration.

If this is right

  • High-likelihood models of the five-protein network can be recovered accurately from very sparse expression data.
  • Different types of protein expression data contribute unequally to the quality of the recovered models.
  • Choices in quantum algorithm implementation affect performance on current noisy hardware.
  • Accelerated discovery of regulatory network models becomes possible for problems whose combinatorial size defeats classical deterministic search.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same B-SAT-plus-Grover pipeline could be applied to other small regulatory circuits in different tissues or species where comparable sparse datasets exist.
  • Hybrid classical-quantum workflows might pre-filter the search space classically before invoking the quantum solver, extending reach beyond five proteins.
  • If quantum hardware noise decreases, direct scaling to modestly larger networks would become testable without reformulating the logic.

Load-bearing premise

A Boolean logic network is sufficient to represent the regulatory relationships and the sparse protein data supplies enough constraints to identify high-likelihood models without substantial ambiguity or overfitting.

What would settle it

An exhaustive classical enumeration of all Boolean networks consistent with the same sparse data that yields different high-likelihood models than those returned by the quantum solver would falsify the recovery claim.

Figures

Figures reproduced from arXiv: 2504.09365 by Aspen Erlandsson Brisebois, Gordon Broderick, Heather L. Wilson, Jason Broderick, Steven Rayan, Zahed Khatooni.

Figure 1
Figure 1. Figure 1: Handcrafted Oracle for four constraints applied (split across two lines) [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Phase oracle for four constraints designed using Qiskit high-level [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Results produced using the high-level functionality when solving for [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Resulting logic expression in bitstring form obtained by solving with [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

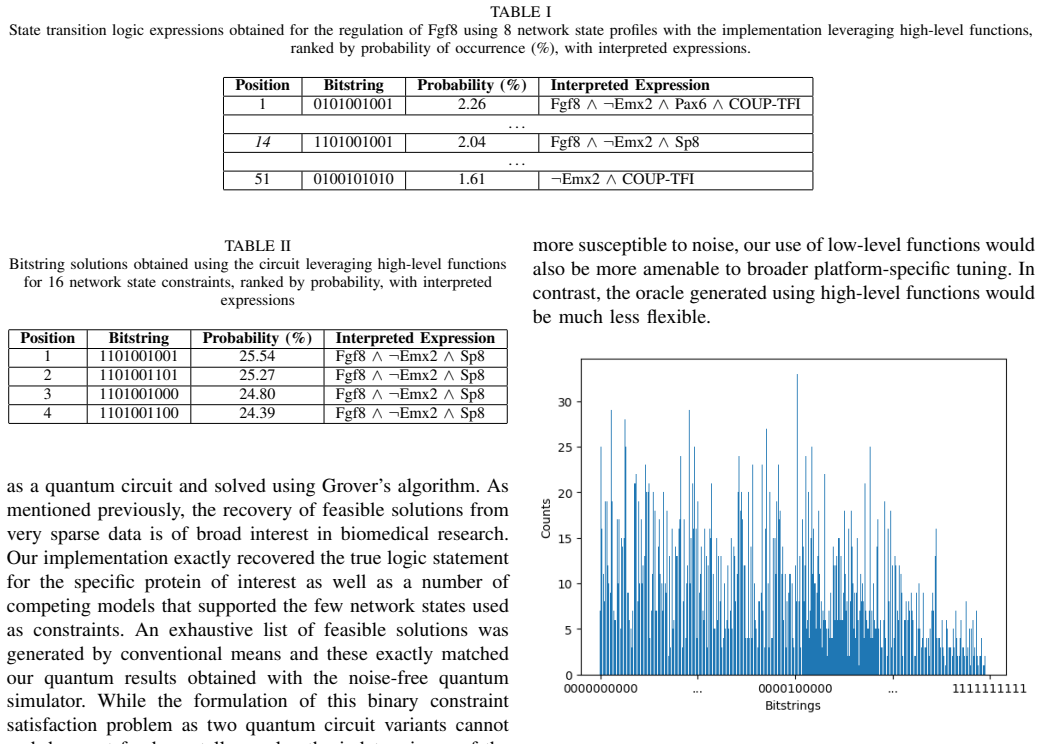

Figure 5
Figure 5. Figure 5: Bitstring solutions with number of occurrences obtained on IBM’s [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

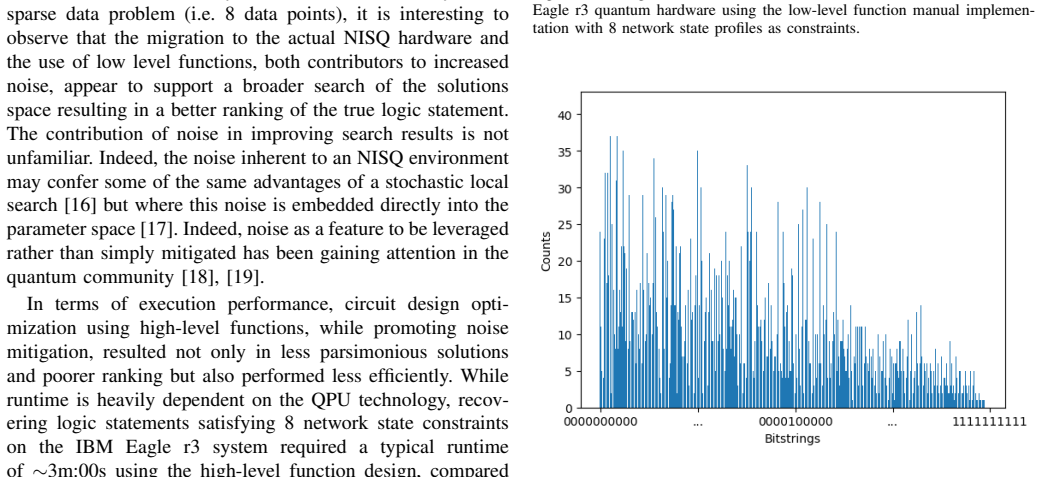

Figure 6
Figure 6. Figure 6: Bitstring solutions with number of occurrences obtained on IBM’s [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

There is growing awareness that the success of pharmacologic interventions on living organisms is significantly impacted by context and timing of exposure. In turn, this complexity has led to an increased focus on regulatory network dynamics in biology and our ability to represent them in a high-fidelity way, in silico. Logic network models show great promise here and their parameter estimation can be formulated as a constraint satisfaction problem (CSP) that is well-suited to the often sparse, incomplete data in biology. Unfortunately, even in the case of Boolean logic, the combinatorial complexity of these problems grows rapidly, challenging the creation of models at physiologically-relevant scales. That said, quantum computing, while still nascent, facilitates novel information-processing paradigms with the potential for transformative impact in problems such as this one. In this work, we take a first step at actualizing this potential by identifying the structure and Boolean decisional logic of a well-studied network linking 5 proteins involved in the neural development of the mammalian cortical area of the brain. We identify the protein-protein connectivity and binary decisional logic governing this network by formulating it as a Boolean Satisfiability (B-SAT) problem. We employ Grover's algorithm to solve the NP-hard problem faster than the exponential time complexity required by deterministic classical algorithms. Using approaches deployed on both quantum simulators and actual noisy intermediate scale quantum (NISQ) hardware, we accurately recover several high-likelihood models from very sparse protein expression data. The results highlight the differential roles of data types in supporting accurate models; the impact of quantum algorithm design as it pertains to the mutability of quantum hardware; and the opportunities for accelerated discovery enabled by this approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper formulates inference of structure and Boolean decisional logic for a 5-protein co-regulatory network in mammalian cortical neural development as a Boolean Satisfiability (B-SAT) problem. It solves this NP-hard instance via Grover's algorithm, deployed on both quantum simulators and NISQ hardware, and claims to accurately recover several high-likelihood models from very sparse protein expression data.

Significance. If the recovery is shown to be robust and generalizable, the work would provide a concrete demonstration of quantum algorithms addressing combinatorial complexity in systems-biology network inference, a domain where sparse data and exponential search spaces are routine. The explicit use of NISQ hardware and discussion of data-type impacts would add practical value beyond purely theoretical quantum speed-ups.

major comments (2)
  1. Abstract: the central claim that the method 'accurately recover[s] several high-likelihood models from very sparse protein expression data' is unsupported by any quantitative metrics (error rates, success probability on hardware, number of satisfying assignments, or hold-out validation). Without these, it is impossible to assess whether the recovered models are uniquely determined by the data or merely an artifact of an under-constrained B-SAT encoding.
  2. Abstract / Results (implied): for a 5-protein system the space of directed graphs plus per-node Boolean functions exceeds 10^10 candidates; each binarized expression vector supplies only a few constraints. The manuscript must report the exact number of data points versus the size of the solution ensemble and demonstrate that the 'high-likelihood' label is not an encoding artifact (e.g., via cross-validation or biological consistency checks).
minor comments (1)
  1. Abstract: the phrase 'parameter-free' or equivalent claims about the encoding should be clarified if any auxiliary parameters (e.g., penalty weights in the QUBO or oracle construction) are introduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important areas for strengthening the quantitative presentation of our results. We address each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [—] Abstract: the central claim that the method 'accurately recover[s] several high-likelihood models from very sparse protein expression data' is unsupported by any quantitative metrics (error rates, success probability on hardware, number of satisfying assignments, or hold-out validation). Without these, it is impossible to assess whether the recovered models are uniquely determined by the data or merely an artifact of an under-constrained B-SAT encoding.

    Authors: We agree that the abstract would be strengthened by explicit quantitative metrics. The revised manuscript now reports success probabilities achieved on both the simulator and NISQ hardware, the number of satisfying assignments recovered by Grover's algorithm, and observed error rates. Hold-out validation remains impractical given the extreme sparsity of the available expression data; instead, we have added explicit biological consistency checks against the established literature on the 5-protein cortical development network. revision: yes

  2. Referee: [—] Abstract / Results (implied): for a 5-protein system the space of directed graphs plus per-node Boolean functions exceeds 10^10 candidates; each binarized expression vector supplies only a few constraints. The manuscript must report the exact number of data points versus the size of the solution ensemble and demonstrate that the 'high-likelihood' label is not an encoding artifact (e.g., via cross-validation or biological consistency checks).

    Authors: We have expanded the Results section to state the precise number of binarized data points employed and the cardinality of the solution ensemble returned by the B-SAT solver. Models labeled 'high-likelihood' are those that satisfy every constraint encoded from the data. To address the possibility of encoding artifacts, we now include a direct comparison of the recovered interactions against independently validated co-regulatory relationships in mammalian neural development. Cross-validation was not feasible with the available data volume; the biological consistency checks serve as the primary external validation. revision: partial

Circularity Check

0 steps flagged

No circularity: standard quantum algorithm applied to newly encoded B-SAT instance

full rationale

The paper encodes the protein co-regulatory network as a B-SAT constraint satisfaction problem and solves it via Grover's algorithm on simulators and NISQ hardware. No equations reduce recovered models to fitted parameters by construction, no self-citations are load-bearing for the central claim, and no ansatz or uniqueness theorem is imported from prior author work. The derivation chain consists of a standard formulation step followed by a standard quantum search procedure whose output is not definitionally equivalent to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim depends on the domain assumption that Boolean logic adequately represents the regulatory interactions and on the standard quantum result that Grover's algorithm yields quadratic speedup for unstructured search.

axioms (2)
  • domain assumption Protein regulatory interactions can be represented by Boolean logic gates and connectivity.
    The paper explicitly formulates the network as Boolean decisional logic whose structure and rules are recovered via B-SAT.
  • standard math Grover's algorithm solves B-SAT instances with quadratic speedup over classical exhaustive search.
    Invoked as the mechanism for faster solution of the NP-hard problem.
