RADLER: Radar Object Detection Leveraging Semantic 3D City Models and Self-Supervised Radar-Image Learning

T0 review · 3 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Fusing semantic 3D city models with self-supervised radar learning lifts detection by 4.17 mAP.

desk verdict First fusion of semantic 3D city models with radar detection, but the 4.17-point mAP gain rests on a split that may leak scene content. read the letter →

arxiv 2504.12167 v1 pith:SOBBO67M submitted 2025-04-16 cs.CV cs.LG

Yuan Luo , Rudolf Hoffmann , Yan Xia , Olaf Wysocki , Benedikt Schwab , Thomas H. Kolbe , Daniel Cremers This is my paper · ORCID
classification cs.CVcs.LG
keywords radarobjectdetectionsemantic3Dcitymodelsself-supervisedlearningradar-imagecontrastivesemantic-depthmapsrange-azimuthRODNetdataset
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that radar object detection can be made more accurate by combining self-supervised learning from radar-image pairs with prior geometric knowledge extracted from semantic 3D city models. To support the argument, the authors introduce RadarCity, a dataset of 54,000 synchronized radar-and-camera pairs, and RADLER, a detector whose radar features are learned by contrasting range-azimuth maps with camera images and then fused channel-wise with semantic-depth maps derived from a city model. On RadarCity, RADLER without the city-model features reaches 90.69% mAP and 95.28% mAR, while adding the semantic-depth maps raises these to 94.86% mAP and 95.95% mAR, an average improvement of 5.46% mAP and 3.51% mAR over the RODNet baselines. The result establishes that standardized, widely available semantic 3D city models can serve as a practical prior for radar perception.

What carries the argument

The load-bearing object is the semantic-depth map (SDM): a per-pixel map in which each direction of the scene carries both the semantic class and the distance of the nearest object surface from the semantic 3D city model, produced by raycasting and limited to the radar's 35-meter range. The paper's key move is to treat this map as an additional modality and fuse it channel-wise with the encoded range-azimuth radar features, rather than adding it element-wise, which is shown to generate ghost targets. The radar encoder itself is learned in a pretext task that maximizes agreement between range-azimuth maps and paired camera images using an InfoNCE contrastive loss with a momentum-updated queue of negative image samples; the design uses a Vision Transformer backbone. In the downstream task the transferred radar features are decoded into per-class confidence maps, and location-based non-maximum suppression turns those maps into detection lists.

What would settle it

Re-split the RadarCity downstream data so that every frame of a given object instance or continuous recording segment is assigned entirely to training or entirely to testing, retrain RADLER, and compare; if the 4.17-point mAP gain from SDM collapses, the claim that city-model priors generalize fails. A complementary test is evaluating on a completely unseen scene whose SDM is built from that scene's own city model.

Watch

Extended reading notes

Core claim

The central claim is that fusing semantic-depth maps (SDM) into a radar detector trained with radar-image contrastive learning improves detection of pedestrians, cyclists, and cars. SDM are generated by raycasting a semantic 3D city model so that every pixel carries the semantic class and distance of the nearest mapped surface, masked to the radar's 35-meter range. In RADLER, a radar encoder pretrained to align range-azimuth maps with camera images is transferred to a detection head, and its features are concatenated channel-wise with features extracted from the SDM by a residual CNN. The paper reports that this fusion raises mAP from 90.69% to 94.86% and mAR from 95.28% to 95.95% on the RadarCity test split, beating three RODNet variants by average margins of 5.46% mAP and 3.51% mAR, with consistent gains across overlap thresholds.

Load-bearing premise

The performance claims rest on the assumption that the 80/20 split of the annotated frames is a fair generalization test; the paper specifies only the split ratio, so if near-duplicate views of the same objects or scenes appear on both sides of the split, the reported gains could overstate performance on unseen scenes.

Editorial extensions

If this is right

  • Radar detectors no longer need to rely on dense annotations or extra sensors alone; standardized semantic 3D city models, which already exist at scale, can supply geometric and semantic context.
  • Because SDM improve mAP by 4.17 points but mAR by only 0.67, the prior's main effect is suppressing false positives and sharpening confidence, not finding objects the radar missed.
  • The contrastive radar-image pretext step transfers to a different radar detection architecture and improves high-confidence detections on the CRUW dataset, indicating the learned representations localize objects more crisply than supervised pretraining.
  • With SDM fusion, RADLER outperforms the strongest RODNet baseline at every evaluated overlap threshold, with the largest advantage at high OLS thresholds.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension the paper leaves implicit is dynamic map conditioning: because SDM are static, a temporal or object-disjoint evaluation would clarify how much of the gain comes from geometry rather than from seeing the same scene during training.
  • The mAP/mAR asymmetry suggests the fusion would be most valuable in precision-critical settings such as emergency braking; a testable variant would apply SDM fusion to tracking or 3D detection with a split that isolates unseen object identities.
  • Since city models are absolutely georeferenced, RADLER could be extended to condition on the sensor's pose and query the relevant slice of a large city model on the fly, turning a per-scene prior into a scalable map prior.
  • The high-confidence improvement from self-supervision on CRUW hints that cross-modal contrastive pretraining may improve confidence calibration generally, which could be tested by measuring calibration error on RADLER's confidence maps.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper introduces RadarCity, a dataset of 54K synchronized radar-image pairs collected in four static scenes, enriched with semantic 3D city models (CityGML). It proposes RADLER, a radar object detector that first learns radar representations via MoCo-style contrastive learning between range-azimuth (RA) maps and camera images, then fuses the learned features with semantic-depth maps (SDM) raycast from CityGML. On RadarCity, RADLER with SDM is reported to achieve 94.86% mAP and 95.95% mAR, versus 90.69% and 95.28% without SDM, and average improvements of 5.46% mAP and 3.51% mAR over three RODNet baselines. The self-supervised component is additionally evaluated on CRUW using RODNet-CDC, where it shows higher precision at large peak thresholds.

Significance. If the reported gains hold, the core idea of using openly available semantic 3D city models as a prior for radar-based object detection is novel, practical, and likely to stimulate follow-up work in map-supported perception. The dataset release with synchronized radar-image pairs and associated CityGML models is a useful community resource, and the project page is publicly available. The paper also provides internally consistent baseline comparisons against RODNet variants, and the CRUW experiments give some evidence that contrastive radar-image pretraining can improve peak-quality detection. However, the central performance claim currently rests on an evaluation protocol that may leak scene-level information and lacks variance reporting; these issues need to be resolved before the main conclusions are fully supported.

major comments (3)
  1. [Sec. 4 and Suppl. 7.3] The downstream train/test split is described only as an 80/20 ratio, and the data are collected stationarily as continuous recordings in four scenes. Because SDMs are static raycasts that are identical for every frame of a given scene (Sec. 5.1), a random frame-level split can place near-duplicate views of the same scene, and even the same object trajectories, in both training and test sets. This would directly inflate the SDM gain reported in Table 1 (90.69 to 94.86 mAP), since the static scene layout could be memorized from training frames. The paper does not state whether the split is temporal, scene-disjoint, or object-disjoint. Please rerun the evaluation with a leave-one-scene-out split or a temporal hold-out, and explicitly state the split criterion; this is load-bearing for the central claim.
  2. [Sec. 5.3 and Suppl. 8.1] All reported numbers in Table 1 come from a single training run, with no error bars, multiple seeds, or per-scene results. The L-NMS OLS threshold is described as 'empirically chosen to ensure the best performance of our RADLER and RODNet' (Sec. 5.3), and Fig. 13 reports threshold sweeps on the test data. With a single run, the 4.17-point mAP gain from SDM could be within run-to-run variance, and threshold selection on the test set can bias model comparisons. Please report mean and standard deviation over at least three seeds, and fix the threshold selection procedure (e.g., cross-validation or a pre-registered value) so that the comparison is not optimized on the test split.
  3. [Sec. 5.5] The self-supervised learning component is evaluated only on CRUW with RODNet-CDC, not on RadarCity. In Table 1, the comparison between RADLER (without SDM) and the RODNet baselines confounds the SSL-pretrained encoder with the ViT-based architecture and the overall training pipeline, so the specific contribution of contrastive SSL to the RadarCity results is not directly measured. Please add an ablation that trains the same detector architecture with and without the contrastive pretraining on RadarCity, or otherwise justify why the CRUW transfer evidence is sufficient to attribute the RadarCity gains to SSL.
minor comments (4)
  1. [Abstract and Sec. 1] The abstract contains typos: 'mean avarage precision' and 'mean avarage recall' appear twice; these should be corrected to 'mean average precision' and 'mean average recall'.
  2. [Sec. 5.2] The number of concatenated channels for the radar features and the SDM features in the channel-wise fusion is said to be 'empirically fine-tuned', but no final values are reported. Please provide the exact configuration used in the finalized model (Figure 8) for reproducibility.
  3. [Sec. 5.3] Training hyperparameters such as the InfoNCE temperature, momentum coefficient m, learning rate, batch size, and number of epochs are not reported for either the pretext or downstream tasks. Please include these details in the supplementary material.
  4. [Suppl. Sec. 7.2] Data cluster 3, which contains additional object classes such as trucks and vans, is described but it is not stated explicitly whether it is excluded from all experiments and why. Please clarify the role of cluster 3 in the reported evaluation.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: RADLER's SDM priors come from external CityGML models, GT is manual annotation, and the reported gains are measured outputs rather than recovered inputs.

full rationale

The paper's derivation chain is self-contained with respect to circularity. The SDM prior is generated by raycasting Open3D on CityGML semantic 3D city models (Sec. 5.1), which are external geodata products, not outputs of the detection model. Ground truth ConfMaps are manually annotated (Sec. 7.3), independent of both the radar features and the SDM. The contrastive SSL pretext task (MoCo/InfoNCE, Eq. 1) and the downstream BCE detection loss (Eq. 3) are standard objectives trained on data; no parameter is fitted to the reported mAP/mAR and then renamed as a prediction. The claimed gains (Table 1) are measured on held-out frames under an 80/20 split (Sec. 4, Suppl. 7.3). The only legitimate concern is that the split is described only by ratio and data were collected stationarily in four scenes, so train/test frames may share scene layout or even object trajectories; that is an evaluation-validity or generalization risk, not a circular-derivation step, and per the review rules it belongs under correctness rather than circularity. Self-citations (e.g., TUM2TWIN [34], Scan2LoD3 [39], city model review [40]) are used as data sources or related work, not as load-bearing proof of the detection results. No equation in the paper reduces its central claim to its inputs by construction.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central method rests on four domain assumptions about map accuracy, sensor pose alignment, SSL transfer, and annotation quality, plus three hand-chosen hyperparameters (OLS threshold, concatenation channels, depth mask). No new physical entities are introduced; SDM is a projection of existing CityGML data.

free parameters (3)
  • L-NMS OLS threshold = not reported numerically
    Section 5.3: 'This threshold is empirically chosen to ensure the best performance of our RADLER and RODNet.' A hand-tuned threshold can favor the proposed model.
  • Number of concatenated channels in radar-SDM fusion = not reported
    Section 5.2: 'By empirically fine-tuning the number of channels to be concatenated in each data modality, we find that this fusion method produces more reliable results.' This is a fitted design choice.
  • SDM depth mask cutoff = 35 m
    Section 5.1: a depth-based mask excludes SDM beyond 35 meters, corresponding to the radar's maximum detection range; this choice affects what information is fused.
assumptions (4)
  • domain assumption Semantic 3D city models of the test area (TUM campus) are geometrically accurate and semantically complete enough for raycasted SDM to be a reliable prior.
    Section 4 and 5.1: SDM are generated from CityGML LOD2 buildings and lane-level street models; the method's gains depend on these maps correctly describing the scene during data collection.
  • domain assumption The device pose (location and orientation) can be determined accurately from a point cloud scan and remains fixed during data collection.
    Section 5.1: 'we use a point cloud scan of the TUM area to determine the precise location and orientation of the device'. If this alignment is inaccurate, the fusion of SDM with radar features would be misaligned and the claimed benefit would not materialize.
  • domain assumption Contrastive SSL on 35K radar-image pairs transfers to the downstream radar detection task.
    The method's pretext stage (MoCo with ViT) is claimed to yield robust radar representations; the paper only validates this indirectly on CRUW (Section 5.5), not via an ablation on RadarCity.
  • domain assumption Manual annotations of object bounding boxes on range-azimuth maps are accurate enough to measure mAP/mAR.
    Supplementary 7.3 acknowledges 'some offsets in the annotations despite great carefulness'; annotation accuracy directly affects reported metrics.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RADLER: Radar Object Detection Leveraging Semantic 3D City Models and Self-Supervised Radar-Image Learning." pith.science (2026). https://pith.science/paper/SOBBO67M

@misc{pith2026250412167,
  author       = {Pith},
  title        = {Pith review of: RADLER: Radar Object Detection Leveraging Semantic 3D City Models and Self-Supervised Radar-Image Learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SOBBO67M}},
  note         = {Machine review of arXiv:2504.12167}
}
read the original abstract

Semantic 3D city models are worldwide easy-accessible, providing accurate, object-oriented, and semantic-rich 3D priors. To date, their potential to mitigate the noise impact on radar object detection remains under-explored. In this paper, we first introduce a unique dataset, RadarCity, comprising 54K synchronized radar-image pairs and semantic 3D city models. Moreover, we propose a novel neural network, RADLER, leveraging the effectiveness of contrastive self-supervised learning (SSL) and semantic 3D city models to enhance radar object detection of pedestrians, cyclists, and cars. Specifically, we first obtain the robust radar features via a SSL network in the radar-image pretext task. We then use a simple yet effective feature fusion strategy to incorporate semantic-depth features from semantic 3D city models. Having prior 3D information as guidance, RADLER obtains more fine-grained details to enhance radar object detection. We extensively evaluate RADLER on the collected RadarCity dataset and demonstrate average improvements of 5.46% in mean avarage precision (mAP) and 3.51% in mean avarage recall (mAR) over previous radar object detection methods. We believe this work will foster further research on semantic-guided and map-supported radar object detection. Our project page is publicly available athttps://gpp-communication.github.io/RADLER .

Figures

Figures reproduced from arXiv: 2504.12167 by the authors.

Figure 1
Figure 1. The workflow of RADLER. Representations of the [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Tracking moving objects’ trajectories on RA maps: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Schematic diagram of RADLER. The pretext task involves learning representations of RA maps by contrasting them against [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: The utilized CityGML model representing TUM’s city [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 6
Figure 6. Figure 6: Visualizations of the raycasting process, including the [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 5
Figure 5. Figure 5: Demonstration of the sensor platform used and all scenes [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 7
Figure 7. Figure 7: Visualization of the ConfMaps using different radar [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: The finalized configuration of RADLER. The data flow [PITH_FULL_IMAGE:figures/full_fig_p006_8.png]
Figure 9

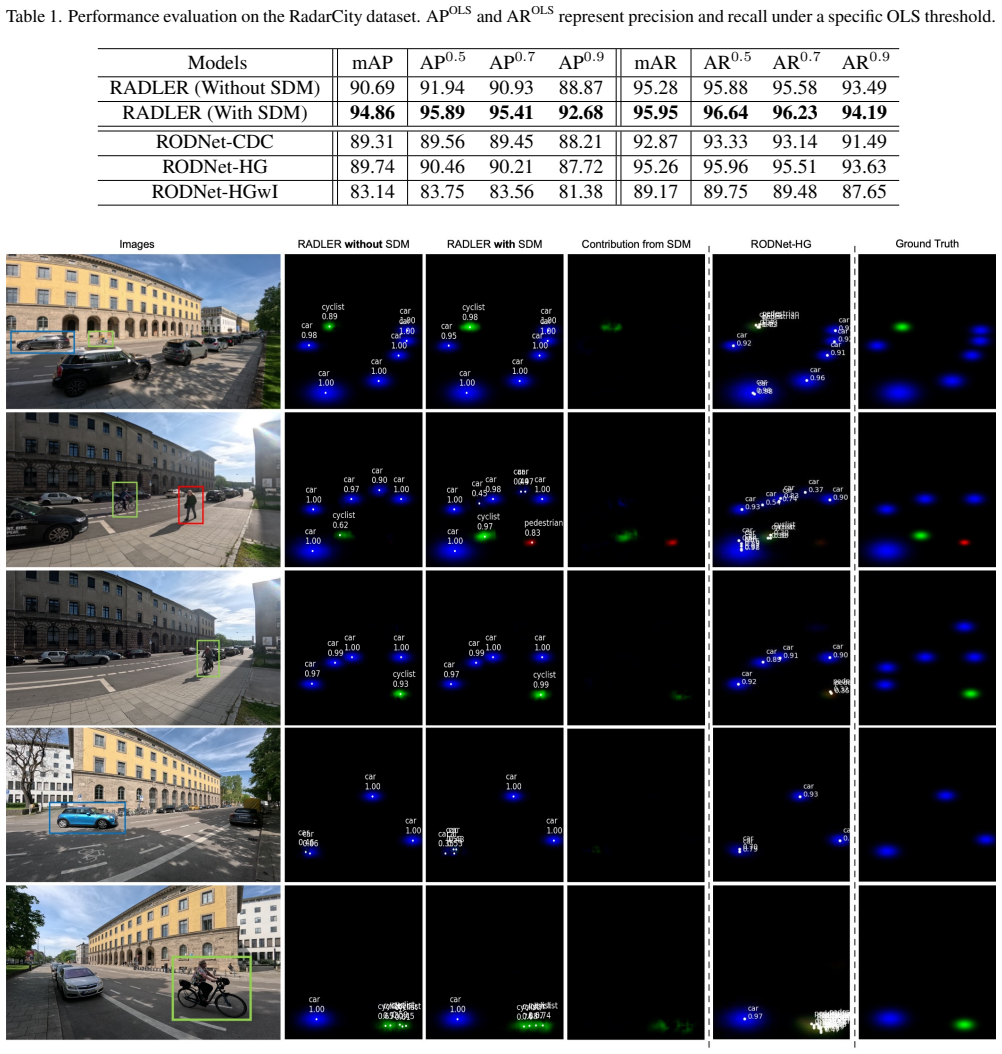

Figure 9. Figure 9: Example detection results from our RADLER and RODNet. Object classes (pedestrians, cyclists, and cars) are indicated on the [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 10
Figure 10. Figure 10: A simplified workflow for the radar data collection. [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
Figure 11
Figure 11. Figure 11: Examples from different data clusters [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
Figure 12
Figure 12. Figure 12: Statistics of the downstream task dataset annotations. [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: The mAP and mAR of RADLER and RODNet under different OLS values as the threshold for L-NMS. [PITH_FULL_IMAGE:figures/full_fig_p013_13.png]
Figure 14
Figure 14. Figure 14: Example results: the first row displays the images, and the second row shows the corresponding RA maps. Subsequent rows [PITH_FULL_IMAGE:figures/full_fig_p014_14.png]

Discussion (0). Continue with ORCID to comment.
