S-SYNC: Shuttle and Swap Co-Optimization in Quantum Charge-Coupled Devices

T0 review · 3 major / 7 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read S-SYNC claims that co-optimizing shuttling and SWAPs as generic swaps on a static weighted QCCD graph cuts shuttle counts by 3.69x and raises average success rate by 1.73x.

desk verdict S-SYNC's space-node trick is a real contribution, but the success-rate numbers don't survive contact with the paper's own fidelity model. read the letter →

arxiv 2505.01316 v1 pith:JKIY7JRY submitted 2025-05-02 quant-ph

Chenghong Zhu , Xian Wu , Jingbo Wang , Xin Wang This is my paper · ORCID
classification quant-ph PACS 03.67.Lx
keywords S-SYNCquantumcharge-coupleddevicetrapped-ioncomputingqubitmappingshuttlingschedulingSWAPoptimizationQCCDtopologysuccessrate
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that a compiler for quantum-charge-coupled-device (QCCD) trapped-ion computers should schedule ion shuttling and SWAP gates together, not separately, because the two operations are physically coupled: moving an ion chain almost always forces reordering, and reordering costs SWAPs. Its proposal, S-SYNC, rewrites the QCCD device as a weighted static graph that includes empty 'space nodes', so every physical operation--splitting, merging, moving ions between traps, swapping qubits--becomes one unified node interchange that the paper calls a generic swap. On this graph the scheduler searches heuristically for low-cost generic swaps until all two-qubit gates are executable, and this co-optimization is reported to reduce the number of shuttles by 3.69x on average and improve application success rate by 1.73x on average across QFT, adder, BV, QAOA, and alternating-layer-ansatz benchmarks on linear, grid, and fully connected QCCD topologies. A reader should care because shuttling is the dominant error and time cost in scaling trapped-ion devices; if this reduction transfers to hardware, near-term QCCD devices can run larger algorithms, and the static-topology formulation lets a large toolbox of qubit-routing heuristics be reused for trapped-ion hardware.

What carries the argument

The load-bearing object is S-SYNC's static weighted graph with space nodes, together with the generic swap it defines. A space node is simply a free slot in a trap that can hold one ion; the graph has an edge between any two nodes whose contents can be interchanged, with weights such as $w_1 = 0.001$ for an intra-trap move and $w_2, w_3, w_4$ scaling with distance and junction crossings. Because every QCCD operation--splitting, merging, shuttling between traps, and SWAP-based reordering--is represented as one generic swap (interchange of two nodes), the topology graph stays fixed through the whole schedule, which removes the dynamic-topology problem that prevented standard routing algorithms from being applied. The scheduler's heuristic $H(\mathit{swap})$ evaluates each candidate generic swap by the shortest weighted path needed to bring the two qubits of a frontier gate together, plus a penalty for traps that contain no free space, and a decay term that discourages repeatedly moving the same qubits; the lowest-scoring move is applied and the search repeats until the circuit's dependency graph is exhausted.

What would settle it

Measure success rates of S-SYNC-scheduled circuits on a real QCCD device (or on a simulator whose noise model is fitted to direct heating measurements) and compare against the linear-model predictions. If the success-rate advantage over the baselines shrinks or reverses once heating is measured rather than assumed proportional to operation time and motional quanta, the central success-rate claim is falsified. A sharper experiment: repeatedly shuttle ions through the same junction and record gate fidelity as a function of prior shuttle count; superlinear degradation would violate the model's additive per-operation cost assumption.

Watch

Extended reading notes

Core claim

The central claim is that the QCCD scheduling problem can be made static: represent every occupied or empty trap slot as a node of a weighted connectivity graph, with edge weights expressing whether swapping two nodes costs a cheap intra-trap SWAP, a costly shuttle, or a junction crossing. A shuttle physically exchanges a qubit with an empty space, a SWAP exchanges two qubits, and repositioning space within a trap is also a node interchange, so all operations share one form. The paper names this unified operation a generic swap. On top of this representation S-SYNC builds a DAG-aware greedy scheduler: whenever no ready gate can be executed, it scores every candidate generic swap with $H(\mathit{swap}) = \min_g \{ \mathit{decay}(g) \cdot \mathit{score}(g) \} + w(\mathit{swap})$, where score combines the weighted path between the two qubits of the most urgent gate and a penalty for traps with no free space, then applies the lowest-scoring move. The paper argues this co-optimization, rather than minimizing shuttles or SWAPs in isolation, is what yields the reported 3.69x shuttle reduction and 1.73x success-rate improvement over the prior compiler baselines, and it uses the same machinery to draw architectural conclusions: grid-type topologies generally beat linear ones, and peak success rates occur at roughly 10-15 qubits per trap.

Load-bearing premise

The paper's central success-rate improvement rests on a linear fidelity model, $F = 1 - \Gamma\tau - A(2\bar{n}+1)$, with heating constants $k_1=0.1$ and $k_2=0.01$ taken from a prior trapped-ion study; if real QCCD noise grows nonlinearly with chain size or depends on the history of previous shuttles, the 1.73x success-rate claim and the topology/capacity guidance would not survive contact with hardware, even if the shuttle-count reductions themselves are real.

Editorial extensions

If this is right

  • Prior superconducting-style qubit-routing and SWAP-insertion heuristics become applicable to QCCD, because the static graph with space nodes keeps the connectivity fixed throughout scheduling.
  • The reported reductions mean near-term QCCD applications spend fewer operations on movement, directly cutting the main source of heating-induced error and execution-time overhead in trapped-ion systems.
  • The topology study implies device designers can expect grid- or ring-style QCCD layouts to outperform linear layouts for most applications, and that trap capacities around 10-15 ions are the sweet spot for success rate.
  • Initial mapping choices trade shuttles against execution time: gathering mapping minimizes shuttles but can reduce success rate under frequency-modulated gates, since longer ion chains make those gates slower.
  • S-SYNC comes close to the idealized 'perfect SWAP' bound but retains a gap to 'perfect shuttle', so further gains are available specifically in shuttle scheduling rather than in SWAP reduction.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The generic-swap abstraction suggests QCCD scheduling can be recast as token swapping on a graph where empty vertices are mobile, which would let exact and near-exact routing methods from the circuit-mapping literature be tested against S-SYNC's greedy search; the paper does not explore this connection.
  • Because the success-rate model assumes heating adds a fixed number of motional quanta per split/merge/shuttle, a direct measurement of how gate fidelity degrades with cumulative shuttling through junctions would tell whether the 1.73x improvement is optimistic, pessimistic, or roughly right under real QCCD noise.
  • The same static-graph formulation could extend to mixed-species or memory-zone QCCD designs where some ions are immobile, by adding constraints that lock certain nodes from interchange; this is a natural next step not treated in the paper.
  • The paper's benchmark evidence suggests that the best compiler choices depend on gate implementation (AM2 for short-range gates, FM/PM for long-range), so hardware vendors reporting gate times and heating rates could let S-SYNC-style compilers tune their weights automatically; such auto-tuning is not in the paper.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The paper introduces S-SYNC, a compiler for QCCD trapped-ion devices that represents the device as a static weighted graph containing both qubit nodes and empty space nodes. It defines a unified 'generic swap' operation covering SWAP gates, intra-trap reordering, and shuttling, and schedules circuits with a greedy heuristic using a distance-based cost function plus penalties for blocked traps and repeated moves. The authors evaluate S-SYNC on benchmarks of 24-66 qubits against the Murali et al. and Dai et al. compilers across several QCCD topologies, reporting a 3.69x average reduction in shuttle count and a 1.73x average improvement in success rate. They also analyze the effect of topology, trap capacity, gate implementation choices, initial mappings, and hyperparameters, and compare compilation time and optimality against idealized scenarios.

Significance. If the results hold, S-SYNC contributes a useful abstraction for QCCD compilation: treating space nodes as first-class graph vertices solves the previously noted problem that the QCCD topology changes after each shuttle, and the generic-swap formulation cleanly unifies SWAP and shuttling costs. The shuttle-count and SWAP-count reductions in Figs. 8-9 are plausible and would be valuable even without the fidelity model. However, the headline success-rate improvement of 1.73x and the topology and capacity guidance in Figs. 10-12 rest entirely on Eq. (4), which is not specified consistently enough to reproduce the reported numbers. The paper does not release code and contains no machine-checked proofs, so the quantitative claims currently depend on an unverified and partially described noise model. The central scheduling mechanism itself is described completely enough to be reimplemented, and the sensitivity analysis for the heuristic weights is a positive feature.

major comments (3)
  1. [Section 4.1, Eq. (4)] The success-rate model is not internally consistent as written. The text sets Γ = 1 while Table 1 lists split/merge times of 80 μs, junction times of 40+20n μs, and FM gate times of hundreds of microseconds. If τ in Eq. (4) is in microseconds, a single split contributes Γτ = 80, so the per-gate fidelity is at most 1 - 80 - A(2n̄+1) ≤ -79, and the product over the circuit would be zero or negative. This contradicts the positive success rates in Fig. 10 and makes the logarithmic QFT_64 panel impossible. If τ is intended to be in seconds, or if Γ has nontrivial units, that normalization is never stated. Since the 1.73x success-rate claim and Figs. 10-12 all depend on Eq. (4), the reported success-rate results are unsupported as written.
  2. [Section 4.1, Eq. (4)] The terms in Eq. (4) are not quantitatively defined. The text states that A ∝ N/ln(N) but gives no proportionality constant, and it does not specify how split, merge, and shuttle operations update n̄ through k1 and k2 or how n̄ is tracked across a circuit. Consequently, the success-rate simulator cannot be reconstructed from the manuscript alone. The authors should provide the complete model, including the value of A and the exact update rule for n̄, or release the simulator code, and then rerun Figs. 10-12.
  3. [Section 3.1 and Section 4.2] The threshold parameter in the static-topology rules is never assigned a value. Rules 1-4 all distinguish operations by whether W(u,v) is below or above the threshold, and the resulting shuttle and SWAP counts in Figs. 8-9 depend on this distinction. Section 4.2 gives inner weight 0.001, shuttle segment weight 1, and junction multipliers, but no threshold value. The reported counts are therefore not reproducible, and the threshold should be stated and preferably included in the sensitivity analysis.
minor comments (7)
  1. [Section 4.2 vs Section 5.5] The decay rate is set to δ = 0.0001 in Section 4.2 but to δ = 0.001 in Section 5.5; the correct value used for the main results should be stated consistently.
  2. [Section 4.2, Fig. 16] The text says that m = 2 is 'sufficient to achieve near-optimal results in most cases, as shown in Fig. 16,' but Fig. 16 compares S-SYNC against idealized perfect-shuttle and perfect-SWAP scenarios and does not sweep m. Please either add an m-sweep figure or correct the cross-reference.
  3. [Section 3.4, Eq. (3)] The intra-trap mapping score l(q_i) = -αE(q_i) + βI(q_i) uses parameters α and β, but no values are given in the experimental section. The STA-mapping curves in Fig. 12 cannot be reproduced without these values.
  4. [References [48] and [49]] References [48] and [49] are the same Murali et al. ISCA 2020 paper; the duplicate should be removed and the citation in Observation 3 should be fixed.
  5. [Fig. 10 caption] The y-axis for QFT_64 is logarithmic while the other panels are linear; this should be stated explicitly in the caption.
  6. [Abstract] The phrase 'significantly extend execution time' should be 'significantly extending execution time' or 'significantly extend execution times'.
  7. [Abstract and Section 5.1] The headline 3.69x average shuttle reduction is not directly derivable from the per-benchmark percentages reported in Section 5.1; a summary table with per-benchmark counts and the averaging procedure would allow the reader to verify the number.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: S-SYNC's reductions are benchmarked against external baselines under a shared external fidelity model, so the central claim is not equivalent to its inputs.

full rationale

The claimed reductions (3.69x shuttles, 1.73x success rate) are empirical comparisons between S-SYNC and the external compilers of Murali et al. [48] and Dai et al. [15] under a shared fidelity model. The heuristic weights (inner weight 0.001, shuttle weight 1, w(j+1), decay δ = 0.0001) are manually chosen inputs and are not fitted to the reported success rates; the sensitivity analysis in Fig. 14 shows the shuttle-count results are stable across a wide range of weight ratios, so the central shuttle-reduction claim is not forced by construction. The fidelity model in Eq. (4) with Γ=1 and the listed microsecond operation times would produce negative per-gate fidelities for any split/merge (1 − 80 = −79) and therefore cannot literally reproduce the positive success rates in Fig. 10 as written; this is an internal-consistency and correctness defect in the reported quantitative success-rate claim, not a circular dependency, because the model is external and applied identically to all schemes. The only self-citation, [82], appears in related work on single-trap shuttling and is not load-bearing for the paper's central result. No step in the derivation chain reduces a predicted quantity to a fitted input or imports a uniqueness claim from the authors' prior work.

Assumptions & free parameters 8 free parameters · 4 assumptions · 0 invented entities

The paper's performance numbers rest on a small set of hand-set graph weights, a borrowed linear noise model, and several underspecified scoring parameters (most notably α and β in Eq. 3). No new physical entities are introduced; generic-swap and space nodes are software abstractions. The sensitivity analysis in §5.5 explores some hyperparameters, but the default choices are not derived from independent data.

free parameters (8)
  • inner weight = 0.001
    Cost of swapping two adjacent nodes within a trap; hand-set in §4.2 to reflect that ion reordering is cheaper than shuttling.
  • shuttle segment weight = 1
    Base cost of moving an ion across a junction-free segment; hand-set in §4.2.
  • junction multiplier = w(j+1)
    Each traversed junction multiplies shuttle cost; hand-set to approximate ion heating from junction crossings (§4.2).
  • decay rate δ = 0.0001 (§4.2), 0.001 (§5.5)
    Penalty for reusing qubits in recent generic swaps; inconsistent values across sections; tuned via sensitivity analysis (§5.5).
  • α, β in intra-trap mapping = not specified
    Weights in Eq. (3) balancing intra-trap vs cross-trap interactions; no numerical values are given, blocking exact reproducibility.
  • path truncation m = 2
    Limits the path length in the score function to keep runtime manageable; justified empirically in Fig. 16.
  • look-ahead k = 8
    Number of DAG layers considered in intra-trap mapping (Eq. 3), set to 8 in simulation.
  • noise model constants Γ, k1, k2 = Γ=1, k1=0.1, k2=0.01
    Constants in the success-rate model Eq. (4), inherited from Murali et al. [48], not re-derived; the 1.73x success-rate claim is sensitive to them.
assumptions (4)
  • domain assumption A two-qubit gate is applicable iff both qubits are in the same trap with edge weight below threshold (Section 3.1, rule 1).
    This defines the static topology abstraction and assumes intra-trap connectivity is free up to a threshold, which is an idealization of QCCD physics.
  • domain assumption Fidelity degradation is linear in accumulated time and motional energy: F = 1 - Γτ - A(2n̄+1) (Eq. 4).
    Borrowed from Murali et al. [48]; this linear model converts operation counts into success rates, and is the basis of the claimed 1.73x success-rate improvement.
  • domain assumption Shuttling through j junctions costs w(j+1) and ion reordering costs less than shuttling (Section 4.2).
    The relative weights encode hardware heating behavior; if real heating differs, the heuristic's choices change.
  • domain assumption Gate execution times for FM, PM, AM gates follow τFM(N)=max(13.33N-54,100), τPM(d)=5d+160, τAM1(d)=100d-22, τAM2(d)=38d+10 (Section 4.1).
    These formulas come from prior trapped-ion studies and are used for execution-time and success-rate estimates; they are not derived in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of S-SYNC: Shuttle and Swap Co-Optimization in Quantum Charge-Coupled Devices." pith.science (2026). https://pith.science/paper/JKIY7JRY

@misc{pith2026250501316,
  author       = {Pith},
  title        = {Pith review of: S-SYNC: Shuttle and Swap Co-Optimization in Quantum Charge-Coupled Devices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JKIY7JRY}},
  note         = {Machine review of arXiv:2505.01316}
}
read the original abstract

The Quantum Charge-Coupled Device (QCCD) architecture is a modular design to expand trapped-ion quantum computer that relies on the coherent shuttling of qubits across an array of segmented electrodes. Leveraging trapped ions for their long coherence times and high-fidelity quantum operations, QCCD technology represents a significant advancement toward practical, large-scale quantum processors. However, shuttling increases thermal motion and consistently necessitates qubit swaps, significantly extend execution time and negatively affect application success rates. In this paper, we introduce S-SYNC -- a compiler designed to co-optimize the number of shuttling and swapping operations. S-SYNC exploits the unique properties of QCCD and incorporates generic SWAP operations to efficiently manage shuttle and SWAP counts simultaneously. Building on the static topology formulation of QCCD, we develop scheduling heuristics to enhance overall performance. Our evaluations demonstrate that our approach reduces the shuttling number by 3.69x on average and improves the success rate of quantum applications by 1.73x on average. Moreover, we apply S-SYNC to gain insights into executing applications across various QCCD topologies and to compare the trade-offs between different initial mapping methods.

Figures

Figures reproduced from arXiv: 2505.01316 by the authors.

Figure 1
Figure 1. Overview of this work. We propose S-SYNC with equipment of different initial mapping and searching frame￾work for optimizing the success rate of running quantum application in QCCD devices. termed ‘generic swap’, which combines the functions of SWAP and shuttle within QCCD devices. • Scalable Algorithm Design. Leverage the static topol￾ogy formulation of QCCD, we introduce a heuristic search algorithm based on gener… view at source ↗
Figure 2
Figure 2. A modular Quantum Charge Coupled Device (QCCD) consists of several traps, each of which is initialized with 7 qubits. These traps are interconnected with shuttle paths. In order to enable the implementation of a two-qubit gate between two traps, ions need to be split from one trap, moved, and then merged into another trap by traversing the shuttle path. qubit, which has two basis states, typically denoted as |0⟩ and… view at source ↗

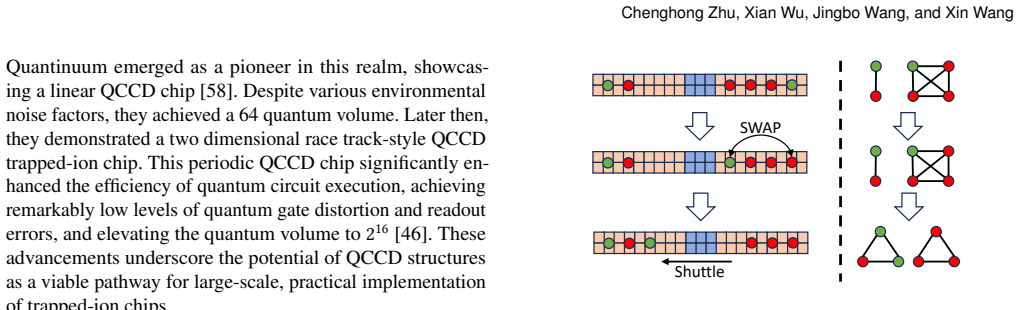

Figure 3
Figure 3. Illustration of Observation 1 and 2. (Left) To apply a two-qubit gate on the two green qubits (with white space qubits omitted), a SWAP gate and a shuttle operation are used. (Right) The topology graph shows that, because each trap maintains full connectivity, the graph’s isomorphism is preserved after the initial SWAP insertion, indicating no topological changes. However, the shuttle operation modifies the topology… view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Illustration of Observation 3. Red dots represent qubits, white dots denote spaces for incoming ions, and black dots indicate fixed positions for shuttling. In the scenario shown in (a), suppose a two-qubit gate must be applied to two qubits, but the path is obstructed…
Figure 5
Figure 5. Figure 5: A demonstration of creating a graph using a given QCCD. In (a), each dot stands for a unit space; a qubit is represented by a red dot, and a free space is denoted by a white dot. The corresponding graph of (a) is shown in (b), where the blue line indicates the potentia…
Figure 6
Figure 6. Figure 6: Illustration of the gate scheduling on QCCD devices. Consider the scenario where a two-qubit gate is required to be applied between q0, q1 and q1, q2. The scheduling process entails aligning the qubits to ensure that corresponding qubits are positioned within the same …
Figure 7
Figure 7. Figure 7: QCCD devices feature a variety of architectural designs, including linear-connected devices (L-series), grid-like devices (G-series), and fully-connected devices (S-series). Operations Time Move 5 𝜇s Split 80 𝜇s Merge 80 𝜇s Cross n-path junction 40 + 20 × 𝑛 𝜇s [PITH_F…
Figure 8
Figure 8. Figure 8: Comparison of shuttle counts with recent work by Murali et al. [48] and Dai et al. [15] (Lower the better). S-4 L-6 G-2x2G-2x3G-3x3 0 20 40 60 80 100 120 140 160 Number of SWAPs QFT_24 S-4 L-4 G-2x2G-2x3G-3x3 0 20 40 60 80 100 Adder_32 S-4 L-4 L-6 G-2x2G-2x3G-3x3 0 10 …
Figure 9
Figure 9. Figure 9: Comparison of SWAP gate counts with recent work by Murali et al. [48] and Dai et al. [15] (Lower the better). advanced devices, such as “SOL” and “APOLL”. In detail, we select configurations S-4, G-2×2, G-2×3, and G-3×3 with maximum capacities of 22, 22, 17, and 12 per…
Figure 10
Figure 10. Figure 10: We also emphasize that some applications have a low [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 11
Figure 11. Figure 11: Effects of communication topology and trap capacity on the fidelity of applications and their corresponding execution times. Experiments were conducted using 7 QCCD topologies to evaluate their performance across various applications, focusing on success rates and est…
Figure 12
Figure 12. Figure 12: Analysis of initial mapping effects. We use the 64-qubit Adder and 64-qubit QFT as examples on a G-2×3 topology. The results indicate that gathering mapping results in fewer shuttling operations compared to an even-divided mapping. However, due to the nature of FM gat…
Figure 14
Figure 14. Figure 14: Hyperparameter sensitivity analysis. (Left) Weight Analysis. r represents the ratio of shuttle weight to inner weight. (Right) Decay rate analysis. d represents the decay rate 𝛿. 5.5 Sensitivity Analysis of Hyperparameters To further analyze the impact of hyperparamet…
Figure 15
Figure 15. Figure 15: Compilation time varies with the size of applica￾tion. The compilation time is another key point in enabling ex￾ecuting large-scale applications [4]. We also choose G-2×2 topology with trap capacity 20 following the previous analy￾sis. In [PITH_FULL_IMAGE:figures/ful…
