LLM Code Customization with Visual Results: A Benchmark on TikZ

T0 review · 2 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that current LLMs customize TikZ code to match a requested visual change only 13% of the time in one shot, and 28% when given five tries.

desk verdict A useful first-version benchmark for LLM code customization with visual validation, but the reported 13%/28% success rates are lower bounds because 13 known-valid solutions are missing from the v1.0 ground truths. read the letter →

arxiv 2505.04670 v2 pith:XMHGLLXL submitted 2025-05-07 cs.SE cs.AI

Charly Reux (DiverSe) , Mathieu Acher (DiverSe) , Djamel Eddine Khelladi (DiverSe) , Olivier Barais (DiverSe) , Clément Quinton (SPIRALS) This is my paper · ORCID
classification cs.SEcs.AI
keywords LLMcodecustomizationvisualintentTikZbenchmarkparameterizedgroundtruthmultimodalfeedbackeditingevaluation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces vTikZ, a benchmark built to measure whether large language models can customize existing TikZ code so that the rendered image matches a natural-language edit request. The authors assembled 100 TikZ customization scenarios drawn from real diagrams, with parameterized reference solutions to allow more than one correct edit, plus a reviewing tool that compares generated images against those solutions. Running current models on the benchmark, they report that LLMs produce the desired output in only 13% of cases in a single attempt and in 28% of cases when allowed five attempts. The result matters because code customization with visual output—adjusting a diagram, interface, or image by editing source—is exactly the task where users cannot easily verify code behavior, and the benchmark gives the community a reproducible way to measure and close that gap.

What carries the argument

The load-bearing object is the parameterized ground-truth framework. Each of the 100 scenarios pairs a TikZ program with an instruction and a list of solution templates written with four parameterization directives—§range(lower, higher, default), §rangei(value, interval), §choice([A,B,...], default), and §def(value)—so that multiple valid colors, radii, shifts, and variable names count as correct. Correctness is then decided by the SuccessCustomizationMetric, which accepts a generated variant if it matches one of these parameterized solutions or produces an exact rendered-image match, and ranking across reference solutions uses compile status, line-location, line-edit rate, and patch similarity in priority order. The framework is what allows the 13% and 28% numbers to be measured at all, and the paper's 300 human annotations of model outputs are used to validate and extend that ground truth.

What would settle it

Re-run the evaluation with an expanded ground-truth set that includes the 13 human-annotated additional solutions and permits optional-line and placement-insensitive edits, then check whether the one-shot success rate rises measurably above 13% and the best-of-five rate above 28%. A move of several percentage points would indicate the reported numbers underestimate what LLMs can do; a negligible change would confirm the gap.

Watch

Extended reading notes

Core claim

vTikZ is, to the authors' knowledge, the first benchmark explicitly targeting LLM-driven customization of code with visual results rather than code generation from scratch. Its central finding is that current models fail this task most of the time: against 100 carefully curated TikZ editing scenarios, the success rate for producing a fully correct modified diagram is about 13% in a one-shot setting and about 28% using best-of-five sampling with the strongest model evaluated. The benchmark also quantifies where failures occur: models often compile successfully and often find the right lines, but they frequently edit the wrong feature, edit too many features, or apply the right edit incompletely. The paper argues that this gap shows LLMs are effectively blind to the rendered output during editing and that integrating visual feedback mechanisms is a necessary next direction.

Load-bearing premise

The benchmark's correctness rule assumes that the parameterized reference solutions capture essentially all reasonable ways to satisfy each instruction; the paper itself notes that the four parameterization commands may miss cases where lines are optional or placement does not matter, and human review surfaced 13 additional correct solutions.

Editorial extensions

If this is right

  • If the reported rates hold, current LLM-based code assistants are not yet reliable enough for real-world use on visual code customization, since even the strongest model fails three out of four times when given five tries.
  • The vTikZ methodology transfers to other graphics languages: the same scenario, prompt, parameterized-ground-truth, and review-tool structure can be applied to SVG, P5.js, Turtle, or Matplotlib.
  • The 300 human-annotated variants become training or evaluation material for models that incorporate visual feedback or human preference signals.
  • Benchmark scores can serve as a quantitative target for agentic or self-refining systems that render intermediate output and iterate until the rendered image matches the instruction.
  • The explicit split between feature location and edit execution makes vTikZ useful for diagnosing whether failures come from understanding the prompt, finding the code region, or making the final change.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A likely reason for the low success rates is that LLMs cannot see the rendered picture during editing; the paper's own oracle experiments, where vision models misclassified a substantial share of correct solutions, support the inference that simply adding an image input does not yet supply reliable feedback.
  • Because the ground truth penalizes valid edits it cannot express, the 13% and 28% figures are better read as lower bounds on model capability than as exact ability ceilings.
  • One testable extension of the paper's argument: an agent that renders its own draft, compares it with a rendered reference via a dedicated diffing tool, and re-prompts on mismatch should beat best-of-five sampling; if it does not, the bottleneck is not feedback but the model's code-editing competence itself.
  • The benchmark's focus on a single-file, single-diagram language means it likely understates the difficulty of visual customization in multi-file projects, where feature location spans files and edits must preserve cross-file consistency.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper introduces vTikZ, a benchmark for evaluating LLMs on TikZ code customization tasks in which a natural-language instruction requires modifying existing code to achieve a specific visual change. The benchmark contains 100 manually curated editing scenarios derived from 45 TikZ programs, parameterized ground-truth solutions, and a reviewing tool. The authors evaluate five open-source LLMs and GPT-4o (with and without image input) using compile, feature-location, success-customization, similarity, and line metrics, reporting success rates of 13% in one-shot and 28% with five attempts for the best model. The paper also contributes a dataset of 300 human-annotated LLM outputs and a failure-mode analysis.

Significance. If the benchmark is valid, it fills a genuine gap: existing software-engineering benchmarks ignore visual output, and existing visual benchmarks do not involve editing existing code. The released dataset, evaluation harness, and human annotations are concrete assets for future work. The qualitative finding that current LLMs are unreliable at such customization tasks is supported by the low success rates and the failure-mode analysis in Section 6.2. However, the precise numerical claims depend on the completeness of the parameterized ground truths, which the manuscript itself flags as incomplete; this makes the headline percentages lower bounds rather than point estimates.

major comments (2)
  1. [4.4, 6.3, 8] The ground-truth incompleteness acknowledged in Sections 4.4 and 6.3 directly affects the headline success rates reported in Section 8. Section 4.4 states that human annotation "surfaced 13 additional correct solutions that were previously missed," Section 6.3 concedes that the four parameterization commands "may not cover cases where certain lines are optional or line placement does not affect correctness," and Section 8 states that the results rely on version 1.0, with "potentially incorporating missing correct solutions" listed as a planned change. Because SuccessCustomizationMetric marks an output as successful only if it matches a parameterized reference solution or produces an exact image match, any model output that is one of these 13 valid solutions (or another valid solution outside the parameterization) is counted as a failure. The reported 13% one-shot and 28% best-of-5 figures are therefore lower bounds, and the magnitude of the resulting underestimation is unknown. I request that the authors either incorporate the 13 solutions into the benchmark and recompute all results, or provide a sensitivity analysis that quantifies how many of the evaluated outputs would be reclassified if these solutions were accepted.
  2. [4.1, 4.2] The definition of LocationMetric as "whether 100% of the lines of a patch was edited" is ambiguous: it is not clear whether it requires every line of the reference patch to appear in the generated patch, whether every edited line in the generated patch must be among the reference lines, or both. This ambiguity matters because LocationMetric is ranked second in the priority order used in Section 4.2 to select the best reference tuple per variant, so it can influence the final success classification. Please specify the exact computation (for example, precision, recall, or exact set equality) and the behavior when the generated patch contains extra or missing lines.
minor comments (5)
  1. [5.1, Table 3] Mixtral-8x7B appears in Table 3 but is missing from the enumeration of evaluated models at the start of Section 5.1; please add it to the model list or explain why it is only reported in the table.
  2. [5.3] The sentence in Section 5.3 stating that "the number of successful edits decreased marginally (by only one) when solely relying on code inputs" is confusing; please rephrase to report the actual counts for the text-only and text-plus-image conditions.
  3. [4.1, LineMetric] The formula for LineMetric divides by the total number of edited lines in the reference solution; if the generated patch edits more lines than the reference, the metric may exceed 100. Please clarify whether the metric is capped at 100 or normalized.
  4. [3.1] The character-length outlier criterion is described using an IQR formula that is not rendered cleanly in the submitted text; please format the formula properly with standard notation.
  5. [6.4] The vision-oracle experiments in Section 6.4 report misclassification counts without confidence intervals or statistical detail; these are clearly preliminary, so please label them explicitly as such and avoid drawing strong conclusions from the raw counts.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: vTikZ is an empirical benchmark whose correctness metric compares LLM outputs to pre-existing human-created reference solutions; the admitted incompleteness of those ground truths is a measurement-validity limitation, not a derivation forced by construction.

full rationale

This paper does not present a mathematical derivation or a fitted model whose predictions reduce to its inputs. The central claim is an empirical measurement: LLMs are evaluated against a benchmark of 100 human-curated TikZ customization tasks, and correctness is judged by the SuccessCustomizationMetric, which "evaluat[es] whether the generated code matches a parameterized solution or produces an exact image match." The parameterized ground truths were constructed by the authors from human-made variants, independently of the LLM outputs being scored. The evaluation is therefore external to the benchmark construction: the model responses are not used to define the reference solutions, nor are any benchmark parameters fitted to the evaluated models. The paper itself discloses the main weakness of this design in Section 6.3: the four parameterization commands "may not cover cases where certain lines are optional or line placement does not affect correctness," and Section 4.4 reports that human annotation "surfaced 13 additional correct solutions that were previously missed." Section 8 further states that the results rely on version 1.0 with "potentially incorporating missing correct solutions" listed as a planned update. This is a genuine ground-truth coverage limitation: the reported 13% and 28% success rates could underestimate true LLM performance if valid solutions were marked incorrect. However, an incomplete oracle is not circularity; the metric does not reduce to the input by construction, and the benchmark's correctness standard is an explicit, author-defined reference set rather than a hidden reuse of the evaluated outputs. There is no self-citation chain that carries the argument: the only self-citation visible in the text is contextual support for the growing interest in LLM-based code customization and is not load-bearing. There is also no uniqueness theorem, ansatz smuggled in via citation, or renaming of a known result. For these reasons, the appropriate finding is no significant circularity, with the ground-truth coverage issue treated as a benchmark-validity concern rather than a circularity defect.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The central contribution is an empirical benchmark, not a derivation, so the ledger records the assumptions that support the measurement: representativeness of the 100 selected tasks, completeness of the parameterized reference solutions, oracle-style best-of-N selection as a fairness convention, and standard algorithms used for auxiliary metrics. The only hand-set numerical values are benchmark tolerances and curation thresholds, which influence how hard or lenient the evaluation is.

free parameters (2)
  • Parameterized ground-truth tolerance values = Not fitted; examples include §range(10, 30, 20) for a circle radius and §choice([600, 700], 600) for a color
    Human-chosen acceptance intervals define whether a generated variant counts as correct; wider or narrower ranges change the SuccessCustomizationMetric without changing the code.
  • Manual curation thresholds for source code selection = 700 to 3570 characters, more than 3 TikZ drawing commands, single \begin{tikzpicture}
    These thresholds cut the nllg/datikz pool before the authors manually picked 35 codes; different thresholds would yield a different benchmark.
assumptions (5)
  • domain assumption TikZ customization is a representative proxy for visual code customization in other domains such as SVG, Web design, and 3D modeling.
    Stated in Sections 1 and 6.3 to motivate generality; the benchmark only measures TikZ, so the transfer claim is assumed.
  • domain assumption The parameterized solution set covers the valid solution space well enough that a mismatch implies failure.
    Needed for the SuccessCustomizationMetric; the authors acknowledge in Section 6.3 that the four parameterization commands cannot cover all valid edits and that annotation found 13 additional correct solutions.
  • domain assumption The 100 scenarios and 45 source programs are representative of real customization workloads.
    The selection protocol in Section 3.1 mixes a StackExchange post, a public TikZ dataset, and informal manual exploration; representativeness is assumed, not statistically demonstrated.
  • domain assumption Best-of-N selection against ground-truth metrics provides an upper bound on what a user could expect from N tries.
    Section 4.2 selects the variant with the best ground-truth score; this is an oracle selection and assumes the metric is a valid reward model.
  • standard math Standard algorithms such as Zhang-Shasha tree edit distance and CrystalBLEU behave as published.
    Used to compute AST difficulty and patch similarity; standard, unverified in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of LLM Code Customization with Visual Results: A Benchmark on TikZ." pith.science (2026). https://pith.science/paper/XMHGLLXL

@misc{pith2026250504670,
  author       = {Pith},
  title        = {Pith review of: LLM Code Customization with Visual Results: A Benchmark on TikZ},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XMHGLLXL}},
  note         = {Machine review of arXiv:2505.04670}
}
read the original abstract

With the rise of AI-based code generation, customizing existing code out of natural language instructions to modify visual results -such as figures or images -has become possible, promising to reduce the need for deep programming expertise. However, even experienced developers can struggle with this task, as it requires identifying relevant code regions (feature location), generating valid code variants, and ensuring the modifications reliably align with user intent. In this paper, we introduce vTikZ, the first benchmark designed to evaluate the ability of Large Language Models (LLMs) to customize code while preserving coherent visual outcomes. Our benchmark consists of carefully curated vTikZ editing scenarios, parameterized ground truths, and a reviewing tool that leverages visual feedback to assess correctness. Empirical evaluation with stateof-the-art LLMs shows that existing solutions struggle to reliably modify code in alignment with visual intent, highlighting a gap in current AI-assisted code editing approaches. We argue that vTikZ opens new research directions for integrating LLMs with visual feedback mechanisms to improve code customization tasks in various domains beyond TikZ, including image processing, art creation, Web design, and 3D modeling.

Figures

Figures reproduced from arXiv: 2505.04670 by the authors.

Figure 1
Figure 1. Contextualized example of the benchmark task. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

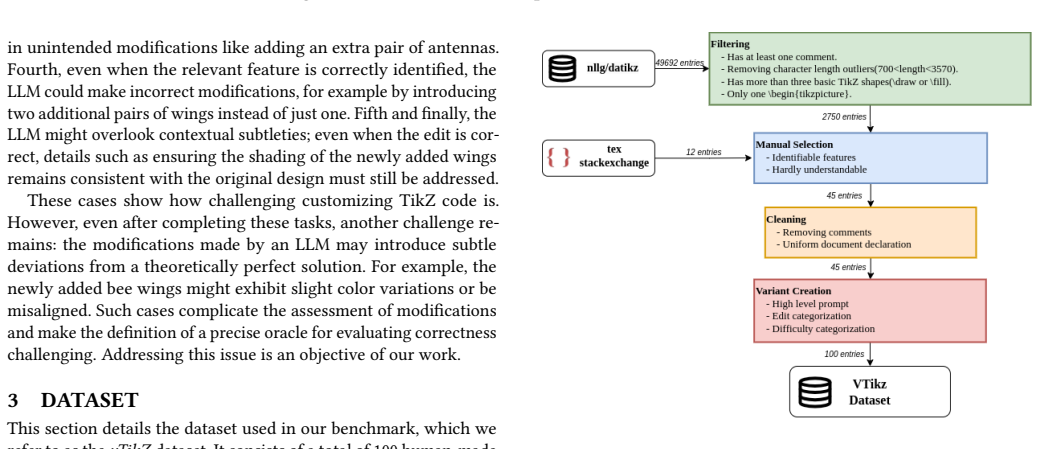

Figure 2. vTikZ dataset curation overview and inherent difficulty, making them challenging for end-users to understand at first sight. Such examples illustrate the complexity of TikZ while maintaining a well-defined structure. They also sup￾port high-level prompts specifying feature edits in the diagram, e.g., "Make the eye of the dog red." [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Annotation interface 4.3 Technical Details The benchmark is designed to evaluate both LLMs and Large Multi￾modal Models (LMMs) in a comparable manner. In addition to textual inputs, LMMs can also process images, making them suitable for TikZ-based image modifications. Both model types leverage system prompts, ensuring a better alignment with the benchmark objectives. LLM and LMM system prompts are structured as foll… view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Classification of Variants using the Compile, Location, and SuccessCustomization metrics [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Prompt used for the evaluation of VLM/Multimodal [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
