SmartTrap: Automated Precision Experiments with Optical Tweezers

T0 review · 4 major / 6 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read An optical-tweezer platform runs complex precision experiments unattended.

desk verdict The platform is genuinely autonomous and the open-source release is valuable; the main fix needed is a real ground-truth check of the CNN's axial localization before the 3D-alignment claims can be trusted. read the letter →

arxiv 2505.05290 v1 pith:NUSL33IR submitted 2025-05-08 physics.bio-ph cond-mat.softphysics.optics

Martin Selin , Antonio Ciarlo , Giuseppe Pesce , Lars Bengtsson , Joan Camunas-Soler , Vinoth Sundar Rajan , Fredrik Westerlund , L. Marcus Wilhelmsson
show 5 more authors
Isabel Pastor Felix Ritort Steven B. Smith Carlos Bustamante Giovanni Volpe
This is my paper · ORCID
classification physics.bio-phcond-mat.softphysics.optics
keywords opticaltweezersautonomousexperimentsdeeplearning3DparticletrackingmicrofluidicsDNAoverstretchingredbloodcellstretchingcolloidalelectrostaticforces
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

SmartTrap is an optical tweezers platform designed to remove the human operator from precision measurements. The paper's central claim is that the instrument can execute complex, multi-step experiments completely autonomously by combining real-time deep-learning 3D tracking, custom electronics, and microfluidics in a single closed control loop. If true, this matters because optical tweezer assays are traditionally slow, hands-on, and operator-dependent, so autonomous operation would raise throughput, improve reproducibility, and make rare or transient molecular events easier to catch. The authors support the claim with four unattended demonstrations: particle size characterization, single-molecule DNA pulling with a force-induced overstretching transition, optical stretching of red blood cells, and electrostatic force measurements between pairs of colloids, and they release the software and electronics as open source.

What carries the argument

The load-bearing mechanism is a closed four-step loop—acquire data, process data, decide, execute—running asynchronously so that sensor sampling and camera capture continue while the networks analyze. The central enabling objects are the counter-propagating dual-beam trap, which reports force directly from the change in light momentum and therefore needs no force calibration per particle type; a custom microcontroller that steers the beams with piezoelectric actuators and reads the force sensors; and a microfluidic chamber with a suction micropipette that holds one particle fixed while the trapped particle is moved. Within this loop, the small convolutional network trained on simulated images is the component that supplies 3D awareness: its z-prediction is what lets the system align two particles in the axial direction and also flags when a second particle has entered the trap.

What would settle it

Move a trapped bead of known diameter through focus in measured 1 µm steps while recording the network's z-prediction; if the root-mean-square error exceeds the bead's radius over the range used for alignment, the simulated-only depth network cannot support the claimed autonomous tethering. A complementary check is to count successful DNA attachments over many unattended cycles and compare that rate with what would be expected if the z-alignment were random within a few microns.

Watch

Extended reading notes

Core claim

The core discovery is that a sufficiently integrated digital loop can take over procedures that previously required a trained operator at every step. In SmartTrap, a camera feed is analyzed in real time by neural networks: one network detects particles and the micropipette and gives their lateral positions, while a second network estimates the axial (z) position of each particle from a single image, allowing the system to bring a trapped particle and a pipette-held particle into the same focal plane. Custom electronics close force and position feedback loops at roughly 7 kHz, and event-driven logic decides when to trap, align, attach, pull, flush, and repeat. The demonstrations include a 4.5-hour run that measured the hydrodynamic radius of 144 particles, repeated DNA stretching cycles yielding the expected ~65 pN overstretching plateau in the force–extension curve, red blood cell deformation that increases monotonically with laser power, and electrostatic repulsion curves at varying salt concentration that agree with the screened-Coulomb model.

Load-bearing premise

The load-bearing premise is that the convolutional network trained solely on simulated images predicts the axial (z) position of real particles with enough accuracy—within about a micron—for the 2–4 µm particles used here, because the DNA attachment step aligns particles by matching these predictions.

Editorial extensions

If this is right

  • A single unattended session can collect hundreds of particle measurements or repeatedly pull dozens of DNA molecules, making statistically rich datasets and parameter sweeps practical.
  • Because alignment and force readings are handled by the same code every time, reproducibility improves and operator-dependent bias in how experiments are performed largely disappears.
  • The protocol is built from reusable steps—trap, align, attach, measure, flush—so automating a new assay mostly means reconfiguring the state machine rather than rebuilding the instrument.
  • Long unattended operation with automatic error recovery opens the door to waiting for rare or transient single-molecule events instead of ending a session when a tether breaks or a sample runs out.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, a direct extension would be to quantify the depth network's z-error against a calibrated stage and use that number to set the minimum particle size, and hence the shortest tether, for which autonomous alignment is reliable.
  • Beyond the paper, the same detect–align–measure logic is not tied to counter-propagating tweezers; retrained on new image data, it could bring automation to other single-object microscopies such as single-beam traps or surface-based force assays.
  • Beyond the paper, if the depth estimate were sharpened, the double-trapping check that currently discards bad runs could become a real-time rejection signal that improves data quality before any measurement is recorded.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The manuscript describes SmartTrap, a counter-propagating optical tweezers platform that integrates custom electronics, microfluidics, and real-time deep-learning image analysis (YOLO for lateral detection and sizing, a convolutional network for axial focus estimation, and a U-Net for tracking close particles) to run experiments without continuous human supervision. Four demonstrations are reported: high-throughput particle size characterization by Stokes drag during a 4.5 h unattended run (144 analyzed particles, measured radius 2.11(4) µm versus the manufacturer's 2.12(5) µm); autonomous DNA pulling of an 11.8 kb λ-DNA fragment with force-extension curves showing an overstretch plateau; optical deformation of red blood cells at increasing laser power; and measurement of electrostatic forces between pairs of colloidal particles at several salt concentrations compared with DLVO theory. The software, electronics schematics, and videos are open source.

Significance. If the claims hold, SmartTrap is a substantial contribution to automated precision optical tweezers: it directly addresses the low-throughput and reproducibility bottleneck of manual operation, spans single-molecule, cellular, and colloidal experiments, and its open-source hardware and software make the platform reproducible by others. The particle characterization result is a strong quantitative check, and the electrostatic experiment is a genuine prediction because the charge parameter Z is fitted to the 0.1 mM data and then used for the other salt concentrations. The DNA overstretch plateau length (~2.8 µm, about 70% of contour length) provides a model-independent physical benchmark. The main weaknesses are the unquantified axial (z) accuracy of the convolutional network, which is load-bearing for the autonomous 3D alignment protocols, and the partly construction-based comparison of the DNA force-extension data to the extensible WLC model. These issues are fixable with additional validation and reporting, so the manuscript merits revision rather than rejection.

major comments (4)
  1. [Real time image analysis / DNA pulling step 5 / Electrostatic protocol step 5] The load-bearing premise for autonomous 3D alignment is the convolutional network's z-prediction, yet the only real-image validation is the statement that predictions are 'consistent within a range of a few microns.' This is not a quantitative calibration: for the 2-4 µm particles used here, a few microns is comparable to the particle size, and for the electrostatic measurements it is one to two orders of magnitude larger than the surface-to-surface distances of interest. The DNA and electrostatic protocols align the two particles by matching CNN-predicted z-positions, so the safety margin of the alignment loop is unknown. The successful autonomous tethering and DLVO-compatible curves provide indirect evidence that the network is more accurate than the text suggests, but the paper should report a direct real-image validation, for example by translating a trapped particle through focus with the stage while recording the true position, and reporting bias and root-mean-square error of the CNN predictions for the relevant particle sizes.
  2. [DNA pulling / Fig. 4b / Suppl. Fig. S5 / Eq. (A3)] The claim of 'excellent agreement' between the force-extension data and the extensible WLC model is weakened by the statement that the data were offset to align with the model at 20 pN because the molecular attachment point on the pipette particle is unknown. While this offset is a standard experimental necessity, the current presentation makes part of the agreement with the model a construction rather than a test. The overstretch plateau remains an independent validation because its position and length are not affected by the offset. The authors should report the raw (unoffset) extension data or at least the distribution of offsets across molecules, and should phrase the low-force WLC comparison as a consistency check with one fitted offset rather than as a model-free agreement.
  3. [DNA pulling experiment / Supplementary Experimental Details] There is an internal inconsistency concerning the expected overstretching force. The main text's DNA protocol uses 60 pN as the attachment-check threshold and states that a force plateau at approximately 65 pN is expected for extensions beyond 4 µm, citing Ref. [30]. However, the Supplementary Experimental Details for the same construct states that 'only one strand at each DNA end is anchored, resulting in a lower overstretching force than would occur if both strands were immobilized' and cites Ref. [52]. If one-strand anchoring lowers the overstretch force, the 60-65 pN threshold may be too high or the text is contradictory. The authors should clarify which expectation applies to their construct and how the autonomous attachment check is robust to this uncertainty.
  4. [Abstract / Electrostatic interaction between particles / DNA pulling] The abstract's claim that SmartTrap is capable of performing complex experiments 'completely autonomously' is stronger than what the demonstrations support. The DNA pulling protocol begins with a user-configuration routine in which the operator manually locates the pipette and capillary openings, and the electrostatic salt-concentration series requires manual closing of channels and replacement of the solution while retaining the particle pair. The autonomous operation is within a user-prepared configuration and, for the salt series, within a manually executed medium exchange. This is still a valuable and substantial degree of automation, but the wording should be qualified so that the scope of 'completely autonomous' matches the protocol descriptions.
minor comments (6)
  1. [Throughout] There are several typographical errors: 'streptadavin' should be 'streptavidin' in the DNA pulling protocol, 'inlcuding' should be 'including' in the Real time image analysis section, and 'autonomated' should be 'automated' in the DNA pulling section.
  2. [Fig. 4b / Suppl. Fig. S5] The figure captions should state explicitly that the extension axes have been offset to align the curves at 20 pN; currently the offset is mentioned only in the main text, which makes the figures appear to show raw data.
  3. [Electrostatic interaction between particles / Eq. (A4)] The DLVO fit reports Z ≈ 460,000 but no uncertainty or goodness-of-fit measure is given, and the procedure for computing κ at each nominal salt concentration (especially for the nominally salt-free water condition) is not described. Reporting these values would allow readers to assess the strength of the prediction across concentrations.
  4. [Stretching of red blood cells] The cross-sectional area measurement is described as a Gaussian filter followed by a threshold, but no assessment of the segmentation accuracy or sensitivity to the threshold choice is provided; a brief validation or error estimate is needed for this to be a quantitative measurement.
  5. [Particle characterization] The text reports that 15 of 159 large-particle measurements failed due to double trapping, but does not state whether these failures correlate with particle size or position and whether they could bias the measured radius distribution; a sentence on this would improve confidence in the 2.11(4) µm result.
  6. [Real time image analysis / Supplementary video 1] The statement that 'the network consistently predicts the relative focal position' and that predictions on real images are 'consistent within a few microns' should be accompanied by the number of particles and images used in that check, since this is currently the only quantitative-looking claim about the axial network.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: SmartTrap's claims are experimental demonstrations, and the model comparisons either fit a stated parameter to a reference condition, use an acknowledged offset, or are validated against external benchmarks.

full rationale

The paper is an experimental platform demonstration rather than a derivation, so the standard circularity patterns do not apply. The central claim that SmartTrap can perform complex experiments autonomously is supported by four independent demonstrations: particle size characterization matching manufacturer specifications, DNA force-extension curves reproducing the known overstretching plateau and consistent with the extensible WLC model, red blood cell stretching comparable to prior optical stretcher results, and electrostatic force measurements compared with DLVO theory. The DLVO comparison is not circular: the charge parameter Z is explicitly fitted only to the 0.1 mM salt-concentration data, and the same Z is then used to predict force curves at other salt concentrations, which is an independent test. The DNA WLC comparison involves an acknowledged offset to align the data at 20 pN because the absolute molecular attachment point is unknown, but the paper does not present this as a parameter-free prediction; the curve shape and the overstretch plateau provide independent content. The deep-learning tracking networks are trained on DeepTrack2 simulations, and the paper cites the authors' own DeepTrack2 package, but this is tool attribution rather than a load-bearing circular inference: the real-image performance is checked against real experiments and supplementary videos, and the successful autonomous protocols provide external behavioral validation. The unquantified sim-to-real accuracy of the z-position CNN is a legitimate robustness or correctness concern, but it is not a case of the paper defining its output in terms of its input or renaming a fitted quantity as a prediction. No load-bearing step reduces to its own inputs, so the appropriate circularity score is 0.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The central claim depends on the reliability of the neural networks trained on simulated data, on the direct force measurement principle from reference [20], and on standard physical models (Stokes drag, WLC, DLVO) used for calibration and validation. Two free parameters enter the analysis: Z in the DLVO fit and the DNA extension offset. No new physical entities are introduced; the wigglers are based on an existing patent [45].

free parameters (2)
  • Z (number of charge groups per particle) = 460,000
    DLVO theory fit to the 0.1 mM electrostatic force-distance data in Supplementary eq. A4; used to generate theoretical curves for the other salt concentrations.
  • DNA force-extension offset = Aligned to model at F = 20 pN
    The extension data in Fig. 4b were offset so that the curve matches the extensible WLC model at 20 pN because the attachment point on the pipette particle is unknown.
assumptions (5)
  • domain assumption Counter-propagating trap force measurement is independent of particle size, shape, and refractive index
    Relied on for direct force calibration; follows from [20] and is stated in the Calibration section of the Supplementary Materials.
  • ad hoc to paper Simulated images from DeepTrack2 are sufficiently representative of experimental images for YOLO and CNN training
    The z-network is trained exclusively on simulated data; the paper notes predictions on real images are consistent within a few microns but does not quantify accuracy against ground truth.
  • standard math Stokes drag law with wall correction [47] applies in the microfluidic chamber
    Used to calibrate force PSDs and to measure hydrodynamic radii, eq. A1 and A2.
  • standard math Extensible WLC model describes DNA elasticity below overstretching
    Used to model force-extension curves, eq. A3.
  • standard math DLVO theory describes the electrostatic force between the colloidal particles
    Used to fit and compare electrostatic measurements, eq. A4.

how reviews work

0 comments
Cite this review

Pith. "Pith review of SmartTrap: Automated Precision Experiments with Optical Tweezers." pith.science (2026). https://pith.science/paper/NUSL33IR

@misc{pith2026250505290,
  author       = {Pith},
  title        = {Pith review of: SmartTrap: Automated Precision Experiments with Optical Tweezers},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NUSL33IR}},
  note         = {Machine review of arXiv:2505.05290}
}
read the original abstract

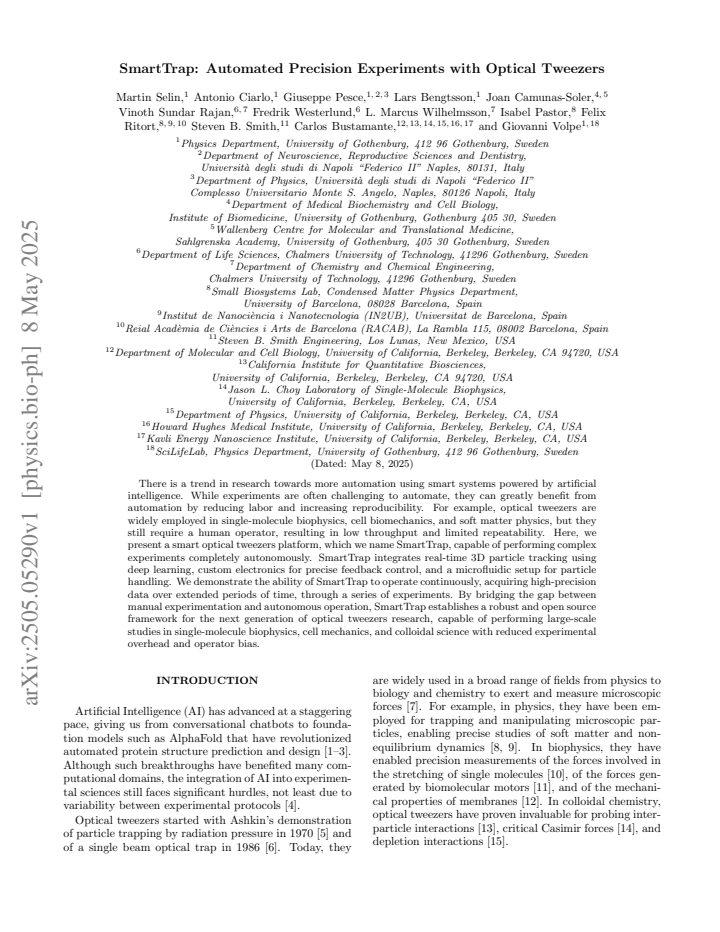

There is a trend in research towards more automation using smart systems powered by artificial intelligence. While experiments are often challenging to automate, they can greatly benefit from automation by reducing labor and increasing reproducibility. For example, optical tweezers are widely employed in single-molecule biophysics, cell biomechanics, and soft matter physics, but they still require a human operator, resulting in low throughput and limited repeatability. Here, we present a smart optical tweezers platform, which we name SmartTrap, capable of performing complex experiments completely autonomously. SmartTrap integrates real-time 3D particle tracking using deep learning, custom electronics for precise feedback control, and a microfluidic setup for particle handling. We demonstrate the ability of SmartTrap to operate continuously, acquiring high-precision data over extended periods of time, through a series of experiments. By bridging the gap between manual experimentation and autonomous operation, SmartTrap establishes a robust and open source framework for the next generation of optical tweezers research, capable of performing large-scale studies in single-molecule biophysics, cell mechanics, and colloidal science with reduced experimental overhead and operator bias.
