Adaptive Markup Language Generation for Contextually-Grounded Visual Document Understanding

T0 review · 3 major / 6 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Generating the document's markup first, then answering from it, lets 2B and 8B models outperform larger systems.

desk verdict A useful data recipe and a plausible mechanism, but the headline SOTA claim is confounded by unmatched fine-tuning; the markup-as-CoT idea deserves a careful revision, not a pass. read the letter →

arxiv 2505.05446 v1 pith:JFSYXTTL submitted 2025-05-08 cs.CV cs.CL

Han Xiao , Yina Xie , Guanxin Tan , Yinghao Chen , Rui Hu , Ke Wang , Aojun Zhou , Hao Li
show 7 more authors
Hao Shao Xudong Lu Peng Gao Yafei Wen Xiaoxin Chen Shuai Ren Hongsheng Li
This is my paper · ORCID
classification cs.CVcs.CL
keywords visualdocumentunderstandingmultimodallargelanguagemodelmarkupgenerationchain-of-thoughtreasoningstructuredrepresentationinstructiontuningcontextgroundingparsing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper's central claim is that a multimodal large language model can be trained to first convert a document image into the most suitable markup language (Markdown, JSON, HTML, TikZ, LaTeX, or plain text), then extract the contextually relevant portion of that markup to answer a question, and this two-step, chain-of-thought-style procedure substantially improves visual document understanding. To test this, the authors construct two datasets: DocMark-Pile, 3.8M pretraining pairs covering six markup languages, and DocMark-Instruct, 624k instruction annotations with the model's own markup-derived context as intermediate rationales. On a broad set of benchmarks, their 2B and 8B models are reported to surpass much larger document-specific multimodal systems. If true, the result suggests that structured code-like intermediate representations can ground MLLM answers and reduce hallucination in text-rich images.

What carries the argument

The load-bearing mechanism is the adaptive markup generation pipeline, implemented as a two-round conversational template: (Q1) 'To answer the question, extract the relevant context from the image' and (A1) a markup-language snippet delimited by special type tokens; then (Q2) 'Based on the image and extracted context, answer the question' and (A2) the final answer. The first training stage gives the model the ability to parse diverse documents into six markup formats (plain text, Markdown, LaTeX, HTML, JSON, TikZ). The second stage fine-tunes on DocMark-Instruct, whose annotations pair each question with an extracted context, so the model learns to produce relevant, condensed markup before answering. The context tokens are a small fraction of the total token budget compared with image tokens, so the extra reasoning step adds little computational overhead.

What would settle it

Take a random sample of DocMark-Instruct, have human annotators verify that each extracted context is correct and sufficient to answer the question, and measure the error rate; if a substantial fraction of labels are wrong, or if retraining on a human-verified subset shrinks the reported gains, the central claim would be undermined.

Watch

Extended reading notes

Core claim

The discovery is that letting the model choose and emit the markup language itself, rather than prescribing one, gives it an intermediate reasoning step that disentangles perception from reasoning. In the two-round dialogue, the model first answers 'extract the relevant context from the image' with a markup snippet delimited by type tokens, and then answers the original question using both the image and that snippet. The paper argues that this mimics how a person scans a document, locates the relevant region, and then reads off the answer. The ablation studies attribute most of the improvement to this chain-of-thought component, not merely to the extra pretraining data.

Load-bearing premise

The DocMark-Instruct labels are generated without human validation: the authors' own pretrained model converts images to markup, and a general-purpose chat LLM extracts the answer-relevant context, so if either step produces plausible but wrong output, the fine-tuning labels encode that error and the reported gains would partly reflect learning annotation noise.

Editorial extensions

If this is right

  • If the central claim holds, small open models (2B, 8B) can achieve document understanding accuracy that previously required much larger or domain-specific systems.
  • The pipeline's intermediate markup output can be inspected, giving a human-readable rationale for a model's answer and enabling targeted error diagnosis.
  • Because the context tokens are cheap compared with image tokens, the method can be added to existing MLLMs with modest inference cost.
  • The ablation indicates that the chain-of-thought context-generation component, not just extra training data, is what drives the improvements.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension is to apply the same adaptive markup idea to other structured output domains, such as SVG or spreadsheet formulas, or to structured inputs like audio waveforms and 3D scenes.
  • The performance ceiling is partly set by the third-party LLM used to build labels; retraining with human-verified contexts or with a stronger extractor may push accuracy further or reveal what the current labels get wrong.
  • One testable implication is that gains should be largest on questions requiring precise layout or numeric lookup, and smallest on questions answerable from general knowledge; a per-category breakdown would test this.
  • The method could also act as a data flywheel: model-generated markup that provably supports a correct answer could be re-used as training data for future document parsing models.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes an adaptive markup-language-generation pipeline for visual document understanding. The model is first pretrained on DocMark-Pile (approximately 3.8M image-to-markup pairs covering plain text, Markdown, LaTeX, HTML, JSON, and TikZ) and then fine-tuned on DocMark-Instruct (624k chain-of-thought-style annotations) where it is trained to first output a markup-language context snippet and then answer the question. The authors instantiate this on InternVL2-style backbones with 2B and 8B language models, evaluate on document, chart, OCR, webpage, and math benchmarks, and claim consistent improvements over existing state-of-the-art MLLMs. The supplementary includes ablations showing that removing either proposed dataset degrades performance and that CoT fine-tuning yields further gains on Qwen2-VL and LLaVA-OneVision backbones.

Significance. The core idea is attractive and well motivated: converting documents into structured, language-model-friendly markup forms as a grounding step could reduce hallucination and improve reasoning. The two released datasets are large, described in detail, and would be useful resources if released as promised. The internal ablations (Fig. 5 and supplementary Tab. 5) provide evidence that the proposed training data and the CoT fine-tuning contribute positively to performance. However, the headline claim that the method 'substantially outperforms existing state-of-the-art MLLMs' is not yet supported because the main comparison is uncontrolled, and the quality of the automatically generated CoT annotations is not validated. The significance of the work therefore hinges on additional controlled experiments that isolate the adaptive-markup mechanism from the effect of simply adding more task-specific training data.

major comments (3)
  1. [Sec. 4.3, Table 2] The main SOTA comparison is not controlled. DocMark is fine-tuned on the training splits of TextVQA, DocVQA, InfographicsVQA, ChartQA, DVQA, XFUND, and Geo170K (Sec. 4.1) plus DocMark-Pile and DocMark-Instruct, whereas the InternVL2 and other baselines are used off-the-shelf. The reported margins (e.g., +8.3 on AI2D and +3.4 on ChartQA at 2B) could therefore reflect the additional 3.8M + 624k training samples and compute rather than the adaptive markup mechanism. The supplementary Tab. 5 does not resolve this because it uses Qwen2-VL and LLaVA-OneVision rather than the InternVL2 backbones of the main claim, and its 'DocMark(w/o CoT)' still differs from vanilla in both pretraining and fine-tuning data. Please add an equivalently fine-tuned baseline on the same backbone (e.g., InternVL2 fine-tuned on the same DocMark-Instruct data without the two-round context-generation format, or on the original QA pairs) to isolate the mechanism.
  2. [Sec. 3.2.2 and supplementary Sec. C.1] The trustworthiness of the 624k CoT labels is load-bearing but not validated. The construction first converts images to markup with the pretrained model, then asks ChatGPT-3.5 to extract the relevant context (Fig. 7 in the supplement). No human validation, error-rate estimate, or consistency check is reported, and the supplementary admits the markup drops style information such as font sizes and colors (Sec. C.1). If the generated markup is incorrect or if ChatGPT-3.5 extracts plausible but wrong context, the fine-tuning labels encode those errors, and the reported gains may partly reflect learning annotation noise rather than improved document understanding. Please provide a sampled human evaluation of context correctness and a breakdown of how often the 'unclear' fallback is used.
  3. [Sec. 4.3, Table 2] The claim that DocMark 'consistently outperforms state-of-the-art MLLMs' is overstated. At 8B, DocMark is 1.0 point below InternVL2 on DocVQA (89.8 vs. 90.8) and 4.5 points below on InfoVQA (68.3 vs. 72.8). Since no error bars or repeated-run variance are reported, the remaining differences (e.g., +1.0 on AI2D, +2.0 on ChartQA at 8B) may not be statistically significant. Please report confidence intervals or run-to-run variance, and soften the consistency claim accordingly.
minor comments (6)
  1. [Sec. 3.1.2] The text says 'We visualize the distribution of different language parsing tasks in Fig. 2,' but Fig. 2 is the overview of the dataset; the domain distribution appears in Fig. 3. Please correct the cross-reference.
  2. [Sec. 4.2, Table 1] The metrics in Table 1 are not fully defined. For example, the text-recognition column appears as a single number for each method, but the underlying benchmark [38] reports multiple metrics; please state the exact aggregation (e.g., average accuracy over subtasks). Similarly, the DaTikZ metric is described only as 'average of image similarity and code similarity,' without specifying the similarity measures.
  3. [Sec. 4.3] The 'WebQA accuracy as proposed in VisualWebBench' is ambiguous because VisualWebBench contains multiple webpage-understanding tasks. Please specify the exact task and split used.
  4. [Sec. 3.2.1] The special-token notation is inconsistent: the two-round template uses '<type>' and '</type>', while the dataset descriptions use concrete tokens such as '<md>' and '<json>'. Please clarify that '<type>' is a placeholder for one of the concrete markup tokens.
  5. [Sec. 4.1] Please specify the exact version of InternVL2 used (e.g., InternVL2-2B vs. InternVL2-2B-448px) and confirm that the dynamic-resolution settings (maximum sub-images, image size) match those used in the DocMark training; otherwise the comparison to the InternVL2 rows is even harder to interpret.
  6. [Supplementary Tab. 3] The 'In-house data' rows in DocMark-Instruct have no description of how the images and questions were collected or filtered. Please add a short description and any curation criteria.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claim is benchmarked on external test sets, and the self-bootstrapped CoT labels do not force the downstream results.

full rationale

The paper's central claim is that training an MLLM to generate adaptive markup context before answering improves visual document understanding. The benchmark evidence (Table 2 and supplementary Table 5) comes from public held-out test sets such as TextVQA, DocVQA, InfoVQA, ChartQA, AI2D, OCRBench, WebQA, MathVision, HME100K test, and DaTikZ test, so the final accuracy numbers are not computed from the model's own training labels. The only self-referential element is the construction of DocMark-Instruct (Sec 3.2.2), where the pretrained model converts images to markup and ChatGPT-3.5 extracts the context used as CoT fine-tuning targets. This is a bootstrapping or data-quality loop in the intermediate representation, not a circular derivation of the final claim: the context labels are not defined by the downstream answers, and the downstream evaluations are external. There is no fitted parameter renamed as a prediction, no load-bearing self-citation or imported uniqueness theorem, and no ansatz smuggled in via citation. The uncontrolled comparison with off-the-shelf InternVL2 baselines is a confound about attribution of gains, not a circularity. Overall circularity score 0.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claim rests on a set of domain assumptions about markup fidelity and annotation quality, plus hand-chosen training hyperparameters. No new physical or ontological entities are introduced; the datasets are assets rather than postulated entities. The most fragile entries are the ChatGPT-3.5-generated CoT labels and the assumed equivalence between markup and visual content.

free parameters (3)
  • Dynamic resolution maximum sub-images = 12 sub-images of 448x448
    Hand-chosen in Sec 4.1; it caps visual detail and token count, and no sensitivity analysis is provided.
  • Pretraining learning rate and schedule = 2e-5 for one epoch, batch size 128
    Sec 4.1; selected without reported sweeps, yet DocMark-Pile pretraining drives the markup parsing ability.
  • Fine-tuning learning rate and schedule = 1e-5 for one epoch, batch size 128
    Sec 4.1; selected without reported sweeps, and this stage produces the downstream gains.
assumptions (5)
  • domain assumption Most visual documents are generated from, or can be losslessly converted to, a small set of markup languages that preserve meaning and layout.
    Stated in Sec 3.1; the whole DocMark-Pile design depends on this. The authors admit in Sec C.1 that style information such as fonts and colors is not preserved.
  • domain assumption A text-only LLM can answer document questions from markup context without needing the original image.
    Sec 3.2.2 says questions can be answered by providing the corresponding markup to a powerful language model, eliminating visual input. This motivates building DocMark-Instruct with ChatGPT-3.5.
  • ad hoc to paper ChatGPT-3.5 extractions from generated markup are accurate enough to serve as ground-truth CoT annotations.
    Sec 3.2.2 and Fig 7; no human verification or quality metrics are reported for the 624k annotations.
  • domain assumption Public benchmark train/test splits used here are not contaminated by DocMark-Pile or DocMark-Instruct construction.
    The paper does not analyze overlap; some benchmark families such as ChartQA, XFUND, and HME100K appear in both training and evaluation, relying on split integrity.
  • domain assumption Filtering out difficult conversions does not bias the training distribution away from the target document types.
    Sec 3.1.1 excludes articles whose complex formulas cannot compile in Markdown and TikZ programs that fail to compile, which may remove the hardest examples from training.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Adaptive Markup Language Generation for Contextually-Grounded Visual Document Understanding." pith.science (2026). https://pith.science/paper/JFSYXTTL

@misc{pith2026250505446,
  author       = {Pith},
  title        = {Pith review of: Adaptive Markup Language Generation for Contextually-Grounded Visual Document Understanding},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JFSYXTTL}},
  note         = {Machine review of arXiv:2505.05446}
}
read the original abstract

Visual Document Understanding has become essential with the increase of text-rich visual content. This field poses significant challenges due to the need for effective integration of visual perception and textual comprehension, particularly across diverse document types with complex layouts. Moreover, existing fine-tuning datasets for this domain often fall short in providing the detailed contextual information for robust understanding, leading to hallucinations and limited comprehension of spatial relationships among visual elements. To address these challenges, we propose an innovative pipeline that utilizes adaptive generation of markup languages, such as Markdown, JSON, HTML, and TiKZ, to build highly structured document representations and deliver contextually-grounded responses. We introduce two fine-grained structured datasets: DocMark-Pile, comprising approximately 3.8M pretraining data pairs for document parsing, and DocMark-Instruct, featuring 624k fine-tuning data annotations for grounded instruction following. Extensive experiments demonstrate that our proposed model significantly outperforms existing state-of-theart MLLMs across a range of visual document understanding benchmarks, facilitating advanced reasoning and comprehension capabilities in complex visual scenarios. Our code and models are released at https://github. com/Euphoria16/DocMark.

Figures

Figures reproduced from arXiv: 2505.05446 by the authors.

Figure 1
Figure 1. Comparison of existing Data annotations and model Predictions: InternVL2-2B vs. our DocMark-2B. Existing datasets consist primarily of questions and brief answers, often resulting in model hallucinations. In contrast, our model effec￾tively converts documents into structured markup languages, of￾fering critical contextual information that enhances the accurate interpretation of the content. such data frequently lead… view at source ↗
Figure 2
Figure 2. Overview of our DocMark-Pile dataset for pretraining on various markup language generation tasks. Due to the length of the answer, we have omitted a part of the content for better display [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Domain distribution of our DocMark-Pile dataset. (a) Distributions of different markup language parsing tasks. (b) Distributions of different image types. such as IC13 [22], IC15 [23], Union14ML [20], and Wor￾dArt [66]. These images consist exclusively of regions con￾taining text, which are usually in the form of single lines or curved text. We standardize the training data format by reading the text in the order fr… view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Overview of our adaptive markup language generation framework. (a) During pretraining, the model learns to parse documents into corresponding markup language representations, enhancing its structural understanding capabilities. (b) In the finetuning phase, the model is…
Figure 5
Figure 5. Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Token count comparison across various datasets. We visualize the distribution of image tokens, context tokens, and original question-answer tokens on different datasets. tributed to the effectiveness of the CoT component rather than solely introducing more data. C.3. D…
Figure 7
Figure 7. Figure 7: Prompt for creating the DocMark-Instruct dataset [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8

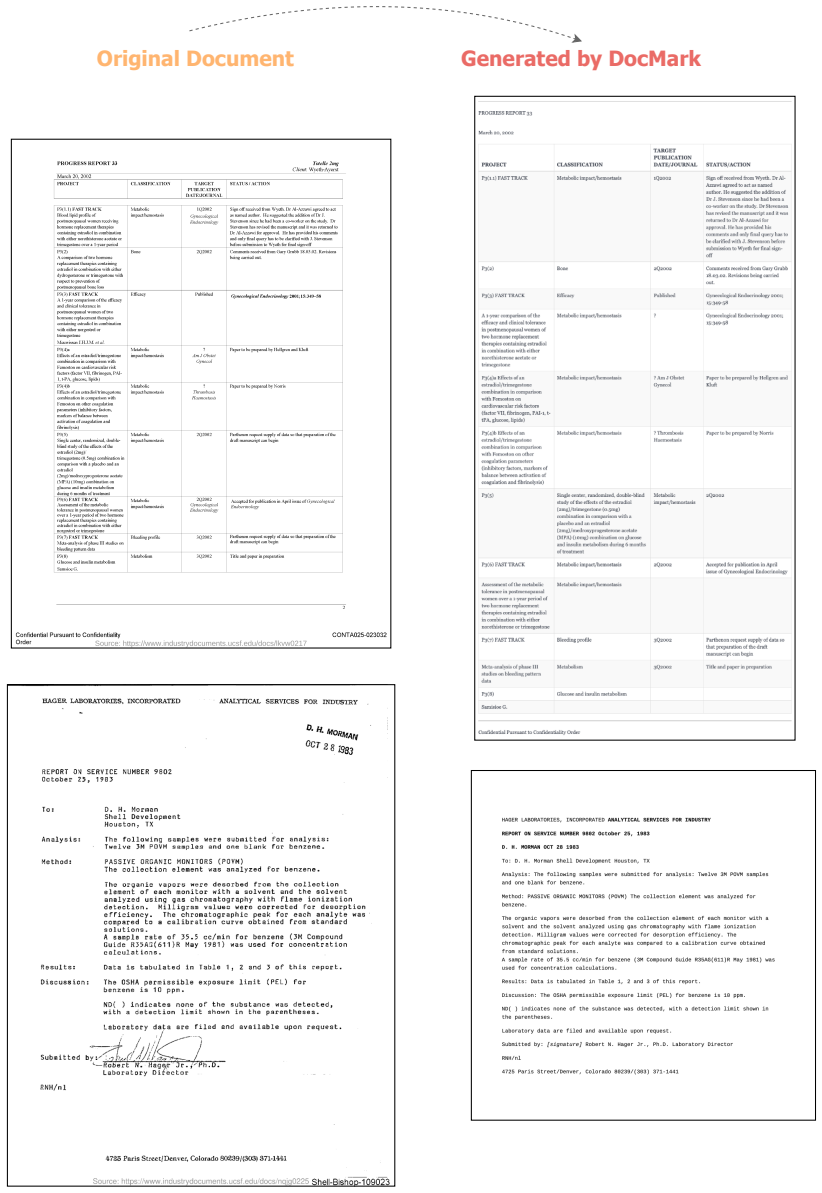

Figure 8. Figure 8: Visualization on generated documents by DocMark [PITH_FULL_IMAGE:figures/full_fig_p017_8.png]
Figure 9
Figure 9. Figure 9: Visualization on generated documents by DocMark [PITH_FULL_IMAGE:figures/full_fig_p018_9.png]
Figure 10
Figure 10. Figure 10 [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
