Generative AI for Urban Planning: Synthesizing Satellite Imagery via Diffusion Models

T0 review · 5 major / 7 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read AI-generated satellite views beat real ones at showing given land use

desk verdict A useful, honestly-limited engineering adaptation of ControlNet to satellite image generation from OSM prompts, but the evaluation overreaches: no baselines, no error bars, and the 'preferred over real' result is partly an artifact of noisy OSM labels. read the letter →

arxiv 2505.08833 v1 pith:JY5ZLCOF submitted 2025-05-13 cs.CV cs.LG

Qingyi Wang , Yuebing Liang , Yunhan Zheng , Kaiyuan Xu , Jinhua Zhao , Shenhao Wang This is my paper · ORCID
classification cs.CVcs.LG
keywords generativeAIurbanplanningsatelliteimagerydiffusionmodelsControlNetOpenStreetMaplanduseFID
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that a Stable Diffusion model extended with ControlNet can synthesize realistic, site-specific satellite imagery of urban neighborhoods from two inputs: a text description of land-use composition and a map overlay of existing roads, railways, waterways, and land-use parcels. The training data is produced automatically by aligning public satellite tiles with OpenStreetMap labels for Chicago, Dallas, and Los Angeles, so no expensive hand-labeled urban dataset is needed. Quantitative results show the best configuration reaches an overall FID of 58.94 and KID of 0.03514, and user studies with planning experts and the general public find that generated images match the given land-use descriptions about as well as real images, often better. The paper frames the work as a benchmark for controlled urban imagery generation and a tool for exploring what-if planning scenarios and public engagement.

What carries the argument

The mechanism is ControlNet built on a pre-trained Stable Diffusion model: one locked copy of the network preserves the base model's image quality, a trainable copy learns the new conditions, and two zero-initialized 1×1 convolution layers let the custom signal fade in gradually. Conditions come as a CLIP-encoded text prompt plus an image overlay drawn from OpenStreetMap—roads, railways, waterways, and optionally a shaded land-use parcel—and the training objective is the standard diffusion noise-prediction loss run for 10 epochs. The data pipeline is equally load-bearing: OSM polygons are converted into structured text (settlement type, land-use percentages, residential type, building density) and constraint images, spatially aligned with Mapbox tiles at zoom 16, with tiles below 70% label coverage discarded and spatial augmentation balancing the three cities.

What would settle it

Run the trained ControlNet-Landuse model on tiles whose OpenStreetMap labels are known to be incomplete—for instance a newly built subdivision or an informally settled neighborhood—and compare FID/KID against the well-mapped test set. If fidelity collapses or the model ignores the requested land-use percentages, the pipeline's dependence on complete, accurate OSM coverage is confirmed, and the claim of robust cross-city generation is bounded to well-mapped areas.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central discovery is that a production-grade text-to-image diffusion backbone can be repurposed, using only open data, to obey both a textual design brief and geometric site constraints at neighborhood scale. The model translates land-use percentages into visible spatial changes—parks shrink as residential share grows, commercial blocks align along main streets, and protected industrial zones stay intact—while also reproducing recognizable city-specific forms, from Chicago's grid to Los Angeles's wide car-oriented streets with pools. When asked to match a written description against paired real and generated images, the general audience preferred the generated image in 42 of 50 pairs and experts in 12 of 20 pairs. The paper explicitly notes the outputs remain at the level of visually plausible imagery: street furniture, park layouts, and pedestrian pathways lack precision, and functional performance (accessibility, transportation efficiency, inclusivity) is not yet evaluated.

Load-bearing premise

The load-bearing premise is that OpenStreetMap polygons, after cleaning and keeping only tiles with over 70% area coverage, are accurate enough to serve as training targets, text-prompt sources, and constraint maps; where OSM labels are missing or wrong, the learned alignment between text, controls, and imagery is corrupted and the reported fidelity is not established.

Editorial extensions

If this is right

  • Editing a land-use percentage or shifting a road overlay changes the generated layout accordingly, so planners can rapidly test what-if scenarios without wait.
  • Changing only the city name in the prompt yields recognizable Chicago, Dallas, and Los Angeles urban forms, suggesting the same checkpoint can be reused across cities.
  • Adding a single shaded land-use region to the control image (ControlNet-Landuse) yields the best overall fidelity, FID 58.94 and KID 0.03514, beating every ControlNet-Base variant.
  • Among ControlNet-Base models, structured template prompts give the best FID (63.15), ahead of elaborate (66.19) and minimal (68.08), indicating prompt verbosity beyond the needed numbers can hurt land-use accuracy.
  • The paper itself states the outputs are not ready as detailed design instruments: street furniture, park layouts, and pedestrian pathways are imprecise, and functional quality is not measured.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension is to invert the generator: feed a real satellite image and estimate the OSM-aligned land-use tensor it corresponds to, turning the pipeline into a land-use classifier that could audit OpenStreetMap completeness.
  • The preference result likely measures prompt-alignment more than realism; because experts scored generated images lower on realism (-0.81) while still preferring them, a sharper study would separate 'looks like a photo' from 'shows the requested program.'
  • The 70% coverage filter means the model is trained only on well-mapped areas; applying it to under-mapped neighborhoods or informal settlements would probably reveal a fidelity drop, which the current benchmark does not measure.
  • The same ControlNet recipe could be lifted to street-view images or building-height layers, giving a multi-view urban generator—one of the paper's stated future outputs.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 7 minor

Summary. The paper presents a generative framework for urban planning that combines a fine-tuned Stable Diffusion model with ControlNet to synthesize satellite imagery from land-use text prompts and image constraints derived from OpenStreetMap. Using Mapbox satellite tiles and OSM layers for three U.S. cities, the authors construct training triples of (satellite image, constraint image, text prompt), train several ControlNet variants, and evaluate generation quality with FID/KID and with expert and general-audience user surveys. The main claims are that the model generates high-fidelity, realistic satellite imagery that respects land-use descriptions and site constraints, that it learns distinct urban styles across Chicago, Dallas, and Los Angeles, and that generated images are often preferred over real ones in a comparison task.

Significance. If the stated results hold, the paper would provide a useful open-data, open-code benchmark for controlled urban imagery generation and demonstrate a promising application of diffusion models in urban planning workflows. The strengths include the use of globally available Mapbox and OpenStreetMap data, a reproducible GitHub repository, a systematic comparison of prompting styles and conditioning signals, and a relatively large user study covering experts and the general public. The significance is currently tempered by the absence of independent validation of the OSM-derived supervision, the lack of statistical uncertainty quantification in quantitative and qualitative evaluations, and the absence of any baseline comparison against GAN-based generation methods, which the introduction explicitly criticizes.

major comments (5)
  1. [Section 3.2] OpenStreetMap-derived labels simultaneously serve as training targets, text-prompt sources, constraint maps, and the ground truth against which real images are judged in both the FID/KID evaluation and the user study, yet the accuracy of these labels is never validated. The paper does not report any check against municipal GIS data, aerial imagery, or manual annotation, and the 'complemented the missing landuse classification using building classification' rule is not specified. The >70% area-coverage filter also biases the dataset toward well-mapped areas, so the claimed fidelity may not transfer to under-mapped neighborhoods. I request an independent validation of OSM-derived land-use and building labels on a sample of tiles, with quantitative agreement metrics, and a precise description of the building-to-landuse conversion rule.
  2. [Section 4.3.1, Tables 2 and 3] The FID and KID scores are reported as point estimates without confidence intervals, significance tests, or any baseline comparison. The statement that ControlNet-Landuse 'consistently outperforms' ControlNet-Base is not supported by any statistical evidence, and the absolute FID values (overall 58.94, Dallas up to 113.30) are high enough that calling them 'high fidelity' is difficult to assess without context. The paper explicitly motivates diffusion models over GANs but never compares against a GAN baseline such as pix2pix or LUCGAN. I request uncertainty quantification (e.g., bootstrap confidence intervals) and at least one comparable baseline model to substantiate the fidelity and model-comparison claims.
  3. [Section 4.3.2, Table 4 and Figure 12] The user-study results are presented as point estimates with no significance testing; the claim that generated images are 'often preferred over real images' rests on majority-vote counts (60% for experts, 84% for the general audience) without binomial tests, confidence intervals, or effect sizes. Each image is scored by only nine participants, and the two groups are not directly compared statistically. Moreover, the selection task asks which image is 'closer to the language description,' so the generated image, which is trained to match that description, may be preferred even if it deviates from the actual scene. I request appropriate statistical tests and a discussion of this asymmetry.
  4. [Section 3.2] The spatial augmentation procedure (shifting tiles along horizontal and vertical axes) may create near-duplicates between the training and validation sets if the validation split is made after augmentation. The paper reports 28K/2K, 23K/1.7K, and 28K/2.1K train/validation splits but does not state whether validation tiles are selected from the original unshifted set or whether any augmented copies appear in the validation split. This is load-bearing for the FID/KID results, since overlapping images would inflate the apparent fidelity. Please clarify the split procedure and ensure no augmented tile overlaps the validation set.
  5. [Sections 4.1 and 4.2] The cross-city style transfer, spatial relationship inference, and constraint-following results are demonstrated only through a small number of manually inspected examples. These qualitative observations support the claim of 'robustness across diverse urban contexts,' but no quantitative consistency metric (e.g., segmentation-based mIoU, road-network alignment, or constrained-region accuracy) or inter-rater agreement measure is provided. I request at least one automated consistency metric to complement the visual examples.
minor comments (7)
  1. [Equation (1)] The notation τθ(x) is introduced but not used in the surrounding text; please define the conditioning mechanism more clearly and explain the role of τθ in Equation (1).
  2. [Equation (2)] The variables c and x in Equation (2) are not explicitly defined in the text; a short notation description would help readers distinguish the text prompt, the custom condition, and the zero-convolution outputs.
  3. [Figure 11] The caption and the figure contain unexplained elements such as 'Seeds:' and a list of numbers; please clarify what these denote or remove them.
  4. [Abstract] The phrase 'high FID and KID scores' is misleading because higher FID/KID values indicate worse fidelity; consider rephrasing to 'low FID and KID scores' or 'competitive FID/KID values.'
  5. [Sections 3.2 and 4.3.1] The terms 'structural' and 'structured' are used interchangeably for the prompt styles; please unify the terminology throughout the text.
  6. [Appendix A] Appendix A contains formatting errors and typos, such as 's at el l it e' in the LLM prompt and broken line breaks in Table 5; please clean these up.
  7. [Section 3.4] The expert evaluation set has 20 neighborhoods while the general test set has 50; please state whether the 20 expert neighborhoods are a subset of the 50 general ones and explain the rationale for the different sizes.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the generation claims are empirical and evaluated against held-out real imagery and independent human judgments.

full rationale

The paper makes no formal derivation claim whose conclusion is contained in its assumptions. Its central contribution is an empirical system: a Stable Diffusion backbone fine-tuned with ControlNet on OSM-derived text prompts and constraint overlays, evaluated by FID/KID against held-out Mapbox satellite tiles and by user surveys. The training objective (Eqs. 1 and 3) is the standard diffusion noise-prediction loss; nothing in the loss or architecture presupposes the reported FID/KID or preference outcomes. The OSM-derived prompts and control images are inputs, and the satellite images are independent targets; using the same public data source for both conditioning and evaluation is a data-quality limitation, not a circular reduction. No load-bearing self-citations appear: the cited GAN urban-planning works are background, and the Stable Diffusion/ControlNet foundations are external and widely reproduced. The user study's selection task asks whether generated or real images better match a description; because the generated image is conditioned on that description, high descriptional alignment is partly expected, but the paper also reports separate realism scores where generated images received statistically similar ratings to real images, and FID/KID comparisons are against real data distributions. Those checks give the fidelity claim independent empirical content. No equation or fitted parameter is renamed as a prediction, and no uniqueness theorem or prior-work assumption is imported to force a conclusion. Therefore no circular step can be exhibited under the stated hard rules.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

All free parameters listed are hand-chosen design thresholds rather than fitted scientific constants; they shape the training data and text conditioning but are not part of an analytical derivation. The axioms are standard diffusion/ControlNet background plus domain assumptions about OSM and Mapbox data fidelity. No new entities are introduced.

free parameters (4)
  • OSM tile coverage threshold = 70%
    Data filtering retains only tiles with >70% area covered by major land-use labels; hand-chosen, affects training distribution and generalizability claims (Section 3.2).
  • Land use prompt inclusion threshold = 5%
    Land use categories below 5% area are omitted from structured prompts; hand-chosen, affects what the model can condition on (Appendix A).
  • Building density category thresholds = high >=30%, medium >=15%, low >=3%
    Building density categories derived from total building footprint; hand-chosen, affects text conditioning (Appendix A).
  • Landuse designation range for shaded regions = 10%-40% area, spatially concentrated
    Optional landuse spatial cue only applied when a land use occupies 10%-40% of tile; hand-chosen (Appendix A).
assumptions (4)
  • standard math Diffusion denoising objective and ControlNet zero-convolution architecture from Rombach et al. 2022 and Zhang et al. 2023 are valid.
    The paper builds on these established results without re-deriving them (Section 3.3).
  • domain assumption OpenStreetMap land-use, building, road, and waterway layers are sufficiently complete and accurate to serve as ground-truth constraints and design labels.
    Sections 3.1 and 3.2; the paper partially acknowledges incompleteness by filtering tiles and supplementing land-use with building classification.
  • domain assumption Mapbox satellite tiles at zoom 16 represent a 450m x 450m neighborhood suitable for the 15-minute city concept.
    Section 3.1 introduces this alignment as the spatial unit for generation.
  • domain assumption CLIP text embedding chunking-and-averaging preserves prompt semantics for prompts exceeding 77 tokens.
    Section 3.2 adopts a practitioner strategy for long prompts without validation in this domain.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Generative AI for Urban Planning: Synthesizing Satellite Imagery via Diffusion Models." pith.science (2026). https://pith.science/paper/JY5ZLCOF

@misc{pith2026250508833,
  author       = {Pith},
  title        = {Pith review of: Generative AI for Urban Planning: Synthesizing Satellite Imagery via Diffusion Models},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JY5ZLCOF}},
  note         = {Machine review of arXiv:2505.08833}
}
read the original abstract

Generative AI offers new opportunities for automating urban planning by creating site-specific urban layouts and enabling flexible design exploration. However, existing approaches often struggle to produce realistic and practical designs at scale. Therefore, we adapt a state-of-the-art Stable Diffusion model, extended with ControlNet, to generate high-fidelity satellite imagery conditioned on land use descriptions, infrastructure, and natural environments. To overcome data availability limitations, we spatially link satellite imagery with structured land use and constraint information from OpenStreetMap. Using data from three major U.S. cities, we demonstrate that the proposed diffusion model generates realistic and diverse urban landscapes by varying land-use configurations, road networks, and water bodies, facilitating cross-city learning and design diversity. We also systematically evaluate the impacts of varying language prompts and control imagery on the quality of satellite imagery generation. Our model achieves high FID and KID scores and demonstrates robustness across diverse urban contexts. Qualitative assessments from urban planners and the general public show that generated images align closely with design descriptions and constraints, and are often preferred over real images. This work establishes a benchmark for controlled urban imagery generation and highlights the potential of generative AI as a tool for enhancing planning workflows and public engagement.

Figures

Figures reproduced from arXiv: 2505.08833 by the authors.

Figure 1
Figure 1. The proposed generative urban design workflow [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Land use, transportation, and waterway layers from OpenStreetMap [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. The selected study areas around Los Angeles, Dallas, and Chicago [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: Illustration of a training pair minimal prompt with more descriptive languages, while keeping all numerical values intact. Across the three categories, we keep the numerical information identical, varying only the richness of textual descriptions. Details of the textua…
Figure 5
Figure 5. Figure 5: ControlNet Architecture Mathematically, the trained neural network blocks in stable diffusion are denoted as F(·; Θ), with trained parameters Θ that maps input text prompt x to output images y: y = F(x; Θ). During training, the network parameters Θ are fixed. For the n…
Figure 6
Figure 6. Figure 6: Generating satellite imagery with language prompts for the land trade-off between [PITH_FULL_IMAGE:figures/full_fig_p013_6.png]
Figure 7

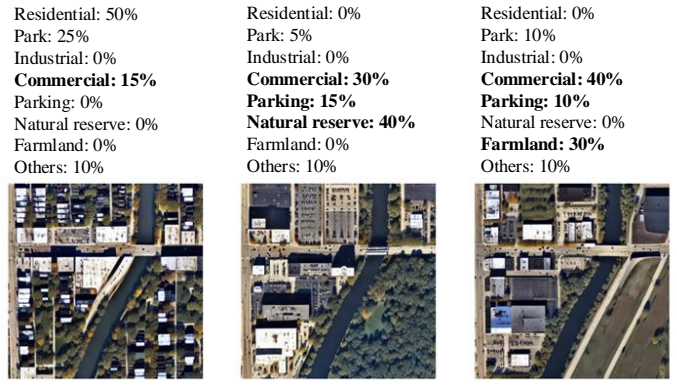

Figure 7. Figure 7: Generating satellite imagery with language prompts for non-existing land use labels [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8
Figure 8. Figure 8: Generating satellite imagery across three cities conditioning on the same environmen [PITH_FULL_IMAGE:figures/full_fig_p015_8.png]
Figure 9
Figure 9. Figure 9: Generating diverse satellite imagery conditioning on fixed language and imagery [PITH_FULL_IMAGE:figures/full_fig_p016_9.png]
Figure 10
Figure 10. Figure 10: Generating satellite imagery with three prompting styles [PITH_FULL_IMAGE:figures/full_fig_p018_10.png]
Figure 11
Figure 11. Figure 11: Generating satellite imagery with various environmental constraints: (a) waterway [PITH_FULL_IMAGE:figures/full_fig_p019_11.png]
Figure 12
Figure 12. Figure 12: Distribution of votes for each pair of images [PITH_FULL_IMAGE:figures/full_fig_p022_12.png]
