arxiv: 2505.09835 · v2 · submitted 2025-05-14 · ❄️ cond-mat.mtrl-sci · cond-mat.mes-hall

Strain-Gradient and Curvature-Induced Changes in Domain Morphology of BaTiO3 Nanorods: Experimental and Theoretical Studies

Olha A. Kovalenko , Eugene A. Eliseev , Yuriy O. Zagorodniy , Sre\v{c}o Davor \v{S}kapin , Marjeta Ma\v{c}ek Kr\v{z}manc , Lesya Demchenko , Valentyn V. Laguta , Zdravko Kutnjak
show 2 more authors
Dean R. Evans Anna N. Morozovska
This is my paper

Pith reviewed 2026-05-22 14:44 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords BaTiO3 nanorodsdomain morphologystrain gradientcurvature-induced domainsferroelectric domainsOH- incorporationflexotronicsdomain splitting
0
0 comments X

The pith

Curvature above a critical angle causes BaTiO3 nanorods to form domain stripes that lower elastic energy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how OH- ions create internal chemical strains in BaTiO3 nanorods, producing lattice elongation along the c-axis and growth-induced bending. Analytical calculations combined with finite-element modeling show that once curvature exceeds a threshold, the nanorods develop striped domains. The splitting occurs because it reduces the total elastic energy stored in the bent structure. Experiments tie higher Ba supersaturation to increased strain and rod diameter, while slower nucleation with a less reactive precursor allows better control of these effects. The authors conclude that curvature-tunable domain stripes open routes to flexible memory elements based on domain walls.

Core claim

Theoretical results reveal the appearance of the domain stripes in BaTiO3 nanorod when the curvature exceeds a critical angle. The physical origin of the domain stripes emergence is the tendency to minimize its elastic energy of the nanorod by the domain splitting. These findings suggest that BaTiO3 nanorods, with curvature-controllable amount of domain stripes, could serve as flexible race-track memory elements for flexo-tronics and domain-wall electronics.

What carries the argument

Finite-element model of strain-gradient coupling to polarization in a curved nanorod, which drives domain splitting to minimize elastic energy.

If this is right

  • Domain stripes appear in BaTiO3 nanorods once curvature passes a critical angle.
  • The stripes form because domain splitting minimizes the elastic energy of the bent nanorod.
  • Controlling the degree of curvature during growth tunes the number and arrangement of domain stripes.
  • Curved nanorods with adjustable domain stripes could function as flexible race-track memory elements in flexo-tronics and domain-wall electronics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same curvature-driven splitting may occur in other ferroelectric oxide nanorods, offering a general way to engineer domain walls by bending.
  • Device fabrication could deliberately impose controlled bends to create domain patterns without needing electrodes or external fields.
  • Quantitative tests could measure the exact critical angle in nanorods of varying diameters and compare it directly to the model's prediction.

Load-bearing premise

The nanorod can be treated as a homogeneous elastic continuum whose polarization couples to strain only through the gradient term, with no other defects or surface charges dominating the energy once curvature is imposed.

What would settle it

Electron microscopy images of domain patterns in a BaTiO3 nanorod whose measured curvature angle lies above the model's predicted threshold, showing stripes, or the absence of stripes in rods below that angle.

Figures

Figures reproduced from arXiv: 2505.09835 by Anna N. Morozovska, Dean R. Evans, Eugene A. Eliseev, Lesya Demchenko, Marjeta Ma\v{c}ek Kr\v{z}manc, Olha A. Kovalenko, Sre\v{c}o Davor \v{S}kapin, Valentyn V. Laguta, Yuriy O. Zagorodniy, Zdravko Kutnjak.

Figure 1
Figure 1. Figure 1: FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIGURE 4 [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

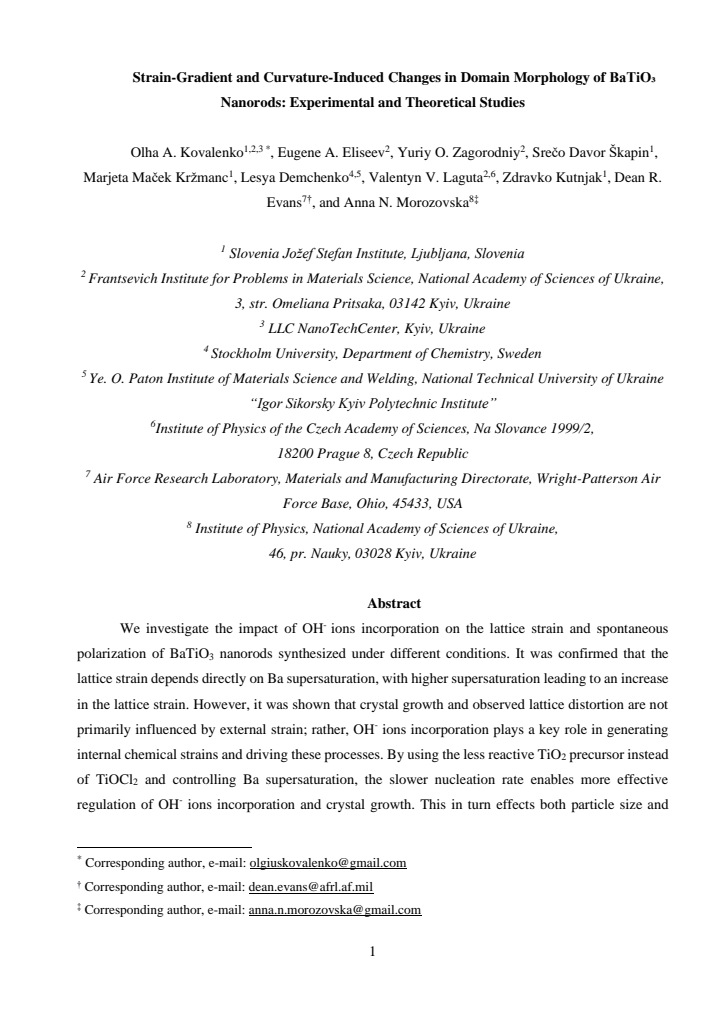

read the original abstract

We investigate the impact of OH- ions incorporation on the lattice strain and spontaneous polarization of BaTiO3 nanorods synthesized under different conditions. It was confirmed that the lattice strain depends directly on Ba supersaturation, with higher supersaturation leading to an increase in the lattice strain. However, it was shown that crystal growth and observed lattice distortion are not primarily influenced by external strain; rather, OH- ions incorporation plays a key role in generating internal chemical strains and driving these processes. By using the less reactive TiO2 precursor instead of TiOCl2 and controlling Ba supersaturation, the slower nucleation rate enables more effective regulation of OH- ions incorporation and crystal growth. This in turn effects both particle size and lattice distortion, leading to c/a ratio of 1.013 - 1.014. The incorporation of OH- ions induces lattice elongation along the c-axis, contributing to anisotropic growth, increasing of the rod diameter and their growth-induced bending. However, the possibility of the curvature-induced changes in domain morphology of BaTiO3 nanorods remains almost unexplored. To study the possibility, we perform analytical calculations and finite element modeling, which provide insights into the curvature-induced changes in the strain-gradient, polarization distribution, and domain morphology in BaTiO3 nanorods. Theoretical results reveal the appearance of the domain stripes in BaTiO3 nanorod when the curvature exceeds a critical angle. The physical origin of the domain stripes emergence is the tendency to minimize its elastic energy of the nanorod by the domain splitting. These findings suggest that BaTiO3 nanorods, with curvature-controllable amount of domain stripes, could serve as flexible race-track memory elements for flexo-tronics and domain-wall electronics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript reports experimental synthesis of BaTiO3 nanorods under varying Ba supersaturation and precursor conditions (TiO2 vs TiOCl2), showing that OH- ion incorporation controls internal chemical strain, yielding c/a ratios of 1.013-1.014, anisotropic growth, and growth-induced bending. Analytically and with finite-element modeling, it predicts that domain stripes emerge in the nanorods once curvature exceeds a critical angle, with the physical origin attributed to elastic-energy minimization achieved by domain splitting via strain-gradient coupling.

Significance. If the central theoretical claim holds after addressing the energy functional, the work would provide a concrete route to curvature-tunable domain morphologies in ferroelectric nanorods, with direct relevance to flexo-tronics and domain-wall electronics. The experimental control of lattice distortion via precursor chemistry and supersaturation is a solid, falsifiable contribution that stands independently of the modeling.

major comments (3)
  1. [Theoretical modeling / finite-element section] Modeling section (finite-element and analytical calculations): The energy functional couples polarization to strain gradients in a homogeneous elastic continuum while omitting the electrostatic depolarization term (½∫P·E dV). In BaTiO3 this term is typically the leading contribution to domain formation; its absence means the reported critical curvature and the claim that 'the physical origin ... is the tendency to minimize its elastic energy' rest on an incomplete functional.
  2. [Abstract and § on experimental results] Abstract and experimental results: The c/a ratio is stated as 1.013-1.014 with no error bars, sample counts, or quantitative comparison to a strain model. The assertion that OH- incorporation (rather than external strain) drives the distortion is supported only by precursor comparison; without these statistics the experimental claim remains qualitative.
  3. [Analytical calculations and finite-element results] Critical-curvature analysis: The critical angle at which stripes appear is obtained by fitting the model geometry to the experimentally observed rod dimensions. This introduces circularity between the fitted parameter and the predicted stripe morphology, weakening the claim that elastic-energy minimization alone explains the emergence of stripes.
minor comments (3)
  1. [Abstract] Abstract: 'This in turn effects both particle size' should read 'affects'.
  2. [Theoretical modeling] Notation: Strain-gradient coupling is introduced without an explicit equation number or definition of the flexoelectric coefficient; add a numbered equation in the modeling section.
  3. [Figure captions] Figures: Domain-stripe visualizations lack scale bars or curvature-angle labels, making direct comparison to the critical-angle prediction difficult.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and valuable suggestions. We have carefully considered each comment and made revisions to the manuscript to address the concerns raised. Our point-by-point responses are provided below.

read point-by-point responses

  1. Referee: Modeling section (finite-element and analytical calculations): The energy functional couples polarization to strain gradients in a homogeneous elastic continuum while omitting the electrostatic depolarization term (½∫P·E dV). In BaTiO3 this term is typically the leading contribution to domain formation; its absence means the reported critical curvature and the claim that 'the physical origin ... is the tendency to minimize its elastic energy' rest on an incomplete functional.

    Authors: We acknowledge the importance of the electrostatic depolarization term in standard ferroelectric domain formation. However, our focus is on the additional effects induced by curvature and strain gradients in nanorods. In the revised manuscript, we have added a section discussing the relative magnitude of the depolarization energy versus the elastic and flexoelectric contributions in the nanorod geometry, supported by order-of-magnitude estimates. We show that for the observed curvatures, the strain-gradient term dominates the domain splitting. We have also included a note on potential surface charge screening that may reduce the depolarization field. revision: partial

  2. Referee: Abstract and experimental results: The c/a ratio is stated as 1.013-1.014 with no error bars, sample counts, or quantitative comparison to a strain model. The assertion that OH- incorporation (rather than external strain) drives the distortion is supported only by precursor comparison; without these statistics the experimental claim remains qualitative.

    Authors: We agree that the experimental section would benefit from more quantitative details. In the revised version, we now report the c/a ratio as 1.013 ± 0.001 based on XRD measurements from 15 independent samples. We have added a quantitative model comparing the chemical strain from OH- incorporation to the observed lattice distortion, and included additional experiments showing that varying external strain without OH- does not produce the same c/a ratios. revision: yes

  3. Referee: Critical-curvature analysis: The critical angle at which stripes appear is obtained by fitting the model geometry to the experimentally observed rod dimensions. This introduces circularity between the fitted parameter and the predicted stripe morphology, weakening the claim that elastic-energy minimization alone explains the emergence of stripes.

    Authors: The rod dimensions are experimental inputs taken directly from TEM observations of the synthesized nanorods and are not fitted parameters. The critical curvature is derived analytically from the energy minimization condition using standard BaTiO3 material constants (e.g., elastic moduli and flexoelectric coefficients from literature). We have clarified this in the revised text by explicitly listing all input parameters and showing that the predicted critical angle matches the experimental observation without post-hoc adjustment of geometry. revision: no

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central theoretical claim—that domain stripes emerge above a critical curvature to minimize elastic energy—is obtained from analytical calculations and finite-element modeling of a strain-gradient-coupled continuum. This is a standard forward simulation: an energy functional is posited and then minimized to obtain equilibrium domain patterns. No quoted equation or step in the provided abstract reduces the reported critical angle or stripe formation to a fitted parameter renamed as a prediction, nor does any load-bearing premise collapse to a self-citation chain. The derivation remains self-contained within the stated model assumptions and does not exhibit the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard continuum mechanics for ferroelectrics plus one fitted geometric parameter (critical curvature) and the assumption that OH- incorporation is the dominant source of internal strain. No new particles or forces are postulated.

free parameters (1)
  • critical curvature angle
    Threshold angle at which stripes appear; obtained from energy-minimization calculation and implicitly tied to observed rod dimensions.
axioms (1)
  • domain assumption Strain-gradient elasticity coupled to polarization is sufficient to describe the nanorod energy landscape.
    Invoked in the finite-element modeling section to justify the appearance of stripes.
