Machine Learning-Assisted Analysis of Combustion and Ignition in As-milled and Annealed Al/Zr Composite Powders

T0 review · 2 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Ball-milled Al/Zr powders owe easy ignition to intermetallic heat, but not their burn performance.

desk verdict Solid systematic dataset, but the atomized-powder extrapolation rests on a size-biased comparison. read the letter →

arxiv 2506.06364 v1 pith:4LWMUC67 submitted 2025-06-03 cond-mat.mtrl-sci physics.chem-ph

Michael R. Flickinger , Sreenivas Raguraman , Amee L. Polk , Colin Goodman , Megan Bokhoor , Rami Knio , Michael Kruppa , Mark A. Foster
show 1 more author
Timothy P. Weihs
This is my paper
classification cond-mat.mtrl-sciphysics.chem-ph
keywords Al/Zrcompositepowdersballmillingintermetallicformationignitionthresholdannealedcombustiontemperaturehyperspectralimagingmicroexplosiondetection
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper asks whether the exothermic intermetallic reaction heat that makes ball-milled Al/Zr powders easy to ignite is also necessary for them to burn well. By annealing three stoichiometries to progressively consume that heat, it shows that ignition thresholds rise as heat is removed—sharply for the Al-rich 3Al:Zr powder, barely for the Zr-rich Al:3Zr powder—while combustion temperatures stay high and in some cases rise. Annealed powders with pre-formed intermetallics burned at average temperatures of 2400–3000 K, with maximum temperatures 100–400 K higher, and microexplosion frequencies remained above 46 percent. The central conclusion is that homogeneous Al/Zr powders, such as atomized powders, may need more energy to ignite but can match or surpass the combustion performance of as-milled composites once ignited. If true, scalable atomization becomes a viable manufacturing route for reactive Al/Zr powders.

What carries the argument

The central machinery is a systematic annealing ladder that progressively consumes the exothermic intermetallic formation reactions while holding composition and starting microstructure fixed, so that the remaining available heat is the controlled variable. Ignition is quantified with hot-wire tests in air, Ar+O2, and Ar+N2, and the resulting fast-heating ignition temperatures are converted to slow-heating equivalents through a Kissinger analysis that assumes an activation energy of 231.58 kJ/mol for Zr intermixing into Al. Combustion is characterized by SHEAR, a snapshot hyperspectral imager that tracks individual burning particles and fits their emission spectra to obtain temperatures, together with a Kalman-filter and Hungarian-algorithm multi-object tracker and three convolutional neural networks that classify microexplosion events from image sequences around each particle's last known location. These tools together connect the amount of intermetallic heat removed to ignition thresholds, combustion temperatures, burn durations, and microexplosion frequency.

What would settle it

Run slow-heating ignition experiments, for example differential thermal analysis at about 0.33 °C/s, on each as-milled chemistry and compare the onset of exothermic heat release with the ignition temperatures predicted by the Kissinger analysis; if ignition occurs before measurable intermetallic heat release or at temperatures inconsistent with the assumed activation energy, the claim that intermetallic heat drives ignition would fail. A more direct check is to measure the intermixing activation energy for each ball-milled powder independently and redo the Kissinger conversion.

Watch

Extended reading notes

Core claim

The paper's central claim is that the heat released by Zr intermixing and Al-Zr intermetallic formation controls ignition thresholds but not the quality of combustion in Al/Zr composite powders. Using three ball-milled chemistries (3Al:Zr, Al:Zr, Al:3Zr) annealed in argon to remove 0–100 percent of the available intermetallic heat, the authors show that ignition thresholds rise systematically as heat is removed—from 354–444 °C in as-milled powders to values that can exceed the hot-wire limit of roughly 900 °C for Al-rich compositions. Zr-rich powders continue to ignite after full heat removal because oxidation through fast-diffusing ZrO2 takes over as the ignition driver. Despite this loss of the heat that drives ignition, annealed powders burned at temperatures comparable to or higher than their as-milled counterparts, with average temperatures increasing by 500–600 K for the 3Al:Zr and Al:3Zr powders, and microexplosion frequency remaining high and often increasing. The authors conclude that pre-formed intermetallics do not degrade combustion performance, which is the key evidence supporting atomized Al/Zr powders as a scalable manufacturing alternative.

Load-bearing premise

The mechanistic claim that intermetallic heat release, not oxidation, drives ignition depends on assuming that a single rate-versus-temperature constant measured in aluminum-rich multilayer foils also describes atomic mixing in all three ball-milled powders; if those powders mix at different rates, that specific attribution is not proven, though the direct trend of rising ignition thresholds after annealing would still stand.

Editorial extensions

If this is right

  • Removing intermetallic heat by annealing is a tunable lever: it raises ignition thresholds most for Al-rich powders and least for Zr-rich powders, so ignition sensitivity can be engineered by composition and heat treatment.
  • Oxidation becomes the dominant ignition mechanism once intermetallic heat is exhausted, which explains why Zr-rich powders retain ignitability while Al-rich powders fail off the hot wire.
  • Atomized Al/Zr powders with pre-formed intermetallic phases, which are cheaper and more scalable to produce than ball-milled composites, are credible replacements if the higher ignition threshold can be met by the application.
  • Combustion temperature and microexplosion frequency do not degrade when intermetallic phases form in advance, and for Al-rich and Zr-rich compositions they improve with annealing.
  • Adding Zr lowers ignition thresholds, but beyond a certain content it does not further improve combustion temperature or burn duration, implying an optimal Al/Zr ratio exists for practical use.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper does not test atomized powders directly, but its logic implies that the main barrier for atomized Al/Zr powders is igniter energy, not combustion quality; a follow-up comparing annealed and true atomized powders of matched size would test this directly.
  • The CNN microexplosion classifier was trained on more than 10,000 images and appears transferable, but its accuracy on substantially different chemistries, particle sizes, or camera settings is an open question that could be checked by cross-dataset validation.
  • The observed 500–600 K rise in combustion temperature for annealed 3Al:Zr and Al:3Zr powders is not mechanistically explained in the paper; it may reflect oxidation of specific intermetallic phases such as Al2Zr, which the authors note oxidizes at unusually low temperatures, rather than a general annealing effect.
  • The absence of a correlation between microexplosion frequency and burn duration is based on mean-diameter normalization; a size-resolved analysis could reveal a relationship that this averaging hides.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper synthesizes three ball-milled Al/Zr composite powders (3Al:Zr, Al:Zr, Al:3Zr), anneals them in argon to progressively consume the available intermetallic formation enthalpy, and measures ignition thresholds by hot-wire tests plus single-particle combustion temperatures, burn durations, and microexplosion frequencies using a SHEAR hyperspectral imaging system with CNN-based microexplosion detection. The reported trends are that annealing raises ignition thresholds, most strongly for Al-rich compositions, while combustion temperatures after full annealing either increase or remain comparable to as-milled powders. The paper concludes that annealed powders with pre-formed intermetallics can match or surpass as-milled combustion performance and that atomized Al/Zr powders may therefore be a scalable manufacturing alternative.

Significance. If the central claim holds, the work offers a practical path toward scalable atomized Al/Zr energetic powders and provides a large, carefully collected dataset linking ignition thresholds, combustion temperatures, and microexplosion statistics across three chemistries and multiple annealing states. The direct measurements are a strength: ignition thresholds carry error bars from repeated trials, DTA/TGA experiments were run in triplicate, and the CNN microexplosion pipeline was trained on over 10,000 images. The paper also gives explicit caveats about particle-size bias and normalization assumptions. However, the headline comparison between as-milled and annealed combustion performance is confounded by particle-size selection, and the ignition-mechanism interpretation rests on an unvalidated activation energy; both points need to be addressed before the central conclusion is supported.

major comments (2)
  1. [§4.2.1; Table 3; Fig. 12] The central claim that annealed powders can match or surpass the combustion performance of as-milled powders is not established by the reported comparison. For 3Al:Zr, the annealed sample contributes only 106 burn-duration and 86 temperature particles versus 1201 and 984 for the as-milled sample, and the paper itself states in Section 4.2.1 that these annealed particles are "likely the small end of the size distribution." Because detection is brightness-threshold based, small particles must be hotter to be detected, so the +598 K average-temperature increase (3030 K vs 2432 K in Table 3) can be inflated by selection rather than by the presence of pre-formed intermetallics. In addition, the annealed powder size distributions were not remeasured after the 1000 °C anneal, yet Fig. 12(b) normalizes annealed burn durations by the as-milled mean diameter; if annealing changes particle size, the normalized duration comparison is miscalibrated. The paper should either remeasure the annealed size distributions, restrict the comparison to overlapping size classes, or explicitly present the performance claim as a hypothesis rather than a conclusion.
  2. [§4.1.1; Table 4; Fig. 14] The mechanistic conclusion that ignition is driven by intermixing/intermetallic heat release rather than oxidation depends on a Kissinger conversion that is not validated for these powders. Table 4 uses a single activation energy E_a = 231.58 kJ/mol taken from Fisher et al. [57] for Al-rich Al/Zr multilayer foils and applies it to all three ball-milled chemistries, including the Zr-rich Al:3Zr powder whose low-temperature intermixing signal is weak (Fig. 7). The conversion from hot-wire heating rates (~15,000–30,000 K/s) to the 0.33 °C/s DTA scale is exponential in E_a, so even a moderate error in the activation energy shifts the equivalent ignition temperatures in Table 4 by hundreds of degrees. Without independent measurement of E_a for these specific powders (e.g., variable-heating-rate DTA), the statement in the Conclusions that "ignition was driven by the exothermic heat release from intermixing and intermetallic formation" is stronger than the evidence supports; the direct annealing-versus-threshold trend would still stand.
minor comments (5)
  1. [§3.4; Table 3; Fig. 12(b)] The burn-duration normalization uses the as-milled mean diameter and an exponent n=2 from pure-Al diffusion-limited theory; Section 4.2.2 acknowledges that n and the proportionality constant a are not expected to be constant across chemistries, so the normalized durations in Table 3 and Fig. 12(b) should carry this caveat in the main text and figure caption as prominently as it appears in the discussion.
  2. [§2.2; §4.1.1] The wire-ignition heating rate is quoted as approximately 15,000–30,000 K/s, while the Kissinger conversion in Section 4.1.1 uses 0.33 °C/s; state explicitly which heating rate is used in the conversion and how the value 0.33 °C/s is obtained from the DTA scans.
  3. [§3.4; Supplementary Information S1.3] Since microexplosion percentages are a headline result, the main text should report at least the final test-set precision, recall, and F1 score of the CNN classifiers rather than referring the reader to the supplementary information for all performance metrics.
  4. [§3.3; Fig. 10] The description of air versus Ar+O2 ignition-threshold differences for Al:Zr powders (up to 70 °C, with the direction depending on annealing state) is hard to follow; a compact table or a more explicit statement of which samples show lower thresholds in which environment would improve clarity.
  5. [Throughout] Sample names and table entries use inconsistent formatting, e.g., "3Al:Zr 1000C" in Table 3 versus "1000 °C" in the text; unify the notation for annealing temperatures.

Circularity Check

1 steps flagged · score 4.0 of 10

Kissinger-based mechanism validation is partially self-referential, but the central combustion and annealing comparisons are independent experimental results.

  1. self definitional [Section 4.1.1, Kissinger analysis (Table 4 and Figure 14)]
    "To validate that heat released from intermixing and intermetallic formation is the most important factor in driving ignition, we calculated equivalent ignition temperatures ... Zr intermixing into Al is thought to control the initial heat release and the activation energy for this intermixing was estimated to be 2.4 eV/atom (231.58 kJ/mol) based on studies done by Fisher et al. [57]. ..."

    The slow-heating 'equivalent ignition temperature' is obtained by Kissinger-shifting the measured wire-ignition temperature using Ea = 231.58 kJ/mol for Zr intermixing into Al. That shift is valid only if the rate-limiting ignition process is the very intermixing reaction whose activation energy was imported. The paper then places this constructed temperature on the DTA/TGA heat-release curves and concludes that oxidation/nitridation is negligible at ignition and that intermixing/intermetallic heat release drives ignition. The validation point is thus defined using the mechanism it is used to confirm, so the mechanistic conclusion is partly assumed by construction.

full rationale

The paper's central claims - that annealing raises ignition thresholds and that annealed powders can match or surpass as-milled combustion performance - rest on direct hot-wire ignition measurements, SHEAR/thermometry, burn-duration tracking, and CNN microexplosion counts. These are experimental observations, not quantities derived from the hypotheses they support. The combustion comparison has a sampling/particle-size confound that the paper itself acknowledges (annealed 3Al:Zr particles are 'likely the small end of the size distribution'), but that is a validity limitation, not circularity. The one partially circular step is the Section 4.1.1 Kissinger validation: the equivalent ignition temperature is computed using the activation energy for Zr intermixing, and then that same intermixing process is declared to drive ignition. This does not undermine the measured ignition-threshold trends, which stand independently, but it does mean the mechanistic attribution is not fully independently tested. The Fisher et al. activation energy is real external experimental data with overlapping authorship, so this is moderate partial circularity rather than a forced result.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central claims rest on measured data plus a few imported modeling assumptions. The main free parameters are the activation energy used in the Kissinger analysis and the hand-chosen filtering thresholds; neither is fitted to the paper's own data, but both affect interpretation. No new physical entities are postulated.

free parameters (4)
  • Activation energy for Zr intermixing into Al (Ea) = 231.58 kJ/mol (2.4 eV/atom), taken from Fisher et al. [57]
    Used in Kissinger analysis (Section 4.1.1, Table 4) to convert wire-heating ignition thresholds into equivalent slow-heating ignition temperatures; the value originates from Al-rich Al/Zr multilayer foils, not ball-milled powders, and its transferability is assumed without validation for each chemistry.
  • Burn duration scaling exponent n = n = 2 for primary normalization; sensitivity checked for n = 0.5 to 2
    Used to normalize burn durations by particle diameter (Section 3.4, Figure 12b). The exponent is taken from diffusion-limited droplet theory for pure Al; the authors acknowledge it may not hold for condensed-phase burners, and they vary it in the supplementary information to test robustness.
  • Burn duration proportionality constant a = assumed constant across compositions
    In the sensitivity analysis (Section 4.2.2), a is assumed identical across chemistries; the authors acknowledge both a and n are expected to vary with chemistry.
  • Particle filtering thresholds = 1 ms lower, 30 ms upper
    Particles with burn duration below 1 ms or above 30 ms are excluded (Section 3.4, Table 3). These thresholds are hand-chosen and could bias microexplosion statistics and temperature distributions, particularly for the small annealed 3Al:Zr sample.
assumptions (4)
  • domain assumption The activation energy for Zr intermixing in ball-milled Al/Zr powders equals that measured for Al-rich Al/Zr multilayer foils (2.4 eV/atom).
    Invoked in Section 4.1.1 for the Kissinger analysis that estimates equivalent ignition temperatures; no in-situ measurement or validation for the three ball-milled chemistries is provided.
  • domain assumption All mass gain up to 400 degrees Celsius in oxidizing or nitriding environments is due to ZrO2 or ZrN formation, respectively.
    Used in Section 4.1.1 to convert TGA mass gain into exothermic heat release; based on Wainwright et al. [32] and low-temperature phase stability, but Al oxidation is neglected in this window.
  • domain assumption The mean particle size from Horiba analysis represents the size distribution of particles that ignite and combust in the plasma.
    Used to normalize burn durations (Section 3.4); the authors note in-situ sizes are unavailable due to saturation and that selective ignition of smaller particles could bias results.
  • standard math Standard tracking and CNN training assumptions (Kalman filter, Hungarian algorithm, train/test split, focal loss) are valid for the video data.
    Section 2.3; these are standard algorithmic tools; no formal verification is claimed.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Machine Learning-Assisted Analysis of Combustion and Ignition in As-milled and Annealed Al/Zr Composite Powders." pith.science (2026). https://pith.science/paper/4LWMUC67

@misc{pith2026250606364,
  author       = {Pith},
  title        = {Pith review of: Machine Learning-Assisted Analysis of Combustion and Ignition in As-milled and Annealed Al/Zr Composite Powders},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4LWMUC67}},
  note         = {Machine review of arXiv:2506.06364}
}
read the original abstract

Micron-scale metal-based composite powders are promising for energetic applications due to their tailored ignition and combustion properties. In particular, ball-milled Al/Zr composites exhibit lower ignition thresholds than pure aluminum, driven by exothermic intermetallic formation reactions and have demonstrated enhanced combustion properties. However, the extent to which this heat release governs ignition and combustion remains unclear, especially when progressively removed through annealing. To systematically investigate this effect, we synthesized Al/Zr powders (3Al:Zr, Al:Zr, and Al:3Zr at%) via ball milling, annealed them in argon up to 1000 C to partially complete the formation reactions, and characterized their ignition and combustion behavior. Ignition thresholds were measured using a hot wire method across different environments, while high-speed hyperspectral imaging tracked single-particle burn durations and temperatures. A convolutional neural network (CNN)-based method was developed to quantify the frequency of microexplosions. Results show that annealing - and thus reducing available reaction heat - increases ignition thresholds, most significantly for Al-rich compositions. In contrast, Zr-rich powders exhibit little change in ignition thresholds due to oxidation aiding ignition. Despite removing the available heat that drives ignition, average combustion temperatures range from 2400-3000 K and increased with annealing for Al- and Zr-rich powders. Average maximum temperatures are 100 to 400 K higher. The frequency of microexplosions remains high (>46%) and increases with annealing for all but the Al-rich powders. These findings suggest that while homogeneous Al/Zr powders (e.g., atomized) may exhibit higher ignition thresholds, they can achieve comparable combustion performance once ignited.

Figures

Figures reproduced from arXiv: 2506.06364 by the authors.

Figure 1
Figure 1. A schematic showing the experimental setup used for combustion experiments. Note that the optics setup shown is not meant to be an exact representation [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. (a) A schematic representation of the Kalman filter and Hungarian Algorithm approach employed to track particles in SHEAR videos. (b) Shows the [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Frames before and after particle ID terminates due to the microexplosion of an Al:Zr as-milled particle. Frame 6 is the last frame before the particle [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Particle size distribution plots for the as-milled powders: 3Al:Zr (a), Al:Zr(e), and Al:3Zr (i). Secondary electron SEM images of loose powders and a [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: X-ray diffraction patterns for as-milled and annealed samples for (a) 3Al:Zr, (b) Al:Zr, and (c) Al:3Zr. For each chemistry, samples are annealed to an intermediate temperature and to 1000 °C. 7 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: X-ray diffraction scans for the three as-milled powders from 30-47 degrees 2θ to show the Al and Zr peak shifts and the presence of ZrC. A dif￾ferent stoichiometric carbide is forming for 3Al:Zr, which is evident from the plot. 3.2. Thermal Analysis [PITH_FULL_IMAGE:f…
Figure 7
Figure 7. Figure 7: Results from DTA scans of as-milled powders in Ar. (a) Shaded error plots of DTA traces for each chemistry with baseline scans subtracted. (b) The [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8
Figure 8. Figure 8: The mass gain percentage versus temperature for as-milled powders run in Ar [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: Wire ignition results in air for all as-milled and annealed samples. [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Comparison of wire ignition thresholds in di [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
Figure 11

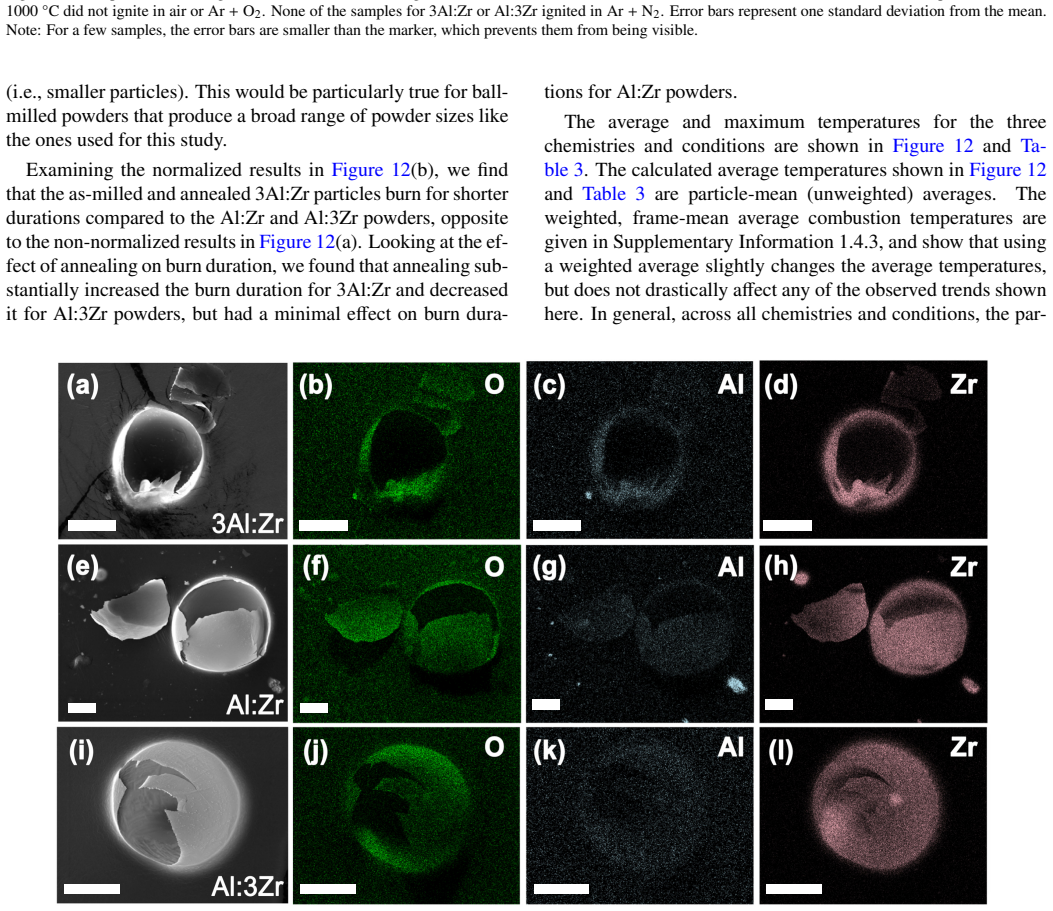

Figure 11. Figure 11: EDS of combustion products captured six inches above the plasma ignition source for 3Al:Zr (a-d), Al:Zr (e-h), and Al:3Zr (i-l) powders. Images in the [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12
Figure 12. Figure 12: The (a) non-normalized and (b) normalized average burn durations for as-milled powders and ones scanned to 1000 °C for each chemistry. Plot (b) [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: Microexplosion frequency for all powders tested in the combustion [PITH_FULL_IMAGE:figures/full_fig_p013_13.png]
Figure 14
Figure 14. Figure 14: The heats of intermetallic heat release, oxidation, and nitridation were calculated using data from the DTA/ [PITH_FULL_IMAGE:figures/full_fig_p014_14.png]
