Self-Supervised Enhancement for Depth from a Lightweight ToF Sensor with Monocular Images

T0 review · 3 major / 6 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Self-supervised depth enhancement lifts 8×8 ToF depth to near-supervised accuracy.

desk verdict A solid self-supervised framework for 8x8 ToF enhancement with good ablations, but the results all rest on a simulated sensor; read the numbers as a proof of concept until real L5 data appears. read the letter →

arxiv 2506.13444 v2 pith:DCM4KAPH submitted 2025-06-16 cs.CV

Laiyan Ding , Hualie Jiang , Jiwei Chen , Rui Huang This is my paper · ORCID
classification cs.CV
keywords self-superviseddepthestimationenhancementTime-of-Flightsensorlow-resolutionsparsecompletionsubmanifoldconvolutionguidedfeaturefusionscalerecovery
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

SelfToF claims that an off-the-shelf, 8×8 Time-of-Flight sensor can produce detailed, metric-accurate depth maps when its readings are fused with ordinary monocular RGB video, and that no ground-truth depth is needed for training. The paper starts from a self-supervised depth-estimation pipeline, feeds the ToF depth into both the depth and pose networks, adds a zone-wise depth consistency loss, and recovers metric scale with a median-of-median scaling step. On the standard indoor benchmark, the enhancement cuts absolute relative error from 0.154 (image-only baseline) to 0.049, a result close to a supervised counterpart's 0.046. A sparsity-robust variant, SelfToF*, holds near that accuracy even when up to 40% of ToF zones are missing. The reason to care: lightweight ToF sensors cost a few dollars and run at a fraction of a watt, so removing the label requirement makes high-quality depth accessible wherever RGB video already exists.

What carries the argument

The load-bearing machinery is a two-stream DepthNet (RGB encoder plus a small 8×8 depth encoder) and a two-stream PoseNet, trained jointly by view synthesis. Three losses drive learning: a photometric loss warping the source frame into the target, an edge-aware smoothness loss on disparity, and a zone-wise depth consistency loss that compares Gaussian mean and variance per zone between the sensor and the prediction. Metric scale is recovered by median-of-median scaling (MMS): compute, for each of the 64 zones, the ratio of the sensor's zone median to the predicted zone median, then take the median of those ratios as the global scale. For the sparsity-robust SelfToF*, the depth encoder is rebuilt with submanifold sparse convolutions so invalid zones never propagate features, and a guided feature fusion module flattens RGB and depth features at 8×8, generates an affinity map from position-encoded RGB features, propagates depth features along it, and sums the original RGB, original depth, and propagated depth features. The affinity mechanism is the piece that lets each invalid zone borrow statistics from the most similar valid zones.

What would settle it

Run SelfToF on real data from the low-cost 8×8 ToF sensor, with the camera co-registered to RGB and trained on the paper's simulated data. If the real-sensor absolute relative error is more than roughly twice the simulated-test error on matched indoor scenes, the Gaussian-per-zone, aligned, no-cutoff simulation is not faithful, and the reported gains would not transfer to hardware.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that an 8×8 depth map carrying only per-zone mean and variance contains enough metric information to disambiguate the scale of a self-supervised depth network, while the network's photometric supervision supplies the detail. Adding the ToF readings as a second input stream to DepthNet, penalizing the difference between predicted and sensed zone distributions with a Gaussian consistency loss, recovering scale by the median of per-zone median ratios, and feeding the ToF depth to PoseNet together lower abs rel on the indoor benchmark from 0.154 to 0.049, and the test-time output is scale-aware without any further scaling. The paper also claims that when some zones are invalid, a submanifold sparse depth encoder plus an RGB-guided, position-aware feature fusion keeps accuracy nearly intact: at 40% missing zones, SelfToF* reports 0.061 abs rel versus 0.070 for SelfToF. Crucially, the best self-supervised model trails the supervised same-architecture baseline by only a small margin (0.049 versus 0.046), suggesting the ground-truth dependency is nearly eliminated.

Load-bearing premise

The training and evaluation assume that the simulated ToF signal—a Gaussian fitted per 8×8 zone, perfectly aligned with the RGB image, with no maximum-distance cutoff—faithfully represents what the real low-cost sensor returns, including its noise, multipath, and missing-zone behavior.

Editorial extensions

If this is right

  • Any device that already has an RGB camera and a few-dollar ToF sensor can act as a metric depth camera without collecting depth labels.
  • The self-supervised training signal is unlabeled video, so the method can be retrained on a new deployment site's own footage rather than requiring a capture rig.
  • Because ToF depth also goes into the PoseNet, ego-motion estimation improves as a by-product (rotational error on the generalization dataset drops from 1.740° to 1.521°).
  • Partial sensor failure is survivable: as long as roughly 60% of zones remain valid, the submanifold and guided-fusion variant keeps quality nearly unchanged.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The median-of-median scaling trick is not specific to ToF; any sparse depth sensor that can report per-cell medians (lidar rings, stereo disparity bins) could reuse MMS to make a self-supervised network metric-aware.
  • A hardware test on the actual low-cost sensor is the natural next experiment; the paper's own simulation assumption is the main risk to the generality of the reported numbers.
  • The guided feature fusion is effectively a tiny attention module at 8×8 resolution; pairing it with larger RGB backbones or depth foundation models is a plausible route to sharper boundaries and better generalization.
  • If real sensor noise breaks the Gaussian assumption, the depth consistency loss could be weakened or replaced with a distribution-free zone comparison, and MMS would still carry the scale recovery.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. This paper addresses depth enhancement for low-cost lightweight ToF sensors (8x8 zones) using paired RGB images in a self-supervised manner. The proposed framework, SelfToF, extends a monocular self-supervised depth estimation baseline (Monodepth2) by adding the low-resolution ToF depth as an additional input to both the DepthNet and PoseNet, a depth-consistency loss that compares per-zone Gaussian statistics, and a median-of-median scaling module for metric scale recovery. A variant SelfToF* uses a submanifold depth encoder and guided feature fusion to handle missing zones. Training uses only monocular sequences and the sensor's low-resolution depth, without dense ground truth. On simulated NYU data, SelfToF reduces absolute relative error from 0.154 (baseline) to 0.049; it also shows favorable generalization to ScanNet and robustness to zone sparsity. Code is publicly available.

Significance. If the results transfer to real hardware, the method could make lightweight ToF-based depth sensing with metric scale accessible in self-supervised settings, which is practically important for low-cost IoT and robotics. The architecture is technically sound, with an ablation chain (Table I) that traces the contribution of each design choice; the release of code is commendable; and the method demonstrates robustness to a simulated sparsity setting. The main reason to temper the significance is that all quantitative evidence is produced on simulated ToF signals with explicit assumptions (zone-RGB alignment, no maximum-distance cutoff) that are not validated on a real L5 sensor, so the magnitude of the reported gains may not hold in practice.

major comments (3)
  1. [Sec. IV.A and Sec. III.B] All quantitative results (Tables I-VI) are obtained with simulated ToF signals produced by fitting Gaussians per 8x8 zone following DELTAR, not with data from a real L5 sensor. Section III.B explicitly assumes 'that L5 zones are aligned with RGB images and no maximum distance constraint exists,' and the conclusions concede that real-world datasets are future work. Because the two most load-bearing components—the depth-consistency loss (Eq. 6) and the scale-recovery module (Eq. 2)—depend critically on the reliability of per-zone ToF statistics, the central claim that SelfToF enhances depth from a lightweight ToF sensor is not directly supported by the presented evidence. Please either add real-sensor validation (or a carefully designed hardware-in-the-loop simulation) or scope the claims to simulated settings and analyze the risks of misalignment and missing zones.
  2. [Sec. IV.E, Table II] The performance comparison does not include DELTAR, the prior method specifically designed for the same L5 depth-enhancement task. The strongest learning-based baseline in the table is MonoDepth2, and the only supervised reference is the authors' own architecture with ground-truth supervision (last row of Table I). Since DELTAR is the established method for this task, its absence makes it difficult to assess the gap between the proposed self-supervised approach and the state of the art, and weakens the claim that the method is 'effective' relative to previous architectures. Please add a comparison with DELTAR (or a similar supervised L5 method) or justify its omission.
  3. [Sec. IV.G] The sparsity experiments randomly zero out zones, which is an artificial pattern. Real L5 sensors typically exhibit invalid zones that are spatially clustered and range-dependent (e.g., due to specular surfaces or out-of-range measurements). The robustness of SelfToF* is therefore demonstrated only against a specific synthetic sparsity model. Evaluate with structured sparsity (e.g., contiguous blocks) or real-data artifacts, and report performance accordingly.
minor comments (6)
  1. [Tables I-VI] Tables I-VI report a single training run; no error bars or repeated runs are given, making it hard to judge the significance of small differences (e.g., Table V, SelfToF+SDE vs SelfToF+GFF). Please add variance estimates at least for the main results.
  2. [Eq. (6)] Eq. (6) is described as 'the distance between two 1D Gaussian distributions' with reference to Wasserstein metrics; however, the expression is the sum of squared differences of means and standard deviations, not the (squared) 2-Wasserstein distance as usually defined. Please clarify or adjust the citation.
  3. [Sec. III.B.1] The MAC count comparison (2.38G vs 2.59G) should specify the input resolution and the exact configuration to allow reproduction.
  4. [Sec. IV.F, Table III] The evaluation protocol for scale-ambiguous baselines in the ScanNet generalization (Table III) is not described; please state whether median scaling is applied to the baseline in that table, as it is in Table I.
  5. [Figure 7] In Figure 7, the color coding of valid/invalid zone boundaries and the visualization of the affinity map should be explained in the caption to make the qualitative claim more checkable.
  6. [Abstract and Eq. (2)] The abstract contains a grammar error: 'SelfToF* maintain robust performance' should be 'SelfToF* maintains robust performance.' Additionally, please clarify whether the median operation in Eq. (2) is applied over all zones including invalid (zero-valued) zones, and how the scale recovery behaves when more than 50% of zones are invalid (which would give a zero median).

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: SelfToF uses the ToF input as a sensor signal and as a consistency target, not as a disguised groundtruth, so the reported derivation is self-contained.

full rationale

The derivation chain is self-contained. SelfToF's training objective (Eq. 7) combines photometric warping (Eqs. 3-4), edge-aware smoothness (Eq. 5), and a zone-wise Gaussian depth-consistency loss (Eq. 6) that compares the predicted depth's per-zone mean and variance with the input ToF signal. This is a standard sensor-consistency loss, not a hidden groundtruth; with weight wdc = 0.01, the network is not forced to reproduce the input. At test time, MMS (Eq. 2) multiplies the scale-ambiguous network output by median(C_i^t / median(d_i^t)), which is a legitimate use of the sensor input to recover metric scale rather than a fitted parameter disguised as a prediction; the dense high-resolution structure still comes from the RGB image and the network, so the output is not the input by construction. Comparisons against MonoDepth2, nearest-neighbor upsampling, and guided filtering are external baselines, and the ToF simulation follows DELTAR [4], an external benchmark. The only self-citations ([13], [19], [22]) appear for data-sampling details, prior baselines, or related works and are not load-bearing for the central claim. The paper does state a clear limitation in Sec. III.B: 'Assuming that L5 zones are aligned with RGB images and no maximum distance constraint exists,' and Sec. V calls for 'collecting large-scale real-world datasets' in future work. These are external-validity caveats about the sim-to-real gap, not evidence that any claimed prediction reduces to its inputs. No circular step is exhibited, so the appropriate finding is a score of 0.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The method rests on a sensor model taken from DELTAR and on the standard photometric-consistency assumption. The three loss weights and alpha are tuned hyperparameters. No new physical entities are introduced.

free parameters (2)
  • Loss weights (w_ph, w_s, w_dc) = 1.0, 0.1, 0.01
    Set empirically (Sec. III.C.4); the choice affects the balance between photometric, smoothness, and depth-consistency terms.
  • Photometric weight alpha = 0.85
    Conventional value from prior self-supervised depth works (Sec. III.C.1), not tuned for this task.
assumptions (4)
  • domain assumption L5 zones are aligned with RGB images and there is no maximum distance constraint
    Stated in Sec. III.B; real L5 has a limited field-of-view and max range, and alignment may require calibration, which the method does not address.
  • domain assumption Each ToF zone can be approximated by a fitted Gaussian distribution with mean and variance
    Borrowed from DELTAR [4]; used both to simulate training data (Sec. IV.A) and to define the depth consistency loss (Sec. III.C.3).
  • domain assumption Photometric consistency between temporally adjacent frames (Lambertian surfaces, static scene)
    Inherited from Monodepth2 [10]; the self-supervised signal breaks for moving objects, reflections, and occlusions.
  • domain assumption The simulated ToF data generated by Gaussian fitting on NYU/ScanNet depth is representative of real lightweight ToF output
    The whole evaluation rests on this; the authors note in Sec. V that real-world data is future work.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Self-Supervised Enhancement for Depth from a Lightweight ToF Sensor with Monocular Images." pith.science (2026). https://pith.science/paper/DCM4KAPH

@misc{pith2026250613444,
  author       = {Pith},
  title        = {Pith review of: Self-Supervised Enhancement for Depth from a Lightweight ToF Sensor with Monocular Images},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DCM4KAPH}},
  note         = {Machine review of arXiv:2506.13444}
}
read the original abstract

Depth map enhancement using paired high-resolution RGB images offers a cost-effective solution for improving low-resolution depth data from lightweight ToF sensors. Nevertheless, naively adopting a depth estimation pipeline to fuse the two modalities requires groundtruth depth maps for supervision. To address this, we propose a self-supervised learning framework, SelfToF, which generates detailed and scale-aware depth maps. Starting from an image-based self-supervised depth estimation pipeline, we add low-resolution depth as inputs, design a new depth consistency loss, propose a scale-recovery module, and finally obtain a large performance boost. Furthermore, since the ToF signal sparsity varies in real-world applications, we upgrade SelfToF to SelfToF* with submanifold convolution and guided feature fusion. Consequently, SelfToF* maintain robust performance across varying sparsity levels in ToF data. Overall, our proposed method is both efficient and effective, as verified by extensive experiments on the NYU and ScanNet datasets. The code is available at \href{https://github.com/denyingmxd/selftof}{https://github.com/denyingmxd/selftof}.

Figures

Figures reproduced from arXiv: 2506.13444 by the authors.

Figure 1
Figure 1. L5 sensing principle and example inputs and outputs with our [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Training pipeline of our model. During forward, the model takes [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Overview of multi-modality DepthNet and PoseNet. The fusion [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4

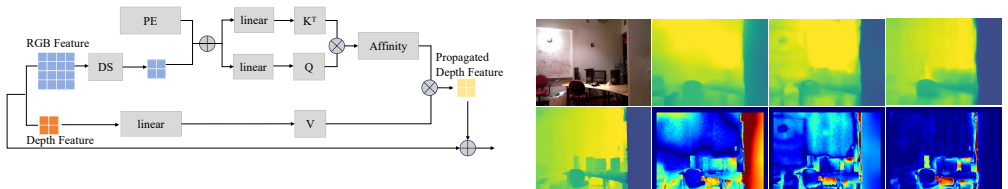

Figure 4. Figure 4: Overview of guided feature fusion. We first downsample (DS) [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5
Figure 5. Figure 5: Visual results and error maps on the NYU dataset. Using ToF as [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6
Figure 6. Figure 6: Visual results and error maps on NYU dataset. Compared with [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
