arxiv: 2506.14075 · v2 · submitted 2025-06-17 · 🪐 quant-ph

Comparing a Few Qubit Systems for Superconducting Hardware Compatibility and Circuit Design Sensitivity in Qiskit

Hillol Biswas This is my paper

Pith reviewed 2026-05-19 10:06 UTC · model grok-4.3

classification 🪐 quant-ph
keywords Qiskitsuperconducting qubitsquantum Fourier transformGHZ stateW statecircuit fidelitydecoherenceNISQ
0
0 comments X

The pith

Circuit fidelity acts as an indirect probe of material-limited noise in superconducting quantum hardware.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper compares ideal simulations with real executions on the IBM Sherbrooke superconducting processor for three basic circuits: the quantum Fourier transform, GHZ states, and W states, across 4 to 10 qubits. It identifies how noise from material flaws and interfaces reduces fidelity as circuits grow more complex. The work suggests that these fidelity measurements can diagnose hardware limitations tied to materials. This matters because it points toward circuit design methods that incorporate both theoretical performance and practical material constraints to move closer to useful quantum computing.

Core claim

By running QFT, GHZ, and W state circuits on both simulators and the 127-qubit IBM Sherbrooke QPU, the study shows that fidelity differences stem from decoherence caused by material-induced flaws. These results position circuit fidelity as a practical indicator for material noise, enabling a design framework that balances hardware compatibility and circuit complexity for better NISQ performance.

What carries the argument

The side-by-side analysis of simulator versus QPU outputs for QFT, GHZ, and W circuits to quantify noise accumulation and identify material contributions to decoherence.

If this is right

  • Circuits with greater depth and qubit count exhibit larger fidelity drops on actual hardware due to accumulated decoherence.
  • Different state preparation circuits show distinct noise sensitivities, informing choice of primitives for applications.
  • Resource utilization on the QPU highlights constraints that must be considered alongside theoretical circuit design.
  • The observed patterns support developing mitigation strategies focused on material properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this method to other circuit families could reveal which algorithms are most resilient to specific hardware imperfections.
  • Integrating fidelity probes with material characterization data might lead to predictive models for circuit performance before fabrication.
  • This could influence the selection of superconducting materials or interface designs in next-generation quantum processors.

Load-bearing premise

Disparities between simulator and QPU results come mainly from material flaws and interfaces instead of control errors or calibration problems.

What would settle it

Executing the circuits on a superconducting device with significantly improved material quality and checking whether the fidelity gap to simulation narrows as expected.

Figures

Figures reproduced from arXiv: 2506.14075 by Hillol Biswas.

Figure 1
Figure 1. Figure 1: Quantum circuits with 4 qubit: QFT [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

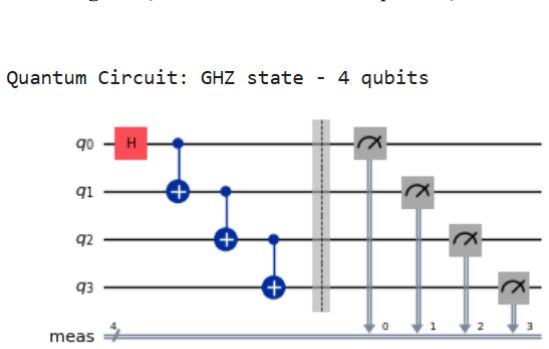

Figure 2. Figure 2: Quantum circuits with 4 qubit: GHZ [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Quantum circuits with 4 qubit: W state [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Transpiled Quantum circuits with 4 qubit: QFT [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Transpiled Quantum circuits with 4 qubit: GHZ [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Transpiled Quantum circuits with 4 qubit: W state [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: 4-qubit W state multi-vector plot from statevector before measurement [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

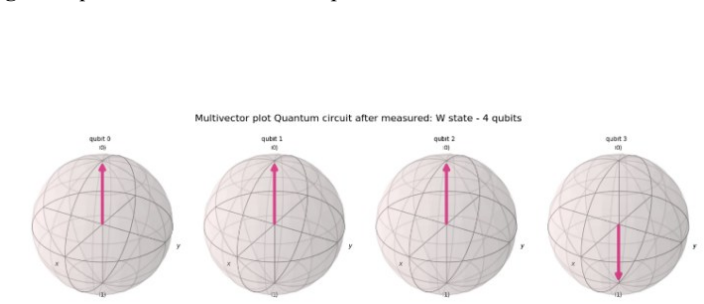

Figure 8. Figure 8: 4-qubit W state multi-vector plot from state vector after measurement [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: 4-qubit QFT state city plot from state vector before measurement [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: This 4-qubit QFT state city plot from statevector after measurement [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: GHZ state – 4 qubit Qsphere from statevector before measurement [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: GHZ state – 4 qubit Qsphere from statevector after measurement [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 13

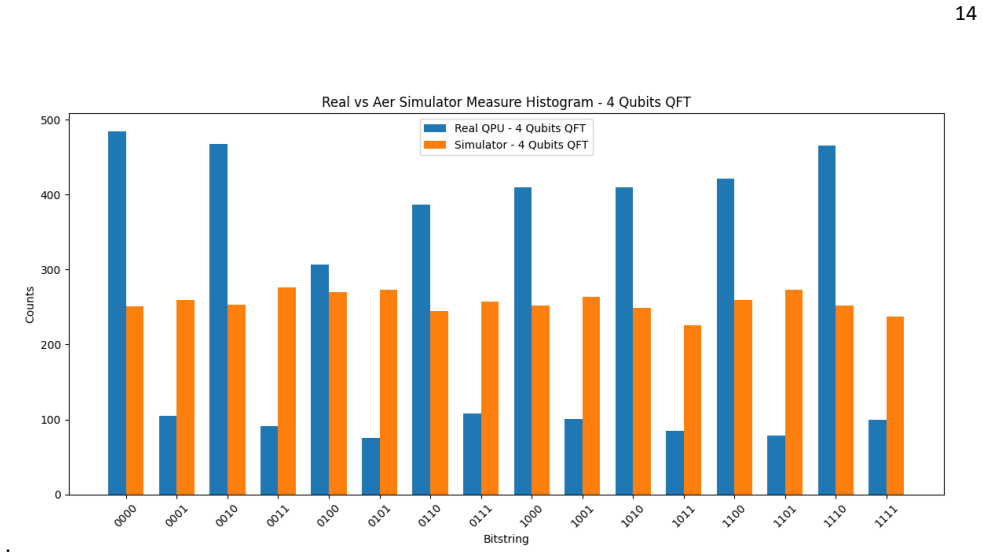

Figure 13. Figure 13: 4 Qubit QFT Aer Simulator and IBM Sherbrooke histogram [PITH_FULL_IMAGE:figures/full_fig_p014_13.png] view at source ↗
Figure 14

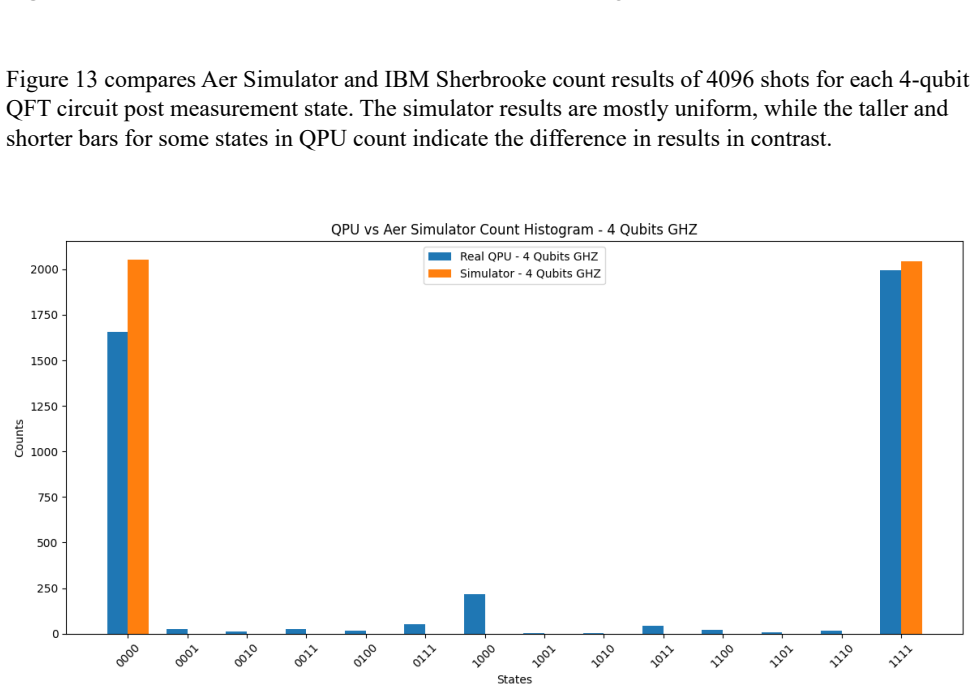

Figure 14. Figure 14: 4 Qubit GHZ Aer Simulator and IBM Sherbrooke histogram [PITH_FULL_IMAGE:figures/full_fig_p014_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: 4 Qubit W state Aer Simulator and IBM Sherbrooke histogram [PITH_FULL_IMAGE:figures/full_fig_p015_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: QFT, GHZ & W state – 4 to 10 qubits - Different metrices plot on qubit number and values in log scale [PITH_FULL_IMAGE:figures/full_fig_p017_16.png] view at source ↗
Figure 17

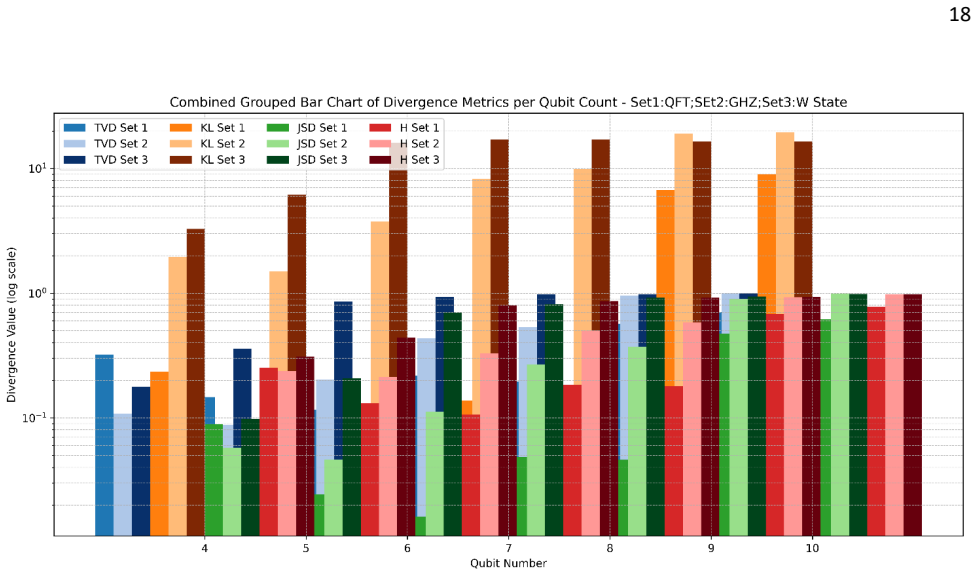

Figure 17. Figure 17: Different Metrics comparison plot. Based on [PITH_FULL_IMAGE:figures/full_fig_p018_17.png] view at source ↗
read the original abstract

The development of complex circuits for practical applications in the current quantum computing ecosystem is based on basic primitives such as Bell states, which provide superposition, entanglement, and coherence. The range of domain-specific quantum applications has been greatly expanded by the availability of simulators and platforms such as IBM Quantum, which are supported by Qiskit. However, disparities between ideal simulator outputs and actual quantum processing unit (QPU) executions in the Noisy Intermediate-Scale Quantum (NISQ) era require the application of quantum error mitigation techniques. Limitations arise from hardware constraints in superconducting qubit systems and from the limited resources of classical simulators as quantum circuits grow. Quantum decoherence, which lowers gate fidelity and builds up at the circuit level with increasing depth, is specifically caused by material-induced flaws and interfaces. This creates a clear connection between circuit reliability, device performance, and material attributes. To address this, the current work uses both simulation and actual hardware on the IBM Sherbrooke 127-qubit processor to study three basic circuit classes over 4 to 10 qubits: the quantum Fourier transform, the Greenberger-Horne-Zeilinger state, and the W state. The study examines trade-offs between circuit complexity, noise robustness, and resource utilization by contrasting simulator and QPU results. The results imply that circuit fidelity can serve as an indirect probe of material-limited noise, opening the door to a framework for designing quantum circuits that accounts for both hardware and materials to achieve scalable quantum advantage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript compares ideal Qiskit simulations against executions on the IBM Sherbrooke 127-qubit superconducting processor for Quantum Fourier Transform, GHZ, and W-state circuits over 4–10 qubits. It claims that observed fidelity discrepancies arise specifically from material-induced decoherence and interfaces, positioning circuit fidelity as an indirect probe of material-limited noise and proposing a design framework that integrates hardware constraints with material attributes to support scalable quantum advantage.

Significance. If the noise attribution can be rigorously isolated and the quantitative results confirm the scaling behavior, the approach could supply a practical diagnostic linking circuit-level performance to materials properties in superconducting qubits. This would be a modest but useful contribution to NISQ circuit optimization by offering an empirical handle on material noise without requiring separate low-level characterization for every device.

major comments (2)
  1. [Abstract] Abstract: the statement that decoherence 'is specifically caused by material-induced flaws and interfaces' is presented as a premise rather than a conclusion supported by data. No T1/T2 times, randomized-benchmarking error budgets, or gate-calibration metrics are referenced to separate material noise from control-pulse errors, crosstalk, or readout infidelity, leaving the central claim that fidelity serves as a material-noise probe unsubstantiated.
  2. [Results] Results section (comparison of simulator vs. QPU outputs): the abstract describes the experimental setup and the three circuit classes but supplies no numerical fidelity values, error bars, statistical tests, or data-exclusion criteria for the 4–10 qubit runs. Without these, the claimed disparities and their attribution to material noise cannot be evaluated.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'the range of domain-specific quantum applications has been greatly expanded' would benefit from one or two concrete citations to prior Qiskit or IBM Quantum work on these primitives.
  2. [Methods] Methods: clarify how 'resource utilization' is quantified (gate count, depth, or qubit overhead) and whether any error-mitigation techniques were applied to the QPU runs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. The comments highlight opportunities to strengthen the presentation of our central claims and to improve the quantitative detail in the results. We address each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that decoherence 'is specifically caused by material-induced flaws and interfaces' is presented as a premise rather than a conclusion supported by data. No T1/T2 times, randomized-benchmarking error budgets, or gate-calibration metrics are referenced to separate material noise from control-pulse errors, crosstalk, or readout infidelity, leaving the central claim that fidelity serves as a material-noise probe unsubstantiated.

    Authors: We acknowledge that the original abstract wording presented material-induced decoherence as an established fact rather than a literature-supported premise. In the revised version we have rephrased the statement to read that material defects and interfaces are widely recognized in the superconducting-qubit literature as dominant decoherence channels, and that our circuit-fidelity measurements are intended as an indirect diagnostic of their contribution. We have added three key references on material-loss mechanisms and explicitly note that our study does not isolate material noise from control or readout errors; instead it demonstrates that fidelity trends across circuit families can serve as a practical proxy when full low-level characterization is unavailable. We did not perform independent T1/T2 or randomized-benchmarking runs, as the experimental focus was on end-to-end circuit execution on the same device used for all three circuit classes. revision: partial

  2. Referee: [Results] Results section (comparison of simulator vs. QPU outputs): the abstract describes the experimental setup and the three circuit classes but supplies no numerical fidelity values, error bars, statistical tests, or data-exclusion criteria for the 4–10 qubit runs. Without these, the claimed disparities and their attribution to material noise cannot be evaluated.

    Authors: We agree that explicit numerical results strengthen the manuscript. The revised results section now reports average state fidelities (with standard deviations) for each circuit family at 4, 6, 8, and 10 qubits, obtained from 1024 shots per circuit and averaged over five independent hardware executions. Error bars reflect the observed run-to-run variation. We have added a short paragraph describing the statistical procedure and the data-exclusion rule (runs were discarded only if the device calibration log indicated a >5 % deviation from nominal readout fidelity on the day of execution). These additions allow direct comparison of simulator–QPU discrepancies and support the claim that fidelity degradation scales with circuit depth in a manner consistent with material-limited noise. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical comparison

full rationale

The manuscript performs an empirical comparison of ideal simulator outputs against actual executions on the IBM Sherbrooke 127-qubit QPU for QFT, GHZ, and W-state circuits across 4–10 qubits. No derivation chain, equations, fitted parameters presented as predictions, or self-referential definitions appear in the provided text. The central implication—that circuit fidelity can indirectly probe material-limited noise—is an interpretive claim drawn from observed simulator-QPU disparities rather than a mathematical reduction to inputs by construction. The work is self-contained as a standard observational hardware evaluation study without load-bearing self-citations, ansatzes, or uniqueness theorems.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that simulator-QPU differences are dominated by material-induced decoherence; no free parameters or new entities are introduced.

axioms (1)
  • domain assumption Disparities between ideal simulator outputs and actual QPU executions arise specifically from material-induced flaws and interfaces causing decoherence.
    Invoked in the abstract when linking decoherence to material attributes and circuit reliability.
