Smooth-Rigid-Body Contact as a ReLCP: A Recursively Generated Linear Complementarity Problem

Bryce Palmer , Hasan Metin Aktulga , Tong Gao This is my paper

Pith reviewed 2026-05-19 09:58 UTC · model grok-4.3

classification 💻 cs.RO cond-mat.softphysics.comp-ph
keywords rigid body contactlinear complementarity problemnonsmooth dynamicssmooth geometrytime steppingnonpenetrationstrict convexityadaptive constraints
0
0 comments X

The pith

Smooth rigid-body contact is recast as a recursively generated linear complementarity problem that adds constraints only when needed to stop penetration.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reformulates frictionless contact between smooth rigid bodies by beginning with one shared-normal signed-distance constraint and then generating additional unilateral constraints only when a trial velocity update would cause the smooth surfaces to interpenetrate. The resulting sequence of linear complementarity problems grows adaptively until nonpenetration is satisfied to a fixed tolerance. For strictly convex bodies and sufficiently small time steps, the process is proved to stop after finitely many steps and to produce a unique velocity. In the limit of vanishing time steps the recursion collapses back to the classical single-constraint formulation, preserving consistency with the underlying differential variational inequality. The approach therefore works directly on smooth geometry and avoids the rapid growth in constraint count that accompanies finer surface tessellations or multi-sphere proxies.

Core claim

Contact between smooth rigid bodies is expressed as a recursively generated linear complementarity problem. An initial single-constraint shared-normal signed-distance LCP is solved; if the resulting discrete-time velocity would violate nonpenetration of the underlying smooth surfaces, an additional unilateral constraint is appended and the LCP is resolved. This augmentation continues until every smooth-surface pair satisfies the overlap tolerance. When the bodies are strictly convex, the initial state is overlap-free, and the time step is small enough, the recursion terminates after a finite number of steps and the velocity update is unique. In the small-time-step limit the procedure reduces

What carries the argument

The recursively generated linear complementarity problem (ReLCP), which starts from a classical single-constraint SNSD LCP and adaptively augments the constraint set with new unilateral conditions whenever a predicted update violates smooth-surface nonpenetration.

If this is right

  • Nonpenetration is enforced directly on the smooth geometry to a user-specified tolerance without introducing discretization-induced surface roughness.
  • Active constraint counts remain far lower than those required by tessellated or multi-sphere proxy models as geometric fidelity increases.
  • Large time steps remain stable for colliding ellipsoids, compacting suspensions, and taut chainmail networks while still respecting the overlap tolerance.
  • In the small-time-step limit the method recovers the classical single-constraint SNSD LCP and its consistency properties with the continuous differential variational inequality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adaptive-augmentation idea could be tested on bodies whose curvature changes sign to see where the finite-termination guarantee fails.
  • Because the method works with any smooth surface representation that supplies a signed-distance query, it could be paired with implicit or level-set geometry without retessellation.
  • The reduction to a single LCP for tiny steps suggests that the extra computational work appears only when the time step is large relative to local curvature, offering a natural accuracy-cost tradeoff.

Load-bearing premise

The bodies are strictly convex, the initial configuration is overlap-free, and the time step is small enough that the recursive addition of constraints always stops after finitely many steps.

What would settle it

Execute the recursion on a pair of strictly convex ellipsoids with a deliberately large time step and check whether the number of added constraints grows without bound or whether the final velocity becomes non-unique.

Figures

Figures reproduced from arXiv: 2506.14097 by Bryce Palmer, Hasan Metin Aktulga, Tong Gao.

Figure 1
Figure 1. Figure 1: 2D depictions of collision constraints (solid red lines) generated by three approaches: (a) Single-constraint “deepest-point” method, [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Snapshots from a toy simulation of three spherocylinders capsules, initially overlapping, with their collision constraints shown in red. [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Temporal evolution of twp ellipsoids as they collide and subsequently slide past one another due to constant, equal-and-opposite external [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

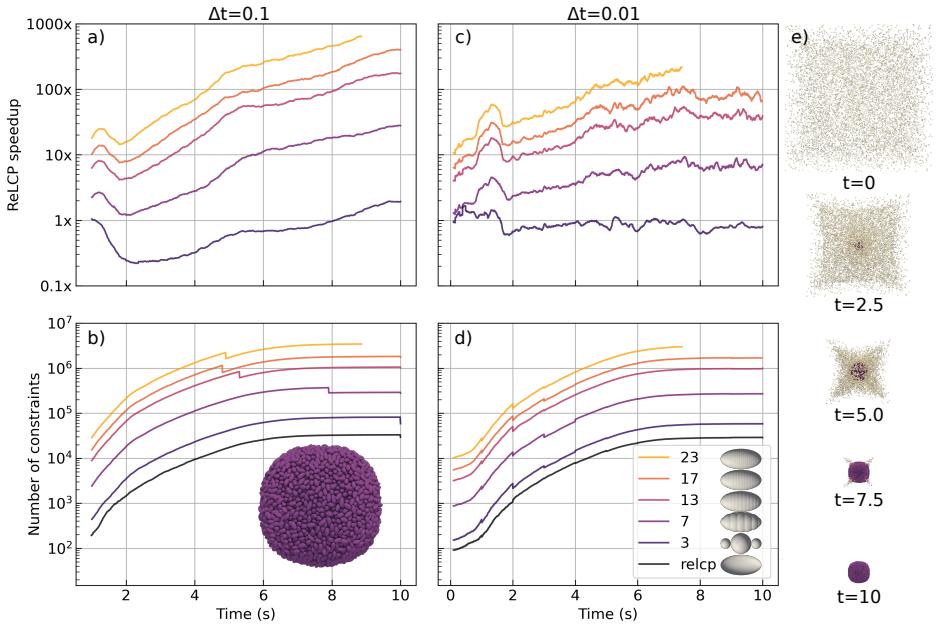

Figure 4. Figure 4: Performance comparison of ReLCP and multi-sphere (LCP–MS) collision resolution for a suspension of 10,000 ellipsoids (aspect ratio [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Growth simulation of a bacterial colony modeled as spherocylinders of length [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Simulation of a chainmail-like network composed of interlaced rigid rings arranged in a two-dimensional lattice and subject to a smooth [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
read the original abstract

This paper reformulates complementarity-based time-stepping for frictionless nonsmooth contact between smooth rigid bodies as a recursively generated linear complementarity problem (ReLCP), involving a sequence of LCPs of increasing dimension. Starting from a classical single-constraint shared-normal signed-distance (SNSD) LCP, the method adds unilateral constraints only when the discrete-time update predicted by the current contact set would violate nonpenetration of the underlying smooth surfaces. The resulting procedure acts directly on smooth geometry, enforces nonpenetration to a prescribed tolerance, and avoids the oversampling inherent to proxy-surface contact models such as tessellations or multi-sphere decompositions, for which improved geometric fidelity can drive rapid growth in constraint count and cost. For strictly convex bodies, we prove that an initially overlap free configuration with sufficiently small timestep sizes, imply finite termination of the adaptive augmentation, and yield a unique discrete-time velocity update. In the small timestep limit and for any fixed overlap-free discrete state with a fixed geometric overlap tolerance, we prove that the recursion terminates after the initial solve, reducing the method to the classical single-constraint SNSD LCP and retaining the usual consistency of complementarity time-stepping with the underlying differential variational inequality. Numerical tests on colliding ellipsoids, compacting ellipsoid suspensions, growing bacterial colonies, and taut chainmail networks demonstrate stable large-timestep behavior, bounded interpenetration without discretization-induced surface roughness, and substantial reductions in both active constraint counts and runtime relative to representative discrete-surface complementarity formulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper reformulates frictionless nonsmooth contact for smooth rigid bodies as a recursively generated linear complementarity problem (ReLCP). It starts from a single-constraint shared-normal signed-distance (SNSD) LCP and adaptively augments the constraint set only when a predicted discrete-time update would violate nonpenetration of the underlying smooth surfaces. For strictly convex bodies, the authors prove finite termination of the adaptive augmentation and uniqueness of the velocity update when the initial configuration is overlap-free and the timestep is sufficiently small; they further show that the recursion collapses to the classical single-constraint SNSD LCP in the small-timestep limit. Numerical demonstrations on colliding ellipsoids, compacting suspensions, bacterial colonies, and chainmail networks report stable large-timestep behavior, bounded interpenetration, and substantial reductions in active constraint count and runtime relative to discretized-surface baselines.

Significance. If the finite-termination and uniqueness results hold, the work supplies a theoretically grounded route to direct smooth-geometry contact that avoids both the geometric error of coarse proxies and the combinatorial cost of high-resolution tessellations or multi-sphere decompositions. The explicit reduction to standard SNSD LCP in the small-timestep regime preserves consistency with existing differential variational inequality theory, while the reported runtime and constraint-count gains on the four example suites indicate practical utility for robotics and multibody simulation.

major comments (1)
  1. [§3] §3 (Finite termination and uniqueness): the proofs establish finite augmentation and uniqueness only under an unquantified 'sufficiently small' timestep whose dependence on local curvature radii and the fixed geometric overlap tolerance is not made explicit. No scaling relation or computable bound for this threshold is supplied, nor is it verified that the timestep sizes used in the ellipsoid-collision and chainmail experiments lie below the implied dt*. This assumption is load-bearing for the central claims of finite termination and uniqueness.
minor comments (3)
  1. [§2.2] The abstract and §2.2 refer to 'geometric overlap tolerance' as a fixed parameter, yet no sensitivity study or recommended range relative to body size or curvature is provided.
  2. [Figures 4 and 6] Figure 4 (ellipsoid suspension) and Figure 6 (chainmail) would benefit from an additional panel showing the evolution of active constraint count versus time for both ReLCP and the baseline discrete-surface method.
  3. [§2.1] Notation: the distinction between the continuous-time signed-distance function and its discrete-time counterpart is introduced in §2.1 but reused without redefinition in the proof of the small-timestep limit; a brief reminder would improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive criticism. We address the single major comment point by point below, with an honest assessment of what can be strengthened in revision.

read point-by-point responses

  1. Referee: [§3] §3 (Finite termination and uniqueness): the proofs establish finite augmentation and uniqueness only under an unquantified 'sufficiently small' timestep whose dependence on local curvature radii and the fixed geometric overlap tolerance is not made explicit. No scaling relation or computable bound for this threshold is supplied, nor is it verified that the timestep sizes used in the ellipsoid-collision and chainmail experiments lie below the implied dt*. This assumption is load-bearing for the central claims of finite termination and uniqueness.

    Authors: We agree that the proofs in §3 rely on a 'sufficiently small' timestep without an explicit quantitative bound or scaling law expressed in terms of local curvature radii and the geometric overlap tolerance. Deriving a sharp, computable threshold is nontrivial because it depends on local Lipschitz constants of the signed-distance functions, which are geometry-specific and not uniformly controlled for arbitrary strictly convex bodies. In the revised manuscript we will insert a clarifying paragraph in §3 that (i) states the qualitative scaling (the admissible timestep shrinks with smaller minimum radius of curvature and with tighter overlap tolerance), (ii) explains why a uniform a-priori bound is difficult to obtain without additional assumptions on the bodies, and (iii) reports that all numerical examples (ellipsoid collisions and chainmail) terminated after a single augmentation step with observed interpenetration strictly below the prescribed tolerance, thereby satisfying the small-timestep hypothesis in practice. We do not claim to supply a closed-form computable dt* for arbitrary geometries. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained via new recursive construction and direct proofs.

full rationale

The paper defines the ReLCP as a sequence of LCPs that augments constraints only upon predicted violation of the smooth nonpenetration condition. Finite termination and uniqueness for strictly convex bodies are claimed via direct argument from the recursion, initial overlap-free state, and sufficiently small dt; the small-dt reduction to single-constraint SNSD LCP is shown by explicit termination after the initial solve rather than by re-using the target result. No self-definitional loops, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain. The central claims rest on the novel adaptive procedure and standard LCP theory applied to the new formulation, remaining independent of the results being proved.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The method introduces the ReLCP construction and relies on domain assumptions about convexity and timestep size; no new physical entities are postulated.

free parameters (1)
  • geometric overlap tolerance
    Prescribed tolerance used to decide when to add new unilateral constraints; appears as a user-chosen parameter controlling nonpenetration enforcement.
axioms (2)
  • domain assumption Bodies are strictly convex
    Invoked for the finite-termination and uniqueness proofs stated in the abstract.
  • domain assumption Initial configuration is overlap-free
    Required for the termination guarantee under small timesteps.
