Capturing Fine-Grained Alignments Improves 3D Affordance Detection

T0 review · 3 major / 3 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read LM-AD routes the affordance word through BERT with cross-attention over point-cloud features, reporting 41.98 mIoU full-shape and 35.26 partial-view on 3D AffordanceNet.

desk verdict A sensible Flamingo-style transplant to 3D affordance detection with large reported gains, but the ablation evidence does not yet isolate what causes the improvement. read the letter →

arxiv 2506.19312 v1 pith:WPGRLQF7 submitted 2025-06-24 cs.CV cs.AI

Junsei Tokumitsu , Yuiga Wada This is my paper · ORCID
classification cs.CVcs.AI
keywords 3Daffordancedetectionpointcloudopen-vocabularyvision-languagealignmentcross-attentionpretrainedlanguagemodelQueryModuleNet
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper is trying to establish that the bottleneck in 3D affordance detection is the way point clouds and text are aligned, and that replacing cosine-similarity scoring with learned cross-modal attention fixes it. The proposed method, LM-AD, takes a pretrained language model and inserts cross-attention layers so the text tokens repeatedly attend to point-cloud features; the resulting representation is decoded per point. On 3D AffordanceNet, the authors report mIoU of 41.98 for full-shape and 35.26 for partial-view inputs, roughly doubling the best previous results, with a 22.60-point ablation gap when the new module is replaced by plain cross-attention. If the claim is right, robots that use language to find object parts can get reliable point-level targets from an object's geometry alone.

What carries the argument

The Affordance Query Module (AQM) is a stack of blocks built on BERT, a pretrained bidirectional Transformer language model. Inside each of BERT's 12 layers, a cross-attention layer is inserted between self-attention and the feed-forward network, with the text tokens serving as queries and point-cloud features (PointNet++ output after a 1-D convolution and batch norm) serving as keys and values. Each block produces a text representation that has looked at the point cloud, and the final block's output is decoded by another cross-attention layer, where the point features query the aligned text features, followed by an MLP. This repeatedly fuses the two modalities instead of scoring them with a single cosine similarity.

What would settle it

Train the identical LM-AD pipeline with the AQM's 12 inserted cross-attention layers replaced by 12 plain cross-attention layers of matched width, parameter count, learning-rate schedule, and random seeds, and compare mIoU distributions over at least five seeds; if a plain baseline reaches or exceeds 41.98 mIoU on the full-shape split, the paper's attribution of the gain to AQM's LM-specific fusion is refuted.

Watch

Extended reading notes

Core claim

The paper's central claim is that a point-cloud affordance detector should not stop at a single cosine-similarity score between a text embedding and point embeddings. Instead, the text should be processed by a pretrained language model whose layers include cross-attention over the point cloud, so that each text token can interrogate local geometry and the final text features carry fine-grained alignment. LM-AD (Language Model-guided Affordance Detection) implements this with 12 BERT layers, each augmented with cross-attention over PointNet++ features, and reports mIoU of 41.98 on full-shape and 35.26 on partial-view 3D AffordanceNet, with accuracy 68.60/62.65 and mean accuracy 68.89/59.09. The paper also reports that swapping AQM for plain cross-attention drops full-shape mIoU to 19.38, and it presents this gap as evidence that the LM-based fusion is what drives the improvement.

Load-bearing premise

The main result depends on the assumption that the comparison to 'simple cross-attention' controls for everything except the AQM's design, so the measured 22.60-point mIoU gap is caused by fine-grained LM alignment rather than capacity, training schedule, or chance.

Editorial extensions

If this is right

  • Full-shape mIoU on 3D AffordanceNet goes from 22.33 with OpenAD-KD to 41.98 with LM-AD, and partial-view mIoU from 20.48 to 35.26.
  • Replacing AQM with plain cross-attention drops full-shape mIoU to 19.38, which the paper reads as evidence that the LM-based fusion module is responsible for most of the improvement.
  • Accuracy reaches 68.60 full-shape and 62.65 partial-view, compared with the below-50% accuracy the paper cites for prior point-cloud methods, so the gain is not limited to the IoU metric.
  • Both full-shape and partial-view tasks improve, and the paper highlights partial-view inputs as the realistic setting for a robot observing an object from limited viewpoints.
  • Because the text input is assumed to be a single word following prior work, the architecture itself is compatible with longer text and could be evaluated on multi-word affordance descriptions without structural changes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If AQM's alignment pattern is the cause of the gain, the same 'text queries, geometry keys/values' insertion should transfer to other open-vocabulary 3D grounding tasks, such as language-driven part segmentation.
  • The paper restricts text to a single affordance word, so the module's capacity for compositional or multi-word instructions remains untested; that is a natural next experiment.
  • A matched-parameter, multi-seed replication would determine whether the 22.60-point ablation gap comes from fine-grained alignment or from added model capacity, since the current comparison does not control for those factors.
  • The reuse of a frozen language model as a fusion engine suggests that expensive cross-modal training may not be needed for point-level language grounding, which could lower the cost of robotics perception systems.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 3 minor

Summary. The paper proposes LM-AD, a method for 3D point-cloud affordance detection built from a PointNet++ point encoder and a pretrained BERT text encoder. The core module, AQM, inserts a cross-attention layer into each BERT layer so that text hidden states attend to point-cloud features, followed by a final cross-attention from point-cloud features to the aligned text representation (Eqs. 1-3). Experiments on 3D AffordanceNet report large improvements over OpenAD and OpenAD-KD in mIoU, Acc, and mAcc for both full-shape and partial-view tasks (Table 1), and a two-row ablation (Table 2) credits AQM with a 22.60 mIoU improvement over a "simple cross-attention" baseline. The paper's central claim is that capturing fine-grained multimodal alignment is what drives these gains.

Significance. If the Table 1 results are reproducible, LM-AD would constitute a substantial empirical advance on a standard benchmark, roughly doubling the mIoU of the previous best method on the full-shape task. The architecture is simple and plausible, and Equations 1-3 describe a coherent forward pass. The evaluation uses an external benchmark with train/validation/test splits rather than a self-constructed setting, so the main comparison is not circular. However, the evidence for the mechanistic claim is currently thin: the ablation baseline is underspecified, no seed variance or confidence intervals are reported, and no code or hyperparameters are provided. These deficiencies make it difficult to determine whether the reported gains are due to the proposed alignment mechanism, to the pretrained language model, or to uncontrolled experimental factors.

major comments (3)
  1. [Section 5.3, Table 2] The ablation does not isolate the mechanism claimed in the title. Method (i) is described only as "simple cross-attention layers" with "the number of layers unchanged"; the text never states whether this baseline uses BERT, whether BERT is frozen or fine-tuned, how many parameters it has, or how it is trained. If method (i) drops BERT, the 22.60 mIoU gap conflates the pretrained LM's capacity and linguistic priors with AQM's interleaved cross-attention. If method (i) retains BERT, the comparison still varies the fusion architecture jointly with unspecified training choices. A control that keeps BERT fixed and varies only the alignment structure (e.g., one cross-attention at the output versus interleaved cross-attention in each layer) is needed to support the central claim.
  2. [Section 5.1-5.2, Table 1] The comparison with baselines is not fully controlled as reported. The paper does not state whether the OpenAD, OpenAD-KD, and ZSLPC numbers in Table 1 were re-run under the same 70/10/20 split, point sampling, and training schedule, or whether they are quoted from the original papers. If the numbers are quoted, differences in data preprocessing or evaluation protocol could affect the comparison. The authors should report the exact protocol for every method in Table 1, or re-evaluate all baselines in their own framework.
  3. [Section 5.1] No experimental configuration is reported: learning rate, batch size, optimizer, number of epochs, number of input points N, maximum token length L, point-cloud normalization, and BERT fine-tuning strategy are all omitted. No multiple-seed results or confidence intervals are given for any table entry. For an empirical paper whose contribution is a performance claim, these details are necessary for verification and for assessing whether the large margins are stable.
minor comments (3)
  1. [Section 4.2, Eq. (2)] Please define the input to the next AQM block explicitly (e.g., x^(i+1) = g^(i)) and state where residual connections and layer norms are applied; as written, the recursive definition of the block is incomplete.
  2. [Section 2.3, Ref. [18]] Reference [18] is cited as the source for BLIP-2, but the BLIP-2 paper appears to be reference [71] (Li et al.); please correct the citation and verify whether the bibliographic entry "InstructBLIP 2" is accurate.
  3. [Section 3] The notation x_txt ∈ {1,0}^{V×L} suggests a one-hot sequence; it would be clearer to say that the input is a token sequence of length L over a vocabulary of size V, since the actual input to BERT is token ids rather than one-hot vectors.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: LM-AD is an empirical benchmark comparison; the ablation confound is an experimental-control issue, not a definitional reduction.

full rationale

The paper contains no claimed derivation of a prediction from a fitted input. LM-AD is evaluated on the external 3D AffordanceNet benchmark with standard 70/10/20 splits, and the main results (Table 1) are measured mIoU, Acc, and mAcc against published baselines. The ablation in Section 5.3 compares AQM (method ii) with "simple cross-attention layers" (method i) while keeping the number of layers unchanged; even if this baseline is underspecified and may conflate the pretrained BERT backbone with the alignment mechanism, that is a limitation of the experimental control, not a circularity. The reported 22.60 mIoU gap is an empirical difference, not a quantity that equals its own input by construction. BERT is invoked as an external pretrained model, and BLIP-2 and Flamingo are cited as prior inspiration rather than as load-bearing uniqueness theorems or self-citations from the present authors. No fitted parameter is renamed as a prediction, no result is forced by a self-citation chain, and the method is benchmarked against an external dataset, so the derivation chain is self-contained. The circularity score is therefore 0.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new entities and no explicit free constants, but it leaves several design choices (training recipe, cross-attention width, sampling) unreported. The main axiomatic load is the transferability of BERT to point cloud conditioning and the validity of the evaluation protocol.

free parameters (3)
  • Training hyperparameters (unreported)
    Learning rate, batch size, optimizer, number of epochs, point cloud sampling size, and random seed are omitted (Section 5.1); the reported test numbers depend on these hand-chosen settings.
  • AQM cross-attention configuration (unreported)
    Head count, hidden dimension, and dropout for the inserted cross-attention layers are not specified (Section 4.2); these capacity choices affect the measured performance.
  • Maximum token length and point count (unreported)
    The input text is treated as a single word but the tokenizer's maximum length L and the number of points N are not given (Section 3), even though they influence the alignment quality.
assumptions (4)
  • domain assumption A pretrained LM with inserted cross-attention can transfer its linguistic priors to condition on 3D point cloud features.
    Invoked in Section 4.2; the paper only tests the full AQM, never whether pretraining or LM scale is necessary, so this is an unvalidated transfer assumption.
  • domain assumption The 70/10/20 split by shape semantic category is a valid zero-shot protocol comparable to prior baselines.
    Stated in Section 5.1; if the split or class assignment procedure differs from the baseline papers, the comparisons in Table 1 would be invalid.
  • domain assumption Standard optimization with cross-entropy loss will train the inserted modules without breaking BERT's useful representations.
    The training is a single-stage cross-entropy optimization (Sections 4.3 and 5.1); stability across seeds or checkpoints is not reported, so this assumption is unverified.
  • domain assumption PointNet++ is a sufficient point cloud encoder for affordance detection.
    Section 4.1 adopts PointNet++ because it is standard in the field; no comparison with other encoders is provided, but the central claim depends on this choice.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Capturing Fine-Grained Alignments Improves 3D Affordance Detection." pith.science (2026). https://pith.science/paper/WPGRLQF7

@misc{pith2026250619312,
  author       = {Pith},
  title        = {Pith review of: Capturing Fine-Grained Alignments Improves 3D Affordance Detection},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WPGRLQF7}},
  note         = {Machine review of arXiv:2506.19312}
}
read the original abstract

In this work, we address the challenge of affordance detection in 3D point clouds, a task that requires effectively capturing fine-grained alignments between point clouds and text. Existing methods often struggle to model such alignments, resulting in limited performance on standard benchmarks. A key limitation of these approaches is their reliance on simple cosine similarity between point cloud and text embeddings, which lacks the expressiveness needed for fine-grained reasoning. To address this limitation, we propose LM-AD, a novel method for affordance detection in 3D point clouds. Moreover, we introduce the Affordance Query Module (AQM), which efficiently captures fine-grained alignment between point clouds and text by leveraging a pretrained language model. We demonstrated that our method outperformed existing approaches in terms of accuracy and mean Intersection over Union on the 3D AffordanceNet dataset.

Figures

Figures reproduced from arXiv: 2506.19312 by the authors.

Figure 1
Figure 1. Overview of the proposed LM-AD and Affordance Query Module (AQM). transformation step to be used in downstream robotics tasks, as 2D predictions must be converted into 3D representations using depth information [10, 11]. Since this conversion cannot always be performed with high quality, the additional step may lead to suboptimal performance in real-world scenarios. Therefore, point￾cloud-based affordance detection … view at source ↗
Figure 2

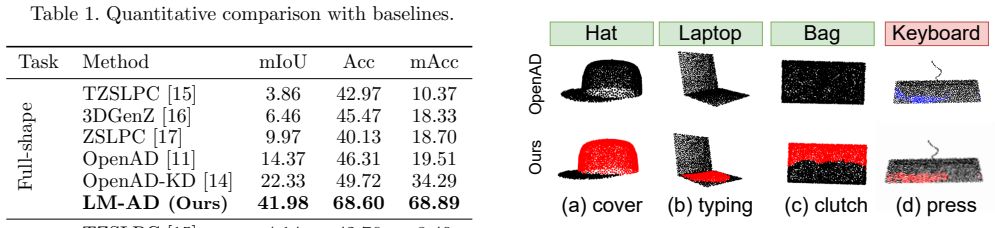

Figure 2. shows qualitative results of our proposed method. Cases (a), (b), and (c) illustrate successful ex￾amples, while Case (d) presents a failure case. In Case (a), our method successfully detected the “cover” affor￾dance from a hat. This was particularly challenging be￾cause it was a zero-shot setting. While OpenAD failed to predict the affordance correctly in this instance, our method produced an appropriate prediction… view at source ↗
