Global and Local Contrastive Learning for Joint Representations from Cardiac MRI and ECG

T0 review · 3 major / 6 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read PTACL adds a parameter-free local temporal contrastive loss to global ECG-CMR alignment, improving phenotype retrieval and regression from ECG.

desk verdict PTACL adds a parameter-free local temporal alignment to ECG-CMR contrastive learning, with small real gains, but overclaims 'all phenotypes' and lacks an ablation showing the physiological correspondence matters. read the letter →

arxiv 2506.20683 v1 pith:XXS5WQL2 submitted 2025-06-24 eess.IV cs.AIcs.CVeess.SP

Alexander Selivanov , Philip Müller , Özgün Turgut , Nil Stolt-Ansó , Daniel Rückert This is my paper · ORCID
classification eess.IVcs.AIcs.CVeess.SP
keywords contrastivelearningECGcardiacMRImultimodalrepresentationtemporalalignmentmaskedautoencoderpatientretrievalphenotyperegression
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that ECG embeddings can be made to carry functional cardiac information that a resting ECG does not measure directly, if they are trained against paired cardiac MRI (CMR) at two levels at once: the whole patient and the individual time point. The proposed method, PTACL (Patient and Temporal Alignment Contrastive Learning), keeps the standard global contrastive pull between a patient's ECG and CMR representations and adds a local contrastive loss that aligns ECG heartbeat segments with CMR frames at the same cardiac phase. The local loss is parameter-free, so any gain comes from the training signal rather than extra model capacity. Across 27,951 subjects with paired ECG-CMR data, PTACL improves retrieval of patients with similar CMR-derived phenotypes and raises linear-probing $R^2$ for left-ventricular end-diastolic volume from 0.507 to 0.514. If these results hold, a cheap and widely available ECG could transfer a meaningful share of expensive CMR functional assessment, although training still requires paired data.

What carries the argument

The load-bearing object is the local temporal contrastive loss between ECG-derived segments and CMR frames, paired with the R-peak-based alignment that creates the correspondence. ECG tokens between consecutive R peaks are extracted per heartbeat, interpolated to a fixed length $T$, and averaged across heartbeats, while CMR local embeddings average spatial tokens within each temporal frame. The local loss uses the alignment matrix $P_{k,t}$, which is one-to-one when $\sigma=0$ and Gaussian-smoothed when $\sigma>0$, inside a symmetric contrastive objective over segments and frames. This loss introduces no new learnable weights, so any improvement it produces must come from reshaping the existing encoders' representations rather than from additional capacity. It also supplies the temporal structure that global average pooling discards, which is the missing signal the paper identifies in earlier ECG-CMR contrastive methods.

What would settle it

Train PTACL on the same paired data but with the ECG-to-CMR segment correspondence randomly permuted, or shifted by a fixed phase, while keeping all other settings fixed. If retrieval and regression $R^2$ stay at the same level as with the true alignment, the physiological correspondence is not what drives the reported gains; if performance drops, the temporal alignment is doing real work.

Watch

Extended reading notes

Core claim

The central claim is that fine-grained temporal alignment between ECG and CMR is an effective, learnable-parameter-free way to transfer cardiac functional information into ECG representations. PTACL pre-trains separate masked-autoencoder encoders on each modality, then jointly trains them with a total loss $L = L_{\text{global}} + \beta L_{\text{local}}$. The global term is a standard cross-modal contrastive loss of the InfoNCE form applied to pooled patient-level embeddings. The local term contrasts each of $T$ ECG time segments, extracted between detected R peaks and interpolated to a fixed length, against the corresponding CMR frame using an alignment matrix $P_{k,t}$ that is either hard ($\sigma=0$) or Gaussian-soft, following a supervised-contrastive formulation. The authors report that adding this local loss improves retrieval precision and ranking across all ten tested CMR-derived phenotypes and improves linear-probing regression $R^2$ for every phenotype, with LVEDV rising from 0.507 to 0.514 and to 0.544 after fine-tuning.

Load-bearing premise

The method assumes that the detected R peaks and the interpolation map ECG time segments onto CMR frames at the same true cardiac phase; if arrhythmia, heart-rate drift, or gating errors break that correspondence, the local contrastive loss aligns unrelated moments.

Editorial extensions

If this is right

  • PTACL improves retrieval precision and ranking across all ten CMR-derived phenotypes; for example, LVEDV P@1 rises from 0.492 to 0.510.
  • Adding the local loss improves linear-probing $R^2$ for every phenotype, with LVEDV going from 0.507 to 0.514 and to 0.544 after fine-tuning.
  • These gains come without additional learnable parameters, so the improvement is attributable to the training signal rather than model capacity.
  • A single middle short-axis CMR slice suffices to enrich ECG representations, reducing the imaging burden needed for multimodal pre-training.
  • The pre-trained ECG encoder can be used downstream for patient stratification and as a non-invasive proxy for cardiac function parameters.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable implication is that PTACL's gains should shrink on arrhythmic subgroups, because R-peak gating is the source of the temporal correspondence; splitting the test set by arrhythmia burden would test this.
  • The same local-contrastive recipe should transfer to other paired physiological recordings, such as echocardiography with ECG, since the loss itself is modality-agnostic.
  • The hard ($\sigma=0$) versus soft ($\sigma>0$) alignment choice is a controllable trade-off; per-phenotype tuning of $\sigma$ could yield further gains.
  • The result suggests that temporal correspondence, not just shared patient identity, is what lets one modality teach another, which would extend to any paired time series and imaging sequence.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript proposes PTACL, a self-supervised multimodal contrastive learning framework that combines a global patient-level contrastive loss with a local temporal-alignment contrastive loss to align ECG and CMR embeddings. ECG and CMR encoders are first pre-trained separately with masked autoencoders; the local loss uses ECG R-peak gating to align interpolated single-heartbeat ECG tokens with CMR frames at matched cardiac phase. The method is evaluated on 27,951 UK Biobank subjects for retrieval of patients with similar cardiac phenotypes and for regression of ten CMR-derived cardiac parameters. The authors report that PTACL improves over a global-only baseline without adding learnable parameters, using only a single middle short-axis CMR slice.

Significance. If the central claim holds, the paper demonstrates a practically useful transfer of CMR-derived cardiac functional information into ECG representations, with no additional learnable parameters and with a relatively simple self-supervised objective. Strengths of the work include the large paired dataset, a self-supervised training setup that does not leak downstream labels into the ECG representation, public code release, and comparisons with several established baselines. The main weakness is that the evidence for the causal role of temporal alignment is incomplete: the gains over the global-only baseline are small, several reported metrics are flat or slightly worse, and no ablation isolates whether the physiological phase correspondence, rather than merely the extra intra-patient contrastive signal, is responsible for the improvements.

major comments (3)
  1. [Abstract; Table 1 caption; Table 2] The claim that PTACL 'achieves better performance' and that the local loss 'consistently improves patient retrieval' is contradicted by the reported numbers. In Table 2, linear-probing R2 for LVEF LV drops from 0.258 (Global3 LP) to 0.255 (PTACL3 LP), and in Table 1 several metrics do not improve (e.g., P@5 EDVLV 0.445 vs. 0.444, P@5 EF LV 0.378 vs. 0.377, P@15 SV LV 0.380 vs. 0.377). Since the Table 2 footnote reports standard deviations only as 'not shown and in ~0.001–0.002' and Table 1 has no error bars, the differences driving the headline claims are within or near the noise level. Please weaken the 'consistently improves' wording and provide confidence intervals or significance tests for the key comparisons.
  2. [Section 3.2, Eqs. (2)-(3)] The central mechanism is the phase correspondence encoded by the alignment matrix P_{k,t}, but no experiment verifies that the improvements depend on this correspondence being correct. The local loss in Eq. (3) adds many within-patient positive and negative pairs even if the alignment matrix is arbitrary; a shuffled, constant, or shifted P_{k,t} could in principle produce the same small gains by forcing ECG tokens to be temporally discriminative. Please add an ablation that permutes or shifts the alignment matrix, or replaces it with a fixed non-physiological mapping, and report the retrieval and regression metrics for each variant. This is necessary to support the conclusion that local temporal alignment, rather than any auxiliary contrastive signal, transfers CMR information to ECG.
  3. [Section 4.1, Table 1] The retrieval evaluation reports a single run for each metric without standard deviations, confidence intervals, or significance tests. Given that the reported improvements are small (e.g., P@1 EDVLV 0.510 vs. 0.492, P@1 SVLV 0.472 vs. 0.458), these differences could easily arise from training stochasticity. Please report mean and standard deviation over multiple seeds, or bootstrap confidence intervals, for both retrieval and regression results so that the reader can assess whether the observed gains are statistically reliable.
minor comments (6)
  1. [Table 2 footnotes] The abbreviation 'w/ I phase of SMP' is unclear and appears to be a typo; please clarify whether it means 'with one phase of single modality pre-training' and use a consistent notation.
  2. [Eq. (2)] The normalization condition 'PT t=1Pk,t = 1' should be written as sum_{t=1}^T P_{k,t} = 1, and the symbol δ_{k,t} should be explicitly defined as a Kronecker delta for the σ = 0 case.
  3. [Section 3.2] The text calls the local alignment 'parameter-free', but the full objective still depends on hyperparameters β, σ, τ, and T; please state this more precisely to avoid overclaiming.
  4. [Section 4.2, Table 2] The acronyms LP, FN, and FN+AP are used without full definitions; please define 'linear probing', 'fine-tuning', and 'attention pooling' at first use.
  5. [Section 3.2] The notation for ECG local embeddings uses the index k while CMR local embeddings use t, but the text sometimes refers to 'time segments' and 'frames' interchangeably; please define all indices consistently.
  6. [Table 1] The Δ/□ formatting in Table 1 is visually confusing because the global and local symbols are embedded in the numeric cells; consider presenting the two models in separate columns or rows.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the PTACL improvement is an empirical ablation on held-out data, not an input redefined as a prediction.

full rationale

The paper's central claim is that adding a parameter-free local temporal contrastive loss (Eq. 3) to a global patient-level contrastive loss (Eq. 1) improves ECG representations for retrieval of similar CMR-derived phenotypes and regression of cardiac function parameters. This claim is evaluated on held-out patients in Sections 4.1 and 4.2, with linear probing and fine-tuning performed after training. No downstream label or phenotype value is used during pre-training; the contrastive losses are defined purely on paired ECG-CMR data from the same patient. The hyperparameters (beta, sigma, tau) are fixed constants, not fitted to the downstream targets. The local alignment in Eq. 2 is constructed from R-peak gating and temporal distance, which is a physiological prior rather than a fitted mapping. The comparison between the Global model and PTACL is an ablation of the paper's own components, and the reported gains, while small, are empirical results rather than identities. Several cited works are from the same research group (e.g., [14], [25], [33]), but they appear as related work or baselines; the central claim does not rest on any self-cited uniqueness theorem or externally imported ansatz. Therefore, no step in the derivation reduces to its own inputs by construction, and no fitted parameter is renamed as a prediction.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central claim rests on a small set of tunable hyperparameters and on the physiological plausibility of ECG-gated temporal alignment. No new physical entities or forces are introduced. The main load-bearing assumption is the temporal correspondence between ECG heartbeat segments and CMR frames.

free parameters (4)
  • beta (local loss weight) = 1.0
    Relative weight of local to global contrastive loss in Eq. 4; chosen by hand, controls the contribution of the central new loss term.
  • sigma (alignment width) = 0.1 for regression, 0.0 for retrieval
    Controls soft vs hard temporal alignment in Eq. 2; selected separately per downstream task.
  • temperature tau (global/local) = 0.1/1.0 for regression, 0.07/0.07 for retrieval
    InfoNCE temperature parameters in global and local losses; tuned per task and affect the contrastive objective.
  • T (number of temporal tokens) = 13
    Fixed number of ECG segments and CMR frames used for local alignment; arbitrary standardization of heartbeat length.
assumptions (4)
  • domain assumption ECG R-peak gating provides a meaningful temporal correspondence between ECG segments and CMR frames at the same cardiac phase.
    Section 3.2 states CMR acquisition is ECG-gated and motivates the local contrastive loss; if false, the local alignment target is meaningless.
  • domain assumption A single middle short-axis CMR slice contains sufficient spatio-temporal information to transfer cardiac function to ECG.
    The method uses only one short-axis slice, while downstream phenotypes are whole-heart measures; this assumes the slice is informative enough.
  • domain assumption ECG heartbeat segmentation by R-peaks and interpolation to T=13 tokens preserves cardiac-phase structure across patients.
    Section 3.2: variable-length heartbeat sequences are interpolated to fixed length T; arrhythmic or noisy beats would violate this.
  • standard math Standard deep learning building blocks (transformer, InfoNCE, MAE) work as expected for ECG and CMR.
    Relies on established architectures and losses from refs [3,7,17].

how reviews work

0 comments
Cite this review

Pith. "Pith review of Global and Local Contrastive Learning for Joint Representations from Cardiac MRI and ECG." pith.science (2026). https://pith.science/paper/XXS5WQL2

@misc{pith2026250620683,
  author       = {Pith},
  title        = {Pith review of: Global and Local Contrastive Learning for Joint Representations from Cardiac MRI and ECG},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XXS5WQL2}},
  note         = {Machine review of arXiv:2506.20683}
}
read the original abstract

An electrocardiogram (ECG) is a widely used, cost-effective tool for detecting electrical abnormalities in the heart. However, it cannot directly measure functional parameters, such as ventricular volumes and ejection fraction, which are crucial for assessing cardiac function. Cardiac magnetic resonance (CMR) is the gold standard for these measurements, providing detailed structural and functional insights, but is expensive and less accessible. To bridge this gap, we propose PTACL (Patient and Temporal Alignment Contrastive Learning), a multimodal contrastive learning framework that enhances ECG representations by integrating spatio-temporal information from CMR. PTACL uses global patient-level contrastive loss and local temporal-level contrastive loss. The global loss aligns patient-level representations by pulling ECG and CMR embeddings from the same patient closer together, while pushing apart embeddings from different patients. Local loss enforces fine-grained temporal alignment within each patient by contrasting encoded ECG segments with corresponding encoded CMR frames. This approach enriches ECG representations with diagnostic information beyond electrical activity and transfers more insights between modalities than global alignment alone, all without introducing new learnable weights. We evaluate PTACL on paired ECG-CMR data from 27,951 subjects in the UK Biobank. Compared to baseline approaches, PTACL achieves better performance in two clinically relevant tasks: (1) retrieving patients with similar cardiac phenotypes and (2) predicting CMR-derived cardiac function parameters, such as ventricular volumes and ejection fraction. Our results highlight the potential of PTACL to enhance non-invasive cardiac diagnostics using ECG. The code is available at: https://github.com/alsalivan/ecgcmr

Figures

Figures reproduced from arXiv: 2506.20683 by the authors.

Figure 1

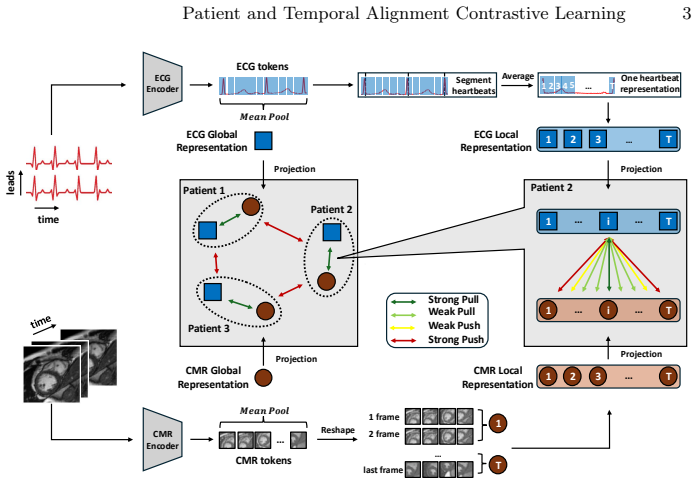

Figure 1. Overview of PTACL. We train a multimodal model on pairs of ECG and CMR using a combination of a global contrastive loss (left square) and a local contrastive loss (right square). The global loss aligns patient-level ECG and CMR embeddings by pulling representations from the same patient closer together while pushing apart those from different patients. The local loss enforces fine-grained temporal alignment by contr… view at source ↗
Figure 2
Figure 2. Impact of local contrastive loss on temporal alignment between time steps from both modalities computed during inference. The left side, using only global contrastive learning, shows no clear temporal correspondence between modalities. The right side demonstrates the effect of adding local contrastive loss (PTACL), leading to improved alignment. For σ = 0, the model enforces strict one-to-one time step matching, whi… view at source ↗
