arxiv: 2506.22397 · v6 · submitted 2025-06-27 · 📡 eess.IV · cs.AI· cs.CV

HazeMatching: Dehazing Light Microscopy Images with Guided Conditional Flow Matching

Pith reviewed 2026-05-19 07:42 UTC · model grok-4.3

classification 📡 eess.IV cs.AIcs.CV
keywords dehazingflow matchingmicroscopy image restorationconditional generative modelsfluorescence microscopyperception-distortion trade-offimage calibration
0
0 comments X

The pith

HazeMatching guides conditional flow matching with hazy observations to dehaze microscopy images while balancing fidelity and realism.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents HazeMatching as a method to computationally remove haze from widefield fluorescence microscopy images, aiming to produce results that match the clarity of confocal images. It adapts the conditional flow matching framework so that the generative velocity field is directly guided by the input hazy image, rather than relying on a separate model of the degradation process. This design choice targets the perception-distortion trade-off by producing outputs that score well on both quantitative fidelity metrics like PSNR and perceptual metrics like LPIPS and FID. The method is tested on five datasets that include both synthetic haze and real microscopy data, outperforming twelve baselines in achieving an average balance across these objectives. It additionally demonstrates well-calibrated uncertainty estimates and works directly on real data where no explicit degradation operator is known.

Core claim

HazeMatching achieves a consistent balance between fidelity and realism on average across five datasets while producing well-calibrated predictions and without requiring an explicit degradation operator.

What carries the argument

The conditional velocity field in the flow matching process, steered directly by the hazy observation to generate the clean image.

If this is right

  • Dehazing becomes practical on real widefield data because no explicit forward degradation model is needed.
  • Outputs are well-calibrated, supporting downstream tasks that rely on uncertainty quantification.
  • The same guided flow-matching structure can be reused for other image restoration problems that lack known degradation operators.
  • Average performance across distortion and perceptual metrics improves over methods that optimize only one objective.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach might generalize to other modalities such as electron microscopy or medical imaging where similar out-of-focus effects occur.
  • Calibration properties could be leveraged for ensemble methods or active learning in high-throughput screening pipelines.
  • Varying the strength of the hazy observation guidance during sampling could produce controllable trade-offs for different scientific use cases.

Load-bearing premise

Guiding the conditional velocity field directly with the hazy observation is sufficient to produce both high-fidelity and perceptually realistic outputs without introducing bias or mode collapse.

What would settle it

A new microscopy dataset with paired hazy and ground-truth clean images where HazeMatching shows either large drops in PSNR relative to fidelity-focused baselines or poor calibration scores on held-out uncertainty estimates.

Figures

Figures reproduced from arXiv: 2506.22397 by Anirban Ray, Ashesh Ashesh, Florian Jug.

Figure 1

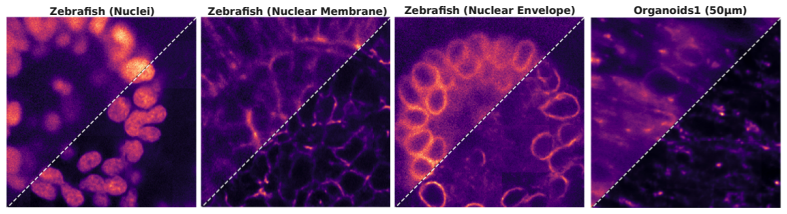

Figure 1. Figure 1: Teaser: Our method, HAZEMATCHING, proposes a way to utilize Conditional Flow Matching to remove out-of-focus light (haze) from biomedical microscopy data. Here, we ask the question to what degree can we replace the optical ingenuity of confocal microscopes by purely computational means. If a body of hazy widefield microscopy images is given to us, can we devise a method that can solve the inverse task of p… view at source ↗
Figure 2
Figure 2. Figure 2: Data fidelity vs. realism. Each row corresponds to one dataset, i.e. Zebrafish (top), Organoids1 (middle), and Organoids2 (bottom). For each dataset, we show PSNR vs. LPIPS (left) and PSNR vs. FID (center), capturing the trade-off between pixel-level fidelity and perceptual quality. Our goal is to find a method that leads to high fidelity (high PSNR) while also leading to realistic looking predictions (low… view at source ↗
Figure 3

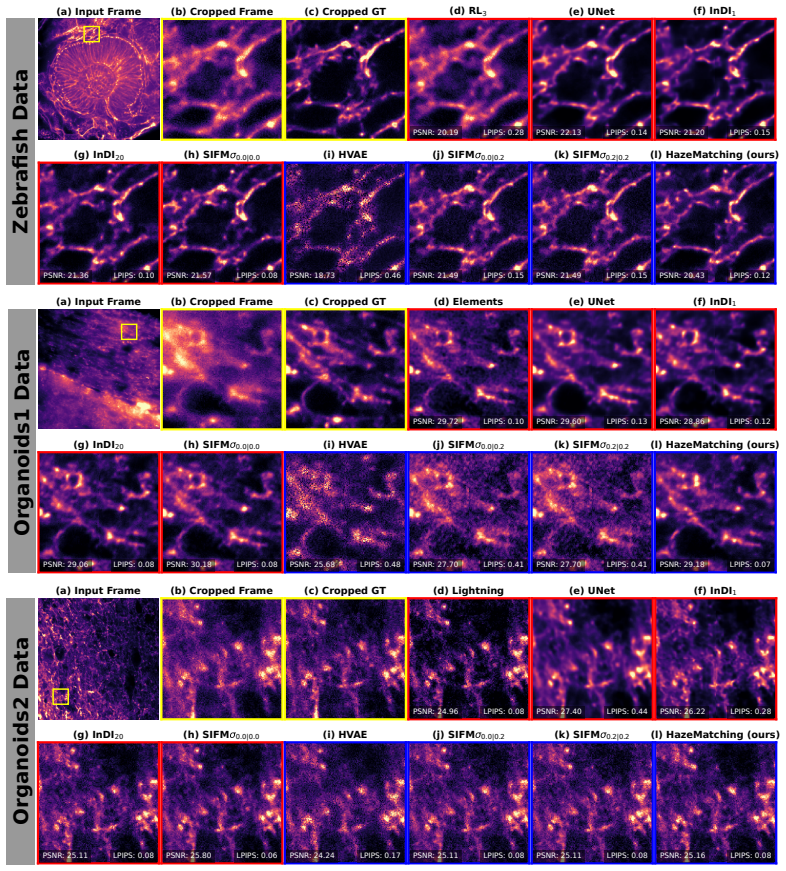

Figure 3. Figure 3: Qualitative results. We show representative results for three dataset. For each dataset we show (a) the full input and a selected crop (yellow box), (b) the selected crop, (c) non-hazy ground truth, (d–k) predictions by all baseline methods (see Section 4), and (l) results obtained with HAZEMATCHING. Results with red borders are predictions by point-predictors, while methods with blue borders are results b… view at source ↗
Figure 4
Figure 4. Figure 4: Calibration of HAZEMATCHING. RMSE vs. predicted RMV is shown for Zebrafish, Organoids1, and Organoids2 (left to right). The dashed line indicates ideal calibration (y = x). Blue and purple circles show uncalibrated and calibrated results, respectively, with shaded areas denoting standard error. Calibration parameters (scaling and offset) are shown below each plot. Additional results for Neuron and Microtub… view at source ↗
read the original abstract

Fluorescence microscopy is a major driver of scientific progress in the life sciences. Although high-end confocal microscopes are capable of filtering out-of-focus light, cheaper and more accessible microscopy modalities, such as widefield microscopy, can not, which consequently leads to hazy image data. Computational dehazing is trying to combine the best of both worlds, leading to cheap microscopy but crisp-looking images. The perception-distortion trade-off tells us that we can optimize either for data fidelity, e.g. low MSE or high PSNR, or for data realism, measured by perceptual metrics such as LPIPS or FID. Existing methods either prioritize fidelity at the expense of realism, or produce perceptually convincing results that lack quantitative accuracy. In this work, we propose HazeMatching, a novel iterative method for dehazing light microscopy images, which effectively balances these objectives. Our goal was to find a balanced trade-off between the fidelity of the dehazing results and the realism of individual predictions (samples). We achieve this by adapting the conditional flow matching framework by guiding the generative process with a hazy observation in the conditional velocity field. We evaluate HazeMatching on 5 datasets, covering both synthetic and real data, assessing both distortion and perceptual quality. Our method is compared against 12 baselines, achieving a consistent balance between fidelity and realism on average. Additionally, with calibration analysis, we show that HazeMatching produces well-calibrated predictions. Note that our method does not need an explicit degradation operator to exist, making it easily applicable on real microscopy data. All data used for training and evaluation and our code will be publicly available under a permissive license.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces HazeMatching, an adaptation of conditional flow matching for dehazing widefield fluorescence microscopy images. By directly guiding the conditional velocity field with the hazy observation, the method seeks to balance quantitative fidelity (PSNR/MSE) and perceptual realism (LPIPS/FID) without requiring an explicit degradation operator. It reports evaluation on five datasets (synthetic and real) against twelve baselines, claiming consistent average performance balance plus well-calibrated predictions, with code and data to be released publicly.

Significance. If the empirical claims hold under more rigorous validation, the work would provide a practical, degradation-model-free approach to improving image quality in accessible microscopy modalities, which could benefit life-sciences applications. The public release of code and data is a clear strength that supports reproducibility. The contribution is primarily empirical rather than theoretical, extending flow-matching techniques to a new domain with a focus on the perception-distortion trade-off.

major comments (3)
  1. [§4] §4 (Experiments), Table 2 and associated text: the claim of 'consistent balance between fidelity and realism on average' across five datasets rests on reported average rankings, yet no statistical significance tests (e.g., Wilcoxon signed-rank or paired t-tests with correction) or per-dataset standard deviations are provided; this weakens the robustness of the central empirical claim.
  2. [§3.2] §3.2 (Method, conditional velocity field): the guidance of v_t(x | hazy) is presented as sufficient to avoid both under-fitting the conditional mean and mode collapse, but the manuscript contains no ablations on guidance strength, no visualizations of the learned velocity field, and no diversity metrics (e.g., variance across multiple samples per input); these omissions directly affect the validity of the no-bias/no-collapse assumption.
  3. [§4.3] §4.3 (Real data evaluation): training relies on synthetic haze pairs even for real microscopy test images, yet no domain-gap analysis or sensitivity study is reported; an unmodeled shift could silently bias the conditional mean while still producing plausible perceptual scores, undermining applicability claims for real data.
minor comments (2)
  1. [Abstract / §1] The abstract and §1 mention 'well-calibrated predictions' but the calibration plot details (binning, expected calibration error formula) appear only in supplementary material; moving a concise description to the main text would improve clarity.
  2. [§3] Notation for the hazy observation (denoted y or I_hazy) is used inconsistently across equations in §3; a single consistent symbol and a short notation table would reduce reader effort.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment below, indicating where revisions will be made to improve the robustness and clarity of our empirical claims and methodological justifications.

read point-by-point responses
  1. Referee: §4 (Experiments), Table 2 and associated text: the claim of 'consistent balance between fidelity and realism on average' across five datasets rests on reported average rankings, yet no statistical significance tests (e.g., Wilcoxon signed-rank or paired t-tests with correction) or per-dataset standard deviations are provided; this weakens the robustness of the central empirical claim.

    Authors: We agree that statistical validation would strengthen the central claim. In the revised manuscript we will augment Table 2 with per-dataset standard deviations for all metrics and add paired statistical tests (Wilcoxon signed-rank with Bonferroni correction) comparing HazeMatching against the top baselines across the five datasets. These additions will be reported in §4. revision: yes

  2. Referee: §3.2 (Method, conditional velocity field): the guidance of v_t(x | hazy) is presented as sufficient to avoid both under-fitting the conditional mean and mode collapse, but the manuscript contains no ablations on guidance strength, no visualizations of the learned velocity field, and no diversity metrics (e.g., variance across multiple samples per input); these omissions directly affect the validity of the no-bias/no-collapse assumption.

    Authors: We acknowledge the value of these supporting analyses. The revised version will include (i) an ablation study on guidance strength, (ii) qualitative visualizations of the learned conditional velocity fields at selected timesteps, and (iii) quantitative diversity metrics (sample variance and pairwise LPIPS across 10 generations per input) to substantiate the no-bias and no-collapse claims. revision: yes

  3. Referee: §4.3 (Real data evaluation): training relies on synthetic haze pairs even for real microscopy test images, yet no domain-gap analysis or sensitivity study is reported; an unmodeled shift could silently bias the conditional mean while still producing plausible perceptual scores, undermining applicability claims for real data.

    Authors: This concern is valid. Because paired real hazy-clean microscopy data are unavailable, a full quantitative sensitivity study is not feasible with the current resources. We will therefore expand §4.3 with an explicit discussion of the synthetic-to-real domain gap, qualitative comparison of feature distributions, and a clearer statement of the resulting limitations on real-data applicability. revision: partial

Circularity Check

0 steps flagged

No circularity: HazeMatching is a standard adaptation of conditional flow matching with empirical validation

full rationale

The paper adapts the existing conditional flow matching framework by incorporating guidance from the hazy observation directly into the conditional velocity field. This is presented as a methodological extension rather than a derivation that reduces to its own inputs by construction. No equations are shown that define a quantity in terms of itself or rename a fitted parameter as a prediction. Evaluations rely on comparisons across datasets and baselines plus calibration plots, which are external to the model definition. Any self-citations (if present) support background concepts but are not load-bearing for the central claim of balanced fidelity-realism, which rests on reported empirical results rather than tautological reduction. The absence of an explicit degradation operator is a stated advantage, not a circular assumption.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the effectiveness of guiding flow matching with hazy observations and on the empirical balance observed across datasets; no explicit free parameters or invented entities are named in the abstract.

axioms (1)
  • domain assumption Guiding the conditional velocity field with the hazy observation produces outputs that are both faithful and perceptually realistic.
    This is the key modeling choice that enables the claimed balance without an explicit degradation operator.
