Brain Tumor Detection through Thermal Imaging and MobileNET

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that a lightweight MobileNet can classify brain MRIs as tumor or no-tumor at about 98.8% validation accuracy using a jet color map as a stand-in for thermal imaging.

desk verdict The 'thermal imaging' is just a JET colormap, the claimed superiority over GoogLeNet contradicts the paper's own references, and the result is a smaller-scale replication of prior work. read the letter →

arxiv 2506.23627 v1 pith:GA3A3ZVW submitted 2025-06-30 cs.CV cs.LG

Roham Maiti , Debasmita Bhoumik This is my paper · ORCID
classification cs.CVcs.LG
keywords braintumordetectionMobileNetthermalimagingjetcolormapMRIclassificationtransferlearningCannyedgelow-resourcediagnostics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that a lightweight MobileNet classifier, combined with a simple color-map preprocessing step that the authors equate with thermal imaging, can detect brain tumors in MRI scans with about 98.8% validation accuracy while running in low time and on modest hardware. If true, automated screening could be deployed on mobile devices and in low-resource clinics that lack expensive imaging equipment and specialized radiologists. The evidence is a 3,000-image MRI dataset split 80/20, five training runs with an average accuracy of 98.5%, and a confusion matrix on 600 test images with 593 correct predictions. The authors present this as an improvement over heavier CNN architectures and as a step toward accessible, non-invasive diagnosis.

What carries the argument

The mechanism that carries the argument is MobileNet's depthwise separable convolution, which splits each convolution into a depthwise pass with one filter per channel and a pointwise $1\times1$ pass, cutting computational cost from $K \times K \times C \times D \times H \times W$ to $K \times K \times C \times H \times W$. On the data side, the load-bearing preprocessing step is a standard computer-vision library's color-map function with the COLORMAP_JET palette, which maps grayscale MRI intensities to a blue-cyan-green-yellow-red scale; the paper treats this pseudocoloring as thermal imaging. Gaussian blur (a smoothing convolution) and Canny edge detection (a gradient-based boundary finder) are applied around the tumor region to complete the pipeline.

What would settle it

Train the same model once on original grayscale MRI slices and once on jet-colored versions, using the same data split; if the two accuracies are within random variation, the color map contributes no thermal signal. A stronger check is to run the identical model on true infrared thermal images of brain tissue and compare the resulting accuracy.

Watch

Extended reading notes

Core claim

The central claim, as the authors put it, is that a MobileNet with frozen feature-extraction layers and retrained final dense layers, fed $128\times128$ RGB versions of brain MRI slices recolored with a jet color map they call thermal imaging, classifies the scans with a validation accuracy of 98.8% (593 of 600 test images), a precision of 0.994, a recall of 0.984, and an F1 score of 0.989. The paper also reports average accuracy of 98.5% over five training runs and low validation loss and runtime, and it frames this as surpassing heavier models such as DenseNet and GoogleNet while using fewer computational resources. In plain terms, the paper is trying to show that inexpensive, lightweight deep learning plus simple image preprocessing can do automated brain-tumor screening without specialized thermal cameras.

Load-bearing premise

The paper assumes that recoloring grayscale MRI pixels with a color palette is the same as thermal imaging, so no actual infrared temperature measurements are needed for the method to be called thermal.

Editorial extensions

If this is right

  • The reported 98.8% validation accuracy on 600 test images implies that a frozen-feature MobileNet with only its final dense layers retrained can reach roughly that accuracy on a moderate-size MRI dataset.
  • Because the preprocessing steps are simple color mapping, blur, and edge detection, the full pipeline could run on a phone or laptop without a thermal camera or hospital-grade GPU.
  • The 0.994 precision and 0.984 recall imply that, in this test set, the model misses 5 of every 311 tumor images and flags 2 of every 289 normal images as tumor.
  • An average of 98.5% over five training runs suggests the headline accuracy is not a lucky single run, though only the average is reported and no variance or confidence interval is given.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper does not compare the jet-colored input against the original grayscale input; running that ablation would separate MobileNet's contribution from the color map's contribution.
  • If the color map matters at all, different palettes should change accuracy; measuring that sensitivity would test whether the thermal preprocessing carries diagnostic signal or merely changes the model's input distribution.
  • Because the dataset is a single public source and the authors themselves flag cross-hospital variability as a limitation, the method's real-world value depends on validation on multi-scanner, multi-protocol MRIs or on actual infrared images.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. This paper proposes a binary brain-tumor classifier that combines a MobileNet CNN with OpenCV image-processing techniques, including Gaussian blur, Canny edge detection, and a 'thermal imaging' step implemented as COLORMAP_JET pseudocoloring. The authors report a validation accuracy of 98.8% (Section 5.4) or an average accuracy of 98.5% (abstract) on a 600-image held-out test set from a Kaggle MRI dataset, and claim superiority over DenseNet and GoogleNet as well as low computational cost. The central claim is that the use of simulated thermal imaging via a pseudocolor map provides a novel, cost-effective detection approach.

Significance. If the result held as stated, the paper would provide a lightweight and inexpensive brain-tumor screening tool with roughly 98.8% accuracy, which could be relevant for resource-limited settings. The authors do take reasonable steps in using a standard held-out split (80/20), reporting a confusion matrix, and using transfer learning from ImageNet-pretrained MobileNet. However, the paper's stated novelty—thermal imaging—is not supported: the method described in Section 3.2 is a fixed pseudocolor lookup table on grayscale MRIs, not a thermal measurement. The accuracy claim also rests on an evaluation protocol that is insufficiently documented and on comparison claims that are both unsubstantiated and contradictory to the paper's own literature review. As a result, the contribution, if stripped of the thermal-imaging framing, reduces to a routine MobileNet MRI classification experiment with standard preprocessing, and the quantitative claims as presented cannot be accepted.

major comments (5)
  1. [Section 3.2, Section 1 novelty bullets] The method described in Section 3.2 applies OpenCV's COLORMAP_JET to grayscale MRI images; this is a fixed pointwise pseudocolor lookup table, not a measurement or model of temperature. The novelty bullets in Section 1 ('Integration of lightweight models like MobileNET with thermal imaging techniques' and 'Development of an OpenCV-based solution to emulate thermal imaging') rest on this identification, and the title itself claims thermal imaging. No infrared data are acquired, no bioheat model is used, and the reference [19] is not applied anywhere. Consequently, the central novelty and the associated cost argument collapse if the word 'thermal' is removed, because the experiments report classification of pseudocolored MRIs, not thermal imaging.
  2. [Section 1, Section 2, Section 5.4] Section 1 claims that the proposed model reaches 98.8% validation accuracy, 'exceeding cutting-edge models like DenseNET and GoogleNET,' but Section 2 cites [18] reporting GoogleNet at 99.45% accuracy. The paper contains no experiments with DenseNet or GoogLeNet, so the superiority claim is both contradicted by the cited literature and unsupported by any direct comparison. The 98.8% figure in Section 5.4 also conflicts with the abstract's stated 98.5% average accuracy.
  3. [Section 4, Section 5.2] Section 4 states that data visualization with thermal imaging, Gaussian blur, and Canny edge detection is used to set parameters such as kernel size, standard deviation, and colormap for later steps; this is done on the full dataset before the 80/20 split is described. Tuning parameters on the full dataset, including the eventual test portion, can inflate the reported test performance. In addition, Section 5.2 reports early stopping based on validation loss, but no separate validation set is described after the 80/20 split; it is unclear whether the test set double-serves as the validation set. This ambiguity undermines the reliability of the 98.8% accuracy figure.
  4. [Section 5.2, Section 5.4, Abstract] The paper states that results from five compilations were averaged (Section 5.2) and the abstract reports an average accuracy of 98.5%, yet Section 5.4 shows only a single confusion matrix (593 correct out of 600 test images) and provides no per-run accuracies, variance, or standard deviation. The claimed average and the implied stability cannot be independently verified from the reported material. The discrepancy between the abstract's 98.5% and Section 5.4's 98.8% further obscures the headline result.
  5. [Section 1, Section 5.4] The paper claims low runtime and low computational resource usage as a key advantage, but no runtime, inference latency, model size, or FLOP measurements are reported, and no comparison is made with DenseNet or GoogLeNet on these axes. The accessibility argument in Section 1 is therefore not supported by any quantitative evidence within the manuscript.
minor comments (5)
  1. [Section 5.4] The sentence 'Fig. displays the corresponding confusion matrix' is missing the figure number; please correct the reference.
  2. [Section 4, Section 5.4] There are several typographical errors, including 'graysacle' in Section 4 and 'weather truly there is any tumor' in Section 5.4, and the model name is rendered inconsistently as both 'MobileNET' and 'MobileNet'.
  3. [Section 5.2] The statement 'we have set the upper and lower threshold as 20 for edge detection' is unclear because Canny edge detection normally uses two distinct thresholds; please specify the exact threshold values and explain why a single value is used.
  4. [Section 5.3] The system configuration section should clarify whether timing or resource measurements, if any, were taken on Google Colab with a T4 GPU or on a local machine, since the claimed efficiency depends on this.
  5. [General] The paper does not provide a reproducibility statement or a link to code; adding such details would help readers verify the results and reuse the pipeline.

Circularity Check

1 steps flagged · score 4.0 of 10

The tumor-classification accuracy is a genuine held-out result, but the paper's central 'thermal imaging' novelty reduces to a COLORMAP_JET relabeling of grayscale MRI.

  1. renaming known result [Section 3.2 'Thermal Imaging' and Section 5.2 'Parameters'; cf. Section 1 novelty bullets]
    "Thermal imaging identifies temperature variations caused by tumors' metabolic activity.Infraredcamerascapturethesedifferences,aidingearlydiagnosis.OpenCV's applyColorMap function was used withCOLORMAP_JET to visualize grayscale images with pseudocolor for better interpretation. ... We used COLORMAP_JET from OpenCV for thermal imaging purpose."

    The paper's claimed novelty and cost argument rest on 'thermal imaging,' but by its own definition the thermal modality is just OpenCV's COLORMAP_JET applied pointwise to grayscale MRI. No infrared data are collected, no temperature is measured, and no bioheat model is run. Consequently, the statement 'thermal-imaging-based detection achieves 98.8%' reduces by construction to 'pseudocolored-MRI-based detection achieves 98.8%.' The word 'thermal' is a relabeling of a standard visualization colormap, so the cost/novelty conclusion follows from the label, not from any thermal measurement.

full rationale

The core classification evaluation is not circular: the MobileNet model is trained on an 80/20 split, and the 98.8% validation accuracy is computed from the confusion matrix on the held-out test portion (593/600 correct out of 600). No fitted parameter is relabeled as a prediction, and no self-citation chain is load-bearing. The accuracy is therefore an independent empirical result for the MRI classification task. However, the paper's central novelty and accessibility claim depend on the term 'thermal imaging,' which Section 3.2 defines as OpenCV's applyColorMap with COLORMAP_JET. Because COLORMAP_JET is a fixed pseudocolor lookup table and no thermal measurement is involved, the 'thermal' contribution is a rename rather than a derived modality; the claim that the system performs thermal imaging is true only by stipulative definition. This is partial circularity in the novelty framing, not in the model's predictive derivation. Separately, preprocessing parameters are selected after visualizing the full dataset and before the split is described, and the paper's claim of exceeding GoogleNet conflicts with the 99.45% GoogleNet accuracy cited in its own literature review; these are correctness/leakage concerns rather than circularity steps.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The central claim is an empirical accuracy figure from a neural network. The accuracy depends on fitted network weights, hand-chosen hyperparameters, and the assumption that a JET color map on MRI constitutes thermal imaging. No free-floating physical entities are introduced.

free parameters (6)
  • Input image resolution = 128x128
    All MRIs are resized to 128x128 before classification; accuracy may depend on this resolution.
  • Gaussian blur kernel size and sigma = 5x5, sigma=1
    Set during data visualization; used for edge detection and display, not fed to the model.
  • Canny edge thresholds = 20 (both)
    Set during data visualization; no sensitivity analysis provided.
  • Adam learning rate = 0.0001
    Hand-chosen optimizer setting.
  • Dense layer width = 256 neurons
    Second-to-last dense layer size chosen without stated justification.
  • Early stopping patience = 5 epochs
    Training stops when validation loss plateaus for 5 epochs.
assumptions (5)
  • domain assumption A JET color map applied to grayscale MRI is a valid simulation of thermal imaging for tumor detection.
    The novelty section credits thermal imaging as a key contribution, but no temperature measurements are involved; this equivalence is asserted, not validated (Section 3.2, Section 4).
  • domain assumption The Kaggle subset is representative of clinical brain MRIs and the labels are correct.
    Accuracy is measured only on this dataset; no external validation or label audit is reported (Section 5.1).
  • domain assumption ImageNet-pretrained MobileNet features transfer to 128x128 brain MRIs.
    The base model is frozen and only top layers are trained; transferability is assumed (Section 4).
  • domain assumption Image processing parameters selected during visualization generalize to the test split.
    Kernel, sigma, and thresholds are chosen after viewing the dataset, potentially including test images, and then applied to test data without sensitivity analysis (Section 4, Section 5.2).
  • domain assumption Binary tumor/no-tumor classification is the clinically relevant task for the claimed application.
    The system does not localize or grade tumors despite claims of localization; the evaluation is a binary accuracy (Section 5.4).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Brain Tumor Detection through Thermal Imaging and MobileNET." pith.science (2026). https://pith.science/paper/GA3A3ZVW

@misc{pith2026250623627,
  author       = {Pith},
  title        = {Pith review of: Brain Tumor Detection through Thermal Imaging and MobileNET},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GA3A3ZVW}},
  note         = {Machine review of arXiv:2506.23627}
}
read the original abstract

Brain plays a crucial role in regulating body functions and cognitive processes, with brain tumors posing significant risks to human health. Precise and prompt detection is a key factor in proper treatment and better patient outcomes. Traditional methods for detecting brain tumors, that include biopsies, MRI, and CT scans often face challenges due to their high costs and the need for specialized medical expertise. Recent developments in machine learning (ML) and deep learning (DL) has exhibited strong capabilities in automating the identification and categorization of brain tumors from medical images, especially MRI scans. However, these classical ML models have limitations, such as high computational demands, the need for large datasets, and long training times, which hinder their accessibility and efficiency. Our research uses MobileNET model for efficient detection of these tumors. The novelty of this project lies in building an accurate tumor detection model which use less computing re-sources and runs in less time followed by efficient decision making through the use of image processing technique for accurate results. The suggested method attained an average accuracy of 98.5%.

Figures

Figures reproduced from arXiv: 2506.23627 by the authors.

Figure 1

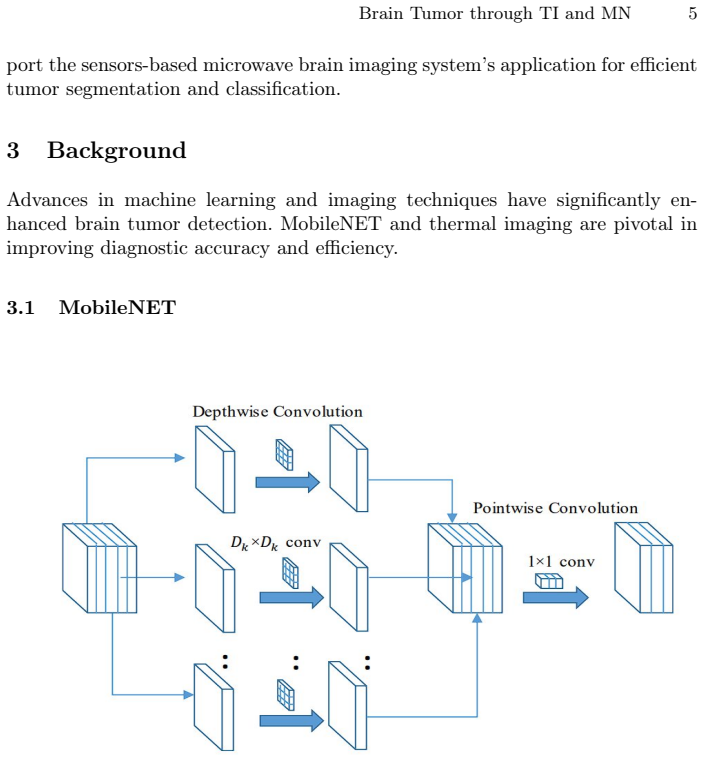

Figure 1. Fig: Functioning of a MobileNET detection model This architecture, which uses depthwise separable convolutions to minimise com￾putational complexity in resource-constrained applications, divides the standard convolution into a depthwise convolution and a pointwise one. - Depthwise Convolution: – Uses one filter per input channel. – Decreases complexity from K ×K ×C ×D ×H ×W to K ×K ×C ×H ×W, here K represents the ke… view at source ↗
Figure 2
Figure 2. Working of the system Dataset is made by taking a portion of MRI from an existing Kaggle dataset[22] and loading it into Kaggle. The images are then loaded into Google Colab note￾book. Necessary Python libraries like numpy, matplotlib, pandas, seaborn, ran￾dom, os scikit-learn and tensorflow are also imported. All MRI images used were anonymized and publicly available through open datasets. Ethical usage of medical … view at source ↗
Figure 3
Figure 3. Confusion Matrix Accuracy = T P +T N T otal_Samples = 306+287 306+287+2+5 = 593 600 ≈ 0.988 The model achieves a validation accuracy of 98.8%, surpassing other models while maintaining low runtime and validation loss [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Validation Accuracy and Validation Loss We tested our model on unseen data by uploading random brain MRI images to check how well the model performs. The results are shown below in [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
Figure 5
Figure 5. Figure 5: Outcome of the Model on Unseen Data As we can see, the model makes correct predictions on unseen data, which helps to ensure its robustness in real-world scenarios. Three types of image processing techniques have been used, namely Gaussian blur, thermal imaging, and Ca…
