arxiv: 2507.01041 · v4 · submitted 2025-06-23 · 💻 cs.LG · cs.AI

Fast AI Model Partition for Split Learning over Edge Networks

Zuguang Li , Wen Wu , Shaohua Wu , Xuemin (Sherman) Shen This is my paper

Pith reviewed 2026-05-19 07:39 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords split learningmodel partitioningedge networksdirected acyclic graphminimum s-t cutmaximum flowtraining delay minimization
0
0 comments X

The pith

Optimal model partitioning for split learning reduces to a minimum s-t cut problem on a DAG representation of the AI model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper formulates the model partitioning task in split learning as an optimization problem whose goal is to minimize total training delay across mobile devices and edge servers. It maps any AI model to a directed acyclic graph whose vertices represent layers and whose edge weights encode the training delay incurred by each possible cut. Theoretical analysis establishes that the minimum-delay partition is exactly the minimum s-t cut on this graph, so the solution can be recovered by any maximum-flow algorithm. For models built from repeating blocks the authors further abstract each block into a single supernode, yielding a lower-complexity block-wise variant that still finds the optimal cut. Experiments on NVIDIA Jetson hardware confirm that the resulting partitions produce both faster algorithm runtimes and lower end-to-end training delays than prior heuristics.

Core claim

By representing an arbitrary AI model as a directed acyclic graph with training delays as edge weights, the optimal model partition that minimizes training delay in split learning is equivalent to the minimum s-t cut on that graph and can therefore be obtained via a maximum-flow method; a block-wise simplification of the same graph yields an efficient algorithm for models with repeating structure.

What carries the argument

The equivalence between the minimum-delay model-partitioning objective and the minimum s-t cut on the model's directed acyclic graph, solved by maximum flow.

If this is right

  • Any maximum-flow algorithm can be used to compute the globally optimal cut for arbitrary model topologies.
  • The block-wise algorithm reduces the graph size while preserving optimality for models whose layers form repeated blocks.
  • The same DAG construction and cut formulation apply to any layered neural architecture once per-layer and per-cut delays are known.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If edge weights must be estimated rather than pre-computed, an online or adaptive version of the cut algorithm would be needed to maintain optimality.
  • The approach could extend to other distributed learning settings such as federated or pipeline parallelism by redefining the delay weights accordingly.

Load-bearing premise

Training delays for every possible cut can be accurately pre-computed and stored as fixed edge weights on the DAG, independent of runtime network conditions or device load.

What would settle it

Measure actual training delay for the partition returned by the max-flow algorithm under varying network bandwidth or device load; if any other partition consistently yields lower delay, the claimed equivalence does not hold at runtime.

Figures

Figures reproduced from arXiv: 2507.01041 by Shaohua Wu, Wen Wu, Xuemin (Sherman) Shen, Zuguang Li.

Figure 1
Figure 1. Figure 1: Considered wireless SL scenario in edge networks. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

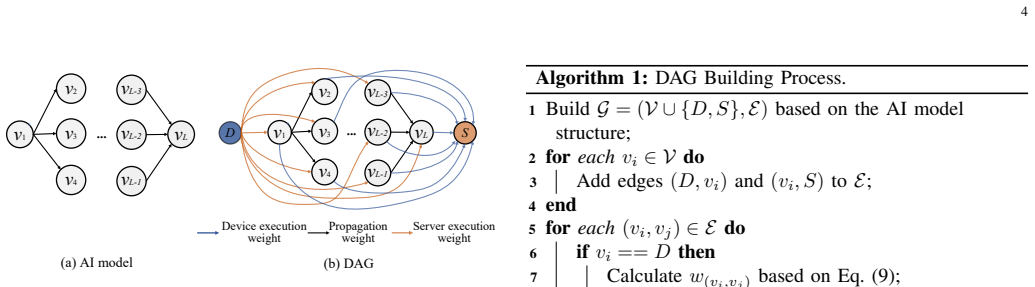

Figure 2
Figure 2. Figure 2: Illustration of representing an AI model as a DAG. (a) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

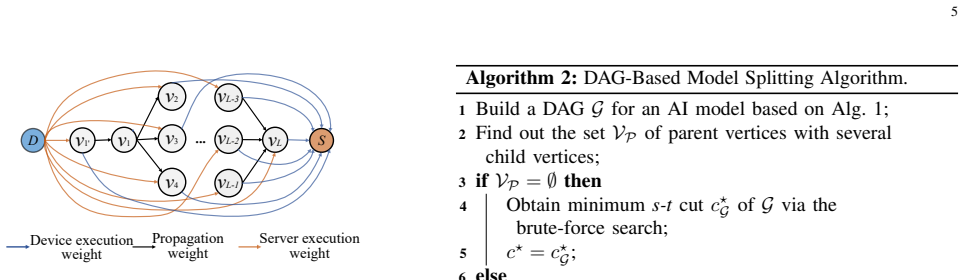

Figure 3
Figure 3. Figure 3: Illustration of adding an auxiliary vertex for a parent [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Three cut cases in the AI model, where each cut’s value is the total training delay. v2 v5 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Three cut cases in the DAG, where each cut’s value is the sum of the weights of the edges that the cut intersects. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: An example block DAG, with edge weights represent [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

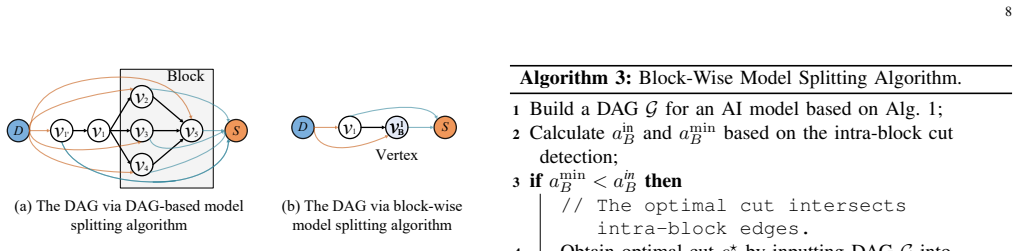

Figure 7
Figure 7. Figure 7: An example of DAG transformation via DAG-based [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The structures of networks with residual, inception, and [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 11
Figure 11. Figure 11: Running time comparison among the proposed algo [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Training delay per epoch among the proposed solution [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Overall training delay comparison among the pro [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Prototype system of SL. for complex propagation effects, it effectively simulates real￾world mobile cellular dynamics, making it suitable for testing model splitting. Channel Condition: Taking directional antenna gain into account, the transmit power is calculated as P = Pe − 10 log10 N, where Pe is the average effective isotropically radiated power (EIRP), and N is the number of beams. The average EIRP o… view at source ↗
read the original abstract

Split learning (SL) is a distributed learning paradigm that can enable computation-intensive artificial intelligence (AI) applications by partitioning AI models between mobile devices and edge servers. %fully utilizing distributed computing resources for computation-intensive mobile intelligence applications. However, the model partitioning problem in SL becomes challenging due to the diverse and complex architectures of AI models. In this paper, we formulate an optimal model partitioning problem to minimize training delay in SL. To solve the problem, we represent an arbitrary AI model as a directed acyclic graph (DAG), where the model's layers and inter-layer connections are mapped to vertices and edges, and training delays are captured as edge weights. Then, we propose a general model partitioning algorithm by transforming the problem into a minimum \textit{s-t} cut problem on the DAG. Theoretical analysis shows that the two problems are equivalent, such that the optimal model partition can be obtained via a maximum-flow method. Furthermore, taking AI models with block structures into consideration, we design a low-complexity block-wise model partitioning algorithm to determine the optimal model partition. Specifically, the algorithm simplifies the DAG by abstracting each block (i.e., a repeating component comprising multiple layers in an AI model) into a single vertex. Extensive experimental results on a hardware testbed equipped with NVIDIA Jetson devices demonstrate that the proposed solution can reduce algorithm running time by up to 13.0$\times$ and training delay by up to 38.95\%, compared to state-of-the-art baselines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper formulates the model partitioning problem in split learning as a delay-minimization task, represents an arbitrary AI model as a DAG with layers as vertices and training delays as edge weights, and claims that this transforms the problem into an equivalent minimum s-t cut instance solvable via maximum flow. For block-structured models it further proposes a low-complexity block-wise simplification. Hardware experiments on NVIDIA Jetson devices report up to 13.0× reduction in algorithm runtime and up to 38.95% reduction in training delay versus baselines.

Significance. If the equivalence is rigorously established, the work supplies a polynomial-time optimal solution to a combinatorial partitioning problem that is practically relevant for edge-deployed split learning. The reduction to max-flow and the block-wise abstraction are clean algorithmic contributions, and the concrete hardware testbed results provide useful empirical grounding.

major comments (2)
  1. [Abstract / Theoretical Analysis] Abstract / Theoretical Analysis: The central claim is that assigning training delays (device compute up to the cut, communication of activations/gradients at the cut, and server compute after the cut, for both forward and backward passes) as fixed edge weights on the DAG makes the minimum-delay partition exactly equivalent to a minimum s-t cut. The abstract provides no explicit construction showing how these components become static, additive capacities independent of the chosen cut, data volume at that cut, or runtime network/device state. Without this construction and the accompanying proof that cut capacity equals end-to-end training delay, the equivalence does not yet hold.
  2. [Problem Formulation / DAG Construction] Problem Formulation / DAG Construction: The weakest assumption is that delays for every possible cut can be pre-computed as fixed weights. In split learning the communication volume (and thus delay) is cut-dependent, and both compute and network conditions can vary at runtime. If these effects cannot be encoded without cut-specific or state-dependent terms, the min-cut solution will not correspond to the true minimum-delay partition. This must be resolved or bounded for the reduction to be load-bearing.
minor comments (2)
  1. [Abstract] Abstract contains a stray LaTeX comment '%fully utilizing distributed computing resources for computation-intensive mobile intelligence applications.' that should be deleted.
  2. [Experiments] Experimental section would benefit from explicit statement of the number of runs, standard deviations or error bars on the reported 13.0× and 38.95% figures, and clearer description of the state-of-the-art baselines used for comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the insightful and constructive comments on our manuscript. We address each major comment point by point below, providing clarifications on the theoretical construction and assumptions. Revisions have been made to improve the presentation of the equivalence proof and to discuss the modeling assumptions more explicitly.

read point-by-point responses

  1. Referee: [Abstract / Theoretical Analysis] Abstract / Theoretical Analysis: The central claim is that assigning training delays (device compute up to the cut, communication of activations/gradients at the cut, and server compute after the cut, for both forward and backward passes) as fixed edge weights on the DAG makes the minimum-delay partition exactly equivalent to a minimum s-t cut. The abstract provides no explicit construction showing how these components become static, additive capacities independent of the chosen cut, data volume at that cut, or runtime network/device state. Without this construction and the accompanying proof that cut capacity equals end-to-end training delay, the equivalence does not yet hold.

    Authors: We agree that the abstract is concise and omits the detailed construction. The full manuscript (Section III-B and Theorem 1) provides an explicit construction: the DAG has a vertex per layer; edges are assigned capacities that accumulate device forward/backward compute delays up to each layer, communication delay using the precomputed activation/gradient tensor size at that layer, and server compute after the layer. These capacities are static because tensor sizes are fixed properties of the model and batch size. The proof shows that any s-t cut's capacity exactly equals the end-to-end training delay of the induced partition, as the cut separates device and server subgraphs and the weights are additive by design. We have revised the abstract to reference this equivalence and the location of the proof. revision: yes

  2. Referee: [Problem Formulation / DAG Construction] Problem Formulation / DAG Construction: The weakest assumption is that delays for every possible cut can be pre-computed as fixed weights. In split learning the communication volume (and thus delay) is cut-dependent, and both compute and network conditions can vary at runtime. If these effects cannot be encoded without cut-specific or state-dependent terms, the min-cut solution will not correspond to the true minimum-delay partition. This must be resolved or bounded for the reduction to be load-bearing.

    Authors: Communication volume is layer-dependent, but we precompute the exact activation/gradient sizes for each layer (fixed for the given model and batch size) and encode them as static edge capacities. No additional cut-specific terms are needed beyond this per-layer precomputation. Runtime variations in network or device state are assumed to be measured at partitioning time, with the algorithm re-executed periodically under quasi-static conditions. We have added a new paragraph in Section II explicitly discussing these assumptions, their validity for edge networks, and how the solution can be bounded or adapted in highly dynamic settings. revision: partial

Circularity Check

0 steps flagged

No circularity: standard graph reduction with independent modeling assumptions

full rationale

The paper models the AI model as a DAG with training delays assigned as fixed edge weights, then reduces the delay-minimization partitioning problem to a min s-t cut solvable by max-flow. This is a direct problem transformation whose validity rests on whether the chosen weight assignment makes cut capacity equal total delay; the abstract states the equivalence follows from theoretical analysis without any self-referential definition, fitted parameter renamed as prediction, or load-bearing self-citation. No equation or step reduces the claimed result to its own inputs by construction. The derivation is therefore self-contained against external graph-theoretic benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the modeling choice that inter-layer delays can be treated as static edge weights and on the correctness of the standard max-flow equivalence for the resulting graph problem.

axioms (2)
  • domain assumption Any AI model can be represented as a directed acyclic graph whose vertices are layers and whose edge weights are training delays.
    Explicitly stated in the abstract as the first modeling step before the min-cut transformation.
  • domain assumption The minimum s-t cut on this delay-weighted DAG yields the partition that minimizes end-to-end training delay.
    The equivalence is asserted after the DAG construction and is the load-bearing theoretical step.
