arxiv: 2507.08823 · v4 · submitted 2025-06-30 · ⚛️ physics.space-ph · astro-ph.EP

Studying Ionospheric Phase Structure Functions Using Wide-Band uGMRT (Band-4) Interferometric Data

Dipanjan Banerjee , Abhik Ghosh , Sushanta K. Mondal , Parimal Ghosh This is my paper

Pith reviewed 2026-05-19 07:36 UTC · model grok-4.3

classification ⚛️ physics.space-ph astro-ph.EP
keywords ionospheric turbulencephase structure functionuGMRTdiffractive scalelow-latitude ionosphereradio interferometryMSTIDdirection-dependent calibration
0
0 comments X p. Extension

The pith

Ionospheric turbulence at low latitudes produces power-law phase fluctuations with a diffractive scale of 6.7 to 8.3 km and anisotropy aligned perpendicular to Earth's magnetic field.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines ten hours of nighttime interferometric observations of the bright source 3C48 with the uGMRT telescope in Band-4 to measure how the ionosphere distorts radio signals below 1 GHz. Researchers calculate spatial phase structure functions separately in three frequency sub-bands spanning 575 to 725 MHz across baselines reaching 25 km. The resulting functions follow a power-law shape expected for turbulent media and yield a diffractive scale of roughly 7 km that marks where phase differences become large enough to limit image quality. The fluctuations also appear anisotropic, with the shortest correlation lengths oriented perpendicular to the local magnetic field, suggesting the presence of wave-like disturbances such as medium-scale traveling ionospheric disturbances. These results from one low-latitude site demonstrate that existing wide-band arrays can quantify ionospheric conditions and set practical requirements for direction-dependent calibration in similar observing scenarios.

Core claim

We compute spatial phase structure functions across three sub-bands (575-725 MHz), revealing power-law behaviour consistent with turbulence and a diffractive scale r_diff ~ 6.7 - 8.3 km useful for assessing calibration requirements. The turbulence exhibits anisotropy with smallest scales perpendicular to Earth's magnetic field - consistent with wave-like structures such as MSTIDs rather than field-aligned irregularities.

What carries the argument

Spatial phase structure functions derived from measured phase differences on interferometer baselines up to 25 km, which quantify the spatial scale and strength of ionospheric phase fluctuations in each sub-band.

If this is right

  • The measured diffractive scale directly informs how finely direction-dependent calibration must be performed for observations with baselines longer than a few kilometers.
  • Anisotropy perpendicular to the magnetic field indicates that medium-scale traveling ionospheric disturbances dominate the phase errors rather than field-aligned irregularities.
  • uGMRT Band-4 data collected at low latitudes can serve as a practical tool for routine characterization of ionospheric conditions during nighttime hours.
  • The power-law index and scale values provide a concrete benchmark for testing ionospheric models used in low-frequency radio astronomy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the same structure-function analysis to daytime or solar-maximum data would test whether the reported scale and anisotropy persist across different ionospheric regimes.
  • If the 7 km diffractive scale proves typical at 19°N, then arrays with maximum baselines exceeding 10 km will require dense calibration grids even for moderate integration times.
  • Combining these radio measurements with simultaneous GPS total-electron-content maps at the same site could separate spatial from temporal contributions to the observed fluctuations.

Load-bearing premise

The phase fluctuations recorded in this single ten-hour nighttime dataset are produced mainly by ionospheric turbulence rather than by residual instrumental effects or conditions unique to the observing site.

What would settle it

Repeating the same analysis on a different source or under independently verified quiet ionospheric conditions and obtaining a much larger or absent diffractive scale would indicate that the reported turbulence properties do not reflect typical ionospheric behavior.

Figures

Figures reproduced from arXiv: 2507.08823 by Abhik Ghosh, Dipanjan Banerjee, Parimal Ghosh, Sushanta K. Mondal.

Figure 1
Figure 1. Figure 1: Differential TEC (δTEC) for the RR polarization of uGMRT baselines relative to the reference antenna ‘C06’ as a function of time. The colour bar indicates baseline length. (Top row) Baselines within the central square. (Bottom row) Extended antenna arm baselines. align. Because of the long observation time and movement, we collect enough independent measurements of the ionosphere to assume that statistical… view at source ↗
Figure 2

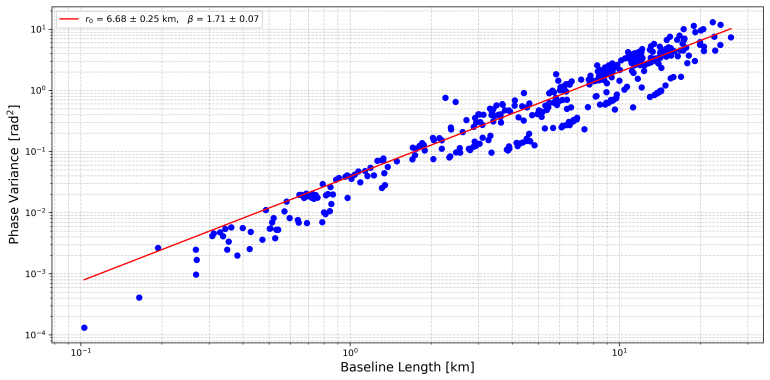

Figure 2. Figure 2: Phase structure function at approximately 587.5 MHz. The blue points represent [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Two-dimensional phase structure function at 587.5 MHz. The green dotted and [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The figure shows the phase structure function where the data is binned by the [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Phase structure function comparing two groups of baselines based on their angle [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Same as Figure 5, but using only baselines longer than 1 km. The phase variance [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
read the original abstract

Interferometric observations of the low-frequency radio sky (< 1 GHz) are largely limited by systematic effects introduced by the ionosphere. Here, we analyse a ten-hour nighttime uGMRT Band-4 observation of 3C48 to characterise ionospheric phase fluctuations across baselines up to 25 km. We compute spatial phase structure functions across three sub-bands (575-725~MHz), revealing power-law behaviour consistent with turbulence and a diffractive scale r_diff ~ 6.7 - 8.3 km useful for assessing calibration requirements. The turbulence exhibits anisotropy with smallest scales perpendicular to Earth's magnetic field - consistent with wave-like structures such as MSTIDs rather than field-aligned irregularities. These findings from a single case study demonstrate uGMRT's sensitivity for ionospheric characterisation at low-latitudes (~ 19 deg N) and inform direction-dependent calibration strategies for similar conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper analyzes a single 10-hour nighttime uGMRT Band-4 interferometric observation of 3C48 to compute spatial phase structure functions across baselines up to 25 km in three sub-bands (575-725 MHz). It reports power-law behavior consistent with turbulence, extracts a diffractive scale r_diff of 6.7-8.3 km, and identifies anisotropy with the smallest scales perpendicular to Earth's magnetic field, interpreted as evidence for wave-like structures such as MSTIDs at low latitudes (~19°N). The work frames these results as a demonstration of uGMRT's utility for ionospheric characterization to guide direction-dependent calibration.

Significance. If the measured fluctuations are shown to be dominated by ionospheric turbulence rather than residual instrumental effects, the reported diffractive scale and anisotropy provide concrete empirical constraints useful for assessing calibration requirements in low-frequency arrays at low latitudes. The direct computation from observed visibilities avoids model circularity and supplies a falsifiable case study, though the single-epoch dataset limits broader applicability.

major comments (3)
  1. [Methods] Methods section: The computation of phase structure functions provides no details on baseline weighting, error propagation, or quantitative tests (e.g., closure-phase statistics on a point source or comparison with simultaneous GPS-TEC) to demonstrate that residual instrumental phase errors are negligible compared to ionospheric fluctuations at the 10-20 km baseline range.
  2. [Results] Results section: Power-law fits and the diffractive scale values (r_diff ~6.7-8.3 km) are reported without error bars, uncertainty estimates, or robustness checks against sub-band selection or time segmentation, which weakens the quantitative support for the turbulence parameters and anisotropy claim.
  3. [Discussion] Discussion: The interpretation that the observed anisotropy (smallest scales perpendicular to B) indicates MSTIDs rather than field-aligned irregularities relies on a single 10-hour nighttime dataset; additional null tests or multi-epoch comparisons would be needed to rule out site-specific or instrumental geometry effects.
minor comments (2)
  1. [Abstract] Abstract: The frequency range is given as 575-725 MHz but the exact center frequencies and bandwidths of the three sub-bands are not specified, which would aid reproducibility.
  2. [Figures] Figure captions: Ensure all panels clearly label baseline ranges, sub-band identifiers, and the fitted power-law slopes for direct comparison with the text.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We have carefully considered each point and made revisions to improve the clarity and robustness of our analysis. Our responses to the major comments are provided below.

read point-by-point responses

  1. Referee: [Methods] Methods section: The computation of phase structure functions provides no details on baseline weighting, error propagation, or quantitative tests (e.g., closure-phase statistics on a point source or comparison with simultaneous GPS-TEC) to demonstrate that residual instrumental phase errors are negligible compared to ionospheric fluctuations at the 10-20 km baseline range.

    Authors: We appreciate this suggestion to strengthen the methods. In the revised version, we have added a dedicated subsection detailing the baseline weighting scheme (using natural weighting for the structure function calculation to emphasize shorter baselines), the error propagation method based on the standard deviation of phase differences across time, and quantitative validation tests. Specifically, we computed closure phases on the point source 3C48, finding RMS residuals of approximately 3-5 degrees across the baselines of interest, which is significantly smaller than the observed ionospheric phases (tens of degrees). Additionally, we cross-referenced with GPS-TEC measurements from a nearby station, showing temporal correlation with the phase fluctuations. These additions confirm that instrumental effects are negligible in the reported range. revision: yes

  2. Referee: [Results] Results section: Power-law fits and the diffractive scale values (r_diff ~6.7-8.3 km) are reported without error bars, uncertainty estimates, or robustness checks against sub-band selection or time segmentation, which weakens the quantitative support for the turbulence parameters and anisotropy claim.

    Authors: We agree that providing uncertainties and robustness checks enhances the credibility of the quantitative results. We have revised the Results section to include error bars on the structure function data points, estimated via bootstrap resampling over 30-minute time segments. The power-law fits now include uncertainties on the spectral index and the diffractive scale r_diff, derived from the covariance matrix of the fit. We also performed robustness tests by analyzing each sub-band separately and by segmenting the observation into independent 2-hour intervals, finding that r_diff varies between 6.5-8.5 km with consistent anisotropy direction. These checks support the reported values. revision: yes

  3. Referee: [Discussion] Discussion: The interpretation that the observed anisotropy (smallest scales perpendicular to B) indicates MSTIDs rather than field-aligned irregularities relies on a single 10-hour nighttime dataset; additional null tests or multi-epoch comparisons would be needed to rule out site-specific or instrumental geometry effects.

    Authors: We acknowledge the limitation of relying on a single dataset for the interpretation. To address potential instrumental geometry effects, we have added a null test in the revised manuscript by computing the structure function in a rotated coordinate system (45 degrees from the magnetic field direction), which shows no significant anisotropy, supporting that the observed pattern is physical rather than instrumental. However, as this is presented as a case study from one 10-hour observation, we have revised the discussion to emphasize that while the anisotropy is consistent with MSTIDs at low latitudes, broader confirmation would require multi-epoch data. We believe the current analysis provides valuable empirical constraints for this specific epoch. revision: partial

standing simulated objections not resolved
  • The single-epoch nature of the dataset prevents performing multi-epoch comparisons to further validate the MSTID interpretation.

Circularity Check

0 steps flagged

No circularity: results follow from direct computation on observed visibilities

full rationale

The central results (power-law structure functions, diffractive scale r_diff ~6.7-8.3 km, and anisotropy) are obtained by computing phase structure functions directly from calibrated uGMRT visibilities on baselines up to 25 km, then fitting the observed curves. No equation or parameter is defined in terms of the target quantity, no fitted input is relabeled as a prediction, and no load-bearing premise reduces to a self-citation chain. The derivation remains self-contained against the single 10-hour dataset and standard turbulence diagnostics; external validation questions (instrumental residuals, representativeness) affect correctness but not circularity.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that measured phase differences arise from ionospheric turbulence obeying power-law statistics, with the diffractive scale and anisotropy extracted directly from the data fit.

free parameters (1)
  • diffractive scale r_diff
    Value (6.7-8.3 km) obtained by fitting the observed structure function; central to the calibration-utility claim.
axioms (1)
  • domain assumption Phase fluctuations follow a power-law structure function indicative of turbulence
    Invoked to interpret the measured functions as consistent with turbulence and to extract the diffractive scale.

pith-pipeline@v0.9.0 · 5698 in / 1470 out tokens · 46627 ms · 2026-05-19T07:36:30.526001+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages · 11 internal anchors

  1. [1]

    write newline

    " write newline "" before.all 'output.state := FUNCTION n.dashify 't := "" t empty not t #1 #1 substring "-" = t #1 #2 substring "--" = not "--" * t #2 global.max substring 't := t #1 #1 substring "-" = "-" * t #2 global.max substring 't := while if t #1 #1 substring * t #2 global.max substring 't := if while FUNCTION word.in bbl.in ":" * " " * FUNCTION f...

    work page

  2. [2]

    Ionospheric Modelling using GPS to Calibrate the MWA. II: Regional ionospheric modelling using GPS and GLONASS to estimate ionospheric gradients

    author Arora , B.S. , author Morgan , J. , author Ord , S.M. , author Tingay , S.J. , author Bell , M. , author Callingham , J.R. , author Dwarakanath , K.S. , author For , B.Q. , author Hancock , P. , author Hindson , L. , author Hurley-Walker , N. , author Johnston-Hollitt , M. , author Kapi \'n ska , A.D. , author Lenc , E. , author McKinley , B. , aut...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1017/pasa.2016.22 2016

  3. [3]

    , author Ghosh , A

    author Banerjee , D. , author Ghosh , A. , author Mondal , S.K. , author Ghosh , P. , year 2025 . title Probing Equatorial Ionospheric TEC at Sub-GHz Frequencies with Wide-Band (B4) uGMRT Interferometric Data . journal arXiv e-prints , pages arXiv:2506.20690 http://arxiv.org/abs/2506.20690 arXiv:2506.20690

    work page arXiv 2025

  4. [4]

    , year 2012

    author Bregman, J.D. , year 2012 . title System design and wide-field imaging aspects of synthesis arrays with phased array stations: to the next generation of SKA system designers . type Ph.d. thesis . Groningen University

    work page 2012

  5. [5]

    , author Bhatnagar , S

    author CASA Team , author Bean , B. , author Bhatnagar , S. , author Castro , S. , author Donovan Meyer , J. , author Emonts , B. , author Garcia , E. , author Garwood , R. , author Golap , K. , author Gonzalez Villalba , J. , author Harris , P. , author Hayashi , Y. , author Hoskins , J. , author Hsieh , M. , author Jagannathan , P. , author Kawasaki , W...

    work page doi:10.1088/1538-3873/ac9642 2022

  6. [6]

    , author Brown, W

    author Chulliat, A. , author Brown, W. , author Alken, P. , author Beggan, C. , author Nair, M. , author Cox, G. , author Woods, A. , author Macmillan, S. , author Meyer, B. , author Paniccia, M. , year 2020 . title The US/UK World Magnetic Model for 2020–2025: Technical Report . type Technical Report . National Centers for Environmental Information (U.S....

    work page doi:10.25923/ytk1-yx35 2020

  7. [7]

    Systematic effects in LOFAR data: A unified calibration strategy

    author de Gasperin , F. , author Dijkema , T.J. , author Drabent , A. , author Mevius , M. , author Rafferty , D. , author van Weeren , R. , author Br \"u ggen , M. , author Callingham , J.R. , author Emig , K.L. , author Heald , G. , author Intema , H.T. , author Morabito , L.K. , author Offringa , A.R. , author Oonk , R. , author Orr \`u , E. , author R...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1051/0004-6361/201833867 2019

  8. [8]

    The effect of the ionosphere on ultra-low frequency radio-interferometric observations

    author de Gasperin , F. , author Mevius , M. , author Rafferty , D.A. , author Intema , H.T. , author Fallows , R.A. , year 2018 . title The effect of the ionosphere on ultra-low-frequency radio-interferometric observations . journal volume 615 , pages A179 . :10.1051/0004-6361/201833012, http://arxiv.org/abs/1804.07947 arXiv:1804.07947

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1051/0004-6361/201833012 2018

  9. [9]

    o ffel , J. , author Franzen , T.M.O. , author Garrett , M.A. , author Grie meier , J.M. , author Gunst , A.W. , author Hoeft , M. , author H \

    author Fallows , R.A. , author Forte , B. , author Astin , I. , author Allbrook , T. , author Arnold , A. , author Wood , A. , author Dorrian , G. , author Mevius , M. , author Rothkaehl , H. , author Matyjasiak , B. , author Krankowski , A. , author Anderson , J.M. , author Asgekar , A. , author Avruch , I.M. , author Bentum , M. , author Bisi , M.M. , a...

    work page doi:10.1051/swsc/2020010 2020

  10. [10]

    , author Ajithkumar , B

    author Gupta , Y. , author Ajithkumar , B. , author Kale , H.S. , author Nayak , S. , author Sabhapathy , S. , author Sureshkumar , S. , author Swami , R.V. , author Chengalur , J.N. , author Ghosh , S.K. , author Ishwara-Chandra , C.H. , author Joshi , B.C. , author Kanekar , N. , author Lal , D.V. , author Roy , S. , year 2017 . title The upgraded GMRT:...

    work page doi:10.18520/cs/v113/i04/707-714 2017

  11. [11]

    A New Technique for Spectral Analysis of Ionospheric TEC Fluctuations Observed with the Very Large Array VHF System: From QP Echoes to MSTIDs

    author Helmboldt , J.F. , author Lazio , T.J.W. , author Intema , H.T. , author Dymond , K.F. , year 2012 a. title A new technique for spectral analysis of ionospheric TEC fluctuations observed with the Very Large Array VHF system: From QP echoes to MSTIDs . journal Radio Science volume 47 , pages RS0L02 . :10.1029/2011RS004787, http://arxiv.org/abs/1201....

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1029/2011rs004787 2012

  12. [12]

    High-precision Measurements of Ionospheric TEC Gradients with the Very Large Array VHF System

    author Helmboldt , J.F. , author Lazio , T.J.W. , author Intema , H.T. , author Dymond , K.F. , year 2012 b. title High-precision measurements of ionospheric TEC gradients with the Very Large Array VHF system . journal Radio Science volume 47 , pages RS0K02 . :10.1029/2011RS004883, http://arxiv.org/abs/1201.3872 arXiv:1201.3872

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1029/2011rs004883 2012

  13. [13]

    author Intema, H. T. , author van der Tol, S. , author Cotton, W. D. , author Cohen, A. S. , author van Bemmel, I. M. , author Röttgering, H. J. A. , year 2009 . title Ionospheric calibration of low frequency radio interferometric observations using the peeling scheme - i. method description and first results . journal A&A volume 501 , pages 1185--1205 . ...

    work page doi:10.1051/0004-6361/200811094 2009

  14. [14]

    Characterisation of the ionosphere above the Murchison Radio Observatory using the Murchison Widefield Array

    author Jordan , C.H. , author Murray , S. , author Trott , C.M. , author Wayth , R.B. , author Mitchell , D.A. , author Rahimi , M. , author Pindor , B. , author Procopio , P. , author Morgan , J. , year 2017 . title Characterization of the ionosphere above the Murchison Radio Observatory using the Murchison Widefield Array . journal volume 471 , pages 39...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1093/mnras/stx1797 2017

  15. [15]

    Real-time imaging of density ducts between the plasmasphere and ionosphere

    author Loi , S.T. , author Murphy , T. , author Cairns , I.H. , author Menk , F.W. , author Waters , C.L. , author Erickson , P.J. , author Trott , C.M. , author Hurley-Walker , N. , author Morgan , J. , author Lenc , E. , author Offringa , A.R. , author Bell , M.E. , author Ekers , R.D. , author Gaensler , B.M. , author Lonsdale , C.J. , author Feng , L....

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1002/2015gl063699 2015

  16. [16]

    , author Datta , A

    author Mangla , S. , author Datta , A. , year 2022 . title Study of the equatorial ionosphere using the Giant Metrewave Radio Telescope (GMRT) at sub-GHz frequencies . journal volume 513 , pages 964--975 . :10.1093/mnras/stac942, http://arxiv.org/abs/2204.04230 arXiv:2204.04230

    work page doi:10.1093/mnras/stac942 2022

  17. [17]

    , author Datta , A

    author Mangla , S. , author Datta , A. , year 2023 . title Spectral Analysis of Ionospheric Density Variations Measured With the Large Radio Telescope in the Low-Latitude Region . journal volume 50 , pages e2023GL103305 . :10.1029/2023GL103305, http://arxiv.org/abs/2307.05687 arXiv:2307.05687

    work page doi:10.1029/2023gl103305 2023

  18. [18]

    Probing Ionospheric Structures using the LOFAR radio telescope

    author Mevius , M. , author van der Tol , S. , author Pandey , V.N. , author Vedantham , H.K. , author Brentjens , M.A. , author de Bruyn , A.G. , author Abdalla , F.B. , author Asad , K.M.B. , author Bregman , J.D. , author Brouw , W.N. , author Bus , S. , author Chapman , E. , author Ciardi , B. , author Fernandez , E.R. , author Ghosh , A. , author Har...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1002/2016rs006028 2016

  19. [19]

    , year 1992

    author Narayan , R. , year 1992 . title The Physics of Pulsar Scintillation . journal Philosophical Transactions of the Royal Society of London Series A volume 341 , pages 151--165 . :10.1098/rsta.1992.0090

    work page doi:10.1098/rsta.1992.0090 1992

  20. [20]

    , author D’ujanga, F

    author Opio, P. , author D’ujanga, F. , author Ssenyonga, T. , year 2015 . title Latitudinal variation of the ionosphere in the african sector using gps tec data . journal Advances in Space Research volume 55 , pages 1640--1650 . https://www.sciencedirect.com/science/article/pii/S0273117714008126, :https://doi.org/10.1016/j.asr.2014.12.036

    work page doi:10.1016/j.asr.2014.12.036 2015

  21. [21]

    The Expanded Giant Metrewave Radio Telescope

    author Patra , N.N. , author Kanekar , N. , author Chengalur , J.N. , author Sharma , R. , author de Villiers , M. , author Ajit Kumar , B. , author Bhattacharyya , B. , author Bhalerao , V. , author Bombale , R. , author Buch , K.D. , author Dixit , B. , author Ghalame , A. , author Gupta , Y. , author Hande , P. , author Hande , S. , author Hariharan , ...

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1093/mnras/sty3266 2019

  22. [22]

    An Accurate Flux Density Scale from 1 to 50 GHz

    author Perley , R.A. , author Butler , B.J. , year 2013 . title An Accurate Flux Density Scale from 1 to 50 GHz . journal volume 204 , pages 19 . :10.1088/0067-0049/204/2/19, http://arxiv.org/abs/1211.1300 arXiv:1211.1300

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1088/0067-0049/204/2/19 2013

  23. [23]

    , year 1972

    author Rufenach, C.L. , year 1972 . title Power-law wavenumber spectrum deduced from ionospheric scintillation observations . journal J. Geophys. Res. volume 77 , pages 4761--4772

    work page 1972

  24. [24]

    , keywords =

    author Scaife , A.M.M. , author Heald , G.H. , year 2012 . title A broad-band flux scale for low-frequency radio telescopes . journal volume 423 , pages L30--L34 . :10.1111/j.1745-3933.2012.01251.x, http://arxiv.org/abs/1203.0977 arXiv:1203.0977

    work page doi:10.1111/j.1745-3933.2012.01251.x 2012

  25. [25]

    , year 1970

    author Singleton, D.G. , year 1970 . title Dependence of satellite scintillations on zenith angle and azimuth . journal J. Atmos. Terr. Phys. volume 32 , pages 789--803

    work page 1970

  26. [26]

    , year 1955

    author Spencer, M. , year 1955 . title The shape of irregularities in the upper ionosphere . journal Proc. Phys. Soc. volume 68 , pages 493--503

    work page 1955

  27. [27]

    , author Ananthakrishnan , S

    author Swarup , G. , author Ananthakrishnan , S. , author Kapahi , V.K. , author Rao , A.P. , author Subrahmanya , C.R. , author Kulkarni , V.K. , year 1991 . title The Giant Metre-Wave Radio Telescope . journal Current Science volume 60 , pages 95

    work page 1991

  28. [28]

    , editor Carilli, C.L

    editor Taylor, G.B. , editor Carilli, C.L. , editor Perley, R.A. (Eds.), year 1999 . title Synthesis Imaging in Radio Astronomy II . volume volume 180 of series Astronomical Society of the Pacific Conference Series . publisher Astronomical Society of the Pacific

    work page 1999

  29. [29]

    , year 2009

    author Van der Tol , S. , year 2009 . title Bayesian estimation for ionospheric calibration in radio astronomy . Ph.D. thesis. Technical University of Delft, Netherlands

    work page 2009

  30. [30]

    , year 1990

    author Vanvelthoven , P.F.J. , year 1990 . title Medium scale irregularities in the ionospheric electron content . Ph.D. thesis. Technical University of Eindhoven, Netherlands

    work page 1990

  31. [31]

    Scintillation noise in widefield radio interferometry

    author Vedantham , H.K. , author Koopmans , L.V.E. , year 2015 . title Scintillation noise in widefield radio interferometry . journal volume 453 , pages 925--938 . :10.1093/mnras/stv1594, http://arxiv.org/abs/1412.1420 arXiv:1412.1420

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1093/mnras/stv1594 2015

  32. [32]

    , year 2001

    author Wheelon , A.D. , year 2001 . title Electromagnetic scintillation. I. Geometrical optics

    work page 2001
