Leakage at interfaces: a comprehensive study based on Persson contact mechanics theory

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read For dry rubber stopper-glass barrel contacts, the Persson effective-medium leakage theory, supplied with measured roughness power spectra and FEM contact pressures, predicts gas leak rates that fall inside the experimentally measured…

desk verdict A competent applied extension of Persson leakage theory to a real syringe stopper, but the validation hinges on one modulus transfer that the paper's own sensitivity analysis shows could shift predictions by orders of magnitude. read the letter →

arxiv 2507.09571 v1 pith:FMGNTUXB submitted 2025-07-13 cond-mat.soft physics.class-ph

R. Xu , L. Gil , J. Singer , L. Gontard , W. Leverd , B.N.J. Persson This is my paper · ORCID
classification cond-mat.softphysics.class-ph
keywords gasleakagecontactmechanicssurfaceroughnesspowerspectraldensityelasticsealspercolationthresholdrubber-glassinterfaceballisticflowfiniteelementpressure
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that gas leakage through a nominally dry, rough rubber-glass seal can be predicted quantitatively by feeding measured surface-roughness power spectra and finite-element contact pressures into the Persson contact mechanics theory, without assuming a Hertzian or rectangular pressure profile. The pipeline is applied to the first rib of a pharmaceutical syringe stopper, where the contact pressure is asymmetric and shaped by the stopper geometry, and compared with direct displacement-based leak measurements. The predicted leak rates fall inside the measured range and reproduce the observed increase of leak rate with internal fluid pressure. The broader claim is that this combination, measured roughness spectra, FEM pressures including fluid-pressure deformation, and a ballistic-limit gas-flow theory, constitutes a general route for leakage prediction in arbitrarily shaped seals. The paper also shows that near the percolation threshold the leak rate is strongly sensitive to the elastic modulus and contact pressure, which sets practical limits on input accuracy.

What carries the argument

The load-bearing mechanism is the effective flow conductivity $\sigma_\mathrm{eff}$ obtained by averaging the microscopic conductivity over the Persson-theory probability distribution $P(u)$ of interfacial separation using Bruggeman effective medium theory, with a modified dimension $n \approx 1.75$ that places contact-area percolation at $A/A_0 \approx 0.42$ instead of 0.5. For a gas, the microscopic conductivity interpolates between diffusive flow scaling as $u^3$ and ballistic flow scaling as $u^2$, and the leak rate follows by integrating $\sigma_\mathrm{eff}^{-1}$ along the flow direction under the FEM contact pressure $p_0(x)$, including fluid-pressure lift-off. This machinery replaces the customary Hertzian or rectangular pressure assumptions with an arbitrary FEM pressure distribution.

What would settle it

Measure dry first-rib leak rates with independently known barrel and stopper surfaces at $p_a = 0.15$ and $0.414$ MPa, determine the effective modulus from the first rib's own FEM pressure distribution, and compare with the predictions; the central claim is falsified if the measured rates fall outside the predicted band, especially at low $p_a$ where the model predicts the strongest sensitivity to stiffness.

Watch

Extended reading notes

Core claim

For the first-rib rubber-glass interface of a syringe stopper, the effective-medium leakage theory built on Persson contact mechanics, with the interfacial separation distribution $P(u)$ computed from measured roughness PSDs and the macroscopic contact pressure $p_0(x)$ taken from FEM rather than an idealized Hertzian contact, predicts gas leak rates that agree with controlled dry experiments. The theory treats gas flow in the ballistic limit, where the critical-junction separation is much smaller than the air mean free path, and interpolates between ballistic and diffusive transport. Both predicted and measured leak rates generally increase with fluid pressure $p_a$, because fluid pressure lifts the stopper off the barrel and widens the leak paths; for siliconized surfaces, the model attributes the absence of leakage to capillary bridges and slow silicone-oil squeeze-out. Sensitivity tests show that near percolation, changes of $\pm 15\%$ in the effective modulus $E_\mathrm{eff}$ or $p_0$ shift the predicted leak rate by up to two orders of magnitude, so the agreement depends on accurate FEM and material inputs.

Load-bearing premise

The calculation assumes that the rubber stiffness estimated by fitting the second rib's FEM contact pressure is the same inside the tiny rough contacts of the first rib, where the predicted leak rate changes by up to a hundredfold when that stiffness changes by fifteen percent.

Editorial extensions

If this is right

  • The same roughness-PSD plus FEM-pressure plus leakage-theory pipeline transfers to any seal geometry with an arbitrary pressure profile, so O-ring-specific Hertzian or rectangular assumptions are no longer required.
  • At low fluid pressure, where the contact is near the percolation threshold, predicted leak rates are strongly sensitive to elastic modulus and contact pressure; a 15 percent error in either can shift the rate by up to two orders of magnitude.
  • For fixed geometry and linear elasticity without lift-off, the leak rate depends on the ratio $p_0/E$, so scaling both pressure and modulus together leaves the leak rate unchanged; lift-off breaks this scaling at high $p_a$.
  • Increasing contact pressure, for example by tightening the seal, is the most effective way to reduce leakage across most fluid pressures, while softer rubber helps most at low pressure.
  • The observed increase of leak rate with fluid pressure, although non-monotonic, is consistent with fluid-pressure-induced lift-off widening the leak paths.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper tests only air, but the same effective-medium machinery with liquid conductivity scaling as $u^3$ predicts that near-percolation liquid leak rates should be even more sensitive to modulus and pressure; a water or glycerin leak test on the same stopper geometry would probe that prediction.
  • A sharp test of the method would be to determine the effective modulus by fitting the FEM pressure distribution on the first rib itself rather than transferring the second-rib value, since the stated transfer assumes comparable compression in both locations.
  • The same pipeline could be applied to other non-Hertzian seals, such as valve seats or gaskets, with the caveat that lubrication and contamination effects would need their own treatment.
  • A percolation-based consequence not measured here is that a single particle lodged at a critical junction should dramatically raise the leak rate; controlled contamination experiments with particles of known size would test whether the critical-junction picture captures real failure modes.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper applies Persson contact mechanics, implemented in the MCM software, to predict air leakage through the first rib of a rubber stopper pressed against a glass barrel in a prototype syringe. The inputs are a measured surface-roughness power spectral density (from stylus and AFM measurements), FEM-computed contact pressure distributions for seven fluid-pressure values, and an effective elastic modulus obtained by fitting Hertzian contact to the FEM pressure peak on the second rib. The predicted leak-rate range is compared with dry-contact leakage measurements; siliconized systems show no leakage, attributed to capillary bridges. A sensitivity analysis quantifies how ±15% changes in E and p0 affect the predicted leak rate, especially near the percolation threshold. The authors claim that the method provides a generalized, validated framework for leakage prediction in arbitrarily shaped seals.

Significance. If the validation holds, this is a useful step beyond the usual assumption of Hertzian or rectangular pressure distributions in Persson-theory leakage calculations: the paper combines measured PSDs, FEM pressure fields that include fluid-pressure-induced stopper deformation, a ballistic-gas-flow interpolation, and a direct comparison with dry leakage experiments. A notable strength is that no leak-rate data were used to calibrate the model; the effective modulus is fitted to FEM contact pressure rather than to leakage measurements. The sensitivity analysis is also a valuable practical contribution, showing how strongly leakage responds to E and p0 near percolation. The main risk is the unvalidated transfer of the effective modulus from the second rib to the first rib, combined with the demonstrated exponential sensitivity of the leak rate to E; this makes the reported agreement in Fig. 9 less conclusive than the abstract suggests.

major comments (3)
  1. [Other Material Properties] The effective modulus Eeff = 1.8 MPa is determined by matching the Hertzian peak pressure to the FEM peak pressure on the second rib, then transferred to the first rib based only on the estimate that the ~35% compression of the second rib is similar to the compression of the asperity contact regions. This transfer is load-bearing: the paper's own sensitivity test (Figs. 10 and 12, with the discussion following Fig. 12) shows that a ±15% change in E changes the predicted leak rate by up to two orders of magnitude at pa = 0 and by factors of 4 to 9 at pa = 0.414 MPa. Since the experimental comparison in Fig. 9 begins at pa = 0.15 MPa, where sensitivity is still substantial, an error in the transferred Eeff of only about 15% could shift the prediction by a large factor and make the agreement coincidental. The paper should provide an independent measurement of Eeff on the first rib at the relevant strain (e.g., DMA or nanoindentation), or a direct FEM-to-Persson fit on the first rib, and should show the quality of the Hertzian fit used on the second rib.
  2. [Experimental Setup] The dry friction between stopper and barrel is stated to be approximately 10 N, while the minimum applied load is 44 N (pa = 0.15 MPa). This means the uncertainty in pa = FN/A0 is about 23% at the lowest load, yet the experimental leak-rate points in Fig. 9 are shown without an uncertainty band reflecting this. Because the predicted leak rate is most sensitive to contact conditions at low pa, the low-pressure region of the comparison is exactly where this systematic error matters most. The authors should correct the friction force explicitly (or demonstrate that it is negligible with a measurement), and propagate the resulting pa uncertainty into the comparison.
  3. [Surface Topography Power Spectra] A roll-off region was 'added to the fitted PSD' at qr = 2π/L 'for technical reasons.' The PSD is described as the most critical input of the model, and the long-wavelength content of the spectrum has a strong influence on the percolation channels and hence on the predicted leakage. The paper provides no measured justification for this added roll-off and no sensitivity test with respect to qr. The authors should either support the roll-off with measured data at the relevant scan lengths or quantify how the predicted leakage range in Fig. 9 changes when qr is varied within a physically reasonable interval.
minor comments (5)
  1. [Theory, Eq. (7)] Equation (7) appears with a missing plus sign between the delta-function term and Pc(u); it should read P(u) = (A/A0) δ(u) + Pc(u).
  2. [Introduction] There is a grammatical error: 'it rely on several assumptions' should be 'it relies on several assumptions.'
  3. [Appendix A and Fig. 13] The terminology is inconsistent: the text uses 'Tripp number γ' while the Fig. 13 caption uses 'Trip number γ'; please unify the spelling.
  4. [Other Material Properties] The phrase 'an effective elastic modulus Eeff can be driven from the fit' should read 'derived from the fit.'
  5. [Fig. 9] The experimental points would be easier to interpret with error bars and with the number of repeated measurements per pa indicated; the text states that about 20 stoppers and 10 barrels were tested, but it is not clear how many leakage measurements underlie each hollow square.

Circularity Check

0 steps flagged · score 0.0 of 10

No leak-rate data are used as model inputs: Eeff is fitted to FEM contact pressure, and the n≈1.75 correction is benchmarked against numerical simulations, so the leak-rate comparison does not reduce by construction to the paper's own inputs.

full rationale

The derivation chain is input-to-prediction: measured topography gives the PSD, FEM gives p0(x), material parameters give Eeff and the flow properties, and the MCM/Persson effective-medium calculation yields P(u), σeff, and the leak rate via Eqs. (7)–(10). No experimental leak-rate value is used as a fitting target anywhere in the paper. The effective modulus is obtained by matching a Hertzian pressure distribution to the FEM peak on the second rib ('we chose Eeff to reproduce the maximum contact pressure predicted by FEM. This yields an effective modulus of Eeff ≈ 1.8 MPa'), and it is then transferred to the first rib by an estimated similarity of compression; this is a parameter-transfer uncertainty—exposed by the paper's own ±15% sensitivity analysis—not a circular reduction, because the leak data were never used in that fit. The Bruggeman correction n≈1.75 is imported from earlier Persson-group references, but it is anchored to agreement with first-principles flow simulations in Ref. [15], which is an external numerical benchmark rather than a fit to the present experimental leak rates. The comparison in Fig. 9 is independent: dry leak rates are reported to fall within the predicted upper/lower bounds and to follow the pa trend. Two passages deserve explicit flagging but do not create circularity: the Theory section contains a missing-reference artifact ('correct percolation threshold [ ? ]'), and the Eeff transfer relies on an unverified strain-similarity estimate; both are completeness/robustness concerns. Under the hard rule that circularity requires exhibiting a specific reduction of the prediction to its own inputs, no such reduction is present, so the finding is no significant circularity.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central prediction rests on three fitted or inherited parameters (Eeff, PSD roll-off, Bruggeman n), several domain assumptions from Persson and Bruggeman theory, and one ad hoc transfer assumption connecting the second rib's fitted modulus to the first rib. No new physical entities are postulated. The most consequential input is Eeff, because the sensitivity analysis shows that modest errors in E or p0 can change leak rates by orders of magnitude near percolation.

free parameters (3)
  • Effective elastic modulus Eeff = 1.8 MPa
    Chosen by fitting the FEM contact-pressure peak of the second rib to Hertz theory and transferred to the first rib. The leak-rate prediction is highly sensitive to E, with orders-of-magnitude changes for ±15% variation near percolation.
  • PSD roll-off wavenumber qr = qr = 2π/L, with L the contact width in the flow direction
    A roll-off region was added to the fitted PSD 'for technical reasons'. This low-wavenumber cutoff shapes the large-wavelength roughness and hence the predicted leak-path size, but its value is not derived from measurement.
  • Bruggeman effective dimension n = n ≈ 1.75
    Introduced in the effective medium theory to reproduce the numerical percolation threshold A/A0 ≈ 0.42 from Ref. 15. It is an adjustable theory parameter inherited from prior literature, not fitted to the present leakage data.
assumptions (5)
  • domain assumption Persson contact mechanics theory gives an accurate interfacial separation probability P(u) for the rubber-glass contact.
    The entire leakage calculation uses P(u) from Persson theory with linear elasticity; the paper does not independently benchmark P(u) for this specific material and roughness.
  • domain assumption The Bruggeman effective medium approximation with n ≈ 1.75 correctly describes flow conductivity and percolation for this roughness.
    Equation (8) and Appendix A rely on the effective-medium approximation and its percolation correction from prior numerical simulations (Refs. 15, 31, 32).
  • domain assumption The FEM smooth-contact pressure distribution p0(x), including fluid-pressure effects, remains representative once roughness and lift-off are introduced.
    FEM p0(x) is an input to the MCM calculation; the method assumes roughness does not macroscopically alter the rib-barrel pressure distribution and that lift-off is captured separately by the MCM software.
  • domain assumption Gas flow is stationary and isothermal, and the fluid pressure in the conductivity expression can be replaced by its average (pa+pb)/2.
    In the Theory section, p in Eq. (6) is replaced by the average pressure so that sigma depends only on u; this approximation is needed for the effective-medium treatment.
  • ad hoc to paper The effective modulus determined on the second rib applies to the first rib because both experience about 35% compression.
    This is the load-bearing transfer assumption from the 'Other Material Properties' section. Its accuracy is not directly measured, and the paper's own sensitivity analysis shows large leak-rate consequences from E variations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Leakage at interfaces: a comprehensive study based on Persson contact mechanics theory." pith.science (2026). https://pith.science/paper/FMGNTUXB

@misc{pith2026250709571,
  author       = {Pith},
  title        = {Pith review of: Leakage at interfaces: a comprehensive study based on Persson contact mechanics theory},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FMGNTUXB}},
  note         = {Machine review of arXiv:2507.09571}
}
read the original abstract

We present a comprehensive study of gas leakage at interfaces based on Persson contact mechanics theory. A prototype syringe system consisting of a rubber stopper and a glass barrel is selected, where surface roughness is characterized using measurements from stylus profilometry and atomic force microscopy, and contact pressure distributions are obtained from Finite Element Method (FEM) calculations. Leakage prediction is performed using Multiscale Contact Mechanics (MCM) software. The predicted results show good agreement with experimental measurements under controlled dry conditions. Sensitivity analyses indicate that small variations in elastic modulus and contact pressure can significantly influence leakage, particularly near the percolation threshold. This work provides a generalized and validated framework for leakage prediction and offers practical guidance for the design of sealing systems in pharmaceutical and engineering applications.

Figures

Figures reproduced from arXiv: 2507.09571 by the authors.

Figure 1
Figure 1. FIG. 1. Cross-section of a circular seal orthogonal to the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

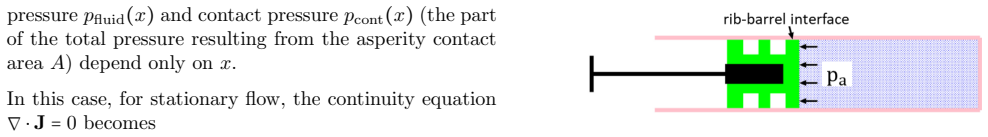

Figure 2. FIG. 2. Schematic representation of the studied system. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. General process for investigating leakage using MCM software. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: FIG. 4. 2D surface roughness power spectra calculated from [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. (a) During fluid injection, the fluid pressure in the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. FEM-simulated contact pressure distributions [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. (a) Experimental setup used in this study. (b) Schematic representation of the setup. (c) Glass barrel glued to a [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8. Cuts and corresponding non-contact areas on the [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9. Leak rate as a function of [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10. Predicted leak rate with [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11. Predicted leak rate with [PITH_FULL_IMAGE:figures/full_fig_p010_11.png]
Figure 13
Figure 13. Figure 13: FIG. 13. (a) Fluid flow in a contact with anisotropic rough [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
