Fine-Grained Traffic Inference from Road to Lane via Spatio-Temporal Graph Node Generation

T0 review · 4 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read RoadDiff infers lane-level traffic states from road-level data, cutting speed inference error by about 40%.

desk verdict RoadDiff proposes a useful new lane-inference task with strong speed results, but its diffusion module does not mathematically invert the stated forward process and the flow gains are modest. read the letter →

arxiv 2507.19089 v1 pith:WCOLYKDO submitted 2025-07-25 cs.AI cs.CV

Shuhao Li , Weidong Yang , Yue Cui , Xiaoxing Liu , Lingkai Meng , Lipeng Ma , Fan Zhang This is my paper · ORCID
classification cs.AIcs.CV
keywords trafficinferencelane-levelroad-levelspatio-temporalgraphnodegenerationdiffusionmodelspeedflow
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces the Fine-grained Road Traffic Inference (FRTI) task: use coarse road-level traffic speed and flow measurements, together with road and lane network topology, to generate fine-grained lane-level traffic states. The authors argue that lane-level data are a bottleneck for autonomous driving, lane-change guidance, and signal control because dedicated lane sensors are costly, whereas road-level detectors are already widespread. They propose RoadDiff, a two-stage model that first encodes road spatio-temporal features and decodes an initial lane estimate, then refines it with a diffusion module that enforces traffic conservation identities. On the PeMS, PeMS_F, and HuaNan speed and flow datasets, RoadDiff reports the lowest errors among 17 adapted baselines, with speed inference errors reduced by about 40% relative to the best baseline.

What carries the argument

The load-bearing object is the two-stage RoadDiff architecture. The first stage, the Road-Lane Correlation Autoencoder-Decoder, uses a road-level encoder with static and attention-based graph convolutions and temporal MLPs to produce intermediate features, then a lane-level decoder maps those features onto lane nodes using lane topology and road-lane correspondence, yielding an initial lane estimate. The second stage, the Lane Diffusion Module, runs forward noise addition and reverse denoising conditioned on road information, then applies a constraint-loss gradient step that enforces the two identities $x_{r_i}^t = \frac{1}{J_i}\sum_{j=1}^{J_i} x_{l_{i,j}}^t$ for speed and $x_{r_i}^t = \sum_{j=1}^{J_i} x_{l_{i,j}}^t$ for flow. The diffusion stage is what absorbs the uncertainty in mapping coarse road measurements to finer lane states and iteratively pushes the generated lanes toward traffic-consistent values.

What would settle it

Compare per-lane detector speeds with the road-level detector speed on the same segment over many intervals; if the reported road speed consistently differs from the arithmetic mean of lane speeds by more than the model's reported error margins, the hard speed constraint is violated and would penalize correct lane estimates.

Watch

Extended reading notes

Core claim

The paper's central claim is that lane-level traffic speed and flow can be accurately generated from road-level data by formulating the task as a spatio-temporal graph node generation problem rather than as a prediction or reconstruction problem. RoadDiff solves this with a Road-Lane Correlation Autoencoder-Decoder, which maps road graph features to initial lane features using graph convolutions, attention, and temporal MLPs, followed by a Lane Diffusion Module that adds and removes noise while enforcing two physical constraints: road speed equals the arithmetic mean of its lane speeds, and road flow equals the sum of its lane flows. The authors report that RoadDiff outperforms all adapted baselines on six real speed and flow datasets and that the speed inference error is approximately 40% lower than the best-performing baseline.

Load-bearing premise

The speed constraint treats a road's reported speed as the arithmetic mean of its lanes' speeds, but real detectors often compute speed as a flow-weighted or zone-based quantity, so the hard constraint can bias lane estimates when that identity fails.

Editorial extensions

If this is right

  • A city with only road-level loop detectors could generate lane-level speed and flow maps for lane-change guidance and signal control without installing per-lane cameras.
  • The FRTI formulation gives future work a shared task definition, evaluation metrics, and adapted baselines for spatio-temporal graph node generation.
  • The diffusion-plus-constraint refinement recipe could be reused for other disaggregation problems where coarse observations must respect conservation identities.
  • On speed inference, errors are roughly 40 percent lower than the best adapted baseline; on flow inference, the improvement is smaller but consistent across datasets.
  • Longer time windows matter more for flow inference than for speed inference, where performance stays stable across window sizes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the speed constraint is enforced as a hard loss, the method's real-world accuracy likely depends on how closely detector-reported road speed matches the arithmetic mean of lane speeds; on roads where flow-weighted speed is reported, a learned or soft aggregation could be a natural adaptation.
  • The same spatio-temporal node-generation formulation could transfer to other granularity mismatches, such as inferring neighborhood-level flows from district-level counts or producing high-resolution air-quality maps from sparse monitors.
  • The ablations suggest that the diffusion module carries much of the accuracy gain; a cheaper refinement network that only enforces the constraints could test whether the full diffusion machinery is necessary.
  • If the reported 40 percent improvement holds on independently collected road-lane pairs, the practical case for replacing dedicated lane sensors with inference from existing road detectors is strengthened.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper introduces the Fine-grained Road Traffic Inference (FRTI) task: inferring lane-level speed and flow from road-level measurements using road and lane graph topologies. The proposed RoadDiff framework has two stages: a Road-Lane Correlation Autoencoder-Decoder that produces initial lane estimates from road spatio-temporal features, and a Lane Diffusion Module that iteratively refines these estimates while enforcing speed and flow constraints. Experiments on PeMS, PeMS_F, and HuaNan datasets compare against 17 adapted baselines, reporting substantially lower MAE/RMSE/MAPE for traffic speed and smaller but consistent gains for traffic flow. The authors release datasets and code.

Significance. If the results hold, the paper makes a useful contribution: it formalizes a new spatio-temporal graph node generation task, provides a practical method that could reduce reliance on dedicated lane-level sensors, and reports strong speed-inference improvements over strong baselines across three real datasets. The manuscript also includes several well-chosen baselines adapted from urban inference and traffic forecasting, and it makes code and data available, which strengthens reproducibility. The flow improvements, however, are modest, and the diffusion-module derivation has a load-bearing correctness problem that needs to be resolved before the methodological claims can be accepted.

major comments (4)
  1. [Section 3.2, Eqs. (14)-(16)] The reverse diffusion update in Eq. (16) is not the inverse of the forward process in Eq. (14). Solving Eq. (14) for x^(n-1) gives x^(n-1) = (x^(n) - gamma_n * road - sqrt(beta_n) * epsilon) / sqrt(1 - beta_n), whereas Eq. (16) uses (x^(n) - beta_n/sqrt(1 - beta_n) * epsilon_theta)/sqrt(1 - beta_n) + gamma_n * road + Sigma: the noise coefficient differs and the road term has the opposite sign. Additionally, the forward process conditions on x_R^(n-1) in Eq. (13), while the reverse conditions on x_R^(n) in Eq. (15), and the KL loss in Eq. (20) drops the road conditioning entirely. The Lane Diffusion Module is therefore a heuristic denoiser rather than a valid denoising diffusion probabilistic model, and the claim in Section 3.2 that it learns constraints through a diffusion process is not supported. The authors should either derive a consistent forward/reverse pair or reframe the module as an iterative denoising refinement and remove the diffusion-modeling claims.
  2. [Section 2, Constraint 1 and Appendix A.2] Constraint 1 asserts that road speed equals the arithmetic mean of lane speeds, and Appendix A.2 calls this the 'Traffic Speed Consistency Law.' In real loop-detector data, road speed is commonly a flow-weighted average over lanes or is computed over a detector zone, so the arithmetic-mean equality need not hold. Because Eq. (18) enforces this equality as a hard training loss, a systematically incorrect constraint would penalize correct lane-level estimates and bias inference. The authors should validate the constraint empirically (e.g., by comparing arithmetic-mean, flow-weighted, and detector-zone speed aggregations on the PeMS/HuaNan data) or test model sensitivity to replacing or removing this loss.
  3. [Section 4.4, Tables 2-5] No error bars, multiple seeds, or significance tests are reported, which matters because the flow improvements are small: from Table 2, RoadDiff MAE is 14.56 versus best FUFI baseline CUFAR's 15.09 (about 3.5%); from Table 3, 14.99 versus 15.78 (about 5%); from Table 5, 4.88 versus 5.08 (about 4%). The Section 4.4 claim of 'approximately 40%' error reduction is also not uniformly supported by the tables: the speed MAE reductions versus the best baseline are 35.7% on PeMS (7.04 vs. 10.95), 28.7% on PeMS_F (6.93 vs. 9.72), and 39.0% on HuaNan (3.11 vs. 5.10). Please clarify which datasets the 40% figure refers to and add seed variance and significance reporting.
  4. [Section 4.6, Figure 5] The text states that the Lane Diffusion Module 'could not be directly removed' because of the shape requirement, yet the ablation reports a 'w/o D' variant with the diffusion module removed. The procedure for obtaining this variant is undefined, which undermines the conclusion that removing the Lane Diffusion Module causes the largest error increase. The authors should specify exactly what the w/o D model is (e.g., initial lane information passed through the constraint update only) and report how its outputs are obtained.
minor comments (5)
  1. [Abstract] The abstract repeats the phrase 'solve the FRTI task' twice; one occurrence should be removed.
  2. [Section 3.3, Eq. (19)] The term L_recon is called 'Reconstruction Error,' but Eq. (19) is the standard noise-prediction loss used in diffusion training; the name should be changed to avoid confusion.
  3. [Algorithm 1, lines 19-21] The algorithm uses inconsistent notation, writing b_X_L^(n) on the left of the forward step but e_X_L^(n) inside the reverse update; the variables should be made uniform and aligned with Eqs. (14)-(16).
  4. [Figures 6-8] The figure text contains unicode artifact tokens (e.g., '/uni00000030/uni00000024/...'), making axis labels and legends unreadable; the figures need to be regenerated.
  5. [Section 4.1 and Abstract] The paper refers to 'six datasets,' but the experiments describe three sensor collections (PeMS, PeMS_F, HuaNan) with speed and flow as two traffic states; the wording should clarify whether these count as six datasets.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: RoadDiff is supervised against external lane-level sensor data, and its constraints are assumptions, not derived predictions.

full rationale

The paper's central claim is that RoadDiff infers lane-level speed and flow from road-level inputs, and it is evaluated against real lane-level sensor labels (PeMS and HuaNan datasets). This is a standard supervised learning setup: the lane labels are external data, not fitted parameters of the model, and the reported MAE/RMSE/MAPE are computed on held-out lane data. No equation in the paper reduces a predicted lane value to a fitted input; the road-lane constraints (arithmetic-mean speed, summed flow) are imposed as auxiliary losses (Eq. 18) and are stated as physical assumptions (Appendix A), not derived from the model outputs. The observation that a physics-only baseline, which already satisfies these constraints, performs much worse on speed inference (e.g., MAE 11.47 vs. RoadDiff 7.04 on PeMS) confirms that the constraints do not by themselves determine the lane-level predictions. The authors' self-citations ([5], [21], [22]) appear in related-work and baseline contexts and are not used to justify the diffusion module or any uniqueness claim. The reverse diffusion update in Eq. (16) is not the algebraic inverse of the forward process in Eq. (14), which is a substantive correctness or validity concern about the Lane Diffusion Module, but it is not a circularity: the reverse step is inconsistent rather than equivalent to its inputs by construction. Overall, the derivation chain is self-contained with respect to the empirical evaluation, and no prediction reduces to its own input.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical entities, forces, or dimensions. Its central assumptions are the two traffic constraints and the lane adjacency model, plus the application of standard diffusion machinery to model-generated initial estimates. Several hyperparameters (diffusion steps, lambda, eta, beta/gamma, noise schedule) are not fully specified, which limits exact reproduction.

free parameters (5)
  • Diffusion step count N = 10 (main), tuned from {5,10,20,30}
    Table 4 reports tests at 5, 10, 20, and 30 steps; the main experiments use 10, and the paper does not specify a validation-based selection protocol.
  • Constraint loss weight lambda = not reported
    Eq. (21) combines reconstruction and constraint losses with a scalar lambda; no value or tuning procedure is given.
  • Balancing parameters beta and gamma = not reported
    Eqs. (4) and (10) mix static and attention features with weights beta and gamma; it is unclear whether these are learned or hand-set.
  • Constraint-update learning rate eta = not reported
    Eq. (17) refines lane values during reverse diffusion using step size eta; no value or schedule is provided.
  • Noise schedule beta_n and road-influence weights gamma_n = not reported
    Forward diffusion in Eq. (14) requires a noise schedule and road-influence weights; only the number of steps is specified.
assumptions (4)
  • domain assumption Road speed equals the arithmetic mean of its lane speeds (Constraint 1).
    Enforced in training loss Eq. (18) and justified in Appendix A.2 as a law, but it holds only under uniform lane density; real road speed fields may be flow-weighted.
  • domain assumption Road flow equals the sum of lane flows (Constraint 2).
    True under conservation if all lanes are included and no turning movements are omitted; used in Eq. (18). Reasonable but depends on consistent sensor aggregation.
  • domain assumption Lane topology is captured by a static four-direction adjacency graph.
    Definition 2 assumes lanes connect only up, down, left, and right, and that adjacency is fixed over time; this misses dynamic lane changes or variable lane use.
  • standard math Standard DDPM theory applies to the initial lane estimates.
    Section 3.2 borrows the denoising diffusion framework from Ho et al. (2020), but the diffusion operates on the model's own output hat_X^L rather than ground-truth lane data, so the usual theoretical guarantees do not directly transfer.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Fine-Grained Traffic Inference from Road to Lane via Spatio-Temporal Graph Node Generation." pith.science (2026). https://pith.science/paper/WCOLYKDO

@misc{pith2026250719089,
  author       = {Pith},
  title        = {Pith review of: Fine-Grained Traffic Inference from Road to Lane via Spatio-Temporal Graph Node Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WCOLYKDO}},
  note         = {Machine review of arXiv:2507.19089}
}
read the original abstract

Fine-grained traffic management and prediction are fundamental to key applications such as autonomous driving, lane change guidance, and traffic signal control. However, obtaining lane-level traffic data has become a critical bottleneck for data-driven models due to limitations in the types and number of sensors and issues with the accuracy of tracking algorithms. To address this, we propose the Fine-grained Road Traffic Inference (FRTI) task, which aims to generate more detailed lane-level traffic information using limited road data, providing a more energy-efficient and cost-effective solution for precise traffic management. This task is abstracted as the first scene of the spatio-temporal graph node generation problem. We designed a two-stage framework--RoadDiff--to solve the FRTI task. solve the FRTI task. This framework leverages the Road-Lane Correlation Autoencoder-Decoder and the Lane Diffusion Module to fully utilize the limited spatio-temporal dependencies and distribution relationships of road data to accurately infer fine-grained lane traffic states. Based on existing research, we designed several baseline models with the potential to solve the FRTI task and conducted extensive experiments on six datasets representing different road conditions to validate the effectiveness of the RoadDiff model in addressing the FRTI task. The relevant datasets and code are available at https://github.com/ShuhaoLii/RoadDiff.

Figures

Figures reproduced from arXiv: 2507.19089 by the authors.

Figure 1

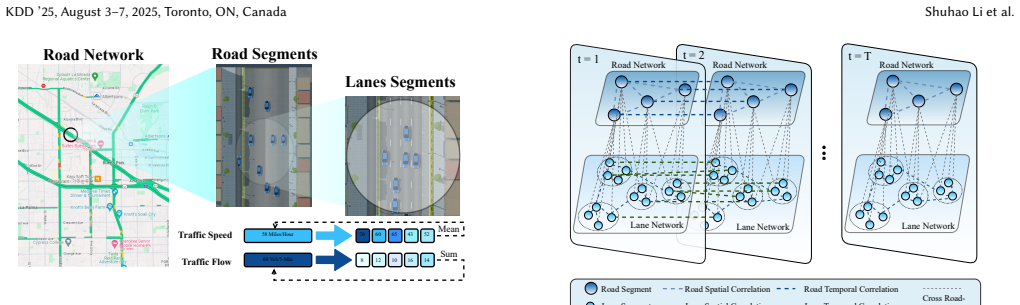

Figure 1. Examples of inferring lane data from roads and the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. The correspondence between roads and lanes in the [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Overview of the two-stage RoadDiff framework: the first stage, with a streamlined spatio-temporal attention design, [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (3 more)
Figure 5
Figure 5. Figure 5: Ablation results of RoadDiff components 4.6 Ablation Study To evaluate the contribution of different components to the per￾formance of the RoadDiff model, we conducted ablation experi￾ments, including the removal of the Lane Diffusion Module (w/o D), the elimination of…
Figure 6

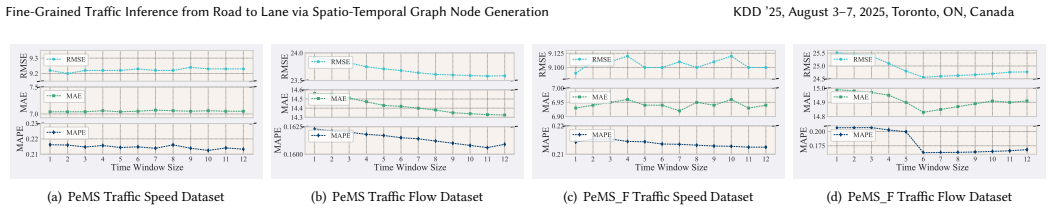

Figure 6. Figure 6: The Variation in Inference Error under Different Time Window Sizes. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7
Figure 7. Figure 7: Influence of Time Window Size on HuaNan Datasets. C.2 Study on Time Window Size [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
