The paper introduces FLORES, a wheel-legged robot whose front legs use hip-yaw degrees of freedom in place of the conventional hip-roll joint. This mechanical choice is paired with a reinforcement-learning controller that adapts the Hybrid Internal Model and uses a custom reward structure matched to the new joints. The resulting system produces smooth switches between wheeled and legged motion plus new gaits that combine the strengths of both modes. Experiments show improved steering, lower navigation cost, and reliable performance on mixed surfaces.

Core claim

By substituting hip-yaw actuators for the usual hip-roll degree of freedom on the front legs and training an adapted Hybrid Internal Model controller with rewards tuned to this layout, the robot generates efficient multi-modal locomotion that exploits both wheel rolling on level ground and leg stepping on irregular terrain.

What carries the argument

The front-leg joint reconfiguration that replaces hip-roll with hip-yaw DoFs, together with the customized RL controller built on the Hybrid Internal Model.

Load-bearing premise

The mechanical swap of hip-roll for hip-yaw joints plus the tailored reward function will produce the claimed efficient gaits and steering gains without creating new stability or control problems.

What would settle it

A side-by-side comparison of turning radius and energy cost on flat ground, plus balance recovery time after a sudden slope change, would show whether the new joint layout actually outperforms standard hip-roll designs or introduces hidden instability.

Figures

Figures reproduced from arXiv: 2507.22345 by Chunxin Zheng, Jinglan Xu, Jun Ma, Yulin Li, Zhicheng Song, Zhihai Bi.

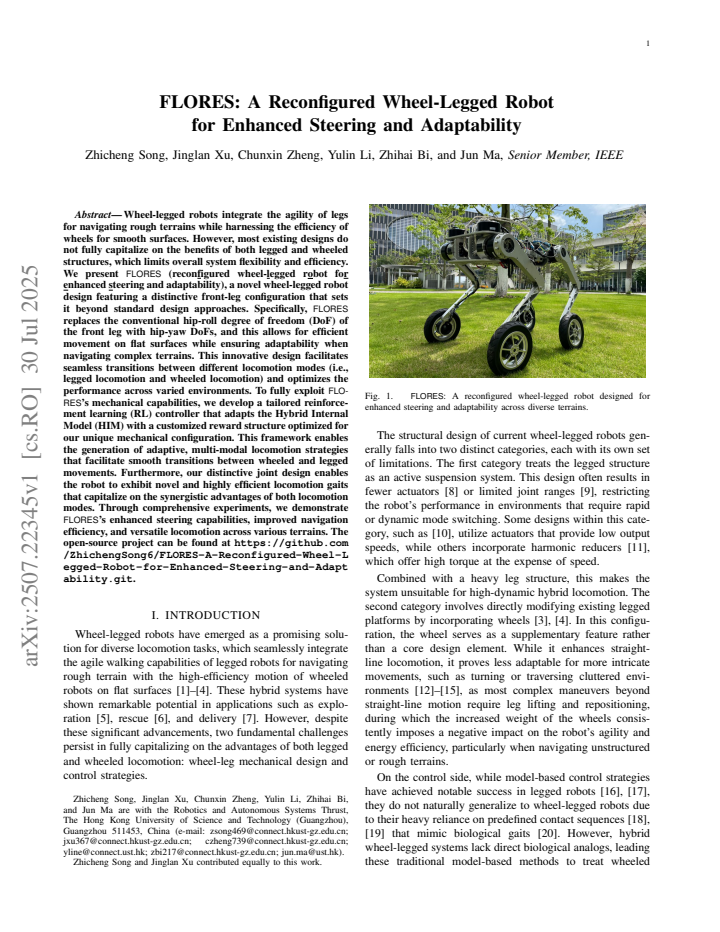

Figure 1
Figure 1. Figure 1: FLORES: A reconfigured wheel-legged robot designed for enhanced steering and adaptability across diverse terrains. The structural design of current wheel-legged robots gen￾erally falls into two distinct categories, each with its own set of limitations. The first category treats the legged structure as an active suspension system. This design often results in fewer actuators [8] or limited joint ranges [9],… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of mechanical design: (a) Illustration of the joint DoF [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overview of our system architecture and training pipeline. The training process consists of two phases: Phase I involves sim-to-sim transfer, [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The top figure illustrates Flores climbing up the stairs, while the bottom figure depicts the joint angles of the thigh and calf joints for both the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: By utilizing the modified hip-yaw degree of freedom, [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: FLORES is commanded to follow circular paths with a radius of 0.5 m, 1.0 m, 1.5 m, and 2.0 m. The modified hip-yaw DoF, highlighted by the blue line, serves as a steering mechanism that enables FLORES to change its heading angle while keeping the front legs on the ground. This allows the efficient turning without lifting the front legs, thereby reducing overall energy consumption [PITH_FULL_IMAGE:figures/… view at source ↗
Figure 7
Figure 7. Figure 7: FLORES and B2W are performing lateral walking. The blue circles indicate the wheels in contact with the ground, while the red circles represent the wheels that are lifted off the ground. The modified hip-yaw degree of freedom in FLORES allows it to utilize the front wheels to assist in lateral movement. In contrast, B2W must continuously lift its legs to achieve lateral motion, resulting in a less efficien… view at source ↗
Figure 9
Figure 9. Figure 9: FLORES is executing a complex path-following task that necessi￾tates continuous and rapid changes in direction. (a) illustrates the path, with points A, B, C, D, E, F, and G marking the seven points where the robot rapidly changes its direction. (b) and (c) display the instantaneous CoT for FLORES and B2W as they navigate the same path-following task. The spikes in the plots correspond to the turning point… view at source ↗
