arxiv: 2508.08676 · v2 · submitted 2025-08-12 · ✦ hep-ph · astro-ph.CO· hep-ex

WIMP Dark Matter within the dark photon portal

X. G. Wang , B. M. Loizos , A. W. Thomas This is my paper

Pith reviewed 2026-05-18 23:54 UTC · model grok-4.3

classification ✦ hep-ph astro-ph.COhep-ex
keywords dark photonWIMPrelic densitydirect detectionDirac fermioncomplex scalarkinetic mixingZ boson
0
0 comments X p. Extension

The pith

Dark photon portal imposes lower limits on thermal WIMP dark matter parameters up to 1 TeV

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how a dark photon can serve as a portal linking the visible sector to dark matter, considering both Dirac fermion and complex scalar candidates with masses up to 1 TeV. It computes the thermal relic density from annihilation processes mediated by the dark photon together with the ordinary Z boson, then extracts the minimum values required for the dark-sector coupling and kinetic mixing to reproduce the observed abundance. These same parameters determine the spin-independent dark-matter-proton scattering cross section, which is compared against existing direct-detection upper limits to map out the surviving regions of parameter space.

Core claim

Including both the dark photon and the Z boson in the annihilation and scattering amplitudes, the authors obtain lower bounds on the dark parameters from the requirement that the thermal relic density matches observation, and they find that the corresponding direct-detection cross sections remain below current experimental limits over substantial portions of the parameter space for dark-matter masses below 1 TeV.

What carries the argument

The dark photon portal, through which both the dark photon and the Z boson mediate dark-matter annihilation into standard-model particles and scattering off nucleons, fixes the relic abundance and the direct-detection rates.

If this is right

  • Lower limits on the dark-photon mass and kinetic mixing arise directly from matching the observed relic density.
  • Spin-independent cross sections for both fermion and scalar candidates lie below current direct-detection bounds in the surviving parameter regions.
  • Viable windows remain open for dark-matter masses up to 1 TeV under the combined relic-density and direct-detection constraints.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Tighter future direct-detection bounds could push the allowed windows to higher dark-matter masses or exclude the portal entirely.
  • Collider searches for light dark photons with the required couplings would provide an independent test of the same parameter space.
  • Extensions that include additional mediators would generally relax the lower bounds on the dark-photon parameters by enhancing annihilation efficiency.

Load-bearing premise

The calculation assumes that dark matter is thermally produced via freeze-out in standard cosmology and that annihilation and scattering are dominated by dark photon and Z boson exchange with no additional mediators or non-thermal effects altering the relic density.

What would settle it

A direct-detection measurement that sets an upper limit on the spin-independent dark-matter-proton cross section below the minimum value required by the thermal-relic-density calculation for any given mass below 1 TeV would exclude the model.

Figures

Figures reproduced from arXiv: 2508.08676 by A. W. Thomas, B. M. Loizos, X. G. Wang.

Figure 1
Figure 1. Figure 1: FIG. 1. (Left panels): Lower limits on [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

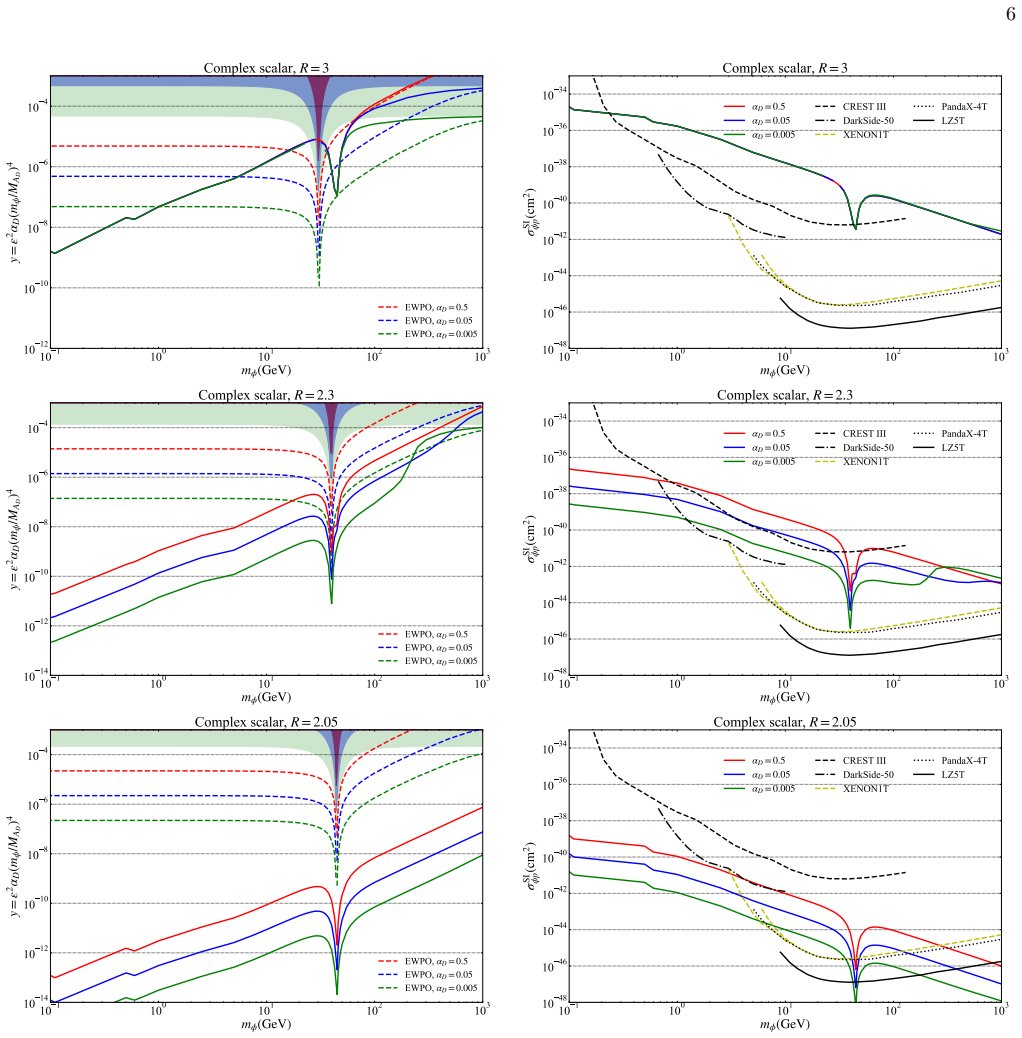

Figure 2. Figure 2: FIG. 2. The same as Fig [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
read the original abstract

We test the dark photon as a portal connecting to the dark sector in the case of Dirac fermion and complex scalar dark matter with masses up to 1 TeV. Both the dark photon and the $Z$ boson contribute to the dark matter annihilation and dark matter--nucleon scattering processes. We derive the lower limits on the dark parameters from thermal relic density. The corresponding spin-independent dark matter--proton cross sections are compared with the upper bounds set by direct detection. We explore the allowed regions of the dark parameter space that are consistent with these constraints.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper tests the dark photon as a portal to the dark sector for WIMP dark matter, considering both Dirac fermion and complex scalar candidates with masses up to 1 TeV. Annihilation and DM-nucleon scattering are mediated by the dark photon and Z boson. Lower limits on the dark parameters are derived from the observed thermal relic density via freeze-out, the corresponding spin-independent DM-proton cross sections are computed, and these are compared against direct-detection upper bounds to identify the allowed regions of parameter space.

Significance. If the calculations are accurate, the work provides a systematic mapping of viable parameter space in the dark-photon portal under standard thermal production assumptions, explicitly separating the Dirac-fermion and complex-scalar cases and including both dark-photon and Z contributions. This is a conventional but useful exercise that reproduces standard relic-density and cross-section results while directly confronting them with current experimental limits; the two-parameter scans and the separation of DM types are internally consistent strengths.

minor comments (3)
  1. [Abstract and §1] The abstract and introduction should explicitly state the numerical value adopted for the observed relic density (e.g., Ωh² = 0.12) and the precise direct-detection experiments/limits used for the comparison.
  2. [Model Lagrangian section] Notation for the dark-photon mixing parameter and the DM-portal coupling should be defined once in the model section and used consistently thereafter to avoid ambiguity in the scan results.
  3. [Results figures] Figure captions for the allowed-region plots should indicate the mass range scanned and whether the Z-boson contribution is included in every point.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our work and the recommendation for minor revision. The referee's description accurately reflects the scope of the paper, including the treatment of both Dirac fermion and complex scalar WIMP candidates, the inclusion of dark photon and Z contributions, and the comparison of relic-density-derived lower limits with direct-detection bounds. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's central derivation computes the thermal relic density for Dirac fermion and complex scalar DM candidates via standard freeze-out in the dark photon portal model, incorporating s-channel exchanges of the dark photon and Z boson. Observed relic density is used as an external cosmological benchmark to extract lower limits on the portal parameters (mixing angle and dark photon mass). The resulting spin-independent DM-proton cross sections are then compared to independent upper limits from direct detection experiments. This chain relies on external data and established Boltzmann-equation methods rather than any self-referential fitting or redefinition of inputs as outputs. No load-bearing self-citations, ansatze smuggled via prior work, or uniqueness theorems are invoked; the two-parameter scans and Dirac versus scalar cases remain internally consistent with the stated Lagrangian without reducing to tautology by construction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim rests on the standard WIMP thermal production paradigm, the introduction of a dark photon mediator, and the assumption that observed relic density and direct detection bounds are the only relevant constraints. Free parameters are the dark photon mass, kinetic mixing, and DM couplings, which are scanned rather than independently derived.

free parameters (2)
  • dark photon mass and coupling strength
    These are varied across ranges to derive lower limits that satisfy the observed relic density; they are not fixed by first principles.
  • DM-nucleon coupling via portal
    Determines the spin-independent cross section and is adjusted to remain below experimental bounds.
axioms (2)
  • domain assumption Dark matter is thermally produced via freeze-out in standard Big Bang cosmology
    Invoked to derive lower limits on dark parameters from the observed relic density.
  • domain assumption Annihilation and scattering proceed only through dark photon and Z boson exchange
    Assumed when computing rates; no other mediators or non-perturbative effects are included.
invented entities (1)
  • dark photon no independent evidence
    purpose: Mediator providing portal between dark sector and Standard Model
    Postulated new particle whose mass and coupling are the main free parameters of the model.

pith-pipeline@v0.9.0 · 5620 in / 1567 out tokens · 48349 ms · 2026-05-18T23:54:34.937977+00:00 · methodology
