arxiv: 2508.14754 · v2 · submitted 2025-08-20 · ❄️ cond-mat.mes-hall

Near-resonant nuclear spin detection with megahertz mechanical resonators

Diego A. Visani , Letizia Catalini , Christian L. Degen , Alexander Eichler , Javier del Pino This is my paper

Pith reviewed 2026-05-18 22:32 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords nuclear spin detectionmechanical resonatorsmegahertz frequencydynamical backactionfrequency variancemagnetic gradientsingle spin sensingquantum sensing
0
0 comments X

The pith

Fluctuating nuclear spin polarization increases resonator frequency variance enough for single-spin detection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes detecting nuclear spins by monitoring the frequency variance of a megahertz mechanical resonator coupled to them through a magnetic field gradient. The average polarization produces a mean frequency shift that is too small to measure in small volumes, but random fluctuations in the spin ensemble cause a detectable increase in variance. Analytical and numerical models of dynamical backaction show that this effect can be observed with existing devices, enabling single nuclear spin detection. This opens a path to sensing and potentially controlling individual nuclear spins using mechanical sensors.

Core claim

Dynamical backaction between the sensor and an ensemble of N nuclear spins produces a shift in the sensor's resonance frequency. The mean frequency shift due to the Boltzmann polarization is challenging to measure in nanoscale sample volumes. The fluctuating polarization of the spin ensemble results in a measurable increase of the resonator's frequency variance, which on the basis of analytical and numerical results allows single nuclear spin detection with existing resonator devices.

What carries the argument

Dynamical backaction between megahertz mechanical resonator and nuclear spin ensemble via magnetic field gradient, where spin polarization fluctuations increase the resonator frequency variance.

If this is right

  • Single nuclear spin detection is predicted to be possible using current megahertz resonator devices.
  • The variance measurement provides an alternative to direct mean frequency shift detection in small samples.
  • Nuclear spin ensembles can be sensed without requiring large Boltzmann polarization signals.
  • The method supports both detection and potential control of nuclear spins through the same coupling mechanism.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this to individual spins might allow integration with quantum information protocols using nuclear spins as qubits.
  • Similar variance effects could be explored in other sensor-spin systems, such as with different resonator frequencies or materials.
  • Testing the model with varying spin densities or temperatures could validate the dynamical backaction predictions experimentally.

Load-bearing premise

The increase in frequency variance from spin polarization fluctuations can be accurately modeled and distinguished from other noise sources in the resonator system.

What would settle it

Perform an experiment where the number of nuclear spins is known and reduced toward one, checking if the observed frequency variance increase matches the predicted value from the dynamical backaction equations.

Figures

Figures reproduced from arXiv: 2508.14754 by Alexander Eichler, Christian L. Degen, Diego A. Visani, Javier del Pino, Letizia Catalini.

Figure 1
Figure 1. Figure 1: (a) Schematic of the proposed experiment: A spin ensemble is placed [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

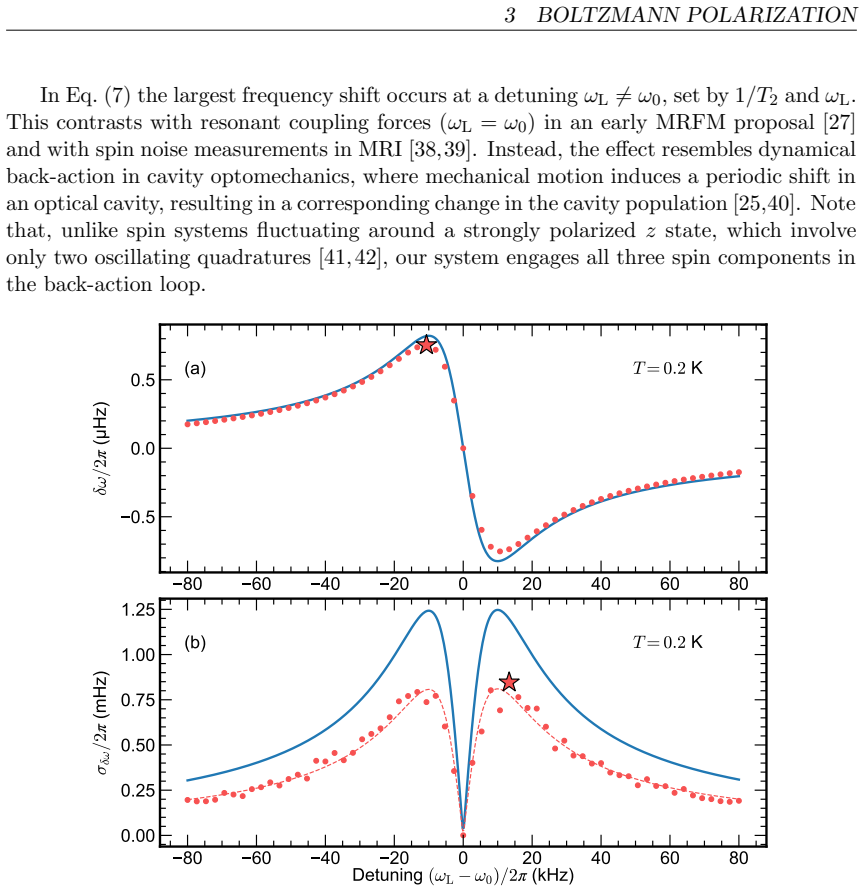

Figure 2. Figure 2: Mean (δω) and standard deviation (σδω) of the frequency shift of a string resonator [13] due to a single proton spin calculated as a function of the detuning between the Larmor frequency ωL and the mechanical frequency ω0. Analytical and numerical results are shown for the two contributions of the spin polarization: Boltzmann (a) and statistical (b). Note the different y-axis scales. Blue lines correspond … view at source ↗
Figure 3
Figure 3. Figure 3: Dependence of simulated frequency shift variance on the resonator’s [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Power spectral density (PSD) of the steady state of a simulated SiN [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figure 5

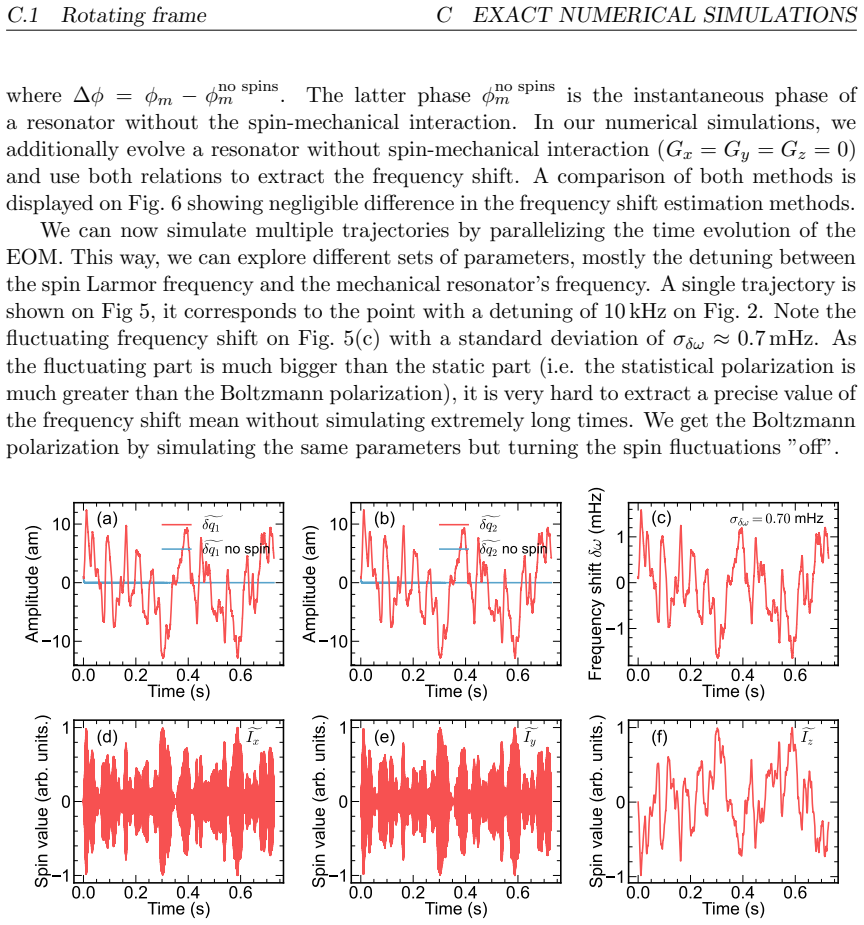

Figure 5. Figure 5: Single trajectory simulation for a single proton spin interacting with a [PITH_FULL_IMAGE:figures/full_fig_p023_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Phase and frequency shift of a single trajectory simulation for a sin [PITH_FULL_IMAGE:figures/full_fig_p024_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Numerical simulation of a cobalt nanomagnet (black rectangle) pre [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Boltzmann polarization compared to the statistical polarization for [PITH_FULL_IMAGE:figures/full_fig_p026_8.png] view at source ↗
read the original abstract

Mechanical resonators operating in the megahertz range have become a versatile platform for fundamental and applied quantum research. Their exceptional properties, such as low mass and high quality factor, make them also appealing for force sensing experiments. In this work, we propose a method for detecting, and ultimately controlling, nuclear spins by coupling them to megahertz resonators via a magnetic field gradient. Dynamical backaction between the sensor and an ensemble of $N$ nuclear spins produces a shift in the sensor's resonance frequency. The mean frequency shift due to the Boltzmann polarization is challenging to measure in nanoscale sample volumes. Here, we show that the fluctuating polarization of the spin ensemble results in a measurable increase of the resonator's frequency variance. On the basis of analytical as well as numerical results, we predict that the variance measurement will allow single nuclear spin detection with existing resonator devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes detecting single nuclear spins by coupling an ensemble of N spins to a megahertz mechanical resonator via a magnetic field gradient. Dynamical backaction produces a mean resonance-frequency shift from the Boltzmann polarization that is difficult to resolve in small volumes; instead, the fluctuating polarization is shown to increase the resonator frequency variance. Analytical derivations and numerical simulations are presented to predict that this variance signal enables single-spin detection using existing resonator devices.

Significance. If the variance-based detection threshold is validated, the work would offer a practical route to nanoscale nuclear-spin sensing that sidesteps the small mean-polarization signal. The emphasis on existing MHz resonators and the combination of analytic plus numeric results would strengthen its relevance for quantum sensing and force microscopy platforms.

major comments (2)
  1. [§4] §4 (Noise budget and variance calculation): The analytic expression for the spin-induced frequency variance (derived from the dynamical-backaction model) is compared only to the thermomechanical noise floor; no quantitative comparison is made to published frequency-stability data for existing MHz resonators (e.g., Allan deviation or integrated phase noise at the relevant integration times). This comparison is load-bearing for the claim that single-spin detection is feasible with current devices.
  2. [§3.2] §3.2, Eq. (8)–(10): The derivation of the variance shift assumes that sample-geometry and thermal-environment corrections remain sub-dominant; however, the manuscript provides neither explicit bounds on these corrections nor additional simulations that include realistic cantilever–sample separation variations or temperature fluctuations. For N=1 this assumption directly affects whether the predicted signal remains distinguishable.
minor comments (2)
  1. [Figure 3] Figure 3 caption: the legend for the N=1 curve is missing the integration-time value used in the numerical trace.
  2. [Eq. (5)] The definition of the effective coupling strength g_eff in the text following Eq. (5) should explicitly state the units and the averaging procedure over the spin ensemble.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which help clarify the presentation of our results. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (Noise budget and variance calculation): The analytic expression for the spin-induced frequency variance (derived from the dynamical-backaction model) is compared only to the thermomechanical noise floor; no quantitative comparison is made to published frequency-stability data for existing MHz resonators (e.g., Allan deviation or integrated phase noise at the relevant integration times). This comparison is load-bearing for the claim that single-spin detection is feasible with current devices.

    Authors: We agree that benchmarking the predicted variance against published experimental frequency-stability data would strengthen the feasibility claim. Our analysis centers on the thermomechanical noise floor as the fundamental limit, but we recognize that real devices exhibit additional technical noise. In the revised manuscript we will add a direct comparison to representative Allan deviation and phase-noise values reported for megahertz resonators in the literature, using integration times consistent with our proposed variance measurement, to show that the spin-induced signal exceeds typical achieved stabilities. revision: yes

  2. Referee: [§3.2] §3.2, Eq. (8)–(10): The derivation of the variance shift assumes that sample-geometry and thermal-environment corrections remain sub-dominant; however, the manuscript provides neither explicit bounds on these corrections nor additional simulations that include realistic cantilever–sample separation variations or temperature fluctuations. For N=1 this assumption directly affects whether the predicted signal remains distinguishable.

    Authors: The derivation in §3.2 isolates the dynamical-backaction contribution under fixed geometry and temperature to obtain a clear analytic result. We acknowledge that explicit bounds on corrections from separation fluctuations or temperature drift would be useful, especially for the N=1 case. In the revision we will add a short discussion with order-of-magnitude estimates of these effects based on typical experimental values (cantilever-sample distances of tens of nanometers and millikelvin temperature stability), demonstrating that the corrections remain sub-dominant relative to the predicted variance signal for the parameters considered. revision: yes

Circularity Check

0 steps flagged

No significant circularity; variance prediction follows from independent dynamical backaction modeling

full rationale

The paper derives an increase in resonator frequency variance from fluctuating nuclear spin polarization via analytical and numerical application of dynamical backaction equations. This leads to the prediction of single-spin detectability with existing MHz devices. No step reduces the claimed output to its inputs by construction, self-definition, or load-bearing self-citation; the result is a forward prediction from the interaction model rather than a tautological renaming or fit. The derivation remains self-contained against external benchmarks such as measured resonator noise floors.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central prediction rests on a model of dynamical backaction between resonator and spin ensemble; the abstract does not introduce new free parameters or invented entities but implicitly assumes standard quantum noise and thermal fluctuation relations.

axioms (1)
  • domain assumption Dynamical backaction between mechanical resonator and nuclear spin ensemble produces a frequency shift whose fluctuations increase the observed variance.
    Invoked in the description of the coupling mechanism and variance measurement.

pith-pipeline@v0.9.0 · 5685 in / 1274 out tokens · 31176 ms · 2026-05-18T22:32:09.127282+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. From Cantilevers to Membranes: Advanced Scanning Protocols for Magnetic Resonance Force Microscopy

    physics.app-ph 2025-11 unverdicted novelty 5.0

    Simulations indicate that strained SiN resonators paired with multislice compressed-sensing protocols can reduce MRFM acquisition time by up to two orders of magnitude while preserving reconstruction fidelity.

Reference graph

Works this paper leans on

70 extracted references · 70 canonical work pages · cited by 1 Pith paper
