Direct Neutron Reactions in Storage Rings Utilizing a Supercompact Cyclotron Neutron Target

Ariel Tarife\~no-Saldivia , C\'esar Domingo-Pardo , Iris Dillmann , Yuri A. Litvinov This is my paper

Pith reviewed 2026-05-18 21:58 UTC · model grok-4.3

classification ⚛️ nucl-ex physics.ins-det
keywords neutron targetstorage ringcyclotronneutron capturenuclear astrophysicsradioactive ionsinverse kinematicsthermal neutrons
0
0 comments X p. Extension

The pith

A supercompact cyclotron can create dense thermal neutron targets inside ion storage rings for inverse-kinematics capture studies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a high-density free-neutron target that integrates a commercial supercompact cyclotron driving ^9Be(p,xn) reactions with moderator and reflector assemblies plus a cryogenic liquid hydrogen stage. Specialized beam pipes let neutrons reach circulating radioactive ions while preserving the ultra-high vacuum needed for ion storage. A proof-of-concept at the CRYRING ring is projected to deliver thermal neutron areal densities of roughly 3.4 million per square centimeter using a 130 microamp proton beam. With higher-current or higher-energy cyclotrons the density could rise to about a billion neutrons per square centimeter. When paired with a low-energy storage ring and a radioactive ion beam facility the setup is claimed to produce luminosities above 10^23 per square centimeter per second, allowing millibarn-scale neutron capture cross sections to be measured in just a few days.

Core claim

The authors claim that an autonomous accelerator-target assembly driven by a supercompact cyclotron, an optimized moderator/reflector assembly using heavy water or beryllium oxide with a graphite reflector, a cryogenic liquid hydrogen moderator, and vacuum-compatible beam pipe geometries can achieve thermal neutron areal densities of ∼3.4×10^6 n/cm² at the CRYRING storage ring and up to ∼10^9 n/cm² after upgrades, yielding luminosities above 10^23 cm^{-2} s^{-1} when combined with radioactive ion beams and thereby enabling neutron capture measurements of ∼mb cross sections within a few days.

What carries the argument

Integrated neutron target subsystem that combines a supercompact cyclotron ^9Be(p,xn) source, moderator/reflector assembly, cryogenic liquid hydrogen moderator, and beam pipe geometries that deliver neutrons to the ion interaction region while maintaining ultra-high vacuum for storage-ring operation.

If this is right

  • Neutron capture cross sections of order millibarns on short-lived nuclei can be measured in a few days of experiment time.
  • The autonomous design can be deployed at both in-flight and ISOL radioactive ion beam facilities.
  • Upgraded cyclotrons increase thermal neutron areal density from 3.4×10^6 to ∼10^9 n/cm².
  • Luminosities above 10^23 cm^{-2} s^{-1} become available when the target is paired with a customized low-energy storage ring.
  • Large surveys of neutron-induced reactions on unstable nuclei become feasible for studies of heavy-element nucleosynthesis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may open neutron reaction studies on nuclei whose lifetimes are too short for conventional solid or gas targets.
  • Integration with existing storage rings could shorten the time needed to obtain astrophysically relevant capture data compared with separate target and beam facilities.
  • The same modular cyclotron-moderator layout might later support other neutron-induced processes such as (n,p) or fission on circulating radioactive ions.

Load-bearing premise

Beam-pipe geometries can simultaneously maintain the ultra-high vacuum required for ion circulation and allow sufficient neutron flux to reach the interaction region without unacceptable scattering or activation.

What would settle it

Direct measurement of thermal neutron areal density at the ion-beam position or continuous vacuum-pressure monitoring during cyclotron operation in a CRYRING test setup would confirm or refute the projected densities and vacuum compatibility.

Figures

Figures reproduced from arXiv: 2508.15465 by Ariel Tarife\~no-Saldivia, C\'esar Domingo-Pardo, Iris Dillmann, Yuri A. Litvinov.

Figure 1
Figure 1. Figure 1: FIG. 1. Cross-sectional schematic showing the storage-ring [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Cross-sectional schematic of the single-material mod [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Monte Carlo calculation results for single-material [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

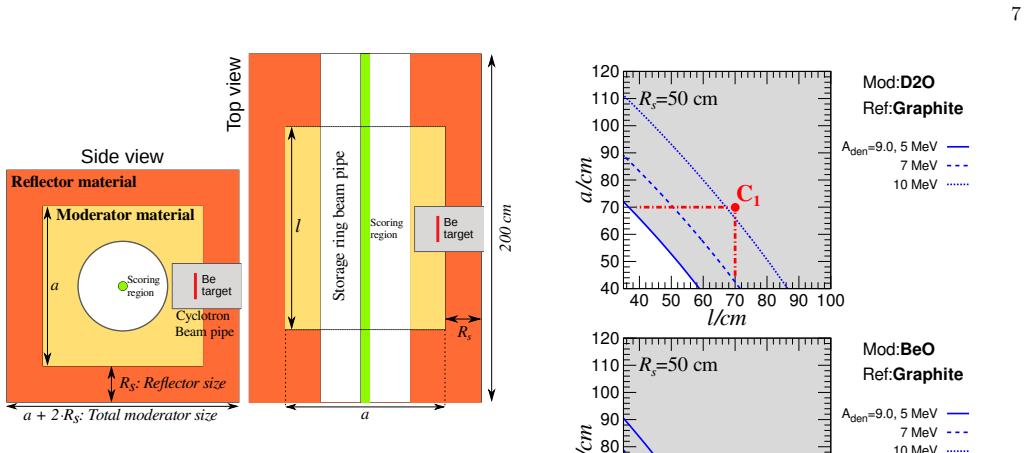

Figure 4. Figure 4: FIG. 4. Cross-sectional schematic for the moderator-reflector [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Monte Carlo calculation results for moderator materi [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Monte Carlo optimization results for modera [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Cross-sectional schematic of the moderator configu [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Monte Carlo calculation results for the candidate con [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. (a) Thermal areal density normalized to primary neu [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. (Left) The super-compact cyclotron IBA Cyclone [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Simulations for the separation of [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Schematic drawing of the low-energy ISOLDE Stor [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Drawing of TRISR, the recoil separator [ [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗
read the original abstract

We propose a new approach for a high-density free-neutron target, primarily aimed at nuclear astrophysics reaction studies in inverse kinematics with radioactive ions circulating in a storage ring. The target concept integrates four key subsystems: a neutron production source driven by a supercompact cyclotron utilizing $^9$Be($p,xn$) reactions, an optimized moderator/reflector assembly using either heavy water or beryllium oxide with a graphite reflector shell to thermalize fast neutrons, a cryogenic liquid hydrogen moderator to maximize thermal neutron density in the interaction region, and beam pipe geometries that enable neutron-ion interactions while maintaining vacuum conditions for ion circulation. This integrated approach focuses on the feasibility by incorporating readily available technologies. Using a commercial supercompact cyclotron delivering a proton beam of 130 $\mu$A, the design achieves thermal neutron areal densities of $\sim3.4\times10^{6}$\,n/cm$^2$ for a proof-of-concept demonstrator at the CRYRING ion-storage ring at GSI Darmstadt. This autonomous accelerator-target assembly design enables deployment at both, in-flight and ISOL facilities, to exploit their complementary production mechanisms. Potential upgrades based on higher-energy and/or higher-current cyclotrons will enable an increase in areal density to $\sim$10$^9$ n/cm$^2$. In combination with a customized low-energy storage ring and a radioactive ion-beam facility, the proposed solution could deliver luminosities above 10$^{23}$ cm$^{-2}$ s$^{-1}$, thereby enabling neutron capture measurements of $\sim$mb cross sections within a few days of experiment. The proposed system represents a significant milestone towards enabling large neutron-capture surveys on short-lived nuclei, thereby opening a new avenue for understanding the synthesis of heavy elements in our universe. Accepted in PRAB.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes a compact neutron target for inverse-kinematics neutron-capture studies on radioactive ions in storage rings. The design integrates a commercial supercompact cyclotron driving 9Be(p,xn) reactions at 130 μA, a heavy-water or BeO moderator with graphite reflector, a cryogenic LH2 stage, and specialized beam-pipe geometries. It claims this configuration delivers thermal-neutron areal densities of ∼3.4×10^6 n/cm² at the CRYRING interaction region as a proof-of-concept demonstrator, with upgrades enabling ∼10^9 n/cm² and luminosities >10^23 cm^{-2} s^{-1} sufficient for mb-scale cross-section measurements in a few days.

Significance. If the quantitative integration of neutron production, moderation, and vacuum-compatible beam-pipe transmission can be demonstrated, the proposal would provide a deployable, technology-ready neutron target compatible with both in-flight and ISOL facilities. This would open a practical route to systematic neutron-capture surveys on short-lived nuclei, directly addressing a long-standing limitation in nuclear astrophysics. The reliance on commercial cyclotrons and standard moderation physics is a practical strength that lowers the barrier to implementation.

major comments (1)
  1. [Abstract / subsystem integration] Abstract and subsystem description: The quoted thermal-neutron areal density of ∼3.4×10^6 n/cm² is stated to result from the integrated geometry that simultaneously transmits neutrons to the circulating ions and maintains the ultra-high vacuum required for ion-beam lifetime. No Monte Carlo neutron-transport results, flux maps through the actual pipe apertures or windows, nor vacuum-conductance/pumping calculations are supplied to show that neutron transmission remains adequate while differential pumping keeps the ring pressure below the typical <10^{-9} mbar threshold. This quantitative support is load-bearing for the central feasibility claim.
minor comments (1)
  1. [Abstract] The abstract contains a minor punctuation issue (“at both, in-flight”) that should be corrected for clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our design study. The feedback highlights an important aspect of the quantitative support for our central feasibility claim, which we address below.

read point-by-point responses

  1. Referee: [Abstract / subsystem integration] Abstract and subsystem description: The quoted thermal-neutron areal density of ∼3.4×10^6 n/cm² is stated to result from the integrated geometry that simultaneously transmits neutrons to the circulating ions and maintains the ultra-high vacuum required for ion-beam lifetime. No Monte Carlo neutron-transport results, flux maps through the actual pipe apertures or windows, nor vacuum-conductance/pumping calculations are supplied to show that neutron transmission remains adequate while differential pumping keeps the ring pressure below the typical <10^{-9} mbar threshold. This quantitative support is load-bearing for the central feasibility claim.

    Authors: We agree that explicit Monte Carlo neutron-transport results and detailed vacuum-conductance calculations would strengthen the quantitative basis for the quoted areal density. The value of ∼3.4×10^6 n/cm² is derived from scaling established 9Be(p,xn) neutron yields at 130 μA, standard moderation and reflection efficiencies for heavy-water or BeO/graphite assemblies, and geometric transmission factors for the proposed beam-pipe apertures. The manuscript does not include new Monte Carlo flux maps or pumping simulations, as the emphasis is on conceptual integration of commercial components. In the revised version we will add a dedicated paragraph citing relevant Monte Carlo studies of similar moderator-reflector geometries and describing the multi-stage differential pumping approach routinely used to maintain <10^{-9} mbar in storage rings such as CRYRING while permitting neutron transmission. This addition will better substantiate the integrated design. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the engineering design proposal

full rationale

The manuscript is a forward engineering proposal for integrating a commercial cyclotron neutron source with moderator/reflector stages and beam-pipe geometries for use inside the CRYRING storage ring. The quoted areal densities (∼3.4×10^6 n/cm² and potential upgrades to ∼10^9 n/cm²) are presented as outcomes of conventional neutron-production and thermalization calculations using established (p,xn) cross sections, moderator materials, and cyclotron beam parameters. No derivation step in the abstract or described subsystems reduces these figures to a fitted parameter, self-referential definition, or load-bearing self-citation whose validity depends on the present work. The beam-pipe integration is described as part of the subsystem layout but does not enter the performance claims via any circular reduction. The paper remains self-contained against external nuclear data and commercial hardware specifications.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The design rests on standard neutron-production cross sections for 9Be(p,xn), conventional moderator/reflector performance data, and the assumption that commercial cyclotron performance can be directly transferred to the ring environment. No new particles or forces are postulated.

free parameters (1)
  • proton beam current
    130 μA taken from commercial supercompact cyclotron specifications; used as input to scale neutron yield.
axioms (2)
  • domain assumption Neutron moderation and reflection efficiencies of heavy water, BeO, and graphite are known to sufficient accuracy from prior nuclear-engineering data.
    Invoked when stating that the moderator/reflector assembly thermalizes fast neutrons to achieve the quoted areal density.
  • domain assumption Cryogenic liquid hydrogen can be placed in the interaction region without compromising storage-ring vacuum or ion-beam lifetime.
    Required for the final step that maximizes thermal neutron density while preserving ion circulation.
