KRAFT: A Knowledge Graph-Based Framework for Automated Map Conflation

T0 review · 4 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that representing two maps as knowledge graphs, learning entity embeddings with a gated multi-hop graph encoder, and merging unmatched entities through a mixed-integer linear program makes map conflation both more…

desk verdict KRAFT is a genuinely new learned pipeline for map conflation that handles buildings as well as roads, but its 'outperforms state-of-the-art' claim currently rests on an inferred Hootenanny baseline that needs an actual run. read the letter →

arxiv 2509.04684 v1 pith:TRIOJZR2 submitted 2025-09-04 cs.LG

Farnoosh Hashemi , Laks V.S. Lakshmanan This is my paper · ORCID
classification cs.LG
keywords mapconflationknowledgegraphsentityalignmentgraphneuralnetworksmixedintegerlinearprogrammingOpenStreetBostonDatageospatialintegration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

KRAFT is a learning-based framework for map conflation: merging two overlapping geospatial databases into one consistent map. Its central claim is that the same pipeline can match linear objects such as sidewalks and non-linear objects such as buildings, whereas prior methods were built for roads and relied on hand-set rules. Representing each database as a knowledge graph, learning entity embeddings from multi-hop neighborhoods and metadata, and then solving merge as a mixed-integer linear program is claimed to outperform state-of-the-art baselines in every module. On OpenStreetMap and Boston Open Data, the paper reports sidewalk matching precision 0.988 and recall 0.997, building matching 0.958/0.934, and zero additional overlap inconsistency in the merged map.

What carries the argument

The load-bearing mechanism is the map-as-knowledge-graph construction followed by a two-stream graph encoder and a merging MILP. Non-linear entities receive a 3x3 grid of directional relations, while linear segments receive buffer-based Inside and Connected relations. A 1-hop GNN preserves local structure, a multi-hop graph attention encoder weights distant neighbors, and an MLP-Mixer encodes cross-feature metadata; a gated combination plus a relation-semantics loss produces entity embeddings that are matched by maximum-weight bipartite matching. For merging, the epsilon-shift operation generalizes translation and resizing of axis-aligned rectangles, and three overlap cases are encoded as mixed-integer linear constraints whose objective minimizes the sum of absolute shifts, with a shape-preserving weight.

What would settle it

Run KRAFT's merging on a dataset whose buildings are rotated 45 degrees relative to the x and y axes, reconstruct the true footprints, and measure pairwise intersections: any nonzero overlap would refute the zero-additional-inconsistency claim. Appendix H.3 predicts such a failure, since axis-aligned bounding rectangles create nonfunctioning space around rotated objects.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that treating a map as a knowledge graph unlocks a data-driven conflation pipeline that beats MAYUR, Hootenanny, Jaccard similarity, rubbersheeting, and position-based merging on both linear and non-linear objects. Matching works because the knowledge graph captures relative positions of neighbors, the 1-hop and multi-hop encoders recover connections broken by positional noise, and a learned gate combines structural and metadata signals. Merging works because every object is approximated as an axis-aligned minimum bounding rectangle, reducing overlap removal to linear constraints over epsilon-shift variables that move, resize, and recenter unmatched objects while minimizing total perturbation. The zero-new-inconsistency result is presented as a guarantee of the MILP formulation, not merely as an empirical improvement.

Load-bearing premise

The load-bearing premise is that every object can be treated as an axis-aligned minimum bounding rectangle for the purpose of guaranteeing a consistent merge; if true footprints overlap outside those rectangles, the promised no-inconsistency outcome does not follow.

Editorial extensions

If this is right

  • If the central claim holds, map conflation no longer needs separate algorithms for roads and buildings; one learned pipeline can match both object classes.
  • Data-driven matching should transfer to new cities with different discrepancy patterns, because similarity is learned rather than thresholded by hand.
  • The MILP merging formulation offers a guarantee of no newly overlapping minimum-bounding rectangles, which is directly relevant for navigation and parcel-level map updates.
  • On OSM-BOD the reported numbers are near saturation (sidewalk recall 0.997, building precision 0.958), so future comparisons will need harder datasets or heterogeneous geometric representations to show further gains.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The no-inconsistency guarantee is proved for axis-aligned minimum bounding rectangles, not true building footprints; Appendix H.3 concedes that rotated objects leave nonfunctioning space, so the strongest version of the claim should be tested on rotated geometries.
  • Fixed grid and buffer widths are likely to become a bottleneck in cities with very different densities; the paper lists adaptive sizing as future work, and the attention mechanism only partially compensates.
  • The same structural-plus-metadata encoding could plausibly align other noisy spatial entity sets, such as indoor floor plans or cadastral parcels, though the paper does not test these.
  • Training relies on ground-truth aligned pairs, so deployment on a new unlabeled region would require a weakly supervised or self-supervised variant that the paper does not provide.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes KRAFT, a three-module map-conflation framework. It represents each vector GDB as a knowledge graph whose nodes are linear and non-linear entities and whose edges encode directional grid relations and buffer/connectivity relations; it then learns entity embeddings with a 1-hop GNN, a 2-hop attention module, an MLP-Mixer feature encoder, and a gated combination, trained with a contrastive plus relation-semantics loss. Matching is solved as max-weight bipartite matching. Unmatched target entities are merged into an immutable source via a MILP that epsilon-shifts/resizes axis-aligned minimum bounding rectangles to avoid overlaps while minimizing total perturbation. Experiments on OSM and Boston Open Data report precision/recall for sidewalk, building, and overall matching, plus CNI and perturbation metrics for merging, with ablations in the appendix.

Significance. If the claims were fully supported, KRAFT would be a meaningful step beyond road-only, heuristic conflation: it explicitly handles non-linear entities, learns matching from data, and formulates merging as an optimization with formal linear-inequality encodings. The paper's strengths include a modular design, explicit complexity analysis of KG construction and matching, and appendix proofs (Lemmas 1-4, Proposition 1) for the MILP encoding. However, the current evidence does not yet establish the headline claim: the state-of-the-art comparison rests on an inferred Hootenanny baseline, the inconsistency guarantee is stated for MBR proxies, and evaluation lacks variance reporting. With these gaps closed, the framework would be a solid contribution to CIKM.

major comments (4)
  1. [Section 5, Baselines; Table 2] The Hootenanny row in Table 2 (and the Hootenanny column in Table 3) is not measured: the text states 'Since we lack access to Hootenanny's map matching results, we infer missing and incorrect matches based on duplicate and disoriented geometries.' Because the abstract's headline claim is that KRAFT outperforms state-of-the-art methods, and Hootenanny is the only competitor that also handles both buildings and sidewalks in the overall map-matching row, an inferred baseline cannot support that claim. Please run the actual Hootenanny pipeline on the same OSM-BOD data, or, if that is not possible, remove Hootenanny from the SOTA comparison and explicitly restrict the superiority claim to the measured baselines (MAYUR and Jaccard).
  2. [Section 4.4 and Appendix H.3] The 'no inconsistencies' guarantee is proved only for axis-aligned minimum bounding rectangles, not for the actual object geometries. While a polygon is contained in its MBR, so disjoint MBRs imply disjoint polygons, the paper never specifies how an epsilon-shift of the MBR (including side-by-side resizing) is transported back to the original polygon when the MILP solution is applied; Appendix H.3 itself concedes that axis-aligned MBRs 'can cause nonfunctioning space around objects that are not parallel to the x and y axes.' Please specify the geometry transformation used at merge time and restate the guarantee as 'no additional MBR overlaps' or prove the analogous statement for the transformed original shapes.
  3. [Section 5, Experimental Setup; Tables 2, 3, 6] No standard deviations, confidence intervals, or repeated-run statistics are reported for any of the matching or merging metrics. The precision gaps over MAYUR (0.988 vs 0.981 on sidewalks) are small, and without variance information or a description of the test split beyond the 100-building/100-segment validation set, it is impossible to judge whether the reported improvements are statistically meaningful. Please report mean and variance over multiple data splits or runs and specify exactly which entities are used for training, validation, and testing.
  4. [Section 4.3, Equations (8)-(10) and Algorithm 2] The relation-semantics loss is under-specified: Equation (8) defines Θ_r as the average of h_e - h_e' over triples, and then Equation (9) minimizes the deviation of each residual from that same average, so the objective is essentially a variance term; moreover Algorithm 2 computes separate Θ^s_r and Θ^t_r for the source and target graphs but the loss in Equation (10) is written with a single Θ_r, leaving unclear how relation semantics are shared or aligned across the two GDBs. Please clarify the exact objective (including whether Θ_r is treated as a constant or differentiated through) and justify why this loss enforces the intended cross-GDB alignment.
minor comments (5)
  1. [Definition 7] The matching definition uses a threshold 𝒮 that never appears in the later optimization (Equation 12); please clarify whether the threshold is part of the formal problem or only an informal illustration.
  2. [Section 1, Introduction] There is a typo in the sentence 'these methods are are time-consuming and not scalable'; the duplicate 'are' should be removed.
  3. [Algorithm 1] The grid-relation conditions use strict inequalities, so entities lying exactly on a grid boundary are not assigned any relation; please state how ties are broken.
  4. [Appendix F.1, Case 2] In the second displayed implication of Case 2, the expression 'a'_2+\varepsilon^x_2\varepsilon^x_c' is missing a '+' between the two epsilon terms.
  5. [Appendix G.1] The text refers to 'Bosten datasets'; this should be 'Boston datasets'.

Circularity Check

1 steps flagged · score 2.0 of 10

Minor self-referential relation-semantics loss; central matching and merging claims remain independent of the fitted parameters.

  1. self definitional [Section 4.3, Equations 8–9 (Training and Loss Function)]
    "for a relation r∈R we consider its encoding, Θ_r, as the average of the differences between its related entity embeddings: Θ_r = 1/|T_r| Σ_{(e,r,e')∈T} (h_e−h_e'), ... Next, we use the following relation loss for refinement: L_semantics = Σ_{r∈R} 1/|T_r| Σ_{(e,r,e')∈T} ||h_e−h_e'−Θ_r||."

    Θ_r is not an independently defined relation vector: it is the arithmetic mean of the same differences h_e−h_e' over exactly the same triples that Equation 9 penalizes. The semantic loss therefore mostly reduces the scatter of h_e−h_e' around their own average rather than fitting the encodings to an externally supplied relation semantics. In this narrow sense the target of the penalty is a function of the penalized variables, so the step is self-referential by construction. This does not undermine the central matching claim, because the matching model is evaluated on held-out ground-truth correspondences and the relation loss is only one auxiliary component; the ablation shows it is a useful regularizer, not a disguised prediction of the reported precision/recall.

full rationale

The core derivation chain of KRAFT is otherwise self-contained and benchmarked against held-out correspondences. The map matching module is trained with ground-truth aligned pairs and evaluated on precision/recall, so the headline matching numbers are not fitted values renamed as predictions. The map merging MILP is constructed from explicit overlap-avoidance inequalities and solved with standard solvers; the MBR approximation is a geometric gap that may weaken the “no inconsistencies” guarantee for non-axis-aligned shapes, but it is not circular. MAYUR is a baseline, not a load-bearing input, even though one of its authors is a co-author of KRAFT; the paper does not invoke MAYUR to justify KRAFT's design or to forbid alternatives. The Hootenanny comparison is weakened because the paper says it “infer[s] missing and incorrect matches” without access to Hootenanny's results, but that is an experimental-validity concern rather than a circular derivation. The only genuinely self-referential construction is the relation-semantics loss in Equations 8–9, where the relation encoding is the mean of the very differences the loss constrains; this is a minor, local circularity and does not by itself force the paper's main empirical conclusions.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The framework rests on four domain assumptions beyond standard math: immutable source with broader coverage, availability of pre-aligned training pairs, fixed grid/buffer neighborhoods in knowledge graph construction, and MBR approximation in merging. Free parameters include the grid and buffer widths, the matching mixing weight, the merging shape weight, contrastive hyperparameters, and the terminal-point angle. No invented entities are introduced.

free parameters (6)
  • Grid width mu = approximately 100 m (5e-4 in map units)
    Determines which neighbors become nodes in the knowledge graph; tuned around average building width based on validation F1 (Appendix G.1).
  • Buffer width lambda = selected from interval 1e-4 to 8e-4 in map units; exact value not reported
    Determines which buildings are 'inside' a segment in the knowledge graph; Appendix G.1 shows F1 varies with it.
  • Similarity mixing weight tau = 0.5
    Hand-set weighting between knowledge graph embedding similarity and area similarity in Eq. 11.
  • Merging shape-vs-shift weight gamma = 2.1
    Hand-set in Problem 1 to encourage center shifts over resizing during merging.
  • Contrastive margin and loss weights = grid-searched over beta in {0.1,0.2,0.4,0.8}, alpha in {0.005,...,0.2}, margin in {0.6,...,2}; best values not reported
    Hyperparameters in Eqs. 7 and 10, tuned on a validation set of 100 buildings and 100 segments.
  • Terminal point angle threshold theta = 45 degrees (pi/4 rad)
    Definition 1 uses this threshold in experiments; changing it changes which points are terminal and therefore how segments are formed.
assumptions (5)
  • domain assumption Source GDB is immutable and provides broader coverage than target; conflated map is a copy of source with unmatched target entities added.
    Section 3.3 Problem Statement, following prior conflation work; restricts the merging solution space and is not tested.
  • domain assumption A set of pre-aligned entity pairs A+ is available for supervised training.
    Section 4.3 Training and Algorithm 2 require ground-truth aligned entities; the paper does not describe how A+ is constructed or its reliability.
  • ad hoc to paper A fixed 3x3 grid of width mu around each non-linear entity and a buffer of width lambda around each linear segment captures the neighborhoods needed for matching.
    Section 4.2; the authors note in Limitations H.1 that fixed grid/buffer sizes can cause false positive or false negative neighbors in dense or sparse areas.
  • ad hoc to paper Every object can be approximated by an axis-aligned minimum bounding rectangle for merging, and overlap avoidance on these rectangles yields a consistent map.
    Section 4.4; acknowledged in H.3 to leave nonfunctioning space for non-axis-aligned objects.
  • domain assumption Negative samples for contrastive loss are generated by randomly replacing one entity in each aligned pair.
    Section 4.3; random negatives may not be hard negatives, which can leave the embedding space under-constrained.

how reviews work

0 comments
Cite this review

Pith. "Pith review of KRAFT: A Knowledge Graph-Based Framework for Automated Map Conflation." pith.science (2026). https://pith.science/paper/TRIOJZR2

@misc{pith2026250904684,
  author       = {Pith},
  title        = {Pith review of: KRAFT: A Knowledge Graph-Based Framework for Automated Map Conflation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TRIOJZR2}},
  note         = {Machine review of arXiv:2509.04684}
}
read the original abstract

Digital maps play a crucial role in various applications such as navigation, fleet management, and ride-sharing, necessitating their accuracy and currency, which require timely updates. While the majority of geospatial databases (GDBs) provide high-quality information, their data is (i) limited to specific regions and/or (ii) missing some entities, even in their covered areas. Map conflation is the process of augmentation of a GDB using another GDB to conflate missing spatial features. Existing map conflation methods suffer from two main limitations: (1) They are designed for the conflation of linear objects (e.g., road networks) and cannot simply be extended to non-linear objects, thus missing information about most entities in the map. (2) They are heuristic algorithmic approaches that are based on pre-defined rules, unable to learn entities matching in a data-driven manner. To address these limitations, we design KRAFT, a learning based approach consisting of three parts: (1) Knowledge Graph Construction - where each GDB is represented by a knowledge graph, (2) Map Matching - where we use a knowledge graph alignment method as well as a geospatial feature encoder to match entities in obtained knowledge graphs, and (3) Map Merging - where we merge matched entities in the previous modules in a consistent manner, using a mixed integer linear programming formulation that fully merges the GDBs without adding any inconsistencies. Our experimental evaluation shows that not only does KRAFT achieve outstanding performance compared to state-of-the-art and baseline methods in map conflation tasks, but each of its modules (e.g., Map Matching and Map Merging) also separately outperforms traditional matching and merging methods.

Figures

Figures reproduced from arXiv: 2509.04684 by the authors.

Figure 1
Figure 1. KRAFT framework consists of four stages: (1) Knowledge graph construction, (2) Learning positional and contextual features (3) Matching via Maximum Weight Matching, and (4) Merging via Mixed Integer Linear Programming Solver [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. (a) Four polygons 𝑎, 𝑏, 𝑐, and 𝑑 with local grids cen￾tered at each polygon’s center. (b) Corresponding nodes in the knowledge graph, each connected to others within its grid using relative relation types [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. (a) Neighborhood around segment 𝑆1 = (𝑝1, 𝑝2) in a geospatial database. (b) Adjacent nodes to 𝑆1’s node in the knowledge graph with relation types: polygons 𝑏1 and 𝑏2 lie within 𝑆1’s buffer and connect via "Inside." Segment 𝑆2 = (𝑝2, 𝑝4) shares endpoint 𝑝2 with 𝑆1, and 𝑆3 = (𝑝3, 𝑝5) has 𝑝3 within 𝛿 of 𝑝2; both connect to 𝑆1 via "Connected." process of knowledge graph construction [PITH_FULL_IMAGE:figures/full_fig_p… view at source ↗
Figures from the paper (7 more)
Figure 5
Figure 5. Figure 5: (a) illustrates a 3×3 grid centered at entity 𝑎 and shows the relative positional relations with respect to 𝑎 [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6

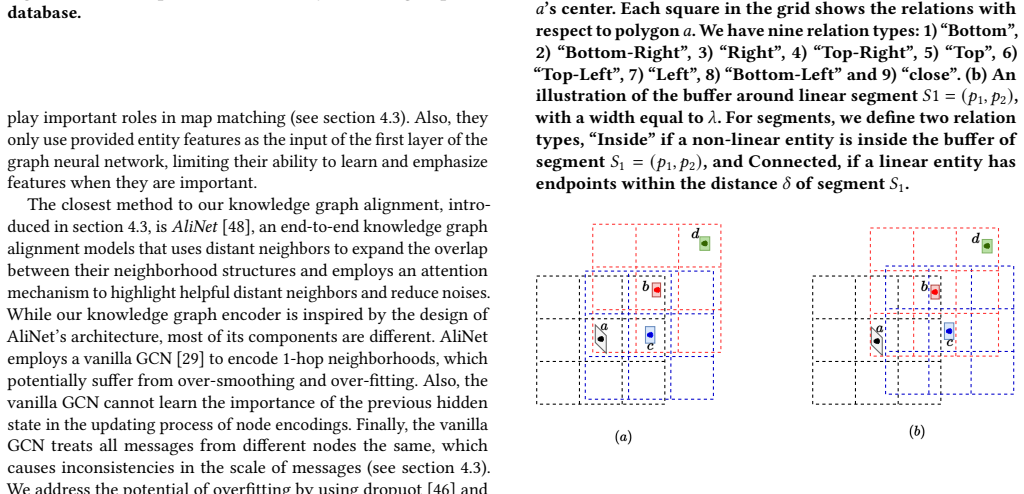

Figure 6. Figure 6: Higher-order neighborhoods provide information [PITH_FULL_IMAGE:figures/full_fig_p014_6.png]
Figure 7
Figure 7. Figure 7: Illustration of scenarios where an unmatched blue rectangle from the target database intersects with a black rectangle [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8

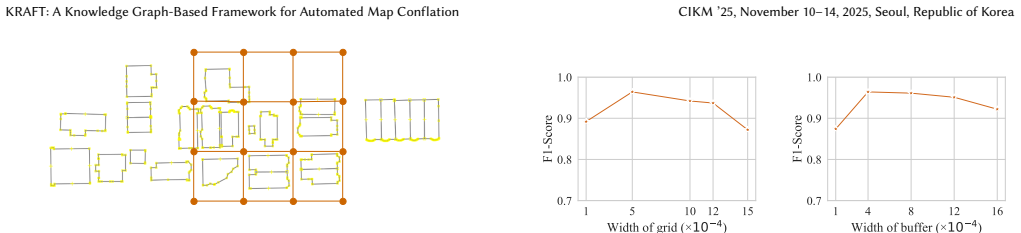

Figure 8. Figure 8: An example of a grid surrounding a building in [PITH_FULL_IMAGE:figures/full_fig_p019_8.png]
Figure 9
Figure 9. Figure 9: (a) The average number of neighbors for different [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 11
Figure 11. Figure 11: Distribution of Jaccard similarity scores computed [PITH_FULL_IMAGE:figures/full_fig_p020_11.png]
Figure 12
Figure 12. Figure 12: Distribution of Jaccard similarity scores computed [PITH_FULL_IMAGE:figures/full_fig_p020_12.png]
