Hammer and Anvil: Toward a Theory of Backdoors in Federated Learning
Pith reviewed 2026-05-18 17:20 UTC · model grok-4.3
The pith
A principled combination of outlier detection and removal-based defenses defeats adaptive backdoor attacks in federated learning.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Backdoors can be categorized by the deviation δ of their updates from the mean update. Type 1 defenses handle large-δ attacks through outlier detection and robust aggregation, while Type 2 defenses address small-δ attacks through removal. Single-type defenses and non-principled combinations leave exploitable gaps for adaptive adversaries, but principled combinations of Type 1 and Type 2, such as HA_Flame^CSFT, HA_Krum^CSFT, and HA_Multi-Metrics^CSFT, remain effective against a full-information adaptive adversary across various datasets and settings.
What carries the argument
The Hammer and Anvil framework that classifies backdoors according to the scalar deviation δ of malicious updates from the mean and combines Type 1 (Anvil) outlier detection with Type 2 (Hammer) removal defenses.
Load-bearing premise
That all backdoor attacks can be effectively classified and blocked using the scalar deviation δ of their update from the mean update.
What would settle it
Demonstration of a backdoor attack succeeding against HA_Flame^CSFT or similar combined defense when the attacker knows the benign updates, aggregation algorithm, and all parameters.
Figures

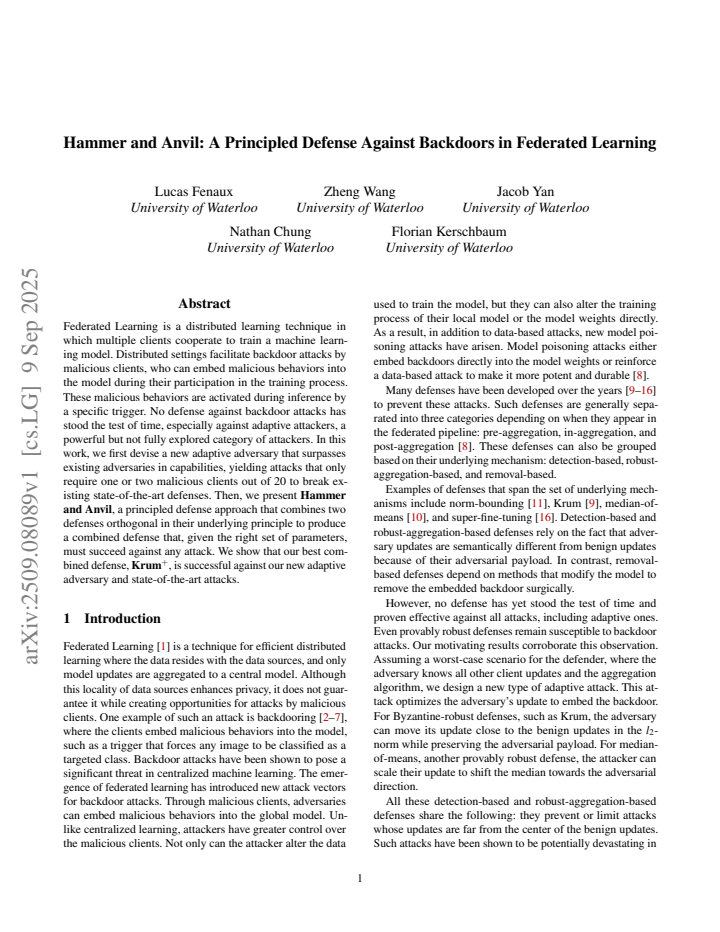

read the original abstract
Federated Learning (FL) enables distributed model training but is vulnerable to backdoor attacks, where malicious clients embed attacker-controlled behaviors into the global model. Existing defenses fail against adaptive adversaries. In this paper, we present "Hammer and Anvil", a principled theoretical framework that categorizes backdoors by the deviation, $\delta$, of their updates to the mean of the updates. We identify two fundamental defense types: "Type 1 (The Anvil)", comprising outlier detection and robust aggregation effective against large-deviation attacks, and "Type 2 (The Hammer)", consisting of removal-based defenses effective against small-deviation attacks. We demonstrate that defenses of a single type and non-principled combined defenses inherently leave an exploitable gap for adaptive attackers. To bridge this gap, we propose the principled combination of Type 1 and Type 2 defenses. We evaluate our framework against a new, worst-case, full-information adaptive adversary that knows the benign updates, the aggregation algorithm, and its parameters, and yet this adversary fails against our combined defenses. Our empirical evaluation across various datasets and settings shows that single-typed and non-principled combined defenses are easily broken, often by a single malicious client. In contrast, our best combined defense variants, $HA_{Flame}^{CSFT}$, $HA_{Krum}^{CSFT}$, and $HA_{Multi-Metrics}^{CSFT}$, remain undefeated even in the most adversarial settings. Our results provide a principled approach for research on backdoors in federated learning.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents the 'Hammer and Anvil' framework for backdoor attacks in federated learning. Attacks are categorized by the scalar deviation δ of a malicious update from the mean of benign updates. Type-1 defenses (outlier detection and robust aggregation) target large-δ attacks while Type-2 defenses (removal-based) target small-δ attacks. The central claim is that single-type defenses and non-principled combinations leave exploitable gaps for adaptive adversaries, but principled Type-1-plus-Type-2 combinations close the gap. This is evaluated against a new worst-case full-information adaptive adversary that knows benign updates, the aggregation rule, and all parameters; empirical results across datasets show that variants such as HA_Flame^CSFT, HA_Krum^CSFT, and HA_Multi-Metrics^CSFT remain effective while single-type and non-principled defenses are defeated, often by one malicious client.
Significance. If the central claims hold, the work supplies a useful organizing principle for combining existing FL defenses and demonstrates that principled combinations can resist a strong full-information adversary where isolated defenses fail. The explicit worst-case adversary model and the breadth of empirical settings are positive contributions. The framework may help explain observed defense failures and guide future designs, though its generality hinges on whether the scalar-δ classification is exhaustive.
major comments (3)
- [Abstract and §3] Abstract and §3 (framework definition): the claim that every backdoor update is 'usefully described by a single scalar δ' and that the principled combination therefore necessarily covers the entire space is load-bearing for the 'toward a theory' contribution. The manuscript must show, either by proof or exhaustive case analysis, that an adaptive full-information adversary cannot produce an update whose effective deviation lies in the transition region or exploits the particular metric used to compute δ, thereby evading both defense types simultaneously.
- [§4 and experimental section] §4 (adversary model) and experimental section: the description of how the full-information adversary constructs its update (knowing the exact benign updates, aggregation parameters, and defense thresholds) is insufficiently detailed. Without an explicit algorithm or pseudocode showing the adversary's optimization over δ and direction, it is impossible to confirm that the reported 'undefeated' status of the combined variants is not an artifact of an incomplete adversary implementation.

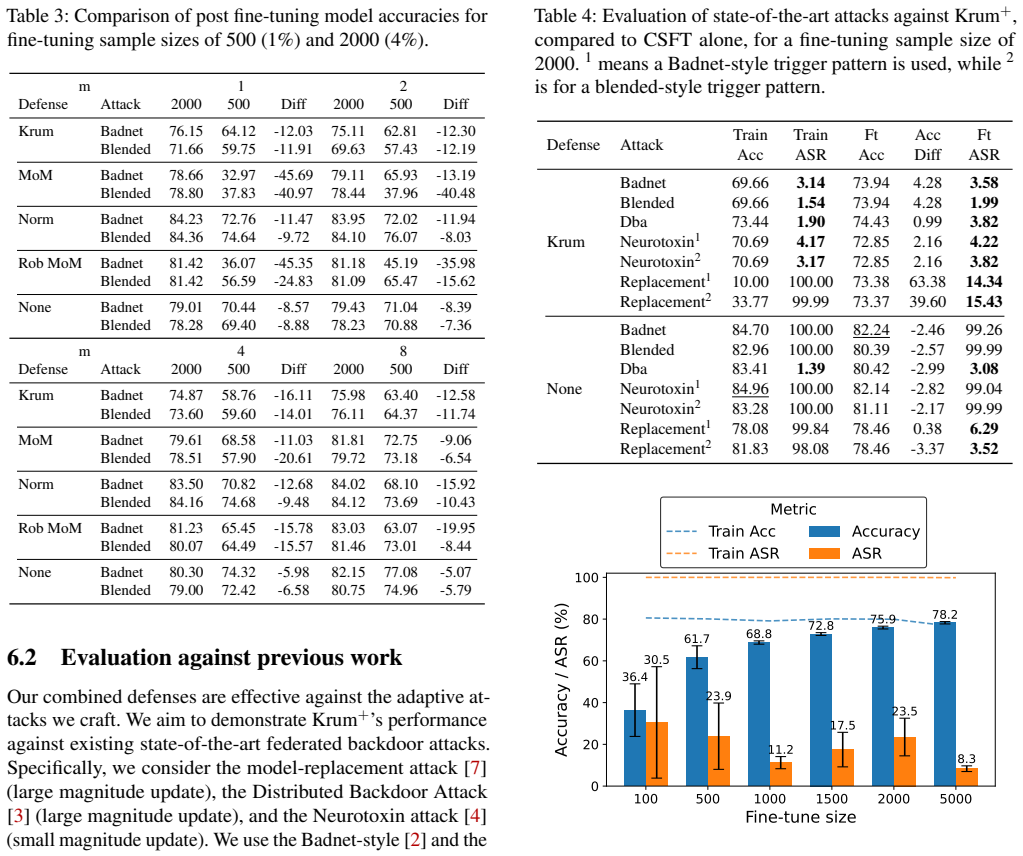

- [Results table/figure] Table or figure reporting attack success rates (e.g., the table or plot containing HA_Flame^CSFT results): the manuscript should report the precise δ threshold used to separate Type-1 and Type-2 regimes and demonstrate that the adversary was allowed to optimize across that threshold; if the threshold is a free parameter, the claim that the combination is 'principled' and gap-free requires a sensitivity analysis.
minor comments (2)
- [Notation and abstract] The superscript notation HA_Flame^CSFT (and analogous variants) is introduced without an immediate expansion; define the components (CSFT, etc.) at first use.

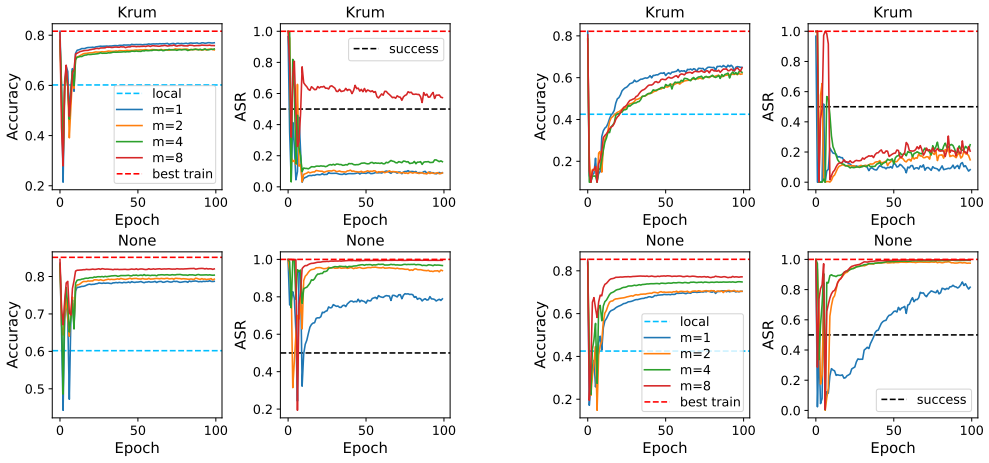

- [Figures] Ensure all figures plotting attack success versus number of malicious clients or δ values include error bars or multiple random seeds and clearly distinguish the single-type, non-principled, and principled-combination curves.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. We address each major comment point by point below, indicating where revisions will be made to strengthen the manuscript.
read point-by-point responses
-
Referee: [Abstract and §3] Abstract and §3 (framework definition): the claim that every backdoor update is 'usefully described by a single scalar δ' and that the principled combination therefore necessarily covers the entire space is load-bearing for the 'toward a theory' contribution. The manuscript must show, either by proof or exhaustive case analysis, that an adaptive full-information adversary cannot produce an update whose effective deviation lies in the transition region or exploits the particular metric used to compute δ, thereby evading both defense types simultaneously.
Authors: We agree that substantiating the exhaustiveness of the scalar-δ categorization is central to the theoretical framing. Section 3 defines δ as the Euclidean deviation from the benign mean and argues that this scalar distinguishes the regimes targeted by Type-1 versus Type-2 defenses. We do not supply a formal proof that no update can evade by metric exploitation or by landing precisely in a transition region; instead, the framework treats δ as a useful organizing scalar for any update in the space. To respond, we will add a dedicated paragraph in the revised §3 that provides additional justification for why metric-specific evasion is countered by the combined defense and includes a short case analysis of transition-region attempts. This addition will be supported by the existing empirical results in which the full-information adversary, free to select any δ, still fails against the principled combinations. The revision is therefore partial, as a complete formal proof would require further theoretical work beyond the present scope. revision: partial
-
Referee: [§4 and experimental section] §4 (adversary model) and experimental section: the description of how the full-information adversary constructs its update (knowing the exact benign updates, aggregation parameters, and defense thresholds) is insufficiently detailed. Without an explicit algorithm or pseudocode showing the adversary's optimization over δ and direction, it is impossible to confirm that the reported 'undefeated' status of the combined variants is not an artifact of an incomplete adversary implementation.
Authors: We accept that the adversary construction requires greater explicitness. Section 4 states the adversary's knowledge (benign updates, aggregation rule, all defense parameters) and its objective, yet omits step-by-step construction details. In the revision we will insert a new algorithm box that specifies the procedure: (i) compute the benign mean from the known updates, (ii) perform a search over candidate δ magnitudes and perturbation directions, (iii) evaluate each candidate against the known defense thresholds, and (iv) select the update that maximizes backdoor success while attempting to evade the combined defense. This addition will make the optimization transparent and allow independent verification that the reported resilience of HA_Flame^CSFT, HA_Krum^CSFT, and HA_Multi-Metrics^CSFT is not an artifact of an under-powered adversary. revision: yes
-
Referee: [Results table/figure] Table or figure reporting attack success rates (e.g., the table or plot containing HA_Flame^CSFT results): the manuscript should report the precise δ threshold used to separate Type-1 and Type-2 regimes and demonstrate that the adversary was allowed to optimize across that threshold; if the threshold is a free parameter, the claim that the combination is 'principled' and gap-free requires a sensitivity analysis.
Authors: We agree that the separation threshold and cross-threshold optimization must be stated explicitly. The threshold is not an arbitrary free parameter; it is derived from the concrete Type-1 defense (e.g., neighbor-selection radius in Krum or clustering cutoff in Flame). We will revise the experimental section to list the exact numerical threshold applied in each reported setting. In addition, we will include a sensitivity plot (new figure or appendix) that varies the threshold while allowing the adversary to optimize δ continuously across the boundary. The results of this analysis will be summarized in the text to confirm that the principled Type-1-plus-Type-2 combinations remain effective even when the adversary is granted freedom to straddle the regimes. revision: yes
Circularity Check
No significant circularity; conceptual framework is self-contained
full rationale
The paper introduces a categorization of backdoor attacks by scalar deviation δ from the mean update and defines Type 1 (outlier/robust aggregation for large δ) and Type 2 (removal for small δ) defenses as a new organizational lens. It conceptually argues that single-type defenses and non-principled combinations leave exploitable gaps for adaptive adversaries while principled Type-1-plus-Type-2 combinations close them, supported by empirical evaluation against a full-information adversary. No equations, fitted parameters, or self-citations are shown to reduce the central claims to their own inputs by construction; the derivation is an independent conceptual organization rather than a tautological or self-referential loop.
Axiom & Free-Parameter Ledger
free parameters (1)
- deviation threshold separating Type-1 and Type-2 regimes
axioms (1)
- domain assumption Backdoor attacks can be exhaustively categorized by the deviation of their updates from the mean of benign updates.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel echoes?
echoesECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.
δ represents the magnitude of a given backdoor attack, with weakly inserted backdoors with smaller l2-norm updates having a small δ and larger l2-norm attack updates having a larger δ. ... an attacker can only succeed for δ∈[δ₂,δ₁]
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
