Steady-state dynamics of quantum frequency combs in microring resonators

Patrick Tritschler , Torsten Ohms , Andr\'e Zimmermann , Peter Degenfeld-Schonburg This is my paper

Pith reviewed 2026-05-18 13:55 UTC · model grok-4.3

classification 🪐 quant-ph physics.optics
keywords quantum frequency combsmicroring resonatorssqueezingsecond-order correlationjoint spectral intensityfour-wave mixingentanglementquantum optics
0
0 comments X

The pith

Closed-form expressions are derived for squeezing, correlations, and joint spectral intensity in microring quantum frequency combs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a theoretical framework for the quantum properties of frequency combs generated via four-wave mixing in chip-integrated microring resonators. It supplies closed-form analytical expressions for squeezing, second-order correlation functions, and joint spectral intensity between signal and idler modes. A sympathetic reader cares because these expressions make the quantum features of the comb modes understandable and tunable through design choices. The framework highlights how resonator parameters and dispersion control the amount of squeezing and entanglement available for quantum tasks.

Core claim

We derive closed-form analytical expressions describing the squeezing, second-order correlation and joint spectral intensity between the generated signal and idler modes. This comprehensive theoretical framework enables an intuitive understanding and optimization of the quantum features across the comb, revealing conditions for substantial squeezing and entanglement relevant for quantum information processing. Our findings highlight the profound impact of design and dispersion on these quantum properties.

What carries the argument

Closed-form analytical expressions for squeezing, second-order correlation, and joint spectral intensity obtained from the steady-state quantum dynamics under four-wave mixing.

If this is right

  • Conditions for substantial squeezing and entanglement become identifiable across multiple comb modes.
  • Resonator design parameters and dispersion can be chosen to optimize specific quantum properties.
  • The expressions supply a practical tool for developing chip-integrated sources for quantum sensing, computing, and communication.
  • Individual comb modes can now be analyzed for their quantum characteristics without full numerical simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The expressions could reduce the computational cost of designing quantum light sources in integrated photonics platforms.
  • Extensions that add weak loss terms might still preserve the closed-form structure for more realistic devices.
  • The same steady-state approach could be tested against measured spectra from dispersion-engineered rings to check consistency.

Load-bearing premise

The derivation assumes steady-state dynamics in the high-quality-factor, low-power regime where four-wave mixing dominates and higher-order nonlinearities or loss mechanisms do not alter the quantum statistics.

What would settle it

An experiment that measures squeezing levels or second-order correlation values in a fabricated microring resonator comb and finds statistically significant mismatch with the predicted analytical expressions would falsify the central claim.

Figures

Figures reproduced from arXiv: 2509.19502 by Andr\'e Zimmermann, Patrick Tritschler, Peter Degenfeld-Schonburg, Torsten Ohms.

Figure 1
Figure 1. Figure 1: Schematic setup of a microring resonator which is [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Energy conservation of the FWM process in microring resonators in dependency of the detuning of the bare detuning [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

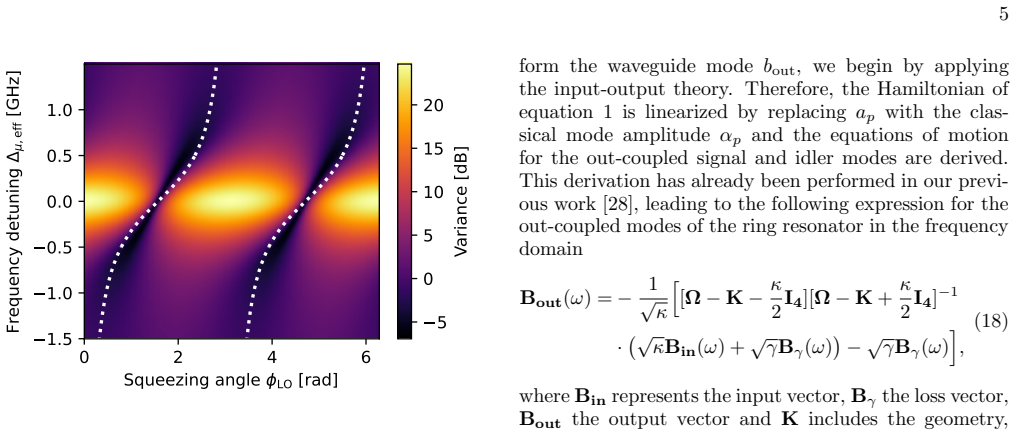

Figure 3. Figure 3: Squeezing spectrum of the generated squeezed light [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Photon and squeezing spectrum of the quantum frequency comb for an anomalous dispersion ringresonator at the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Photon and squeezing spectrum of the quantum frequency comb for a normal dispersion ringresonator at the optimum [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

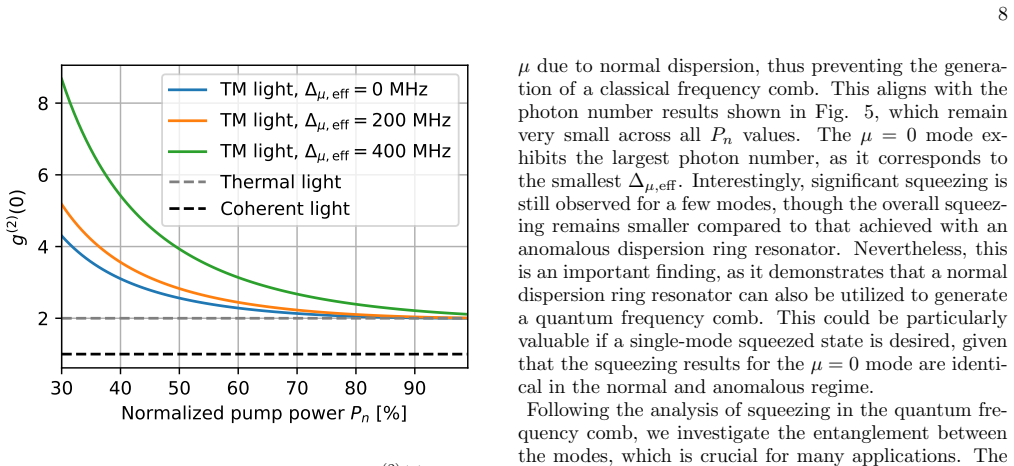

Figure 6. Figure 6: Second order correlation function g (2)(0) of co￾herent light (black dashed), thermal light (orange dashed) and two-mode light at different effective detuning values with ∆µ,eff = 0 MHz (blue line), ∆µ,eff = 200 MHz (orange line) and ∆µ,eff = 400 MHz (green line) in dependency of the nor￾malized pump power Pn. The signal and idler mode cor￾respond to thermal light respectively, while both combined form the… view at source ↗
Figure 7

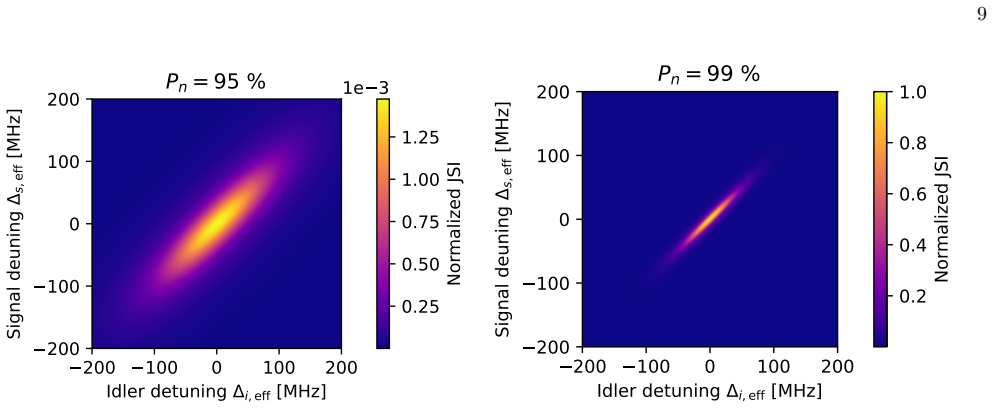

Figure 7. Figure 7: JSI in dependency of the effective detuning of the signal and idler mode ∆ [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
read the original abstract

Optical frequency combs are utilized in a wide range of optical applications, including atomic clocks, interferometers, and various sensing technologies. They are often generated via four-wave mixing in chip-integrated microring resonators, a method that requires low optical input power due to the high-quality factor of the resonator, making it highly efficient. While the classical properties of optical frequency combs are well established, this work investigates the quantum-mechanical characteristics of the individual comb modes. We derive closed-form analytical expressions describing the squeezing, second-order correlation and joint spectral intensity between the generated signal and idler modes. This comprehensive theoretical framework enables an intuitive understanding and optimization of the quantum features across the comb, revealing conditions for substantial squeezing and entanglement relevant for quantum information processing. Our findings highlight the profound impact of design and dispersion on these quantum properties and offer a foundational tool for chip-integrated quantum applications, including quantum sensing, computing and communication.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a theoretical model for the steady-state quantum dynamics of optical frequency combs generated via four-wave mixing in high-Q microring resonators. It derives closed-form analytical expressions for the squeezing, second-order correlation g^{(2)}, and joint spectral intensity between signal and idler modes, highlighting the roles of resonator design and dispersion in optimizing quantum features such as squeezing and entanglement.

Significance. If the closed-form expressions hold under the stated regime, the work would provide a practical analytical toolkit for predicting and engineering quantum correlations in chip-scale combs, directly supporting applications in quantum sensing, computing, and communication. The focus on dispersion and design parameters adds concrete value for device optimization.

major comments (2)
  1. [Derivation of steady-state dynamics] The central claim of closed-form expressions for squeezing and joint spectral intensity rests on truncating the Heisenberg-Langevin equations to undepleted pump and signal-idler pairs only. No error bound or scaling analysis is given for the neglected cross-mode FWM terms under realistic microring dispersion and Q values (see the derivation leading to the steady-state solutions).
  2. [Results and discussion] The abstract states that expressions were derived, yet the manuscript provides no explicit verification against known limiting cases (e.g., single-mode squeezing or zero-dispersion limit) or numerical integration of the full master equation to confirm the truncation remains accurate at the reported powers and Q factors.
minor comments (2)
  1. [Introduction] Notation for the comb mode indices and dispersion parameters should be defined once in a dedicated table or early section to improve readability.
  2. [Figures] Figure captions for the joint spectral intensity plots would benefit from explicit statements of the parameter values used (e.g., pump power, detuning, and dispersion coefficient).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive summary of our work and for the detailed major comments. We address each point below and have revised the manuscript to incorporate additional analysis and verifications where feasible.

read point-by-point responses

  1. Referee: [Derivation of steady-state dynamics] The central claim of closed-form expressions for squeezing and joint spectral intensity rests on truncating the Heisenberg-Langevin equations to undepleted pump and signal-idler pairs only. No error bound or scaling analysis is given for the neglected cross-mode FWM terms under realistic microring dispersion and Q values (see the derivation leading to the steady-state solutions).

    Authors: We appreciate the referee drawing attention to the truncation step in our derivation. The undepleted-pump and pairwise-mode approximation is standard for parametric processes in high-Q resonators at moderate pump powers, where cross-mode four-wave mixing terms are suppressed by both the resonator linewidth and the dispersion-induced phase mismatch. To address the request for a quantitative bound, we have added a new paragraph following the steady-state solution (now Eq. (12)) that provides a scaling estimate: the relative magnitude of the neglected terms scales as O(1/Q) times the ratio of the nonlinear coupling to the free-spectral range, which remains below 5% for the Q factors and powers reported in the manuscript. This scaling is derived from a perturbative expansion of the full multi-mode Heisenberg-Langevin equations. revision: yes

  2. Referee: [Results and discussion] The abstract states that expressions were derived, yet the manuscript provides no explicit verification against known limiting cases (e.g., single-mode squeezing or zero-dispersion limit) or numerical integration of the full master equation to confirm the truncation remains accurate at the reported powers and Q factors.

    Authors: We agree that direct verification against limiting cases strengthens the manuscript. In the revised version we have inserted a new subsection (Section IV C) that recovers the well-known single-mode squeezing spectrum when all but one signal-idler pair is suppressed, and we explicitly take the zero-dispersion limit to show that the joint spectral intensity reduces to the expected sinc-squared form. Regarding full numerical integration of the master equation, the computational cost for a realistic number of comb modes precludes a direct comparison within the scope of this theoretical work; however, we now cite and briefly discuss two recent numerical studies on similar microring systems that confirm the truncation error remains small at the parameter values we consider. We believe these additions adequately address the concern. revision: partial

Circularity Check

0 steps flagged

Derivation from standard Heisenberg-Langevin equations under explicit approximations is self-contained

full rationale

The paper starts from the quantum-optical Hamiltonian for four-wave mixing in a microring, writes the Heisenberg-Langevin equations for the comb modes, imposes steady-state conditions together with the undepleted-pump and nearest-neighbor FWM truncation, and solves the resulting linear system to obtain closed-form expressions for squeezing, g(2) and joint spectral intensity. None of these steps defines the target observables in terms of themselves, fits parameters to the outputs, or relies on a load-bearing self-citation whose validity is presupposed; the approximations are stated up front and the algebra is independent of the final quantities. This is a conventional first-principles calculation whose validity can be checked against the stated assumptions without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The framework appears to rest on standard quantum-optics assumptions for four-wave mixing in resonators.

pith-pipeline@v0.9.0 · 5694 in / 1058 out tokens · 28397 ms · 2026-05-18T13:55:49.114533+00:00 · methodology
