Prophecy: Inferring Formal Properties from Neuron Activations

Divya Gopinath , Corina S. Pasareanu , Muhammad Usman This is my paper

Pith reviewed 2026-05-18 13:27 UTC · model grok-4.3

classification 💻 cs.LG cs.SE
keywords neural networksformal propertiesneuron activationsrule extractionformal verificationproperty inferenceexplainability
0
0 comments X

The pith

Prophecy infers formal properties of feed-forward neural networks by deriving logical rules from neuron activation patterns in hidden layers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Prophecy as a tool to automatically infer formal properties from neural networks. It extracts rules where specific neuron activation values or on/off states in inner layers act as preconditions that guarantee desirable outputs such as a particular class prediction. This approach rests on the idea that much of a network's decision logic lives in those activation patterns rather than only in the final output. A sympathetic reader would care because the rules turn internal states into usable logical statements that support verification and explanation tasks. If the extraction succeeds, it provides a direct way to reason about network behavior using the same activations the network itself produces.

Core claim

Prophecy is based on the observation that a significant part of the logic of feed-forward networks is captured in the activation status of the neurons at inner layers. Prophecy works by extracting rules based on neuron activations (values or on/off statuses) as preconditions that imply certain desirable output property, e.g., the prediction being a certain class. These rules represent network properties captured in the hidden layers that imply the desired output behavior.

What carries the argument

Extraction of rules that treat neuron activation patterns (continuous values or binary on/off states) as preconditions guaranteeing specific output properties.

If this is right

  • The rules enable inferring and proving formal explanations for network decisions.
  • They support compositional verification of systems that include neural networks.
  • The approach allows run-time monitoring to check whether properties hold during execution.
  • Extracted rules can guide repair steps that modify the network to satisfy desired properties.
  • The same technique shows promise for property inference in large vision-language models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the rules prove sound across many inputs, verification efforts could shift from exhaustive input testing to checking activation preconditions.
  • The method suggests a route to interpretability by turning internal activation patterns into explicit logical statements rather than post-hoc approximations.
  • Extending the rule extraction to other network types could test whether activation-based preconditions generalize beyond feed-forward architectures.

Load-bearing premise

The activation status of neurons at inner layers captures enough of the network's logic to produce rules that reliably imply the desired output properties without gaps or incorrect implications.

What would settle it

An input that satisfies the activation precondition of an extracted rule but produces an output violating the implied property would demonstrate that the rules do not hold.

Figures

Figures reproduced from arXiv: 2509.21677 by Corina S. Pasareanu, Divya Gopinath, Muhammad Usman.

Figure 1
Figure 1. Figure 1: Prophecy Tool. Overview Diagram. Several studies [17, 31, 21] have shown that neuron activations (values or on/off statuses) at a layer effectively represent the features at that layer. Typ￾ically, dense layers closer to the output encompass the logic relevant to model decisions. Guided by these insights, simple rules in terms of conditions on neuron outputs at these layers, have the potential to capture t… view at source ↗
Figure 2
Figure 2. Figure 2: Example Layer Properties. Let F denote a feed￾forward neural network and Fl denote the function rep￾resenting the transforma￾tions applied by all layers from the input till layer l. A layer property for a post-condition P encodes a pattern σ over the neu￾ron values in layer l that satisfies the rule, ∀x ∈ X σ(Fl(x)) ⇒ P(F(x)). In the original paper [11], we expressed σ in terms of on/off activations, σ(X) … view at source ↗
Figure 3

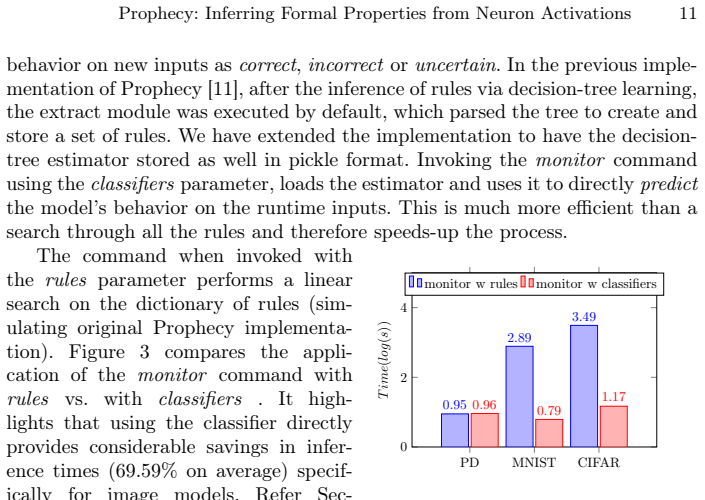

Figure 3. Figure 3: Inference times comparison. Pima Diabetes (PD [2])), MNIST [20], CIFAR [27]. The command when invoked with the rules parameter performs a linear search on the dictionary of rules (sim￾ulating original Prophecy implementa￾tion) [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
read the original abstract

We present Prophecy, a tool for automatically inferring formal properties of feed-forward neural networks. Prophecy is based on the observation that a significant part of the logic of feed-forward networks is captured in the activation status of the neurons at inner layers. Prophecy works by extracting rules based on neuron activations (values or on/off statuses) as preconditions that imply certain desirable output property, e.g., the prediction being a certain class. These rules represent network properties captured in the hidden layers that imply the desired output behavior. We present the architecture of the tool, highlight its features and demonstrate its usage on different types of models and output properties. We present an overview of its applications, such as inferring and proving formal explanations of neural networks, compositional verification, run-time monitoring, repair, and others. We also show novel results highlighting its potential in the era of large vision-language models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents Prophecy, a tool for automatically inferring formal properties of feed-forward neural networks. Prophecy extracts rules from neuron activation values or on/off statuses at hidden layers, treating these as preconditions that imply desirable output properties such as specific class predictions. The manuscript describes the tool architecture and features, demonstrates usage across model types, and outlines applications including formal explanations, compositional verification, runtime monitoring, repair, and potential extensions to large vision-language models.

Significance. If the extracted rules can be established as sound formal implications, the work would offer a practical bridge between empirical activation patterns and verifiable network properties, supporting interpretability and safety applications in neural networks. The focus on internal layer logic as a basis for property inference is a constructive direction that could complement existing verification techniques, and the broad application overview provides useful context for practitioners.

major comments (2)
  1. [Abstract and method overview] Abstract and method overview: the claim that activation-based preconditions 'imply' output properties is presented as formal, yet the description provides no soundness argument, over-approximation technique, SMT encoding, or enumeration of consistent ReLU regions to guarantee that every input satisfying the precondition produces the claimed output with no counterexamples in the continuous domain.
  2. [Evaluation section] Evaluation section: no quantitative validation, error rates, or counterexample analysis is reported for the inferred rules, leaving the reliability of the claimed implications for applications such as verification and monitoring unsupported.
minor comments (1)
  1. [Applications discussion] Clarify whether the 'novel results' for vision-language models are supported by concrete examples or remain prospective.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and for recognizing the potential of Prophecy to connect neuron activations with verifiable network properties. We address each major comment below, indicating the revisions we will incorporate to strengthen the formal claims and empirical support.

read point-by-point responses

  1. Referee: [Abstract and method overview] Abstract and method overview: the claim that activation-based preconditions 'imply' output properties is presented as formal, yet the description provides no soundness argument, over-approximation technique, SMT encoding, or enumeration of consistent ReLU regions to guarantee that every input satisfying the precondition produces the claimed output with no counterexamples in the continuous domain.

    Authors: We agree that the current presentation would be strengthened by an explicit treatment of soundness. The rules in Prophecy are derived by mining activation patterns (values or binary on/off states) that hold for sampled inputs and correlate with target outputs. To guarantee that every continuous input satisfying the precondition yields the claimed output, the implications must be verified over the linear regions induced by ReLU activations. In the revised manuscript we will add a dedicated subsection that (i) states the precise conditions under which the extracted rules are sound, (ii) describes a lightweight over-approximation based on linear relaxations of ReLU, and (iii) outlines how an SMT encoding or region enumeration can be used to certify absence of counterexamples. This addition will make the formal character of the claims explicit without altering the core extraction algorithm. revision: yes

  2. Referee: [Evaluation section] Evaluation section: no quantitative validation, error rates, or counterexample analysis is reported for the inferred rules, leaving the reliability of the claimed implications for applications such as verification and monitoring unsupported.

    Authors: The present evaluation focuses on demonstrating usage across model architectures and on illustrating the intended applications. We acknowledge that quantitative evidence of rule reliability is necessary to support claims about verification and runtime monitoring. We will therefore augment the evaluation section with a new set of experiments that (a) measure the fraction of rules that admit counterexamples when checked with an SMT solver or gradient-based search, (b) report precision and recall of the inferred preconditions on held-out inputs, and (c) analyze failure cases. These metrics will be presented for both small feed-forward networks and larger vision-language models, directly addressing the concern about unsupported reliability. revision: yes

Circularity Check

0 steps flagged

No circularity: rule extraction presented as independent procedure from activation observations

full rationale

The paper introduces Prophecy as a tool that extracts rules from neuron activation patterns (values or binary statuses) at inner layers to serve as preconditions implying output properties such as class membership. This is framed as a direct consequence of the stated observation that hidden-layer activations capture significant network logic, without any equations, fitted parameters, or self-citations that define the output properties in terms of the extracted rules themselves. No derivation step reduces a claimed formal implication back to its inputs by construction; the method is described as a new extraction and application procedure for verification, monitoring, and repair tasks, remaining self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests primarily on one domain assumption about neuron activations capturing network logic. No free parameters, invented entities, or additional axioms are stated in the abstract.

axioms (1)
  • domain assumption A significant part of the logic of feed-forward networks is captured in the activation status of the neurons at inner layers.
    This observation is explicitly stated as the basis for the rule-extraction approach in the abstract.
