pith. sign in

arxiv: 2510.00826 · v3 · submitted 2025-10-01 · 🪐 quant-ph · hep-ph· physics.acc-ph

Diffraction by Circular and Triangular Apertures as a Diagnostic Tool of Twisted Matter Waves

Maksim Maksimov , Nikita Borodin , Daria Kargina , Dmitry Naumov , Dmitry Karlovets This is my paper

Pith reviewed 2026-05-18 11:07 UTC · model grok-4.3

classification 🪐 quant-ph hep-phphysics.acc-ph
keywords orbital angular momentumtwisted matter waveselectron diffractiontriangular apertureOAM diagnosticsFraunhofer diffractionLaguerre-Gaussian beamsKirchhoff-Fresnel
0
0 comments X

The pith

Equilateral triangular apertures diffract twisted matter waves into patterns whose lobe count and rotation reveal both the magnitude and sign of orbital angular momentum ℓ.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that circular apertures produce ring-shaped far-field profiles whose radii depend only on the absolute value of ℓ, remaining blind to its sign because of preserved cylindrical symmetry. Equilateral triangular apertures break that symmetry and generate structured intensity patterns containing |ℓ| + 1 lobes whose overall orientation rotates in a direction set by the sign of ℓ. A direct Fraunhofer integral maps the aperture plane to detector coordinates, supplying an explicit geometric rule for the lobe number and the rotation angle. The same mapping holds for both ideal Bessel beams and finite Laguerre-Gaussian wave packets, and it is confirmed by split-step Fourier solution of the time-dependent Schrödinger equation. The authors extract concrete design parameters for detector placement and sampling that apply to electrons at 0.1–5 MeV and light ions at 0.1–1 MeV per nucleon, positioning triangular diffraction as a passive diagnostic for the full OAM content of structured quantum beams.

Core claim

Within the scalar Kirchhoff-Fresnel framework, an equilateral triangular aperture converts the helical phase front of a twisted matter wave into a far-field intensity distribution that contains exactly |ℓ| + 1 bright lobes. The entire pattern rotates clockwise or counterclockwise according to the sign of ℓ. This encoding follows from a transparent Fourier-plane mapping between the triangular aperture coordinates and the detector plane. The result is independent of whether the incident wave is an ideal Bessel beam or a localized Laguerre-Gaussian packet, and it is reproduced by direct numerical propagation of the time-dependent Schrödinger equation.

What carries the argument

The Fraunhofer diffraction integral evaluated over an equilateral triangular aperture, which transforms the azimuthal phase winding exp(i ℓ φ) of the incident wave into a rotated, multi-lobe far-field pattern whose symmetry properties encode both |ℓ| and sign(ℓ).

If this is right

  • The number of lobes directly reports |ℓ| without auxiliary calibration.
  • The rotation sense of the pattern distinguishes positive from negative ℓ.
  • Explicit formulas are given for the Fraunhofer distance, required lattice pitch, and detector sampling needed at electron energies 0.1–5 MeV and ion energies 0.1–1 MeV/u.
  • The lobe structure and rotation remain unchanged when the ideal Bessel beam is replaced by a finite Laguerre-Gaussian packet.
  • Split-step Fourier solution of the Schrödinger equation reproduces the analytic Fraunhofer results for both circular and triangular apertures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The triangular mask could serve as a real-time OAM monitor in electron microscopes if detector pixel size is matched to the predicted lobe spacing at the chosen beam energy.
  • Replacing the equilateral triangle by other regular polygons might produce distinct lobe counts or rotation angles, offering alternative encoding schemes for the same diagnostic task.
  • At higher beam energies where magnetic vector potentials or relativistic corrections become appreciable, the scalar result would need to be checked against the vector diffraction treatment of the same aperture.

Load-bearing premise

The scalar Kirchhoff-Fresnel diffraction description remains adequate for the propagation and far-field interference of matter waves carrying nonzero orbital angular momentum.

What would settle it

Recording identical far-field lobe orientations for two otherwise identical beams that differ only by the sign of ℓ would falsify the claim that the triangular aperture encodes the sign in the rotation direction.

Figures

Figures reproduced from arXiv: 2510.00826 by Daria Kargina, Dmitry Karlovets, Dmitry Naumov, Maksim Maksimov, Nikita Borodin.

Figure 1
Figure 1. Figure 1: Schematic of the diffraction geometry for twisted matter waves: source [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: The same setup as Fig. 2 but for [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Triangular-aperture benchmark at Ekin = 100 keV, κ = 15 eV. Expected-count maps for twisted Bessel electron beams with ℓ = 0, 1, 2, 5, −5, 10 transmitted by an equilateral triangular aperture of side L = 400 nm; aperture–screen dis￾tance z = 0.2 m. The (|ℓ| + 1)-lobe count per side and the orientation flip under ℓ→−ℓ provide a direct readout of both the magnitude and the sign of the OAM. nodal geometry—rem… view at source ↗
Figure 7
Figure 7. Figure 7: Triangular-aperture diffraction for LG electron [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 6
Figure 6. Figure 6: Near-to-far-field evolution for LG electron wave [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: The same comparison at Ekin = 1 MeV and z = 1 m. The reduced de Broglie wavelength tightens fringe spacing, while the OAM-resolving triangular signature re￾mains nearly identical to the Bessel case in [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Triangular-aperture diffraction for protons mod [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 11

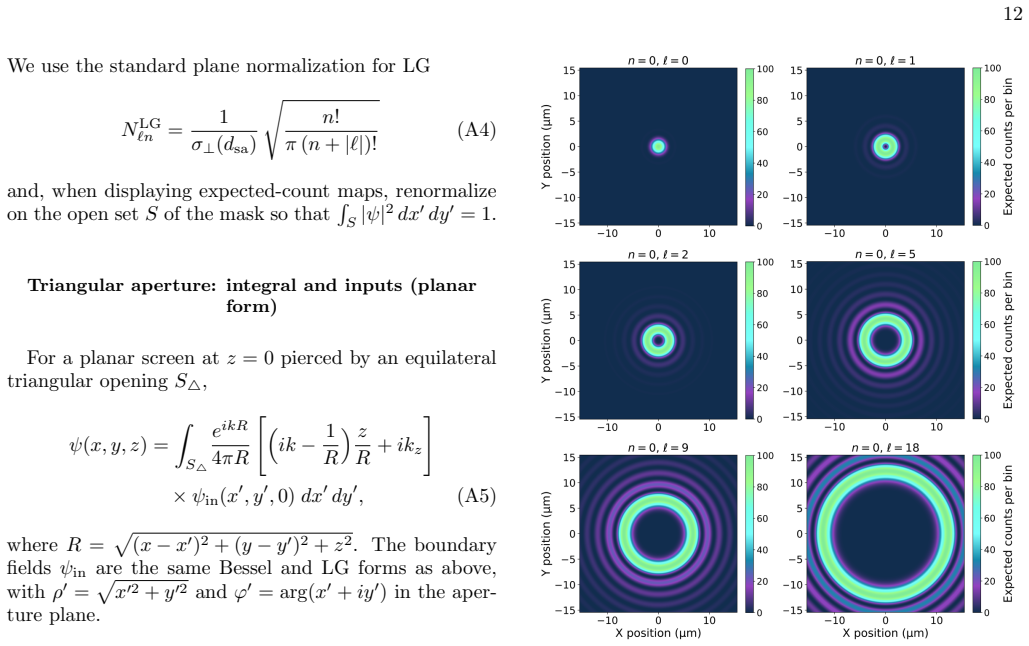

Figure 11. Figure 11: LG packets diffracted by a circular aperture [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Dependence on the radial index n for LG packets through a triangular aperture (expected-count maps). Same geometry as in Sec. IV B. Left column: n = 0; right col￾umn: n = 5; rows: ℓ = 0, 1, 5, −5. Varying n changes the envelope/contrast; the OAM readout used in the main text is unchanged. Fourier transform of a triangular mask Consider a filled triangle with vertices v0, v1, v2 in the aperture plane z = 0… view at source ↗
Figure 13
Figure 13. Figure 13: Analytic Fourier amplitude of an equilateral tri [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
read the original abstract

We study diffraction of twisted matter waves (electrons and light ions carrying orbital angular momentum $\ell/\hbar=0,\pm1,\pm2,\ldots$ by circular and triangular apertures. Within the scalar Kirchhoff-Fresnel framework, circular apertures preserve cylindrical symmetry and produce ringlike far-field profiles whose radii and widths depend on $|\ell|$ but are insensitive to its sign. In contrast, equilateral triangles break axial symmetry and yield structured patterns that encode both the magnitude and the sign of $\ell$. A transparent Fraunhofer mapping links detector coordinates to the Fourier plane, explaining the $(|\ell|+1)$-lobe rule and the sign-dependent rotation of the pattern. We validate these results for both ideal Bessel beams and localized Laguerre-Gaussian packets, and we cross-check them by split-step Fourier propagation of the time-dependent Schr"odinger equation. From these analyses we extract practical design rules (Fraunhofer distance, lattice pitch, detector sampling) relevant to OAM diagnostics with moderately relativistic electrons with $E_{\rm kin}\sim0.1$ to $5$ MeV and light ions with $E_{\rm kin}\sim0.1$ to $1$ MeV/u. Our results establish triangular diffraction as a simple, passive, and robust method for reading out the OAM content of structured quantum beams.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript studies diffraction of twisted matter waves (electrons and light ions with orbital angular momentum ℓ) by circular and equilateral triangular apertures. Within the scalar Kirchhoff-Fresnel framework, circular apertures produce ring-like far-field patterns whose radii and widths depend on |ℓ| but are insensitive to sign(ℓ). Triangular apertures break axial symmetry and generate structured patterns that encode both |ℓ| and sign(ℓ). A Fraunhofer mapping is derived to explain the (|ℓ|+1)-lobe rule and the sign-dependent rotation of the pattern. Results are validated for ideal Bessel beams and localized Laguerre-Gaussian packets, and cross-checked via split-step Fourier propagation of the time-dependent Schrödinger equation. Practical design rules are extracted for OAM diagnostics at E_kin ∼ 0.1–5 MeV (electrons) and 0.1–1 MeV/u (light ions).

Significance. If the central claims hold, the work establishes triangular-aperture diffraction as a simple, passive, and robust diagnostic for the full OAM content of structured matter-wave beams. The explicit cross-validation against TDSE split-step propagation for both ideal and localized beams, together with the parameter-free Fraunhofer mapping, provides concrete support for applicability in the stated energy ranges and strengthens the case for experimental implementation in electron and ion beam facilities.

major comments (1)
  1. The validation relies on TDSE split-step propagation, yet the manuscript does not report quantitative discrepancy metrics (e.g., L2-norm differences or overlap integrals) between the Kirchhoff-Fresnel far-field intensities and the TDSE results across the range of |ℓ| values; this information is needed to confirm that the scalar model remains adequate when the central claim is that the patterns encode both magnitude and sign.
minor comments (3)
  1. Abstract: the string “Schr”odinger” contains a stray quotation mark; correct to Schrödinger.
  2. Notation: ensure that the symbol ℓ is consistently introduced as the OAM quantum number (with units ħ) and that |ℓ| is used explicitly when only the magnitude enters an expression.
  3. Figure captions: state the beam energy, aperture size, and propagation distance used for each panel so that the design-rule claims can be directly compared with the plotted data.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript and for the constructive comment on strengthening the validation. We address the point below and have revised the manuscript to incorporate quantitative metrics as suggested.

read point-by-point responses

  1. Referee: The validation relies on TDSE split-step propagation, yet the manuscript does not report quantitative discrepancy metrics (e.g., L2-norm differences or overlap integrals) between the Kirchhoff-Fresnel far-field intensities and the TDSE results across the range of |ℓ| values; this information is needed to confirm that the scalar model remains adequate when the central claim is that the patterns encode both magnitude and sign.

    Authors: We agree that quantitative discrepancy metrics would provide additional support for the adequacy of the scalar Kirchhoff-Fresnel model, particularly given the central claim regarding encoding of both magnitude and sign. In the revised manuscript we have added these metrics: we computed the L2-norm differences (normalized to the peak intensity) and the overlap integrals between the Kirchhoff-Fresnel far-field intensities and the TDSE results for |ℓ| = 0, 1, 2, 3, 4, and 5. The relative L2 errors remain below 0.04 and the overlaps exceed 0.96 across this range, with no systematic degradation for higher |ℓ|. These results are now reported in a new paragraph in Section III B together with a supplementary table. This confirms that the scalar model remains sufficient to capture the sign-dependent features in the triangular-aperture patterns for the energies and apertures considered. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The central results follow from direct application of the standard scalar Kirchhoff-Fresnel diffraction integral (Fraunhofer limit) to the aperture transmission function multiplied by the incident twisted wave (Bessel or Laguerre-Gaussian). The lobe count (|ℓ|+1) and sign-dependent rotation emerge as algebraic consequences of the azimuthal phase factor e^{iℓφ} under Fourier transformation; no parameters are fitted to the target OAM diagnostics. Independent numerical cross-checks via split-step Fourier propagation of the time-dependent Schrödinger equation lie outside the diffraction model and confirm the same patterns, rendering the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the scalar Kirchhoff-Fresnel approximation to twisted matter waves and the validity of the Fraunhofer far-field limit for the chosen beam energies and apertures.

axioms (1)
  • domain assumption Scalar Kirchhoff-Fresnel diffraction approximation applies to twisted matter waves.
    Invoked as the primary theoretical framework for all analytic results.

pith-pipeline@v0.9.0 · 5790 in / 1198 out tokens · 38398 ms · 2026-05-18T11:07:26.669675+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

39 extracted references · 39 canonical work pages

  1. [1]

    Perform a forward Fast Fourier Transform (FFT) of the fieldu(x, y, z), obtaining its transverse spec- trum ˜u(kx, ky, z)

    work page

  2. [2]

    Multiply by the free-space propagator UT (kx, ky) = exp − i∆z 2k k2 x +k 2 y ; (31)

    work page

  3. [3]

    Apply the inverse FFT to recover the updated field u(x, y, z+ ∆z). Within the paraxial framework, apertures and other thin elements are included as multiplicative masks A(x, y)∈[0,1] at selectedz-planes, playing the role of the potential: u(x, y, z+ 0 ) =A(x, y)u(x, y, z − 0 ).(32) An ideal sharp aperture corresponds toA= 1 inside the opening andA= 0 outs...

    work page

  4. [4]

    (5) yieldsz F ∼20–400 mm; beyond this range the pattern is governed primarily by aperture geometry and by the beam’s angular spectrum

    For instance, withL= 0.5µm and electrons ofE kin = 0.1–5 MeV, Eq. (5) yieldsz F ∼20–400 mm; beyond this range the pattern is governed primarily by aperture geometry and by the beam’s angular spectrum. Image scale, lattice pitch, and detector sampling.In the Fraunhofer regime detector coordinates map linearly to the Fourier plane [Eq. (8)], and the three r...

    work page

  5. [5]

    Krenn, R

    M. Krenn, R. Fickler, M. Fink, J. Handsteiner, M. Malik, T. Scheidl, R. Ursin, and A. Zeilinger, New Journal of Physics16, 113028 (2014)

    work page 2014

  6. [6]

    A. E. Willner, H. Song, K. Zou, H. Zhou, and X. Su, Journal of Lightwave Technology41, 1918 (2022). 15

    work page 1918

  7. [7]

    Session, M

    D. Session, M. J. Mehrabad, N. Paithankar, T. Grass, C. J. Eckhardt, B. Cao, D. G. S. Forero, K. Li, M. S. Alam, K. Watanabe, T. Taniguchi, G. S. Solomon, N. Schine, J. Sau, R. Sordan, and M. Hafezi, Nature Pho- tonics19, 156 (2025)

    work page 2025

  8. [8]

    Luski, Y

    A. Luski, Y. Segev, R. David, O. Bitton, H. Nadler, A. R. Barnea, A. Gorlach, O. Cheshnovsky, I. Kaminer, and E. Narevicius, Science373, 1105 (2021)

    work page 2021

  9. [9]

    Allen, M

    L. Allen, M. J. Padgett, and M. Babiker, in Progress in Optics, Vol. 39, edited by E. Wolf (Elsevier,

    work page

  10. [10]

    Bliokh, I

    K. Bliokh, I. Ivanov, G. Guzzinati, L. Clark, R. Van Boxem, A. B´ ech´ e, R. Juchtmans, M. Alonso, P. Schattschneider, F. Nori, and J. Verbeeck, Physics Re- ports690, 1 (2017)

    work page 2017

  11. [11]

    Larocque, I

    H. Larocque, I. Kaminer, V. Grillo, G. Leuchs, M. J. Padgett, R. W. Boyd, M. Segev, and E. Karimi, Con- temporary Physics59, 126 (2018)

    work page 2018

  12. [12]

    Floettmann and D

    K. Floettmann and D. Karlovets, Phys. Rev. A102, 043517 (2020)

    work page 2020

  13. [13]

    Takabayashi, H

    Y. Takabayashi, H. Takeda, E. Magome, K. Sumitani, P. O. Kazinski, P. S. Korolev, O. V. Bogdanov, and T. A. Tukhfatullin, Phys. Rev. A111, L061501 (2025)

    work page 2025

  14. [14]

    Uchida and A

    M. Uchida and A. Tonomura, Nature464, 737 (2010)

    work page 2010

  15. [15]

    Verbeeck, H

    J. Verbeeck, H. Tian, and P. Schattschneider, Nature 467, 301 (2010)

    work page 2010

  16. [16]

    Guzzinati, L

    G. Guzzinati, L. Clark, A. B´ ech´ e, and J. Verbeeck, Phys- ical Review A89, 025803 (2014)

    work page 2014

  17. [17]

    Grillo, J

    V. Grillo, J. Harris, G. C. Gazzadi, R. Balboni, E. Mafakheri, M. R. Dennis, S. Frabboni, R. W. Boyd, and E. Karimi, Ultramicroscopy166, 48 (2016)

    work page 2016

  18. [18]

    Karlovets, New Journal of Physics23, 033048 (2021)

    D. Karlovets, New Journal of Physics23, 033048 (2021)

    work page 2021

  19. [19]

    Sarenac, M

    D. Sarenac, M. E. Henderson, H. Ekinci, C. W. Clark, D. G. Cory, L. DeBeer-Schmitt, M. G. Huber, C. Ka- pahi, D. Sarenac, and D. A. Pushin, Science Advances8, eadd2002 (2022)

    work page 2022

  20. [20]

    I. P. Ivanov, Progress in Particle and Nuclear Physics 127, 103987 (2022)

    work page 2022

  21. [21]

    J. W. Goodman, Introduction to Fourier Optics, 3rd ed. (Roberts & Company, 2005)

    work page 2005

  22. [22]

    J. M. Hickmann, E. J. S. Fonseca, W. C. Soares, and S. Ch´ avez-Cerda, Physical Review Letters105, 053904 (2010)

    work page 2010

  23. [23]

    Stahl and G

    C. Stahl and G. Gbur, Journal of the Optical Society of America A36, 1872 (2019)

    work page 2019

  24. [24]

    Ambuj, E

    A. Ambuj, E. Walla, S. Andaloro, S. Nomoto, R. Vyas, and S. Singh, Physical Review A99, 013846 (2019)

    work page 2019

  25. [25]

    Juchtmans, G

    R. Juchtmans, G. Guzzinati, and J. Verbeeck, Physical Review A94, 033858 (2016)

    work page 2016

  26. [26]

    Yongxin et al., Optics Letters46, 626 (2021)

    Z. Yongxin et al., Optics Letters46, 626 (2021)

    work page 2021

  27. [27]

    M. M. Hasan et al., Scientific Reports15, 96344 (2025)

    work page 2025

  28. [28]

    Jiang, M

    Y. Jiang, M. Chen, Z. Chen, H. Zeng, and B. Lu, Scien- tific Reports5, 14332 (2015)

    work page 2015

  29. [29]

    V. K. Ivanov, A. D. Chaikovskaia, and D. V. Karlovets, Phys. Rev. A108, 062803 (2023)

    work page 2023

  30. [30]

    I. I. Pavlov, A. D. Chaikovskaia, and D. V. Karlovets, Phys. Rev. A110, L031101 (2024)

    work page 2024

  31. [31]

    A. S. Dyatlov, M. A. Nozdrin, A. N. Sergeev, N. E. Sheremet, S. S. Stafeev, and D. V. Karlovets, arXiv preprint (2025), arXiv:2501.16950 [physics.optics]

    work page arXiv 2025

  32. [32]

    23-62-10026, https://rscf.ru/en/project/23-62-10026/(2023)

    Russian Science Foundation, Project no. 23-62-10026, https://rscf.ru/en/project/23-62-10026/(2023)

    work page 2023

  33. [33]

    F. An, D. Bai, H. Cai, S. Chen, X. Chen, H. Duyang, L. Gao, S. Ge, J. He, J. Huang, Z. Huang, I. Ivanov, C. Ji, H. Jia, J. Jiang, X. Kang, S.-B. Kim, C. Kong, W. Kou, Q. Li, Q. Li, J. Liao, J. Ling, C.-E. Liu, X. Ma, H. Qiu, J. Tang, R. Wang, W. Wen, J. Wu, J. Xiao, X. Xiao, Y. Xu, W. Yang, X. Yang, J. Yao, Y. Yuan, M. Zaiba, P. Zhang, S. Zhang, S. Zhang,...

    work page 2025

  34. [34]

    J. D. Jackson, Classical Electrodynamics, 3rd ed. (Wiley, 1999)

    work page 1999

  35. [35]

    J. A. C. Weideman and B. M. Herbst, SIAM Journal on Numerical Analysis23, 485 (1986)

    work page 1986

  36. [36]

    D. V. Naumov, Tdse-diffraction,https://github.com/ dmitryvnaumov/TDSE-Diffraction/tree/main(2025), accessed: 2025-09-08

    work page 2025

  37. [37]

    A. P. Potylitsyn, M. I. Ryazanov, M. N. Strikhanov, and A. A. Tishchenko, Diffraction Radiation from Relativistic Particles, Springer Tracts in Modern Physics, Vol. 239 (Springer, Berlin, Heidelberg, 2011)

    work page 2011

  38. [38]

    S. M. Schramm, T. Schmidt, P. Hlawenka, R. Follath, H. Rose, and C. M. Schneider, Ultramicroscopy130, 46 (2013)

    work page 2013

  39. [39]

    B´ ech´ e, R

    A. B´ ech´ e, R. Van Boxem, G. Van Tendeloo, and J. Ver- beeck, Nature Physics10, 26 (2014)

    work page 2014
