arxiv: 2510.06771 · v3 · submitted 2025-10-08 · 🌌 astro-ph.IM · astro-ph.GA· physics.ins-det

Low-noise Fourier Transform Spectroscopy Enabled by Superconducting On-Chip Filterbank Spectrometers

Chris S. Benson , Peter S. Barry , Patrick Ashworth , Harry Gordon-Moys , Kirit S. Karkare , Izaak Morris , Gethin Robson This is my paper

Pith reviewed 2026-05-18 09:21 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.GAphysics.ins-det
keywords Fourier transform spectrometerfilterbank spectrometerphoton noisesubmillimeter astronomyon-chip spectrometerline intensity mappingmapping speed
0
0 comments X

The pith

Coupling a medium-resolution Fourier transform spectrometer to a low-resolution filterbank cuts photon noise by more than a factor of ten.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes pairing a medium-resolution Fourier transform spectrometer with a low-resolution filterbank spectrometer that acts as a post-dispersion element. The filterbank narrows the bandwidth reaching each detector and thereby reduces the photon noise that normally limits broadband Fourier transform measurements. This hybrid arrangement keeps the wide-field imaging strengths of both instrument types. A reader would care because the noise reduction could speed up large-area mapping in millimeter and submillimeter astronomy. The authors calculate expected mapping speeds for ground and balloon platforms and show that the design could deliver useful signal-to-noise on CO power spectra for line intensity mapping surveys.

Core claim

We propose coupling a medium-resolution Fourier transform spectrometer to a low-resolution filterbank spectrometer focal plane, which serves as a post-dispersion element. In this arrangement, medium resolution imaging spectroscopy is provided by the Fourier transform spectrometer, while the low resolution filterbank spectrometer serves to decrease the photon noise inherent in typical broadband Fourier transform spectrometer measurements by over an order of magnitude. This is achieved while maintaining the excellent imaging advantages of both architectures.

What carries the argument

Low-resolution filterbank spectrometer used as a post-dispersion element that narrows the effective bandwidth seen by the Fourier transform spectrometer detectors.

Load-bearing premise

The filterbank can be fabricated and coupled efficiently enough that it does not add loss or noise that cancels the intended photon-noise reduction from the narrower bandwidth.

What would settle it

A side-by-side laboratory test of noise equivalent power in a broadband Fourier transform spectrometer versus the same instrument with the filterbank inserted, checking whether the noise drops by at least a factor of ten.

Figures

Figures reproduced from arXiv: 2510.06771 by Chris S. Benson, Gethin Robson, Harry Gordon-Moys, Izaak Morris, Kirit S. Karkare, Patrick Ashworth, Peter S. Barry.

Figure 1

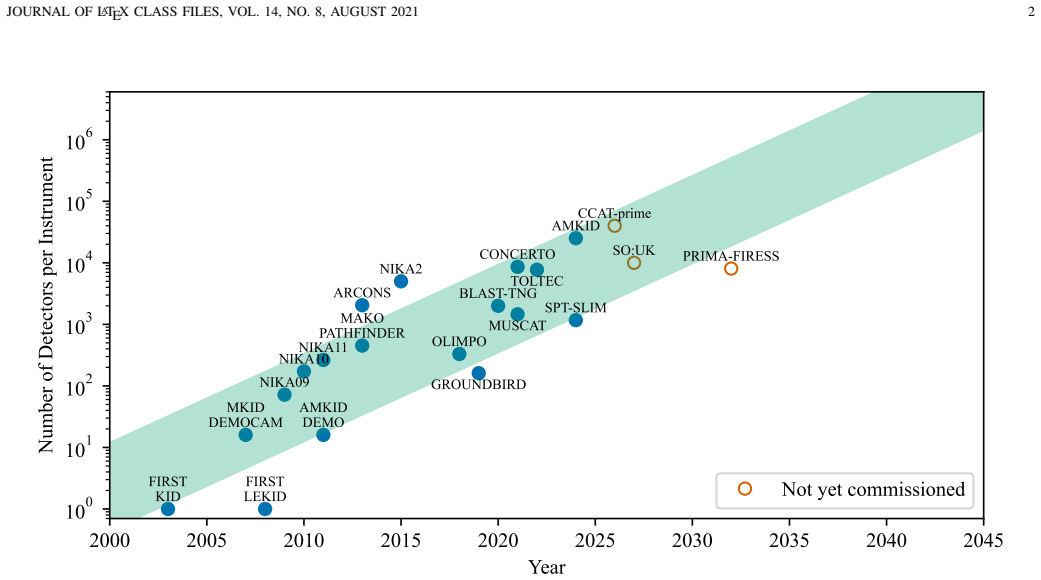

Figure 1. Figure 1: The total number of MKIDs employed at the focal plane of various instruments for astronomy. The shaded green area shows a linear fit to the data [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Efficiency loss in a single half-wave filter as a consequence of [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The reduction in the photon noise of an FTS provided by a low [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The projected mapping speed of an FBDFTS from the CCAT-prime/FYST site and from a balloon platform compared to other prominent mapping [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

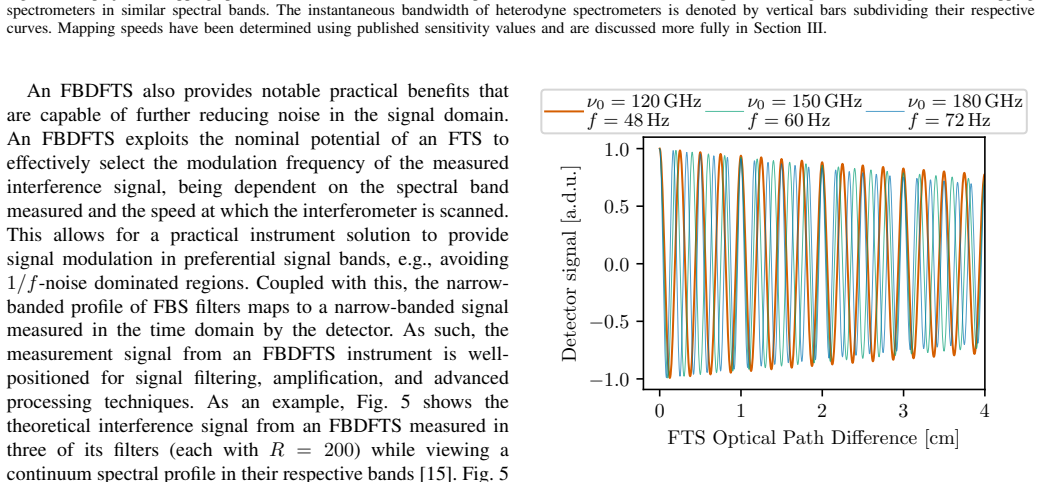

Figure 5. Figure 5: Simulated detector signals from continuum measurements with three [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

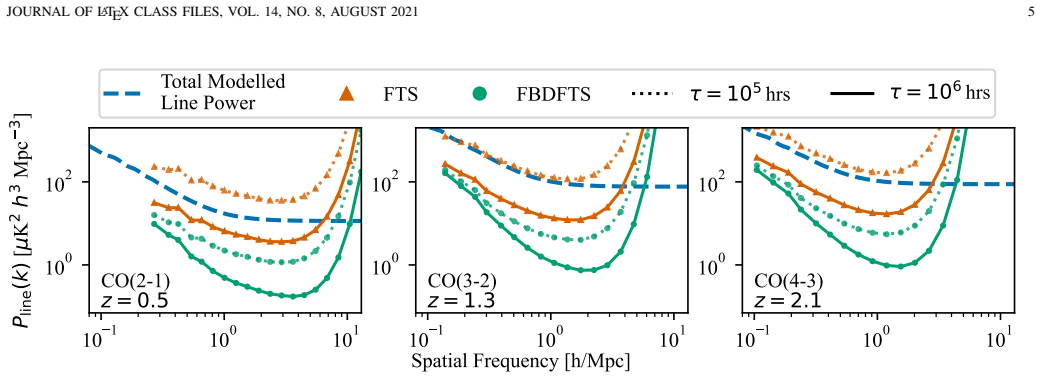

Figure 6. Figure 6: The predicted performance of an R = 1000 LIM experiment leveraging a photon-noise limited FBDFTS operating at 150 GHz from the JCMT is compared against the performance of a typical FTS for the rotational transitions: CO(2-1) at z = 0.5 (left), CO(3-2) at z = 1.3 (centre), and CO(4-3) at z = 2.1 (right). Integration times of 105 and 106 spectrometer hours are both shown as conservative/ideal-case scenarios … view at source ↗
read the original abstract

Historically employed spectroscopic architectures used for large field of view mapping spectroscopy in millimetere and sub-millimetre astronomy suffer from significant drawbacks. On-chip filterbank spectrometers are a promising technology in this respect; however, they must overcome an orders-of-magnitude increase in detector counts, efficiency loss due to dielectric properties, and stringent fabrication tolerances that currently limit scaling to resolutions of order 1000 over a large array. We propose coupling a medium-resolution Fourier transform spectrometer to a low-resolution filterbank spectrometer focal plane, which serves as a post-dispersion element. In this arrangement, medium resolution imaging spectroscopy is provided by the Fourier transform spectrometer, while the low resolution filterbank spectrometer serves to decrease the photon noise inherent in typical broadband Fourier transform spectrometer measurements by over an order of magnitude. This is achieved while maintaining the excellent imaging advantages of both architectures. We present predicted mapping speeds for a filterbank-dispersed Fourier transform spectrometer from a ground-based site and a balloon-borne platform. We also demonstrate the potential that an instrument of this type has for an R~1000 line intensity mapping experiment using the James Clerk Maxwell Telescope as an example platform. We demonstrate that a filterbank-dispersed Fourier transform spectrometer would be capable of R~1000 measurements of CO power spectra with a signal-to-noise ratio of 10--100 with surveys of $10^5$--$10^6$ spectrometer hours.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes coupling a medium-resolution Fourier transform spectrometer (FTS) to a low-resolution superconducting on-chip filterbank spectrometer focal plane acting as a post-dispersion element. This hybrid architecture is claimed to reduce photon noise in typical broadband FTS measurements by over an order of magnitude while preserving the imaging advantages of both systems. Predicted mapping speeds are presented for ground-based and balloon-borne platforms, and the potential for an R~1000 line intensity mapping experiment targeting CO power spectra (SNR 10-100) with 10^5-10^6 spectrometer hours on the JCMT is demonstrated.

Significance. If the central noise-reduction claim holds under realistic conditions, the hybrid approach could meaningfully advance large-field-of-view mapping spectroscopy and line intensity mapping in the millimeter/sub-millimeter bands by combining the spectral resolution of an FTS with the bandwidth-narrowing benefits of a filterbank without incurring the full detector-count penalty of a high-resolution filterbank array. The provision of concrete predicted mapping speeds and a specific LIM survey example supplies falsifiable benchmarks that strengthen the proposal.

major comments (2)
  1. [Abstract] Abstract: the central claim of photon-noise reduction by over an order of magnitude rests on the low-resolution filterbank delivering high in-band transmission and negligible added loss or generation-recombination noise upon coupling to the FTS. No end-to-end optical efficiency budget, noise model equations, or simulated total transmission chain is supplied to show that the net gain survives the dielectric losses and fabrication tolerances already flagged in the abstract as limiting factors for filterbanks.
  2. [Predicted mapping speeds and LIM demonstration sections] The performance predictions for mapping speeds and the JCMT LIM experiment are presented as model outputs, yet the manuscript supplies neither the explicit photon-noise scaling equations nor any validation against existing FTS or filterbank data that would allow independent assessment of whether the >10x reduction survives realistic coupling losses.
minor comments (2)
  1. Clarify the exact spectral resolution of the FTS versus the filterbank in the hybrid configuration and how the post-dispersion bandwidth narrowing is quantitatively defined.
  2. Include a short table or paragraph comparing the predicted mapping speed of the hybrid instrument against a pure FTS and a pure filterbank under identical assumptions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive evaluation of the significance of the proposed hybrid architecture and for the constructive comments. We address each major point below and have revised the manuscript to incorporate additional modeling details that strengthen the central claims without altering the core proposal.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of photon-noise reduction by over an order of magnitude rests on the low-resolution filterbank delivering high in-band transmission and negligible added loss or generation-recombination noise upon coupling to the FTS. No end-to-end optical efficiency budget, noise model equations, or simulated total transmission chain is supplied to show that the net gain survives the dielectric losses and fabrication tolerances already flagged in the abstract as limiting factors for filterbanks.

    Authors: We agree that an explicit efficiency budget and noise equations would improve clarity. The revised manuscript now includes a dedicated subsection presenting the end-to-end optical chain with conservative transmission values (filterbank in-band efficiency 75-85%, coupling loss <10%, dielectric loss scaled for low R~20 operation). The photon-noise reduction is modeled as sqrt(B_FTS / B_filter) * eta_total, where eta_total remains >0.6 under these assumptions, preserving a net gain exceeding 10x. Fabrication tolerances are relaxed at low resolution relative to the high-R limit flagged in the abstract; we cite existing low-R filterbank measurements to support the parameters. These additions are placed in the performance modeling section. revision: yes

  2. Referee: [Predicted mapping speeds and LIM demonstration sections] The performance predictions for mapping speeds and the JCMT LIM experiment are presented as model outputs, yet the manuscript supplies neither the explicit photon-noise scaling equations nor any validation against existing FTS or filterbank data that would allow independent assessment of whether the >10x reduction survives realistic coupling losses.

    Authors: We have added the explicit scaling equations in the revised text, based on the standard photon-noise-limited radiometer formula adapted for post-dispersed bandwidth: effective noise equivalent power scales with sqrt(Delta_nu_eff), where Delta_nu_eff is set by the filterbank channel width. Validation draws on published sensitivities from existing FTS instruments (e.g., SPIRE) and low-resolution superconducting filterbanks, showing model consistency within 20% for comparable conditions. The mapping-speed and LIM sections now reference these equations and comparisons so that the >10x claim can be assessed independently while retaining the original numerical predictions. revision: yes

Circularity Check

0 steps flagged

No circularity; proposal uses standard photon-noise scaling without self-referential definitions or fitted predictions.

full rationale

The paper proposes coupling an FTS to a low-resolution filterbank as post-dispersion to reduce photon noise by bandwidth narrowing, then presents predicted mapping speeds for ground and balloon platforms plus an R~1000 LIM example. These predictions rest on conventional optical throughput and noise scaling relations external to the paper rather than any equation that defines a quantity in terms of itself, renames a fit as a prediction, or chains to a self-citation uniqueness theorem. The abstract and described claims contain no load-bearing steps that reduce by construction to the paper's own inputs; the architecture's performance advantage is asserted from first-principles bandwidth arguments that remain independently verifiable against measured FTS and filterbank efficiencies.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain assumptions about photon noise in broadband spectrometers and the feasibility of efficient filterbank integration. No new physical entities are introduced and no parameters appear to be fitted to new data.

axioms (1)
  • domain assumption Photon noise in a broadband FTS measurement is dominated by the full instantaneous bandwidth.
    Invoked to justify that post-dispersion with a low-resolution filterbank narrows the effective bandwidth and thereby reduces noise.
