arxiv: 2510.19268 · v2 · submitted 2025-10-22 · 💻 cs.RO · cs.LG

Hierarchical DLO Routing with Reinforcement Learning and In-Context Vision-language Models

Pith reviewed 2026-05-18 05:18 UTC · model grok-4.3

classification 💻 cs.RO cs.LG
keywords deformable linear objectsvision-language modelsreinforcement learninghierarchical planningrobot manipulationcable routingfailure recoverylong-horizon tasks
0
0 comments X

The pith

A vision-language model plans multi-step cable routes that reinforcement learning policies execute at 92 percent success over long horizons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a hierarchical robot control system for routing deformable linear objects such as cables and ropes. Vision-language models interpret language goals to generate sequences of skills, which separately trained reinforcement learning policies then perform. A recovery step reorients the object when it reaches an unworkable state. This combination addresses the need for both high-level reasoning and reliable low-level execution in extended manipulation sequences. Readers should care because such tasks appear in assembly lines and everyday settings yet remain difficult for robots without per-task reprogramming.

Core claim

Given an implicit or explicit routing goal expressed in language, the framework leverages vision-language models for in-context high-level reasoning to synthesize feasible plans, which are then executed by low-level skills trained via reinforcement learning. A failure recovery mechanism reorients the DLO into insertion-feasible states. The approach generalizes to diverse scenes involving object attributes, spatial descriptions, implicit language commands, and extended 5-clip settings, achieving an overall success rate of 92 percent across long-horizon routing scenarios.

What carries the argument

The hierarchical framework that uses in-context vision-language models to synthesize multi-step skill sequences from language goals for execution by independently trained reinforcement learning policies.

Load-bearing premise

Vision-language models can reliably interpret implicit or explicit routing goals and produce feasible multi-step skill sequences that the independently trained reinforcement-learning policies can execute without compounding errors over long horizons.

What would settle it

A test in which the vision-language model outputs a plan that the reinforcement learning policies fail to complete in more than 30 percent of trials within a new 5-clip scene with unseen object attributes.

Figures

Figures reproduced from arXiv: 2510.19268 by Changhyun Choi, Hantao Ye, Houjian Yu, Mingen Li, Yixuan Huang, Youngjin Hong.

Figure 1
Figure 1. Figure 1: Hierarchical DLO routing framework. Our framework combines high-level planning via a VLM with in-context learning and low-level control via an RL policy. The VLM generates routing plans and handles failure recovery, while the RL policy executes precise manipulation. This framework enables recovery from insertion failures through reinitialization, generalizes from three-clip to multi-clip routing, and produ… view at source ↗
Figure 2
Figure 2. Figure 2: Pipeline of the proposed hierarchical DLO routing framework. The high-level VLM-based planner processes top-down scene images, task prompts, and auxiliary information to select appropriate skills, including routing (insertion and pulling) and failure recovery (flattening). Insertion is performed by a safe, low-level RL–based parameterized motion primitive for precise manipulation. A failure detection and r… view at source ↗
Figure 3

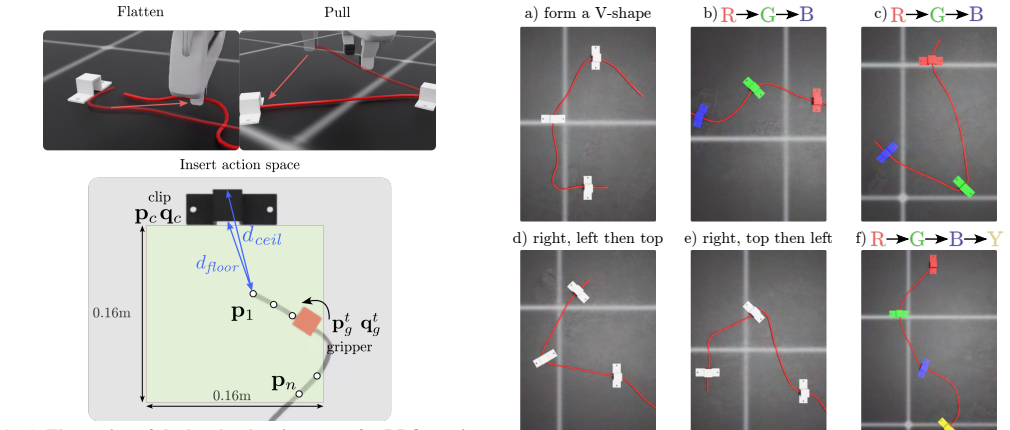

Figure 3. Figure 3: Illustration of the low-level action space for DLO routing skills. The primitive set includes Flatten (top left) and Pull actions (top right), and the Insert action (bottom). For insertion skill, the gripper (in orange) operates within a 0.16m × 0.16m space with orientation (p t g , q t g ) conditioned on the clip (in black) state (pc , qc ). The DLO is represented by particles {p1 , ..., pn }. The rdist i… view at source ↗
Figure 5
Figure 5. Figure 5: Real-robot execution of the proposed hierarchical DLO routing framework. The robot receives both a whole-scene view and a zoomed-in view centered on the current clip. During normal execution, it alternates between insertion and pulling actions. When insertion becomes unlikely due to unfavorable DLO configurations (e.g., alignment along the clip’s long axis or sliding past the clip without entering), the sy… view at source ↗
Figure 6
Figure 6. Figure 6: Representative failure cases observed in simulation and real-world experiments: (a) early episode termination before completing last-clip insertion, (b) unintended collision when falsely flattening after an insertion, and (c) suboptimal redundant insertion where the VLM should choose pull for a more effective plan. based on the motion primitives predicted by our model or predefined motion skills. The overa… view at source ↗
read the original abstract

Long-horizon routing tasks of deformable linear objects (DLOs), such as cables and ropes, are common in industrial assembly lines and everyday life. These tasks are particularly challenging because they require robots to manipulate DLO with long-horizon planning and reliable skill execution. Successfully completing such tasks demands adapting to their nonlinear dynamics, decomposing abstract routing goals, and generating multi-step plans composed of multiple skills, all of which require accurate high-level reasoning during execution. In this paper, we propose a fully autonomous hierarchical framework for solving challenging DLO routing tasks. Given an implicit or explicit routing goal expressed in language, our framework leverages vision-language models~(VLMs) for in-context high-level reasoning to synthesize feasible plans, which are then executed by low-level skills trained via reinforcement learning. To improve robustness over long horizons, we further introduce a failure recovery mechanism that reorients the DLO into insertion-feasible states. Our approach generalizes to diverse scenes involving object attributes, spatial descriptions, implicit language commands, and \myred{extended 5-clip settings}. It achieves an overall success rate of 92\% across long-horizon routing scenarios. Please refer to our project page: https://icra2026-dloroute.github.io/DLORoute/

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a hierarchical framework for long-horizon deformable linear object (DLO) routing tasks. Vision-language models perform in-context reasoning to decompose implicit or explicit language goals into multi-step plans; these plans are executed by independently trained reinforcement-learning low-level skills. A failure-recovery mechanism reorients the DLO to insertion-feasible states to mitigate compounding errors. The authors claim generalization across scenes with varying object attributes, spatial descriptions, implicit commands, and extended 5-clip settings, reporting an overall 92% success rate.

Significance. If the empirical claims are substantiated with adequate trial counts, baselines, and ablations, the work would offer a practical advance in combining high-level VLM reasoning with low-level RL control for deformable-object manipulation. The explicit failure-recovery component is a constructive addition for long-horizon robustness. The approach addresses real industrial and domestic scenarios involving cables and ropes.

major comments (2)
  1. [Abstract and §4 (Experiments)] Abstract and experimental evaluation section: the 92% success rate is stated without any report of trial counts, success criteria, baseline comparisons, or statistical variability. This omission directly prevents assessment of the central generalization claim to implicit commands and extended 5-clip settings.
  2. [§3 (Hierarchical Framework) and §4 (Experiments)] Method and results sections: no ablation isolates VLM-generated plan feasibility from RL execution success. Given the nonlinear dynamics of DLOs, even modest mismatches between VLM-synthesized sequences and the RL policy training distribution can produce repeated failures; the failure-recovery mechanism reorients to insertion-feasible states but does not ensure subsequent VLM steps remain executable, leaving the integration point unverified.
minor comments (2)
  1. [Abstract and §2 (Problem Statement)] Clarify the precise definition and composition of a '5-clip setting' when first introduced, including how many routing operations and state resets are involved.
  2. The project page is referenced; ensure that all quantitative results, including per-scenario breakdowns and failure modes, appear in the main manuscript rather than only on the website.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments on our manuscript. We address each major comment in detail below and have prepared revisions to strengthen the experimental reporting and analysis.

read point-by-point responses
  1. Referee: [Abstract and §4 (Experiments)] Abstract and experimental evaluation section: the 92% success rate is stated without any report of trial counts, success criteria, baseline comparisons, or statistical variability. This omission directly prevents assessment of the central generalization claim to implicit commands and extended 5-clip settings.

    Authors: We agree that the current presentation of the 92% success rate lacks sufficient supporting details for rigorous evaluation. In the revised manuscript we will expand both the abstract and Section 4 to report the exact trial counts (50 independent trials per scene and language variant), the precise success criteria (full sequence completion with endpoint error below 5 cm and no DLO self-intersection or excessive slack), direct comparisons against baselines including end-to-end VLM policies and non-hierarchical RL, and statistical variability (mean success rate with standard error across all tested configurations). These additions will directly support the generalization claims for implicit commands and the extended 5-clip settings. revision: yes

  2. Referee: [§3 (Hierarchical Framework) and §4 (Experiments)] Method and results sections: no ablation isolates VLM-generated plan feasibility from RL execution success. Given the nonlinear dynamics of DLOs, even modest mismatches between VLM-synthesized sequences and the RL policy training distribution can produce repeated failures; the failure-recovery mechanism reorients to insertion-feasible states but does not ensure subsequent VLM steps remain executable, leaving the integration point unverified.

    Authors: We acknowledge that an explicit ablation separating VLM plan quality from RL execution success would strengthen the analysis of the integration point. While our current results demonstrate end-to-end performance of the full hierarchical system, we will add a new ablation study in the revised Section 4. This study will compare the complete framework against an oracle-plan variant in which VLM-generated steps are replaced by ground-truth feasible sequences drawn from the RL training distribution. We will also provide a failure-mode analysis showing how the recovery mechanism restores insertion-feasible states and thereby preserves executability for subsequent VLM steps. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical integration of VLM planning and RL skills

full rationale

The paper describes a hierarchical system that uses VLMs for high-level plan synthesis from language goals and independently trained RL policies for low-level skill execution, with an added failure-recovery mechanism. All claims rest on reported experimental success rates (92% overall) across varied scenes and 5-clip settings rather than any derivation, equation, or fitted parameter. No self-citation chains, ansatzes, or uniqueness theorems are invoked to justify the architecture; the result is presented as an empirical outcome of the combined system. The derivation chain is therefore self-contained against external benchmarks and contains no load-bearing step that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The abstract does not introduce or quantify any free parameters, mathematical axioms, or new physical entities; the framework is described at the level of standard VLM and RL components.

invented entities (1)
  • failure recovery mechanism no independent evidence
    purpose: Reorients the DLO into insertion-feasible states to improve long-horizon robustness
    Introduced in the abstract to handle accumulated errors during extended routing sequences.
